Hyde South - The Twins Details
| Property | Value |
|---|---|
| Rupture Count | 472 |
| Ruptures Above Sect Min Mag | 472 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.99, 7.93] |
| Length Range | [21, 223] km |
| Total Rate | 1.7009894E-4 /yr |
| Multi-Fault Rate | 1.7009894E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

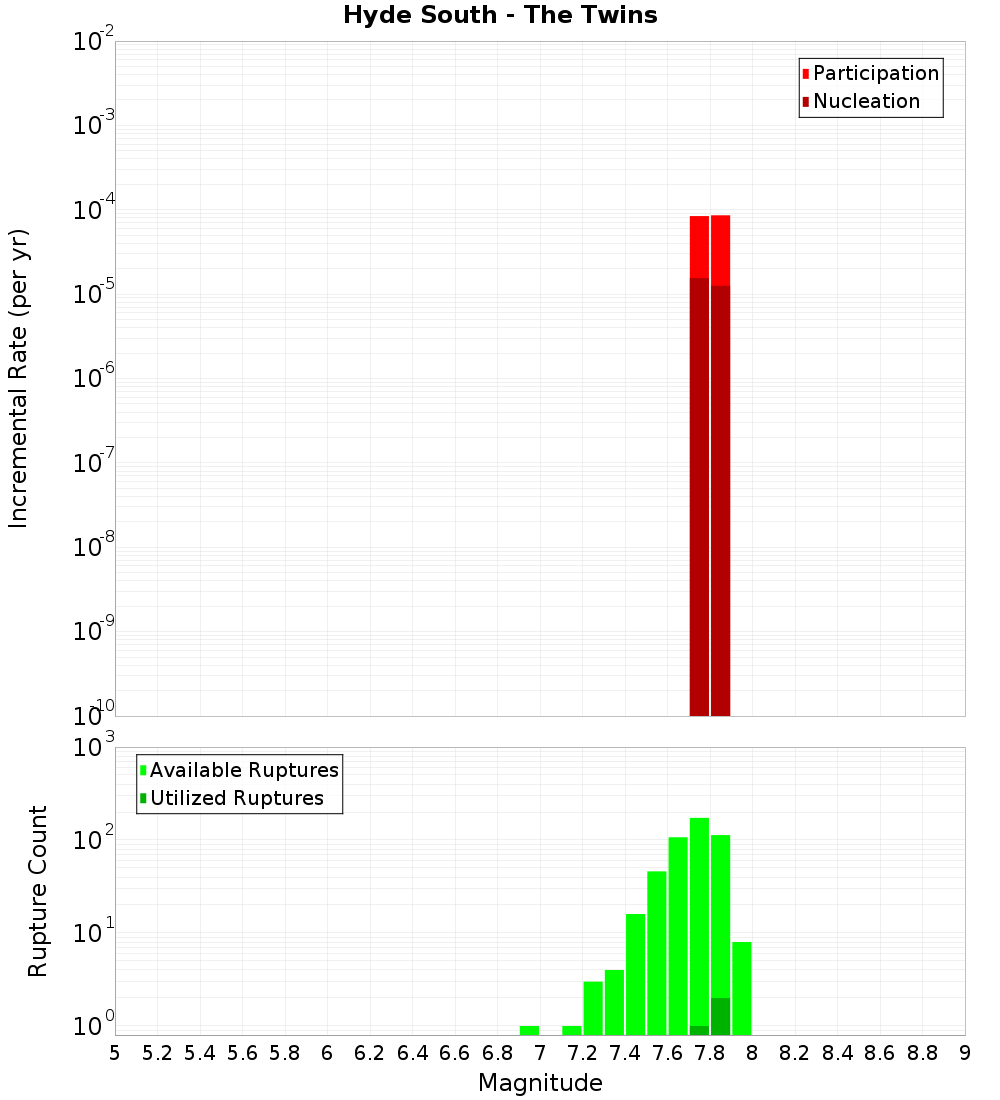

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Beaumont River, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 54 |
| Co-rupture Rate | 0.0 |
Hyde North, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.33 km |
| Min Rate-Weighted Dist | 0.33 km |
| Co-rupture Count | 188 |
| Co-rupture Rate | 8.596256E-5 |
Logan Burn, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.35 km |
| Co-rupture Count | 48 |
| Co-rupture Rate | 2.6125734E-5 |
Little Valley, 1.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.41 km |
| Co-rupture Count | 198 |
| Co-rupture Rate | 0.0 |
Pylap, 4.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.96 km |
| Min Rate-Weighted Dist | 4.96 km |
| Co-rupture Count | 62 |
| Co-rupture Rate | 8.413637E-5 |
Backbone, 5.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 64 |
| Co-rupture Rate | 0.0 |
Long Valley, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.35 km |
| Co-rupture Count | 121 |
| Co-rupture Rate | 0.0 |
Maungatua - North Taieri, 9.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Onslow, 10.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Galloway, 12.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Waitahuna 1, 12.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nichols Rock, 12.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Blue Mountain, 12.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.86 km |
| Min Rate-Weighted Dist | 12.86 km |
| Co-rupture Count | 319 |
| Co-rupture Rate | 8.596256E-5 |
Tuapeka, 14.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitahuna 2, 18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Spylaw, 19.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
