Kekerengu Bank Details
| Property | Value |
|---|---|
| Rupture Count | 6,330 |
| Ruptures Above Sect Min Mag | 6,304 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.53, 8.13] |
| Length Range | [16, 629] km |
| Total Rate | 5.6459405E-4 /yr |
| Multi-Fault Rate | 5.6459405E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 44 |
Table Of Contents

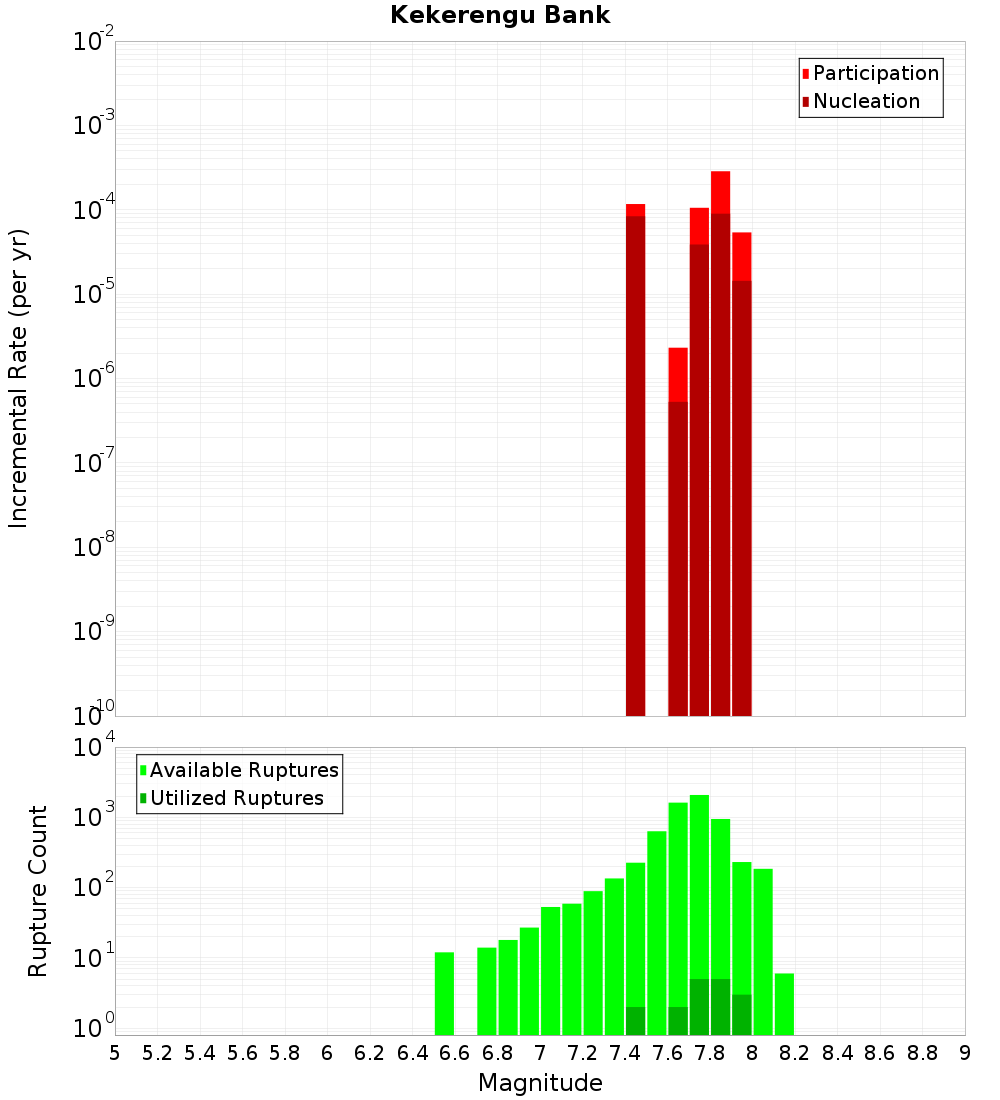

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

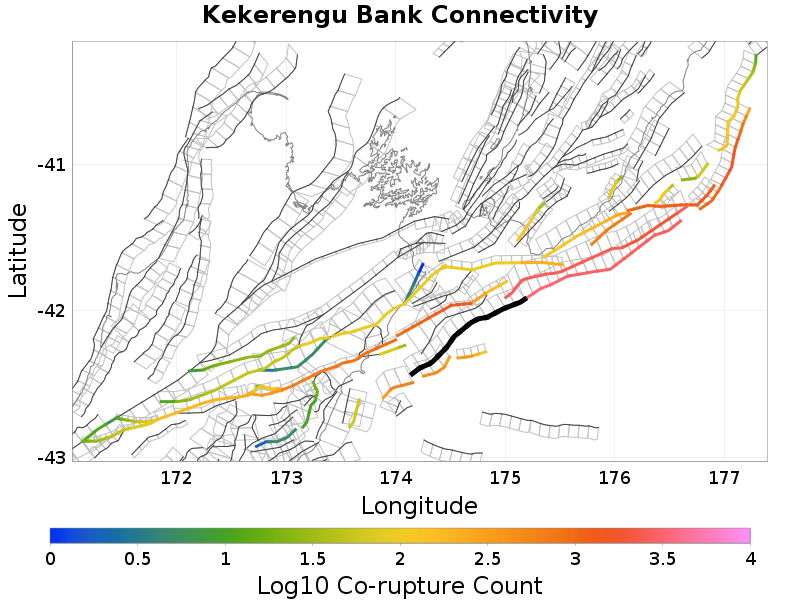

Connectivity
 |  |
|---|
Nearby Sections
Pahaua, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 3,554 |
| Co-rupture Rate | 4.625101E-4 |
Te Rapa 1, 3.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.66 km |
| Min Rate-Weighted Dist | 4 km |
| Co-rupture Count | 1,507 |
| Co-rupture Rate | 2.3180075E-6 |
Marlborough Slope 2, 4.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.43 km |
| Min Rate-Weighted Dist | 4.43 km |
| Co-rupture Count | 646 |
| Co-rupture Rate | 2.5060106E-4 |
Marlborough Slope 4, 4.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.71 km |
| Min Rate-Weighted Dist | 4.71 km |
| Co-rupture Count | 485 |
| Co-rupture Rate | 1.2685804E-4 |
Opouawe - Uruti, 5.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.24 km |
| Min Rate-Weighted Dist | 5.24 km |
| Co-rupture Count | 3,940 |
| Co-rupture Rate | 8.384443E-5 |
Te Rapa 2, 5.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.36 km |
| Co-rupture Count | 296 |
| Co-rupture Rate | 0.0 |
Upper Slope, 5.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaikoura - Mangamaunu, 8.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 68 |
| Co-rupture Rate | 1.3772227E-5 |
Campbell Bank, 9.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Te Rapa, 9.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.62 km |
| Co-rupture Count | 1,351 |
| Co-rupture Rate | 2.3180075E-6 |
Marlborough Slope 3, 10.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.31 km |
| Co-rupture Count | 360 |
| Co-rupture Rate | 7.514828E-5 |
Chancet, 16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wharanui, 17.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Seaward, 17.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 887 |
| Co-rupture Rate | 2.3180075E-6 |
