Kelly Details

PropertyValue
Rupture Count118,326
Ruptures Above Sect Min Mag118,241
Ruptures w/ Nonzero Rates40
Magnitude Range[6.03, 8.44]
Length Range[9, 1,156] km
Total Rate0.0029327786 /yr
Multi-Fault Rate0.0029327786 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults103

Table Of Contents

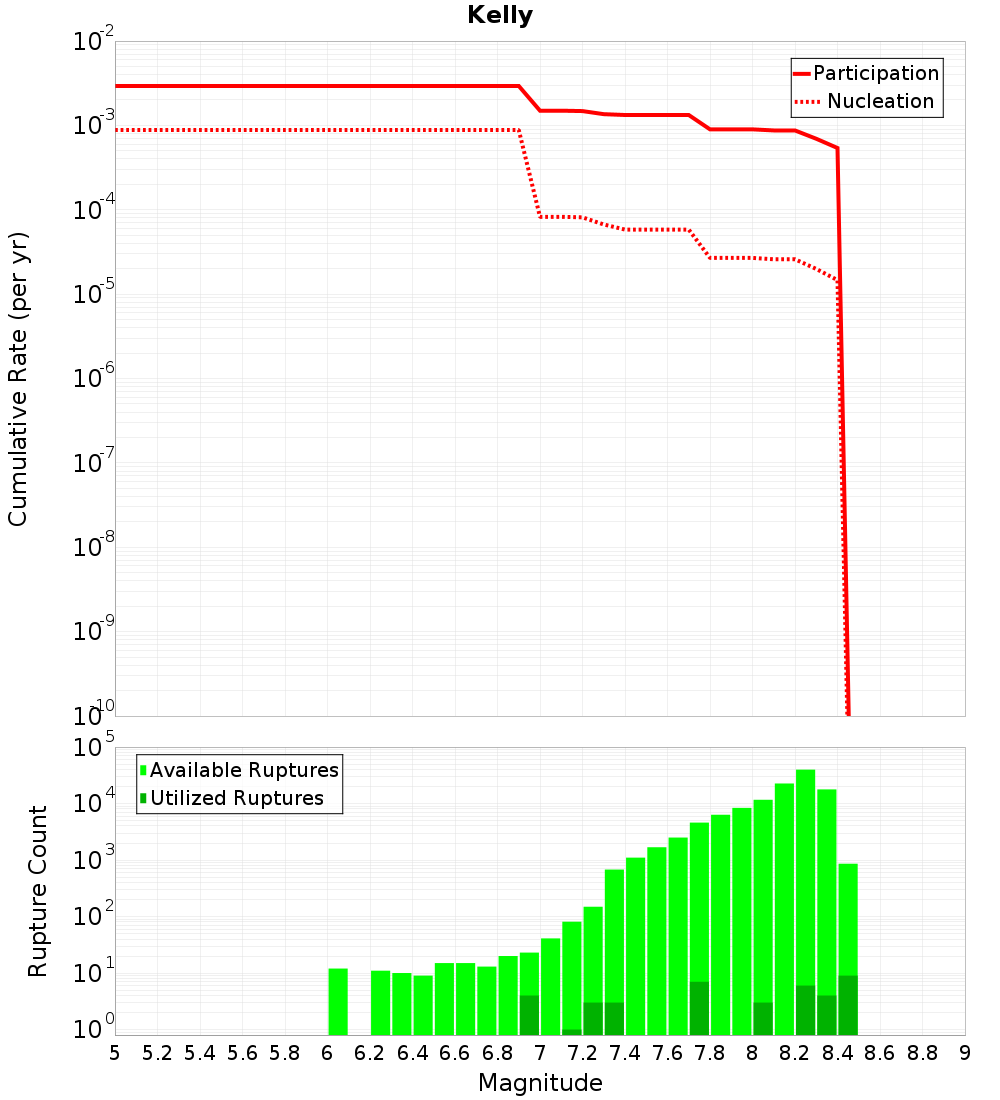

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

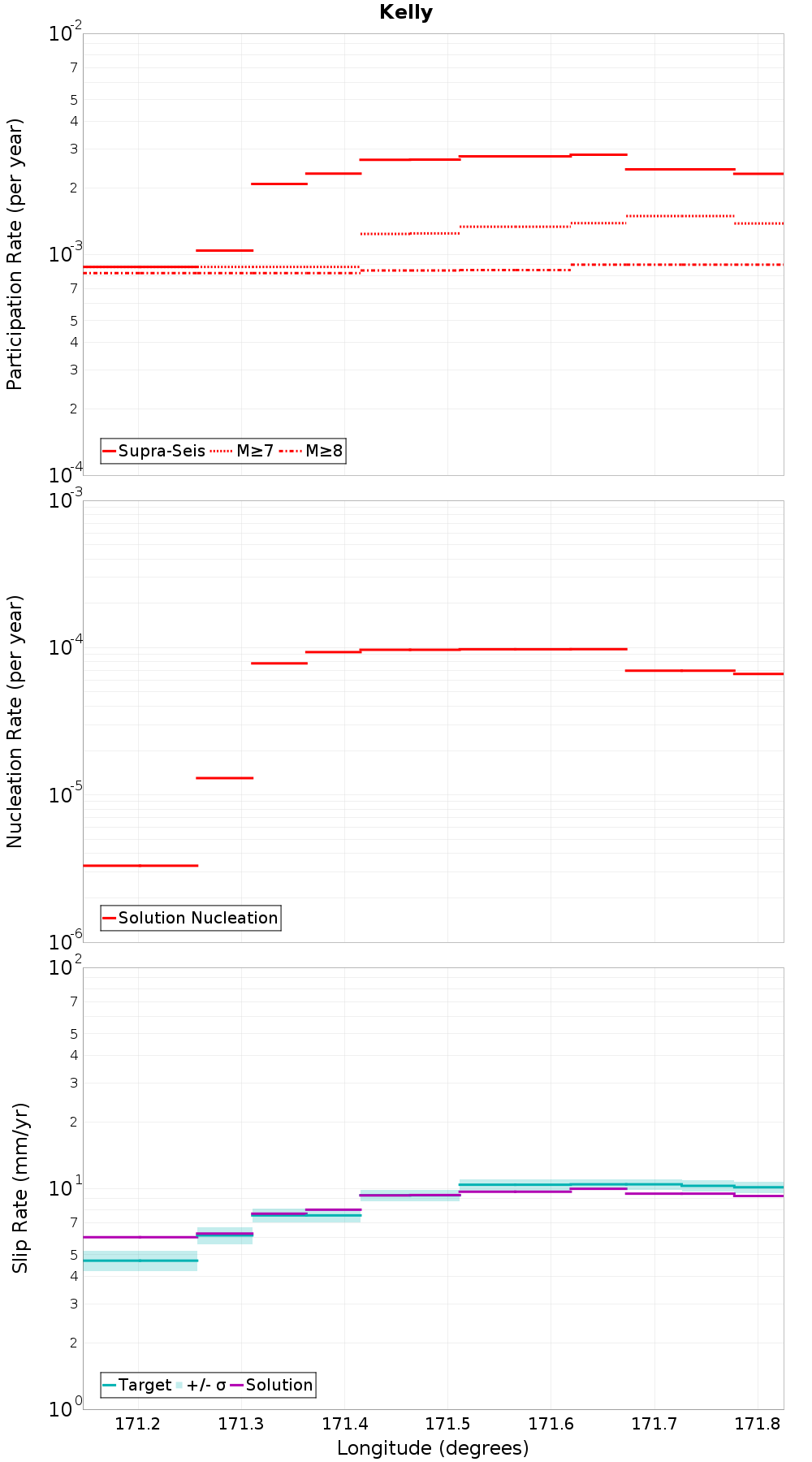

Along-Strike Values

(top)

Along-strike plot

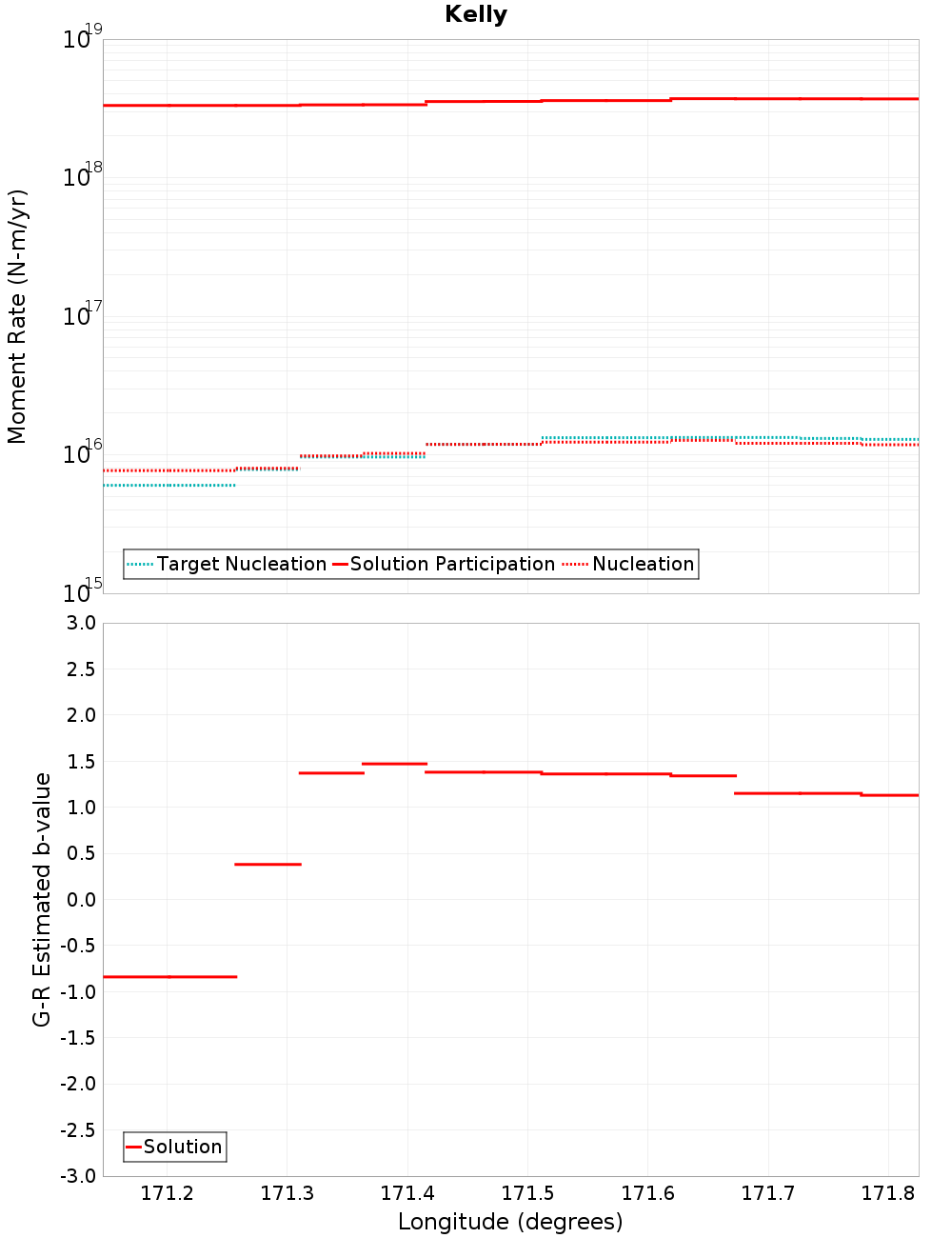

Moment-Rates and b-Values

(top)

Along-strike plot

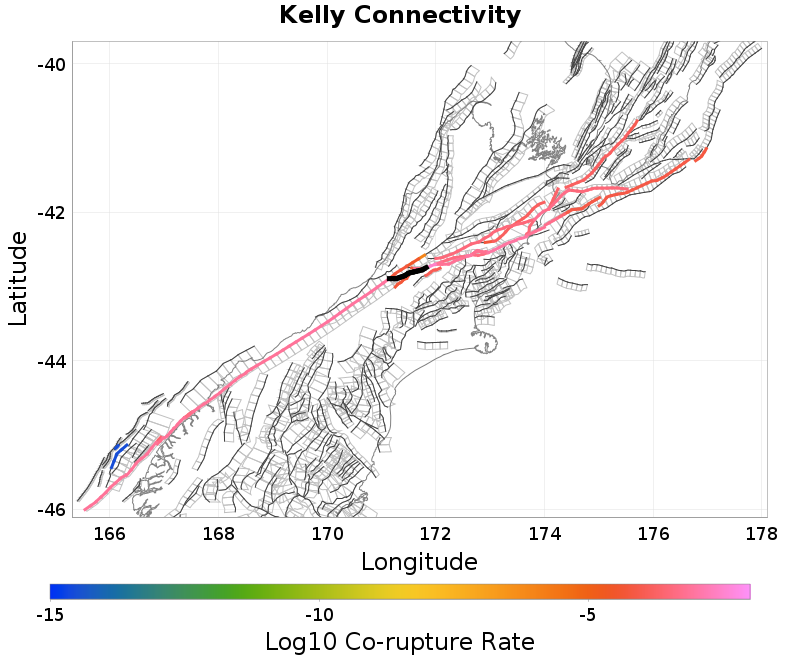

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.05 km away
Hohonu: South, 0.17 km away
Poulter, 9.51 km away
Clarence: Southwest, 13.21 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away
Cape Foulwind 1, 16.69 km away
Maimai: South, 17.54 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count103,505
Co-rupture Rate8.7071524E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count110,441
Co-rupture Rate0.0028210322

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.06 km
Min Rate-Weighted Dist3.1 km
Co-rupture Count13,877
Co-rupture Rate5.595641E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count2,168
Co-rupture Rate5.489041E-5

Browning Pass, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.08 km
Co-rupture Count5,369
Co-rupture Rate4.9277638E-5

Hohonu: South, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.17 km
Co-rupture Count2,287
Co-rupture Rate0.0

Poulter, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.51 km
Min Rate-Weighted Dist9.85 km
Co-rupture Count391
Co-rupture Rate1.1093553E-4

Clarence: Southwest, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count8,987
Co-rupture Rate3.193958E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count42,555
Co-rupture Rate6.9815223E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count73,078
Co-rupture Rate6.9064484E-4

Cape Foulwind 1, 16.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 17.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
