Kerepehi Elstow Details
| Property | Value |
|---|---|
| Rupture Count | 59 |
| Ruptures Above Sect Min Mag | 58 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.41, 7.46] |
| Length Range | [10, 114] km |
| Total Rate | 1.9567194E-4 /yr |
| Multi-Fault Rate | 1.9567194E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

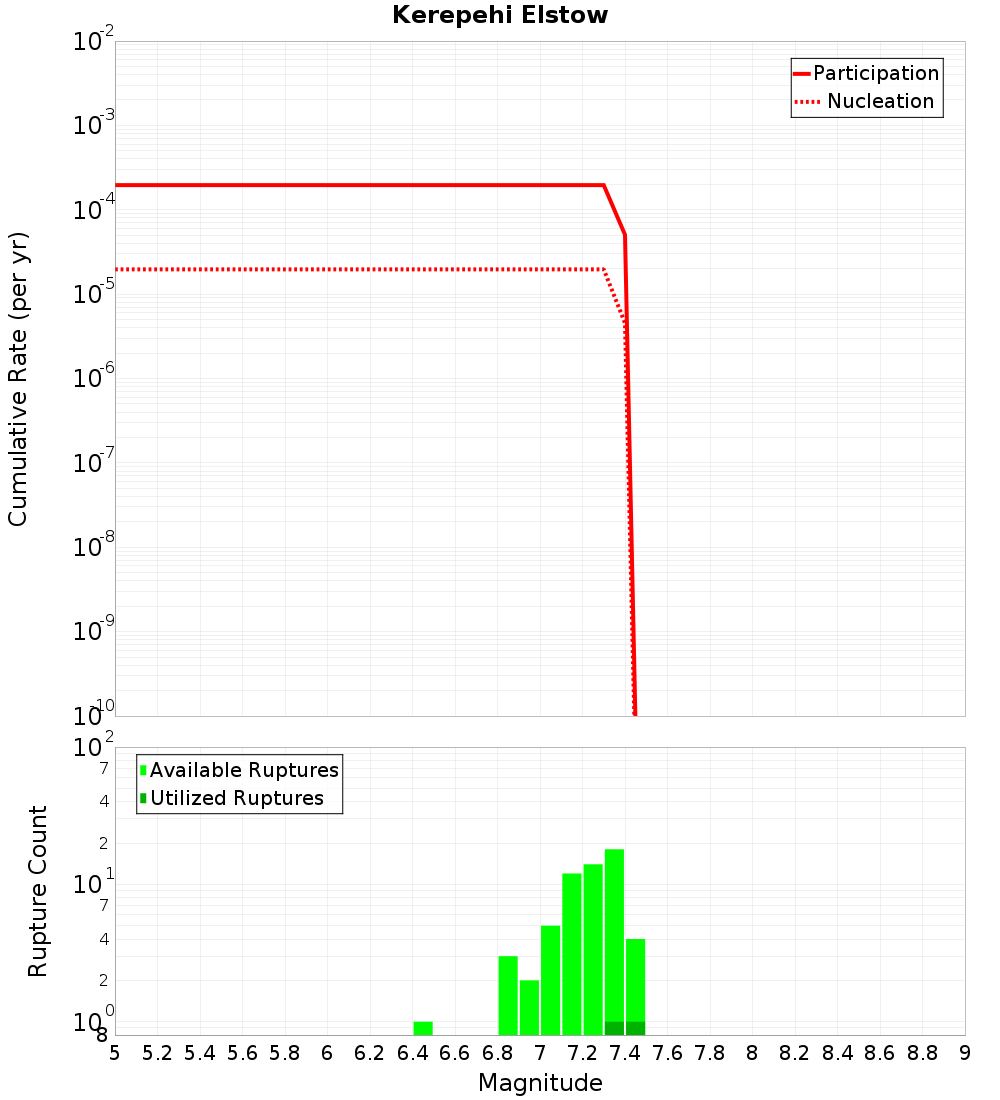

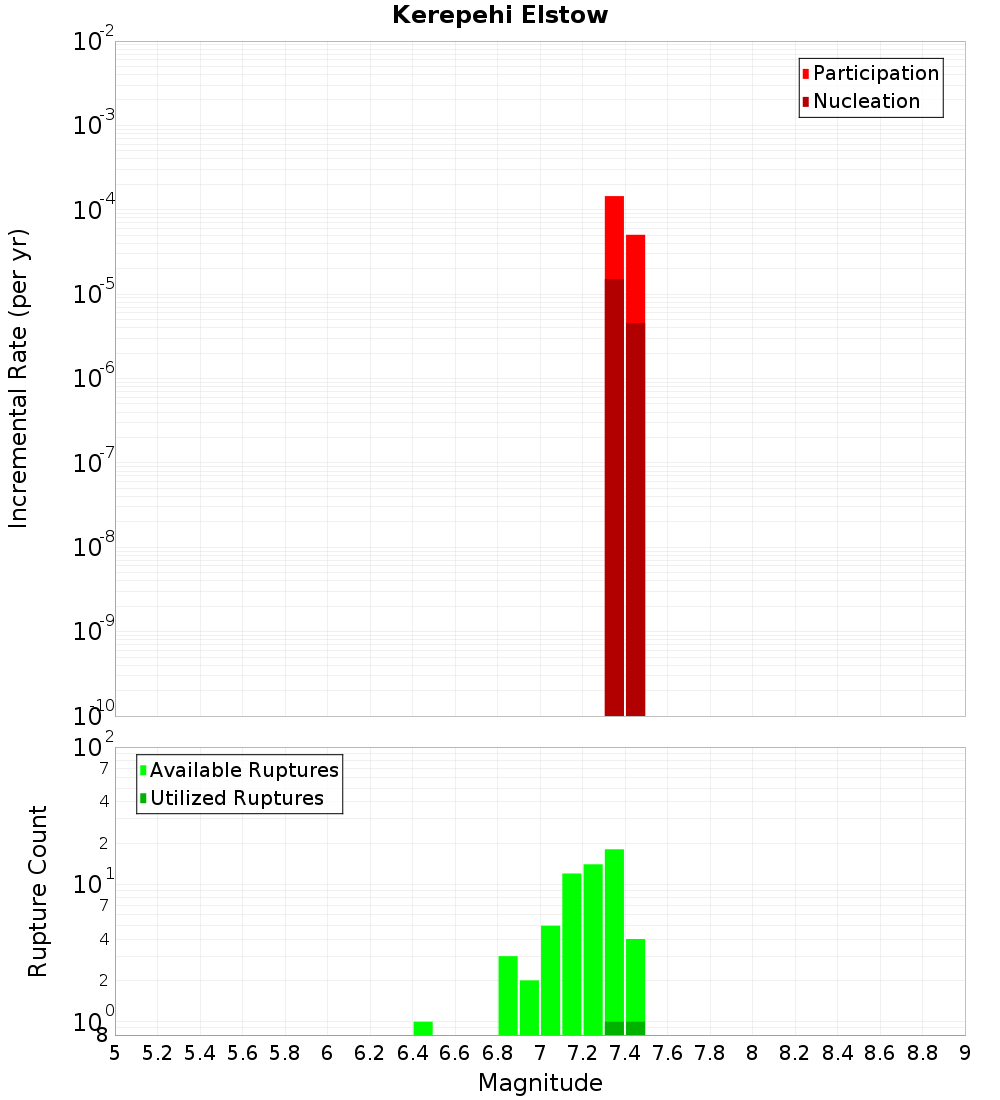

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

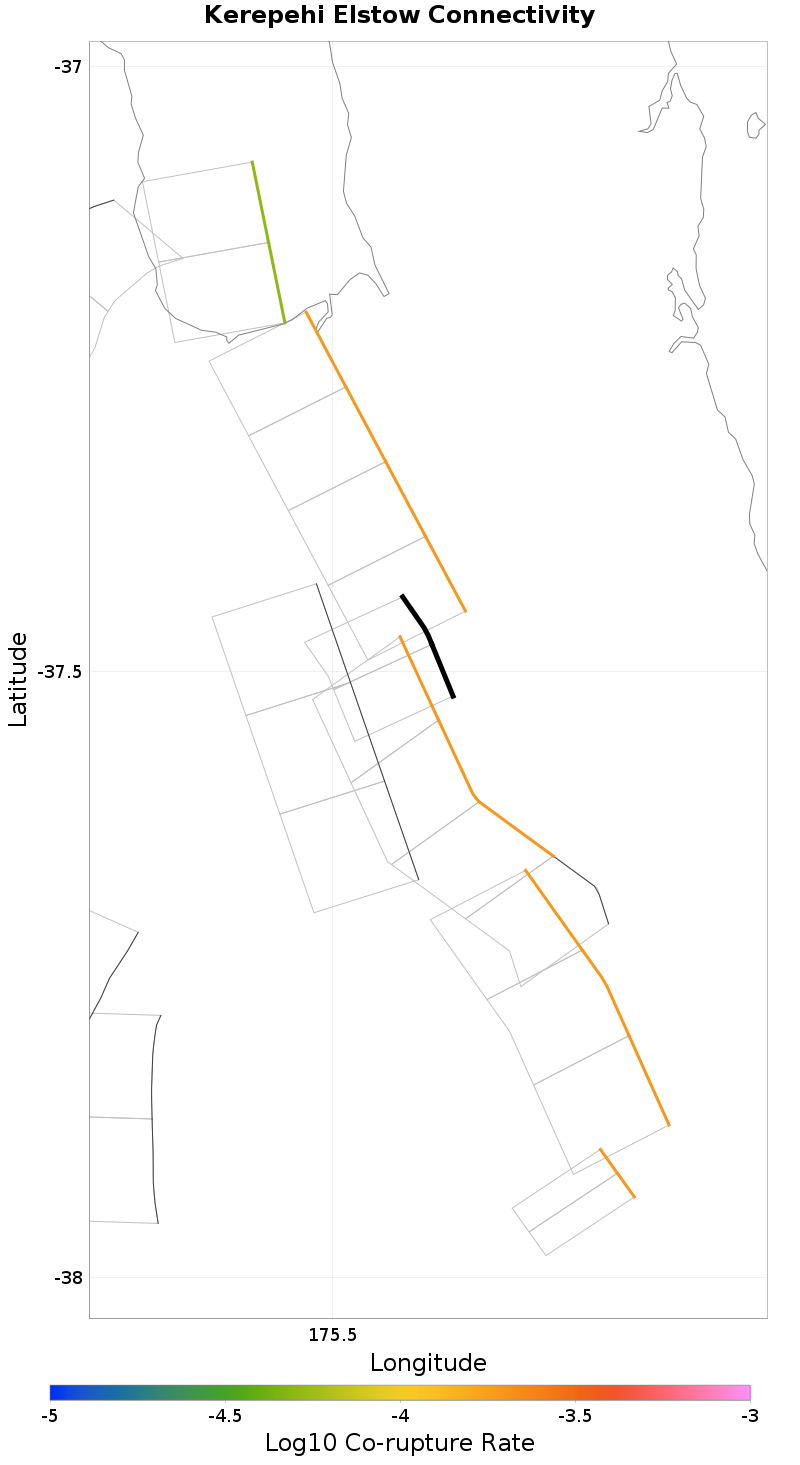

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kerepehi Waitoa, 1.73 km away |
| Kerepehi Awaiti, 3.52 km away |
| Te Puninga, 6.17 km away |
| Kerepehi Te Poi, 17.33 km away |
Kerepehi Waitoa, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.73 km |
| Min Rate-Weighted Dist | 1.73 km |
| Co-rupture Count | 49 |
| Co-rupture Rate | 1.9567194E-4 |
Kerepehi Awaiti, 3.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.52 km |
| Min Rate-Weighted Dist | 3.52 km |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.9567194E-4 |
Te Puninga, 6.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.14 km |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
Kerepehi Te Poi, 17.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 1.9567194E-4 |
