Kongahau Details
| Property | Value |
|---|---|
| Rupture Count | 467 |
| Ruptures Above Sect Min Mag | 461 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.83, 7.96] |
| Length Range | [23, 329] km |
| Total Rate | 6.2409986E-4 /yr |
| Multi-Fault Rate | 6.2409986E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

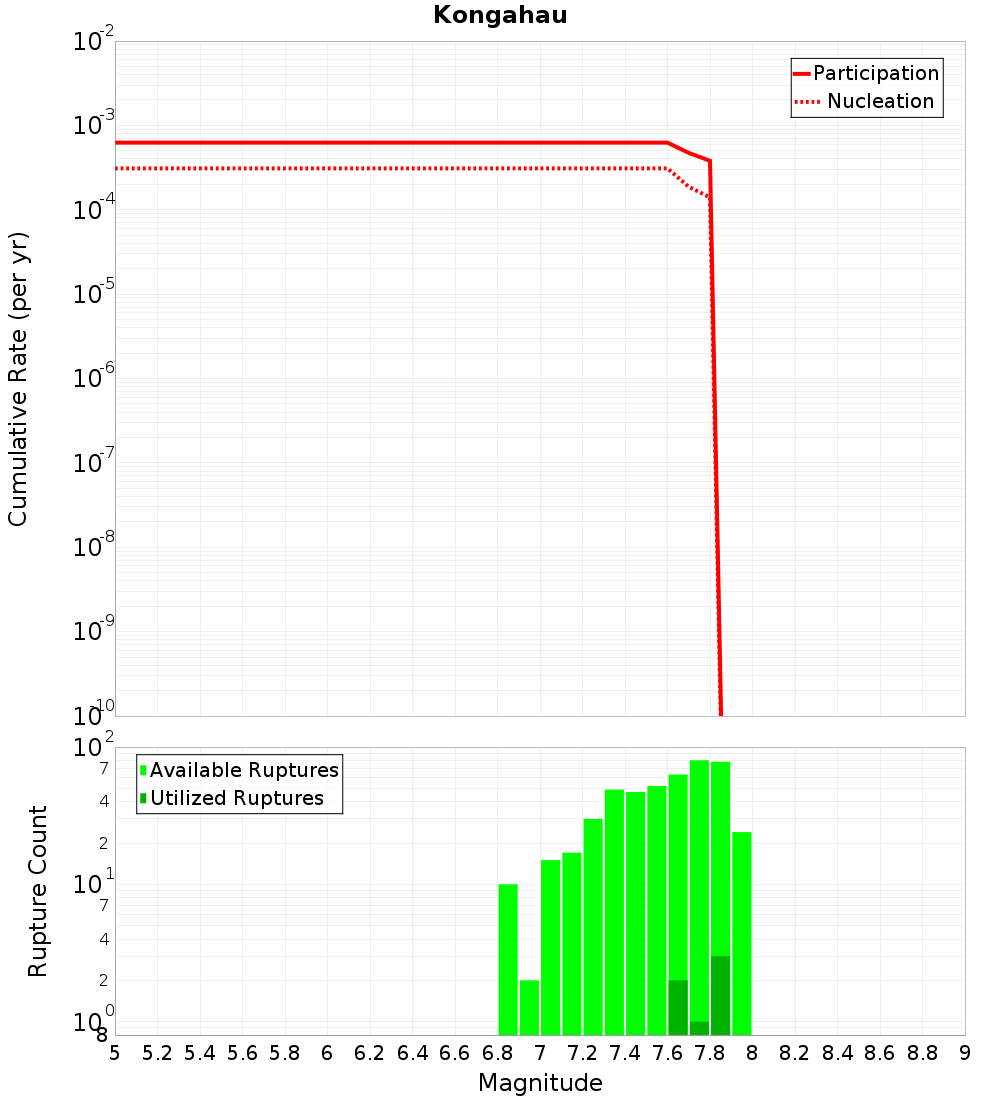

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

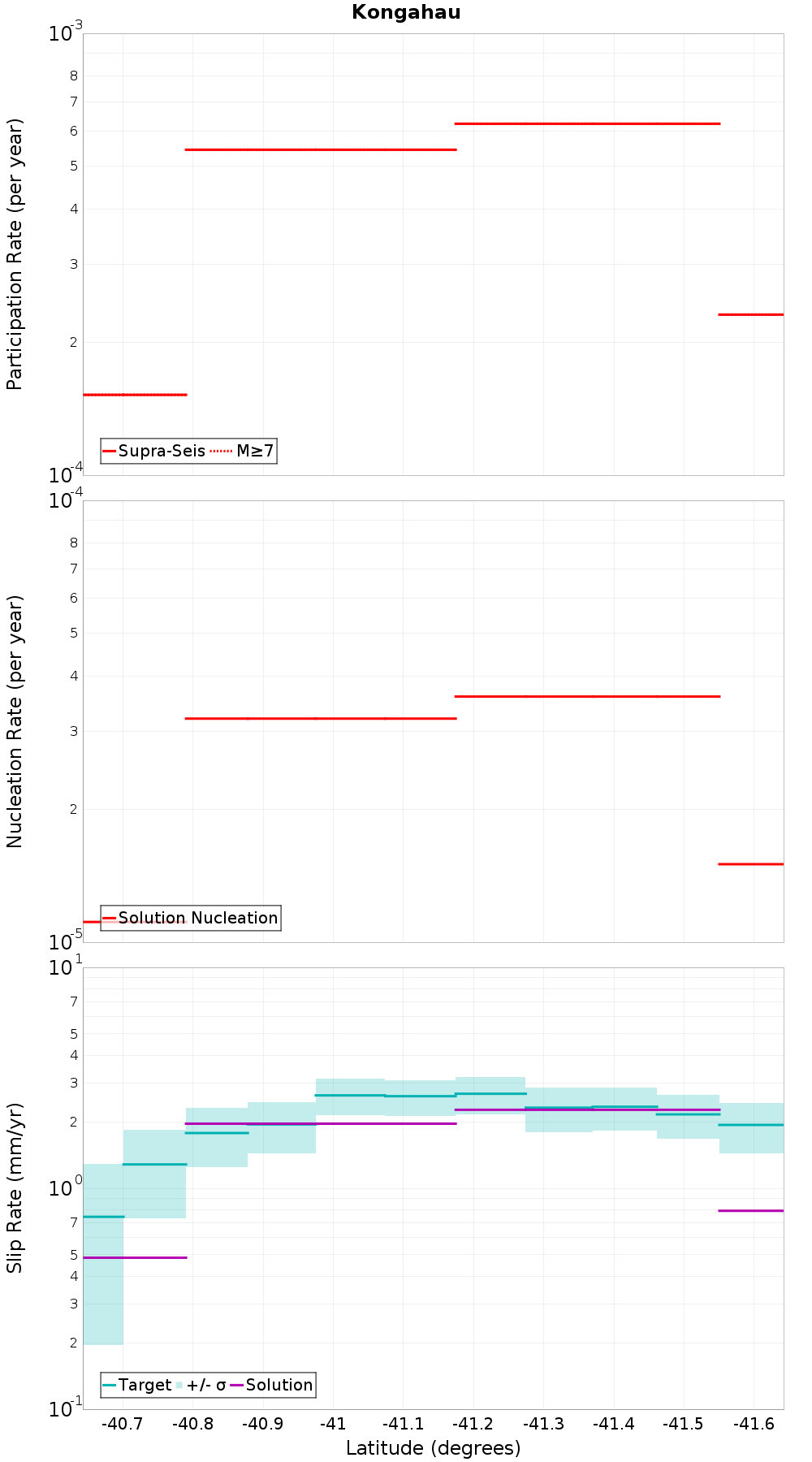

Along-Strike Values

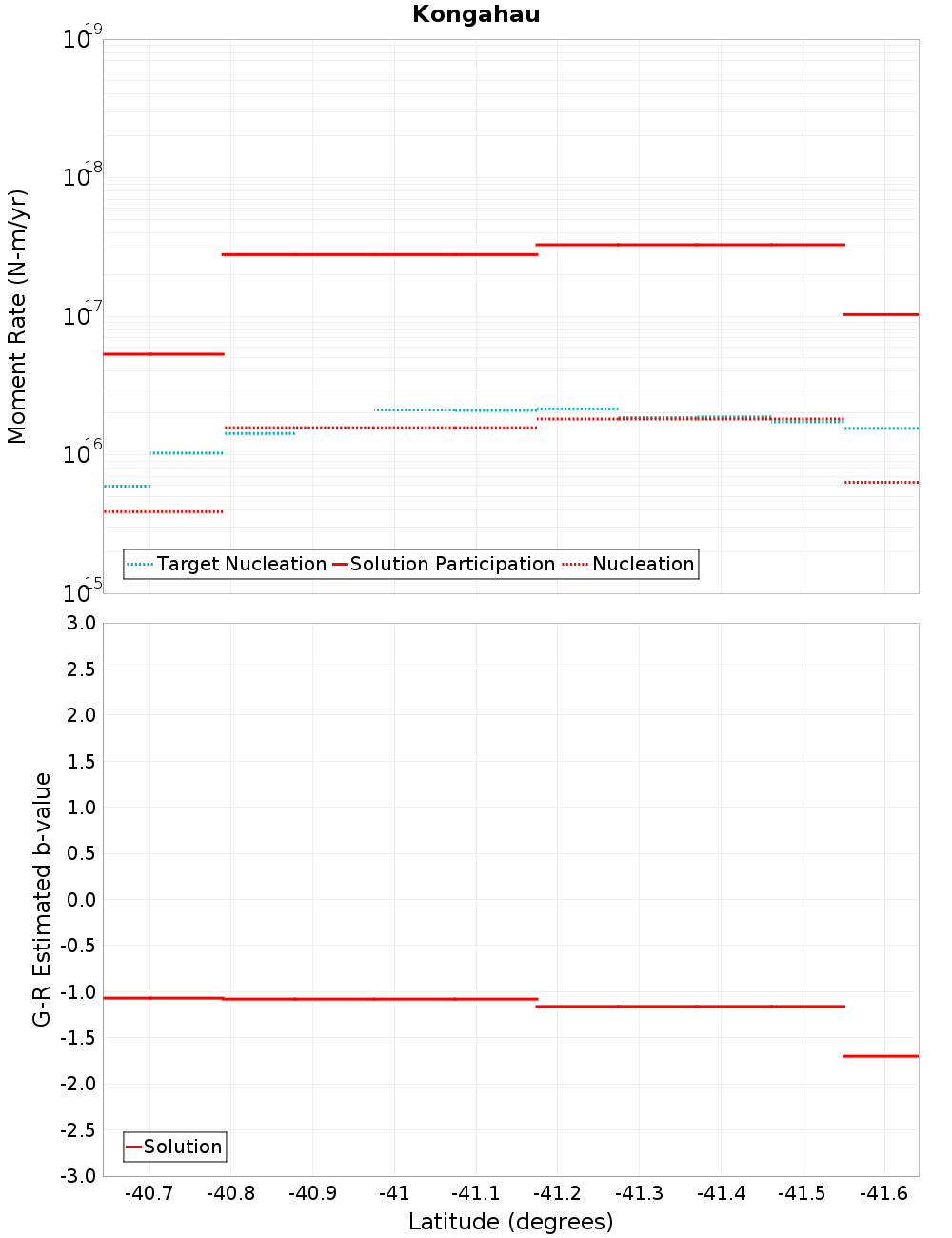

Moment-Rates and b-Values

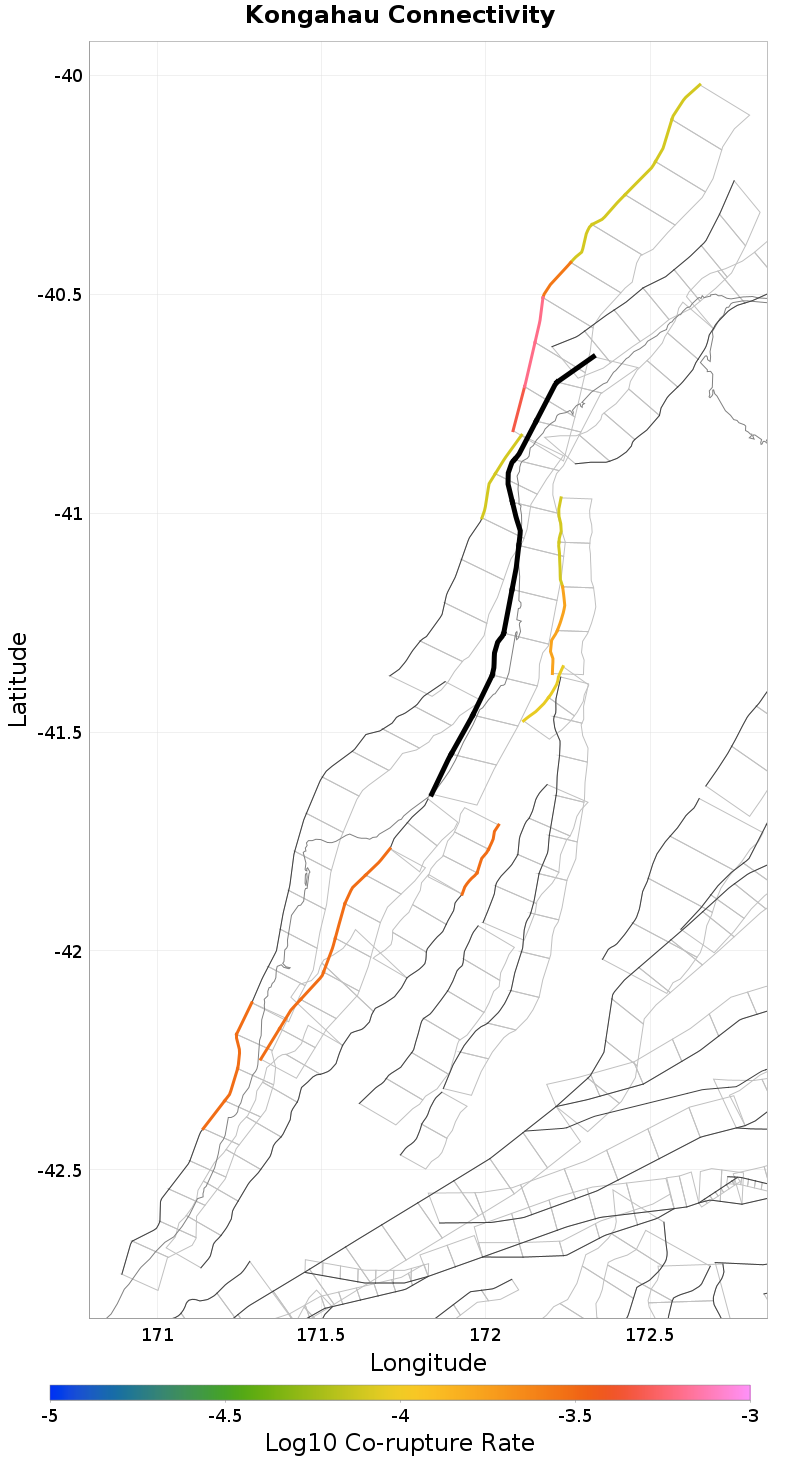

Connectivity
 |  |
|---|
Nearby Sections
Wakamarama, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Kahurangi, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Min Rate-Weighted Dist | 0.62 km |
| Co-rupture Count | 277 |
| Co-rupture Rate | 6.2409986E-4 |
Cape Foulwind 4, 1.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.22 km |
| Co-rupture Count | 21 |
| Co-rupture Rate | 7.891184E-5 |
Inangahua, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 12.68 km |
| Co-rupture Count | 218 |
| Co-rupture Rate | 3.0129403E-4 |
Paparoa West: North, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Farewell, 3.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.68 km |
| Co-rupture Count | 16 |
| Co-rupture Rate | 0.0 |
Kohaihai, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.51 km |
| Min Rate-Weighted Dist | 7.42 km |
| Co-rupture Count | 41 |
| Co-rupture Rate | 1.7086983E-4 |
Kohaihai South, 7.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.55 km |
| Min Rate-Weighted Dist | 7.55 km |
| Co-rupture Count | 34 |
| Co-rupture Rate | 9.195799E-5 |
Cape Foulwind 2, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Creek, 11.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West, 17.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 185 |
| Co-rupture Rate | 3.0129403E-4 |
