Matata Details
| Property | Value |
|---|---|
| Rupture Count | 10,041 |
| Ruptures Above Sect Min Mag | 9,832 |
| Ruptures w/ Nonzero Rates | 30 |
| Magnitude Range | [5.57, 8.12] |
| Length Range | [5, 491] km |
| Total Rate | 0.0017153734 /yr |
| Multi-Fault Rate | 0.0017153734 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 74 |
Table Of Contents

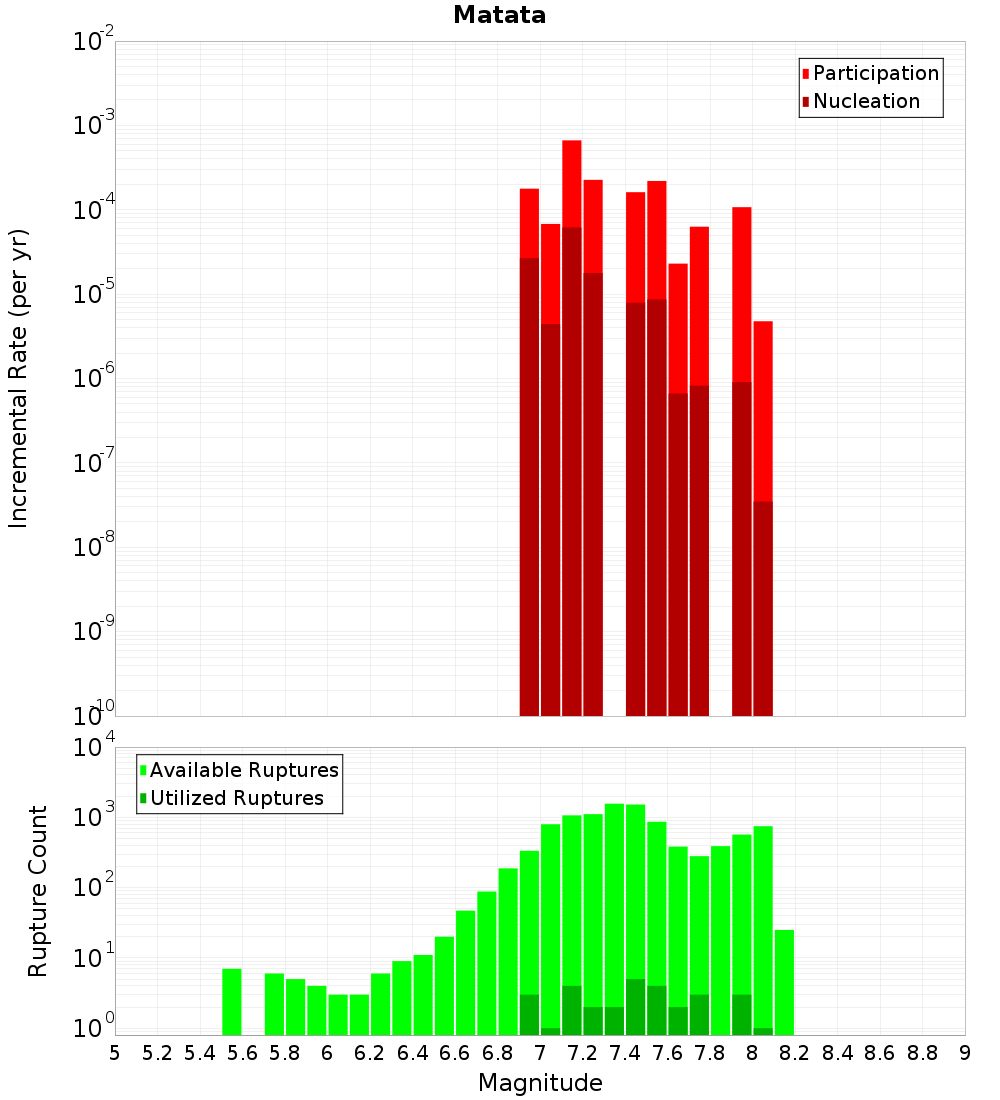

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

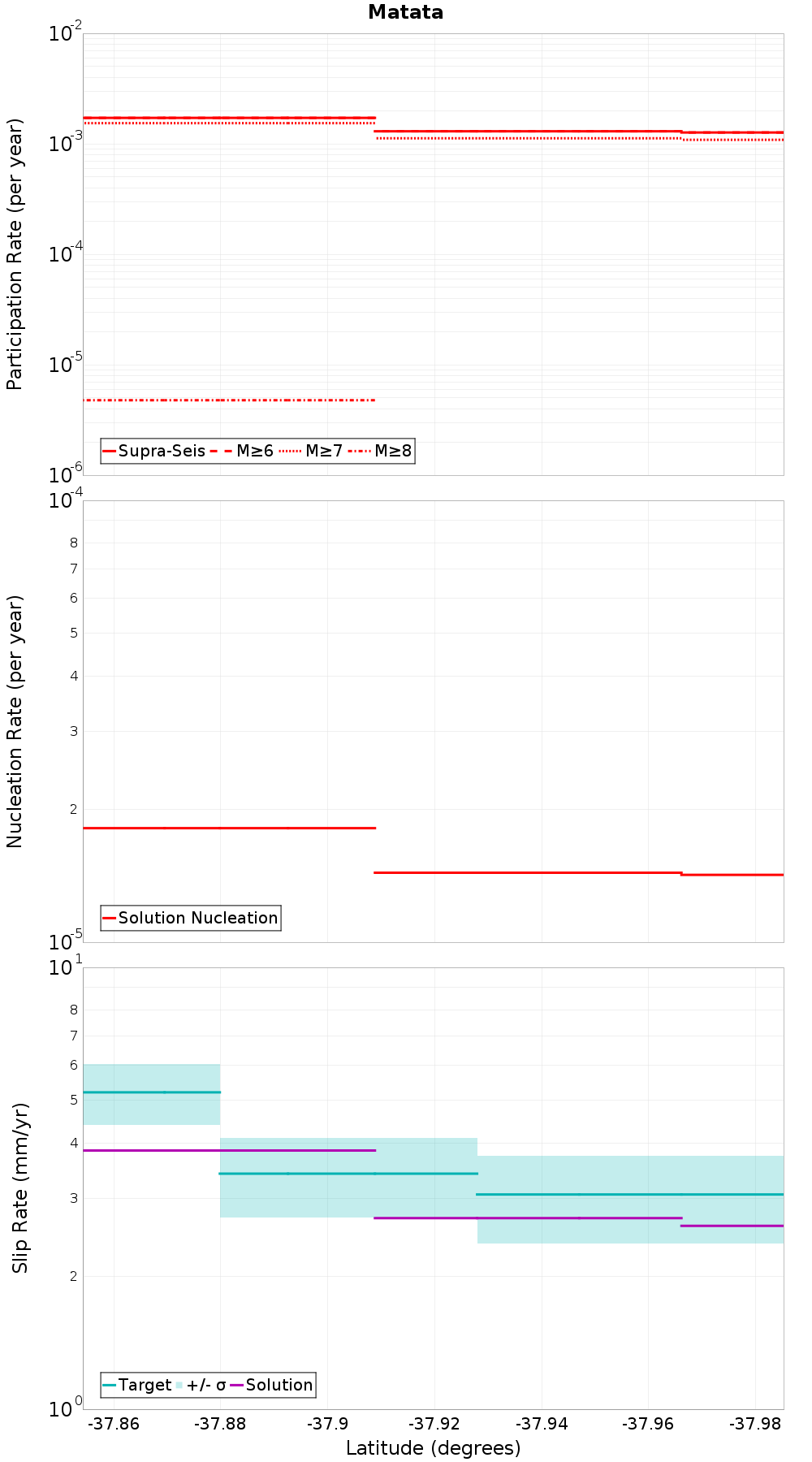

Along-Strike Values
Moment-Rates and b-Values

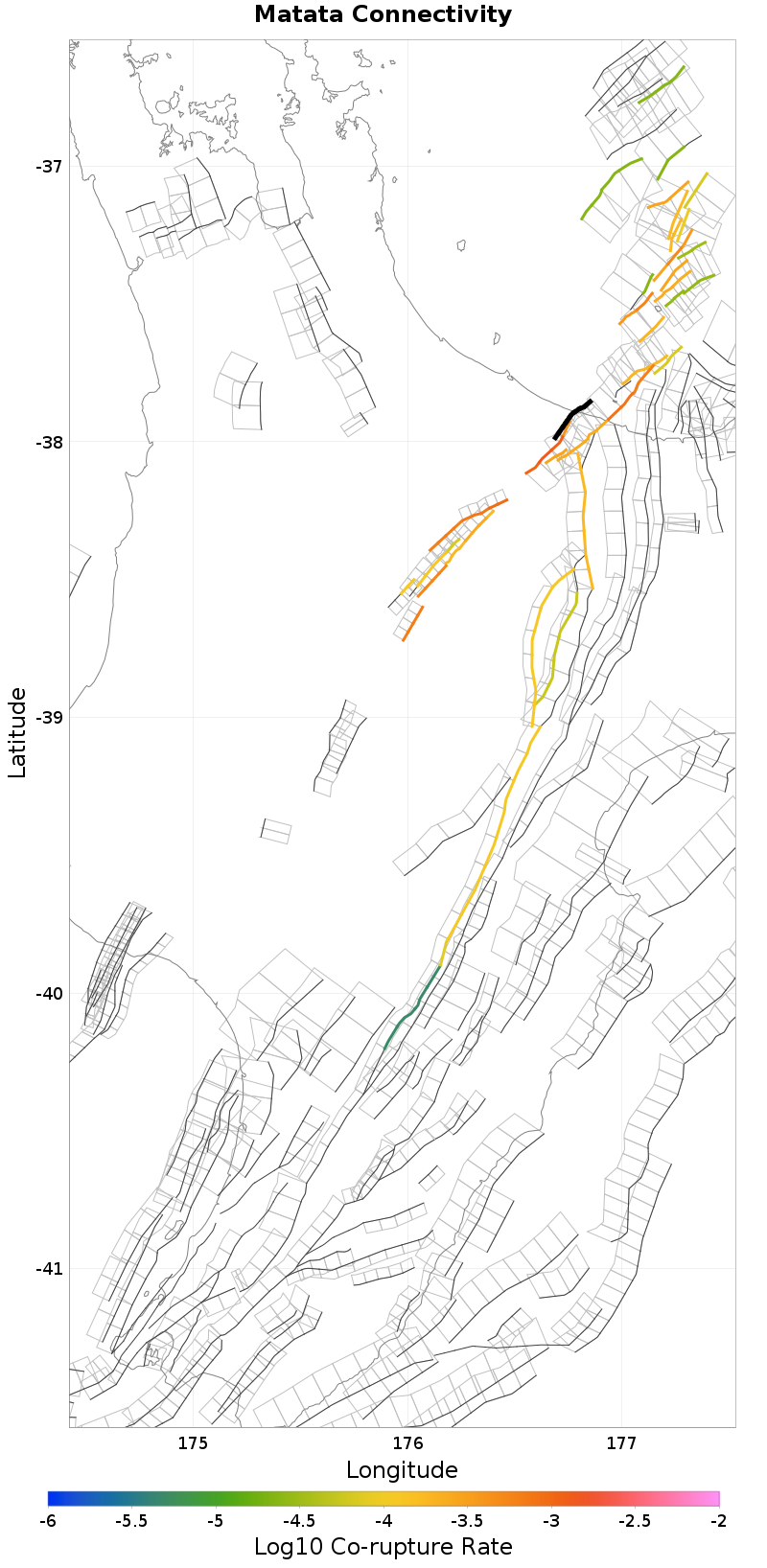

Connectivity
 |  |
|---|
Nearby Sections
Braemar, 1.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.02 km |
| Min Rate-Weighted Dist | 1.88 km |
| Co-rupture Count | 6,482 |
| Co-rupture Rate | 0.0015740601 |
Edgecumbe 1987, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.15 km |
| Min Rate-Weighted Dist | 1.78 km |
| Co-rupture Count | 1,738 |
| Co-rupture Rate | 2.4243657E-4 |
Edgecumbe Coastal, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.61 km |
| Co-rupture Count | 1,750 |
| Co-rupture Rate | 2.4243657E-4 |
White Island 1, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.62 km |
| Min Rate-Weighted Dist | 2.62 km |
| Co-rupture Count | 7,311 |
| Co-rupture Rate | 8.051173E-4 |
Awakeri, 5.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.43 km |
| Co-rupture Count | 1,957 |
| Co-rupture Rate | 0.0 |
Rotoitipakau, 5.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.64 km |
| Min Rate-Weighted Dist | 5.64 km |
| Co-rupture Count | 2,171 |
| Co-rupture Rate | 2.798338E-4 |
Waiohau: North, 6.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,475 |
| Co-rupture Rate | 1.7500893E-4 |
Whakatane: North, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 198 |
| Co-rupture Rate | 0.0 |
Rangitaiki 1, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Rangitaiki 2, 15.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,347 |
| Co-rupture Rate | 1.9532134E-4 |
