North Canterbury Shelf 2 Details

PropertyValue
Rupture Count60
Ruptures Above Sect Min Mag59
Ruptures w/ Nonzero Rates3
Magnitude Range[6.75, 7.74]
Length Range[19, 167] km
Total Rate6.309207E-5 /yr
Multi-Fault Rate6.309207E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults13

Table Of Contents

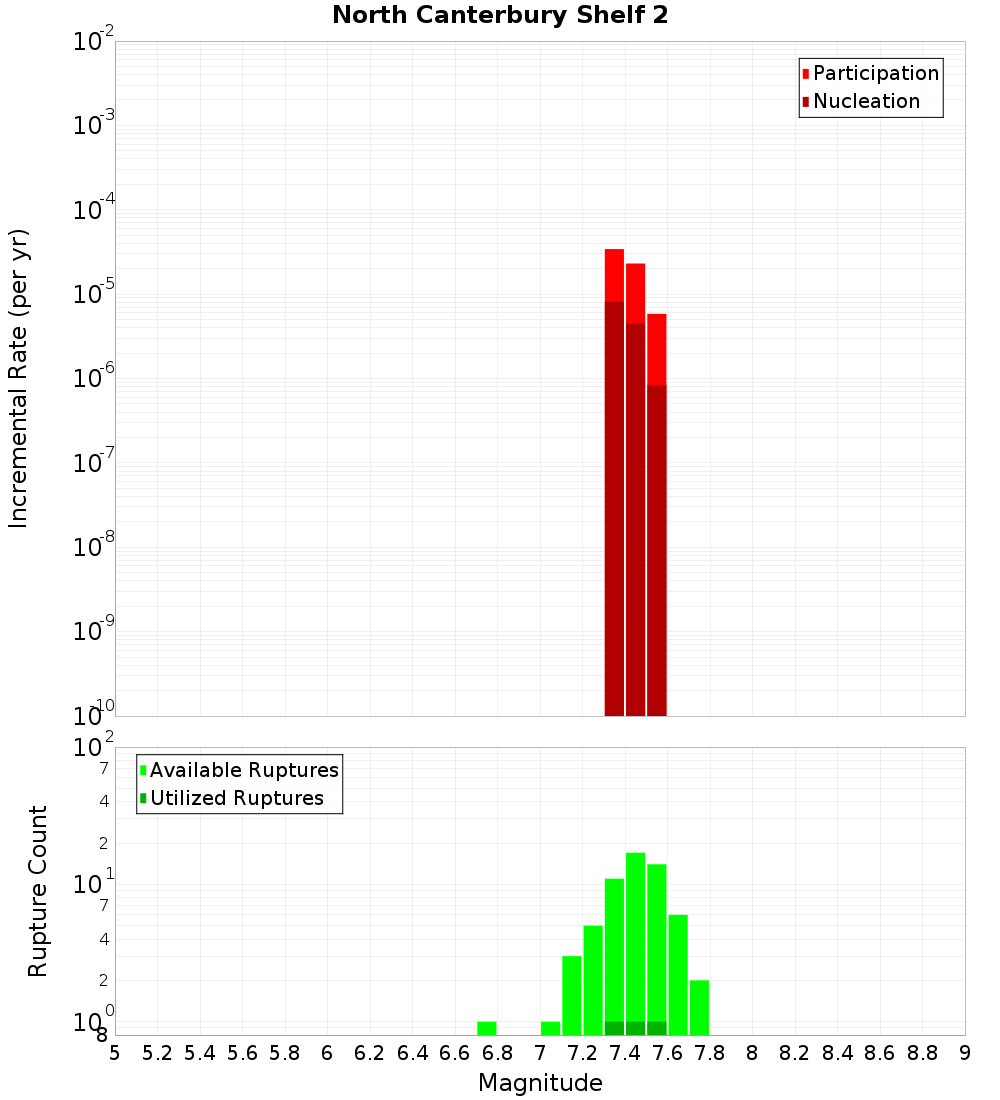

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

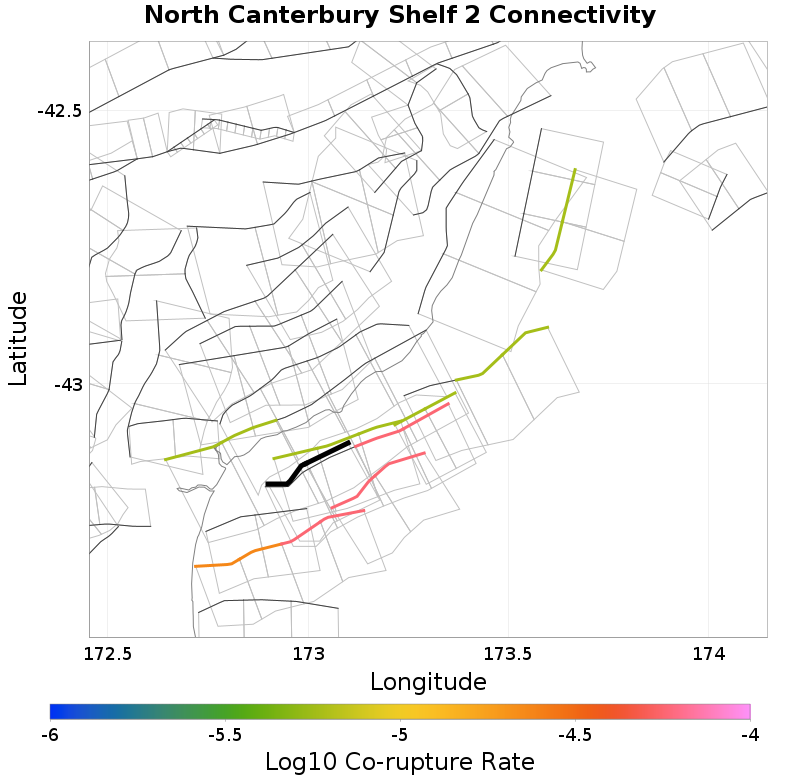

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leithfield - NCVI - NCVII, 0.39 km away
Motunau, 0.81 km away
AmberBlyth, 3.77 km away
Waikuku, 4.58 km away
North Canterbury Shelf 4, 7.11 km away
Pegasus Bay, 8.13 km away
North Canterbury Shelf 11, 9.89 km away
OmihiLwrHuru, 10.78 km away
Point Gibson, 14.07 km away
Boby Stream, 15.76 km away
Kaiwara South, 16.82 km away

Leithfield - NCVI - NCVII, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.39 km
Min Rate-Weighted Dist1.09 km
Co-rupture Count44
Co-rupture Rate5.7258192E-5

Motunau, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate5.8338733E-6

AmberBlyth, 3.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.77 km
Min Rate-Weighted Dist4.07 km
Co-rupture Count41
Co-rupture Rate5.8338733E-6

Waikuku, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

North Canterbury Shelf 4, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate5.7258192E-5

Pegasus Bay, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate5.7258192E-5

North Canterbury Shelf 11, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate5.8338733E-6

OmihiLwrHuru, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Point Gibson, 14.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate5.8338733E-6

Boby Stream, 15.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
