Nukumuru - Waitotara 1-6 Details
| Property | Value |
|---|---|
| Rupture Count | 476 |
| Ruptures Above Sect Min Mag | 318 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.11, 7.13] |
| Length Range | [10, 103] km |
| Total Rate | 3.2470323E-4 /yr |
| Multi-Fault Rate | 3.2470323E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

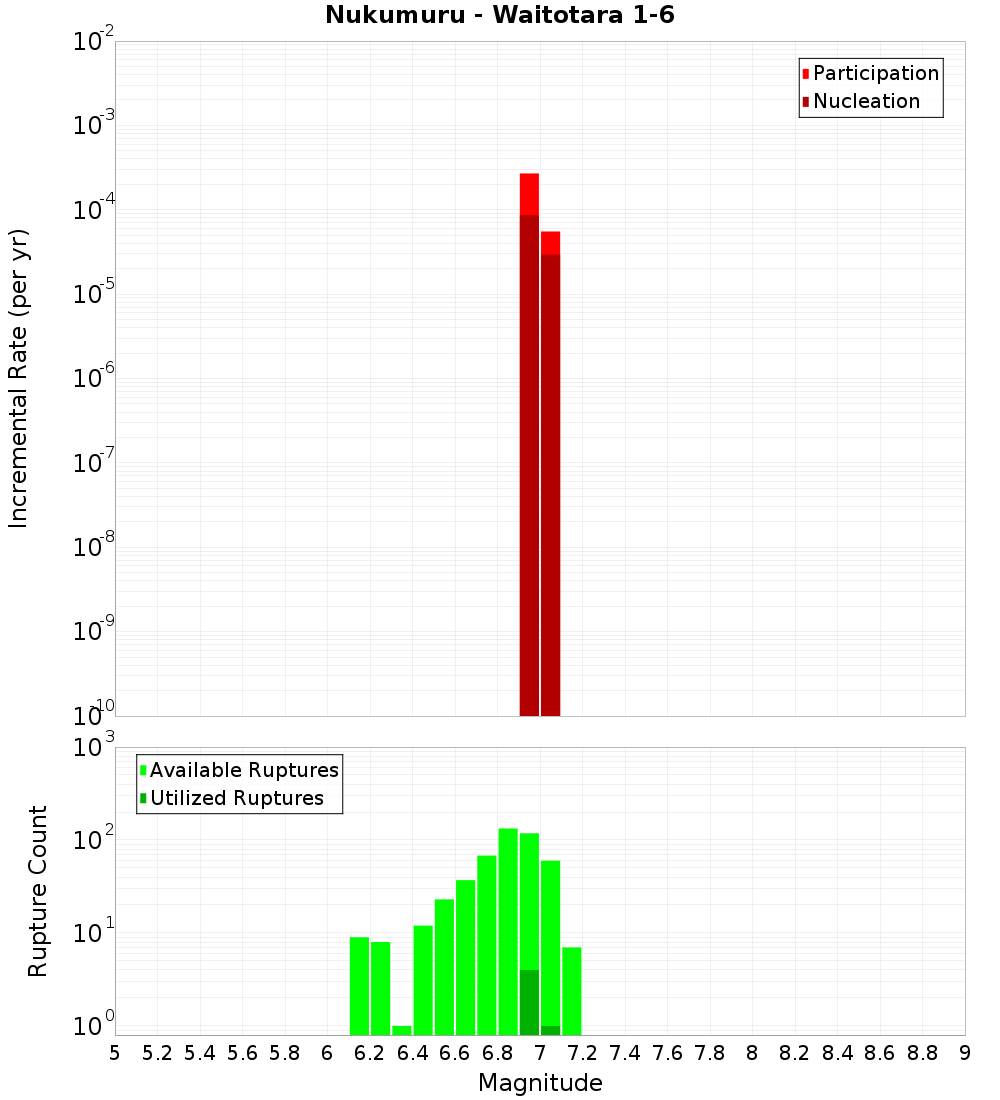

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

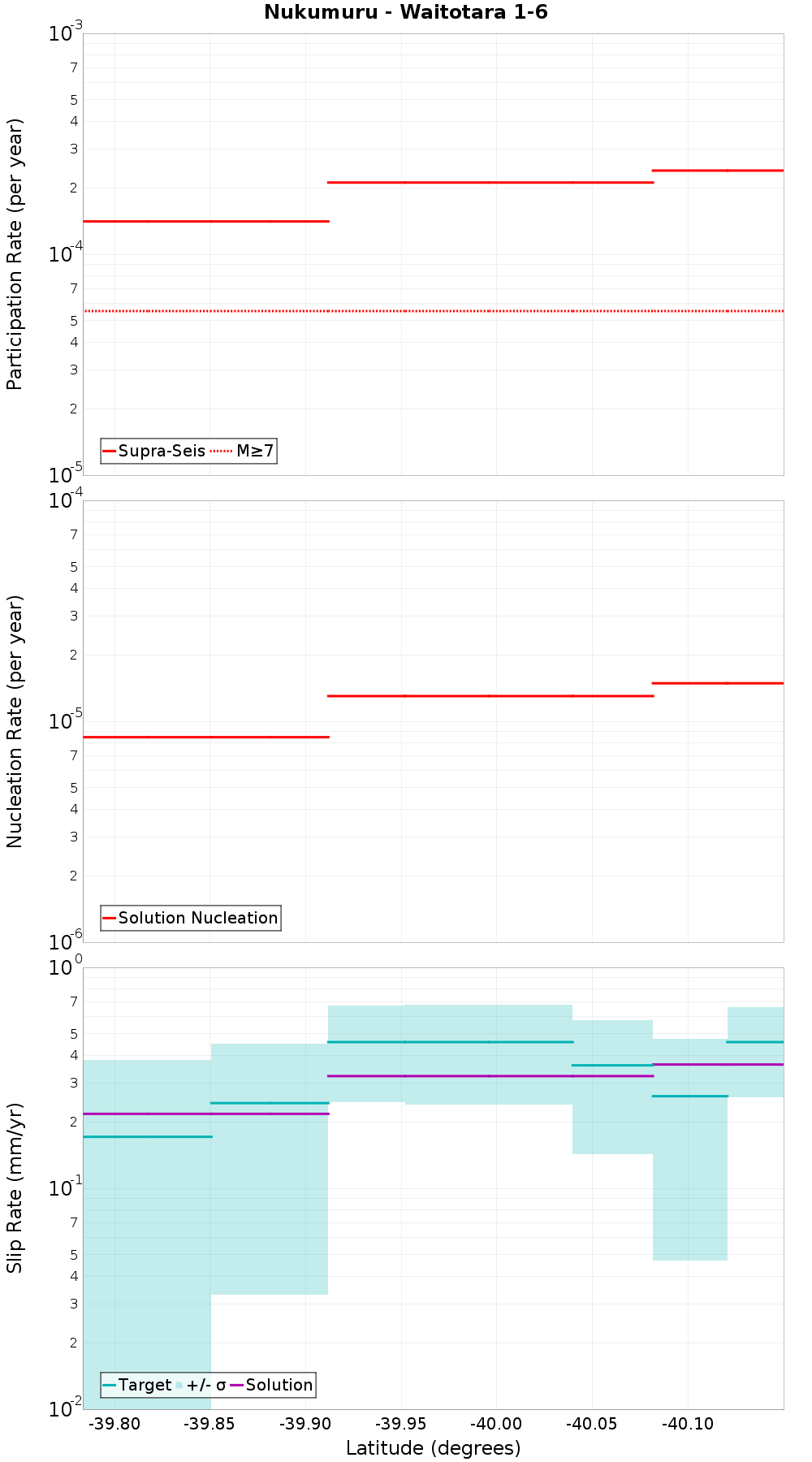

Along-Strike Values

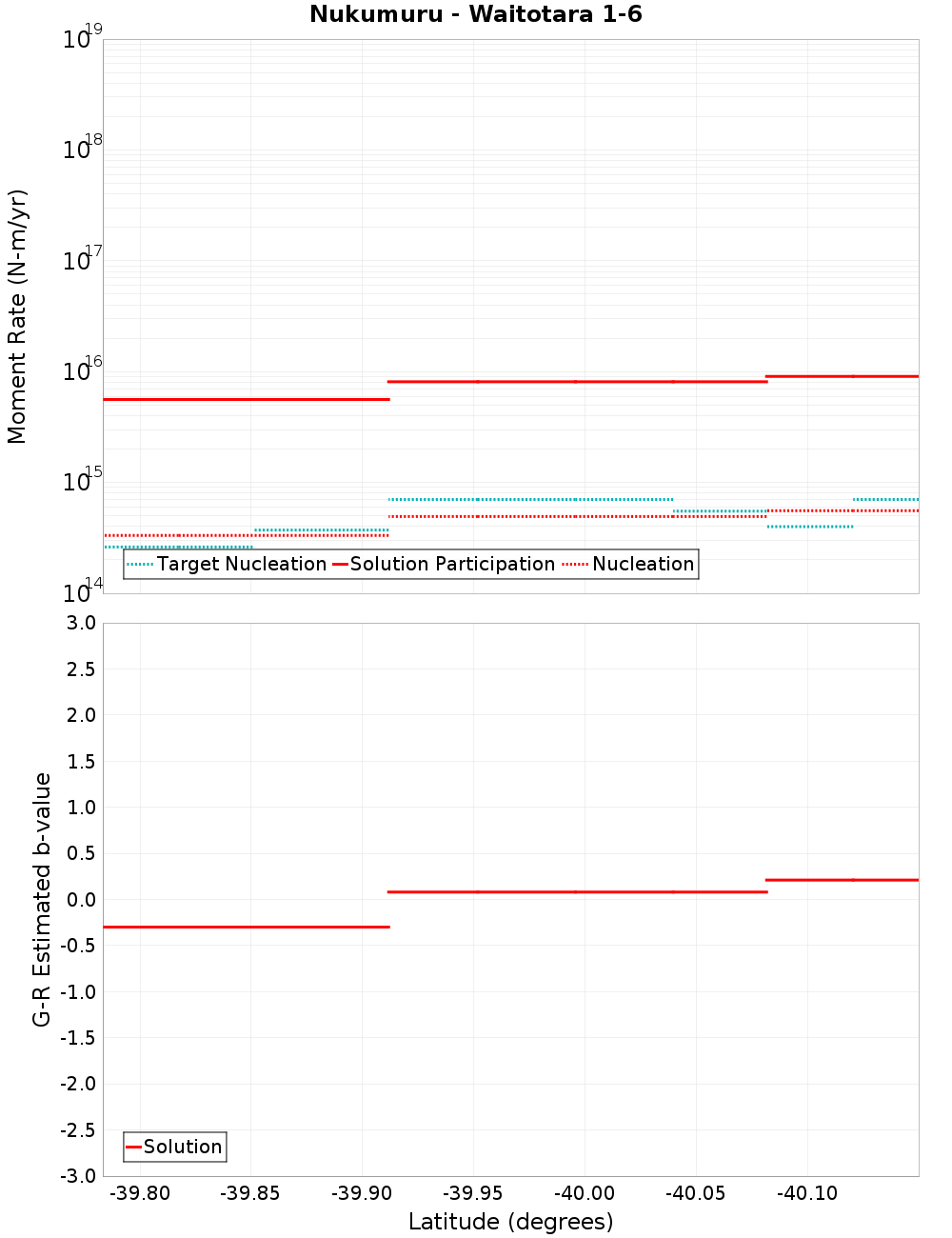

Moment-Rates and b-Values

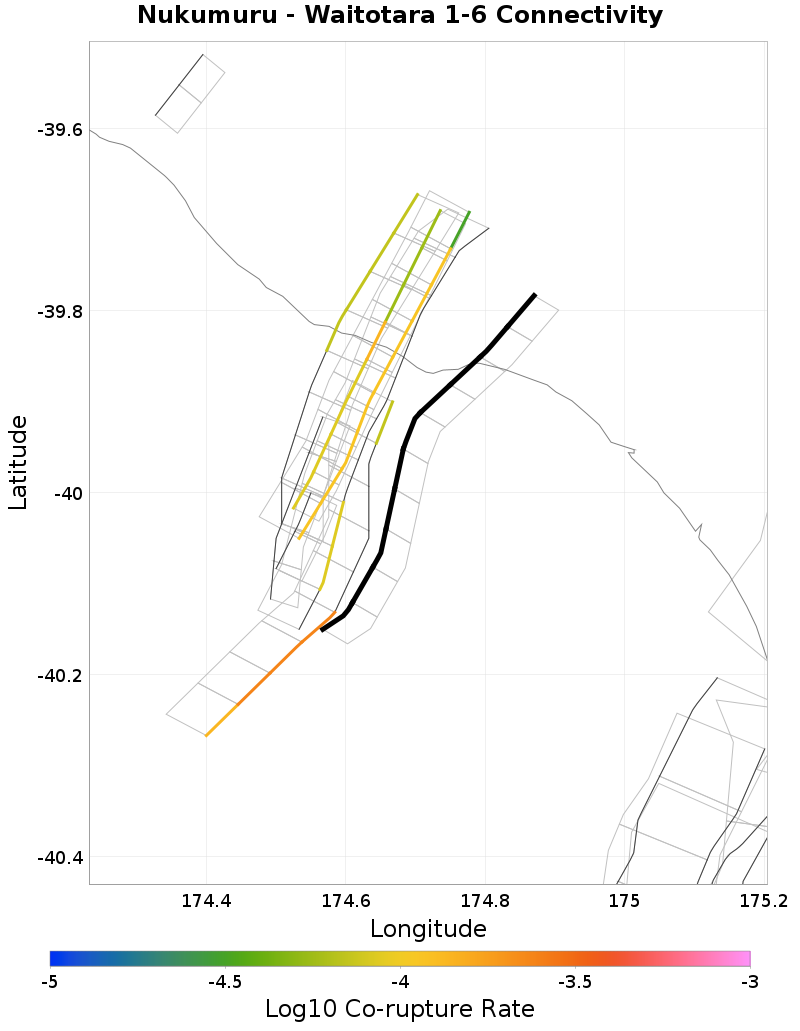

Connectivity
 |  |
|---|
Nearby Sections
Waitotara 8 & 9, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.55 km |
| Min Rate-Weighted Dist | 0.55 km |
| Co-rupture Count | 229 |
| Co-rupture Rate | 3.096925E-4 |
Waitotara 10 & 11, 2.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.6 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 8.546636E-5 |
Ridge Road - Okaia 2, 5.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.79 km |
| Min Rate-Weighted Dist | 9.51 km |
| Co-rupture Count | 91 |
| Co-rupture Rate | 1.13516086E-4 |
Okaia 5, 6.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.91 km |
| Co-rupture Count | 115 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.97 km |
| Min Rate-Weighted Dist | 8.27 km |
| Co-rupture Count | 261 |
| Co-rupture Rate | 1.4073151E-4 |
Okaia 3, 8.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 0.0 |
Waverley - Okaia 1, 9.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 7.045563E-5 |
