Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 46 |
| Ruptures Above Sect Min Mag | 43 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.76, 7.63] |
| Length Range | [20, 169] km |
| Total Rate | 0.0014461887 /yr |
| Multi-Fault Rate | 0.0011960471 /yr (82.70%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

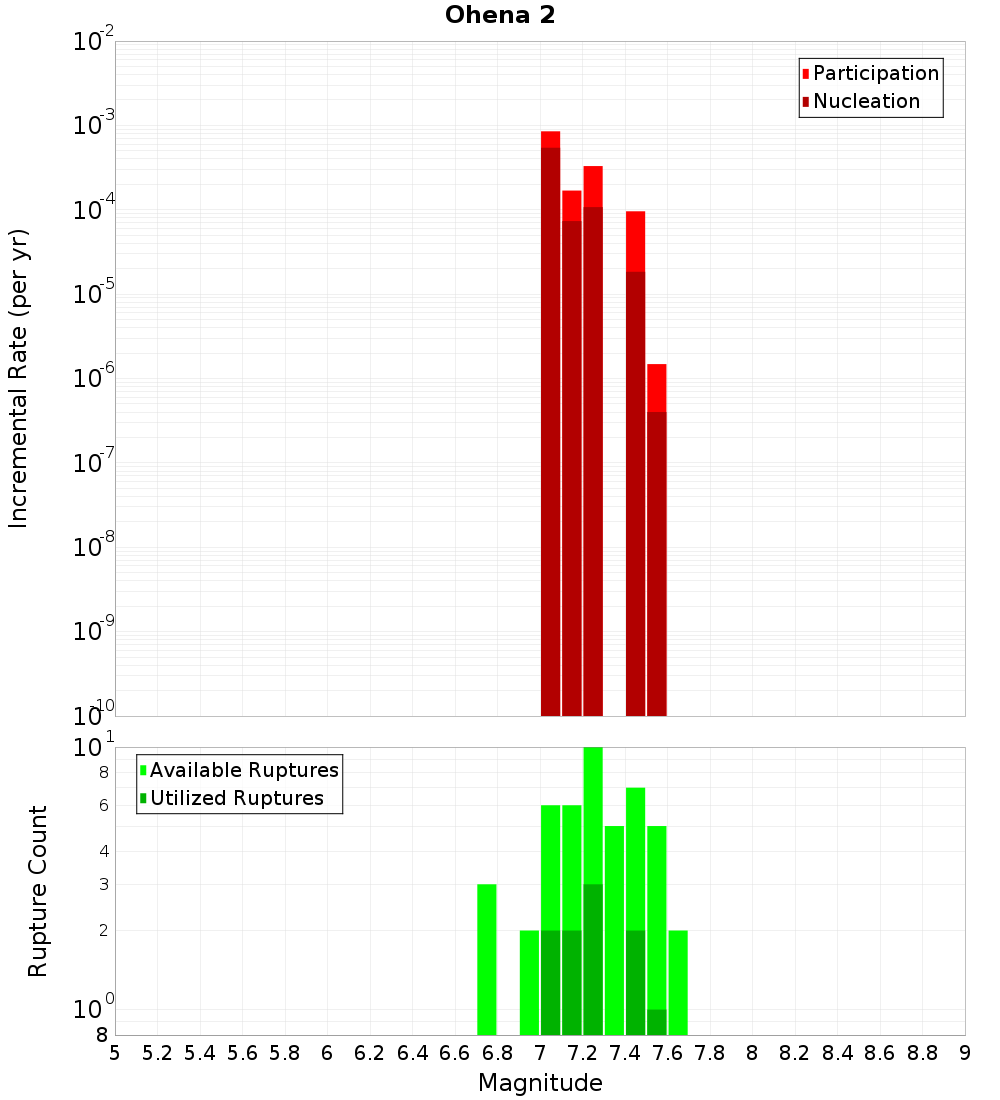

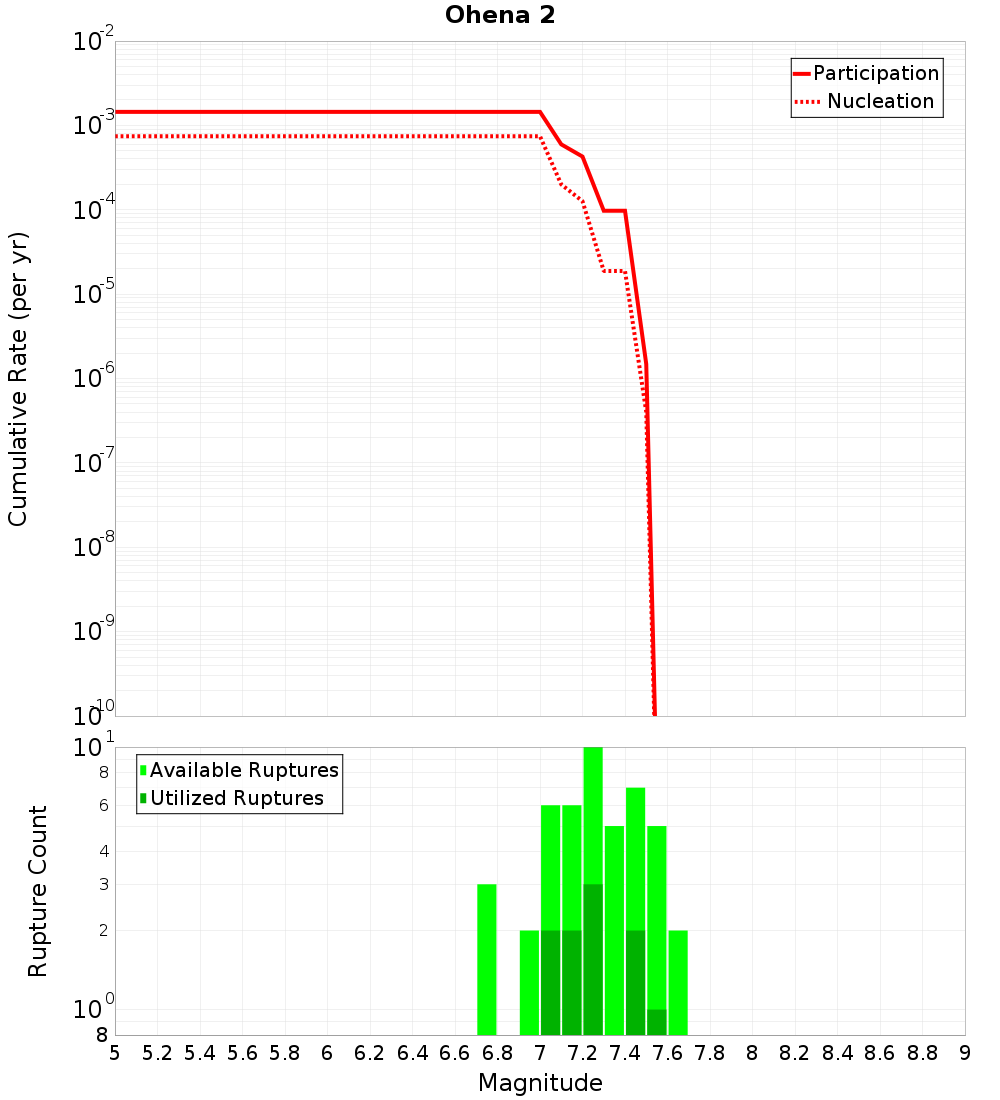

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

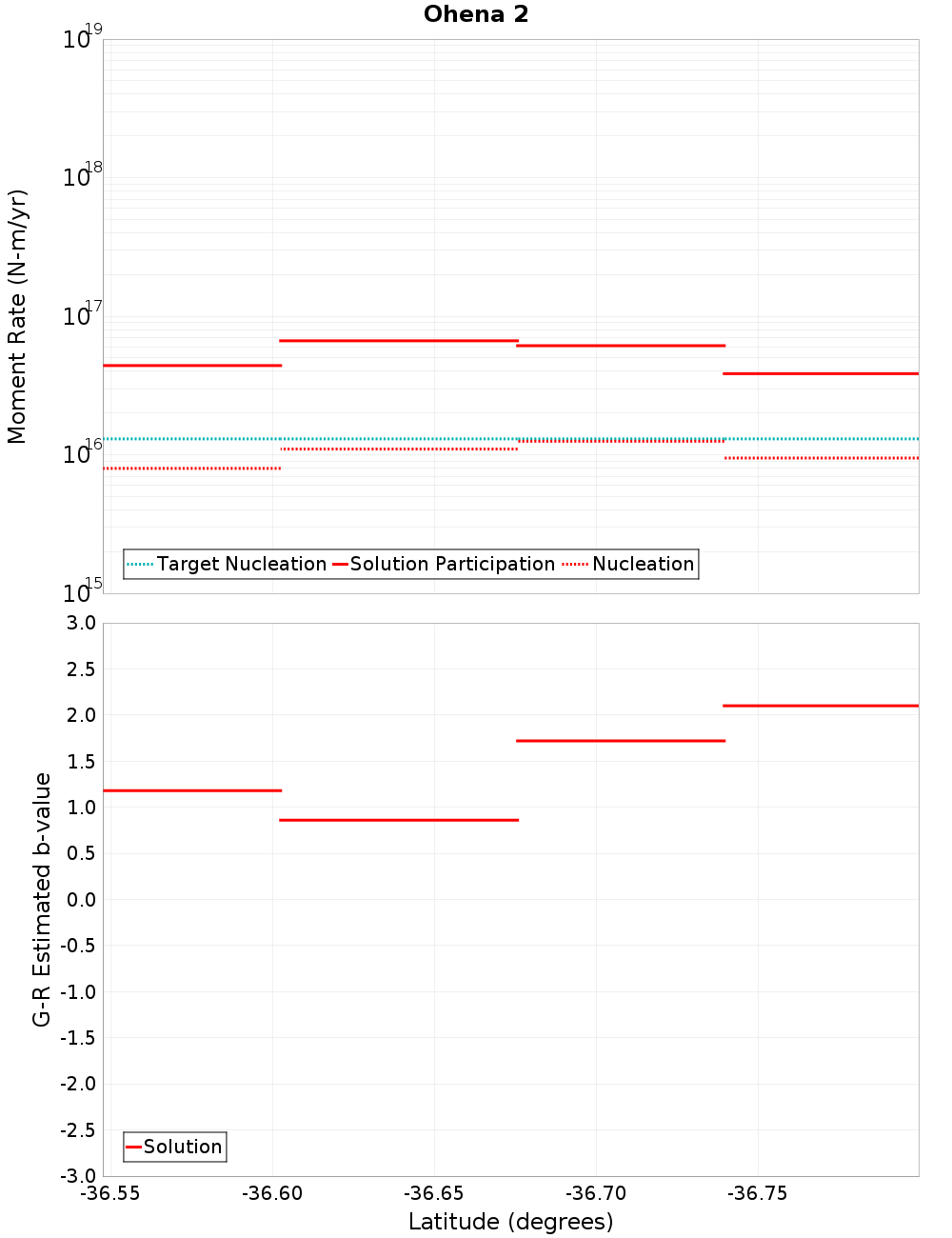

Moment-Rates and b-Values

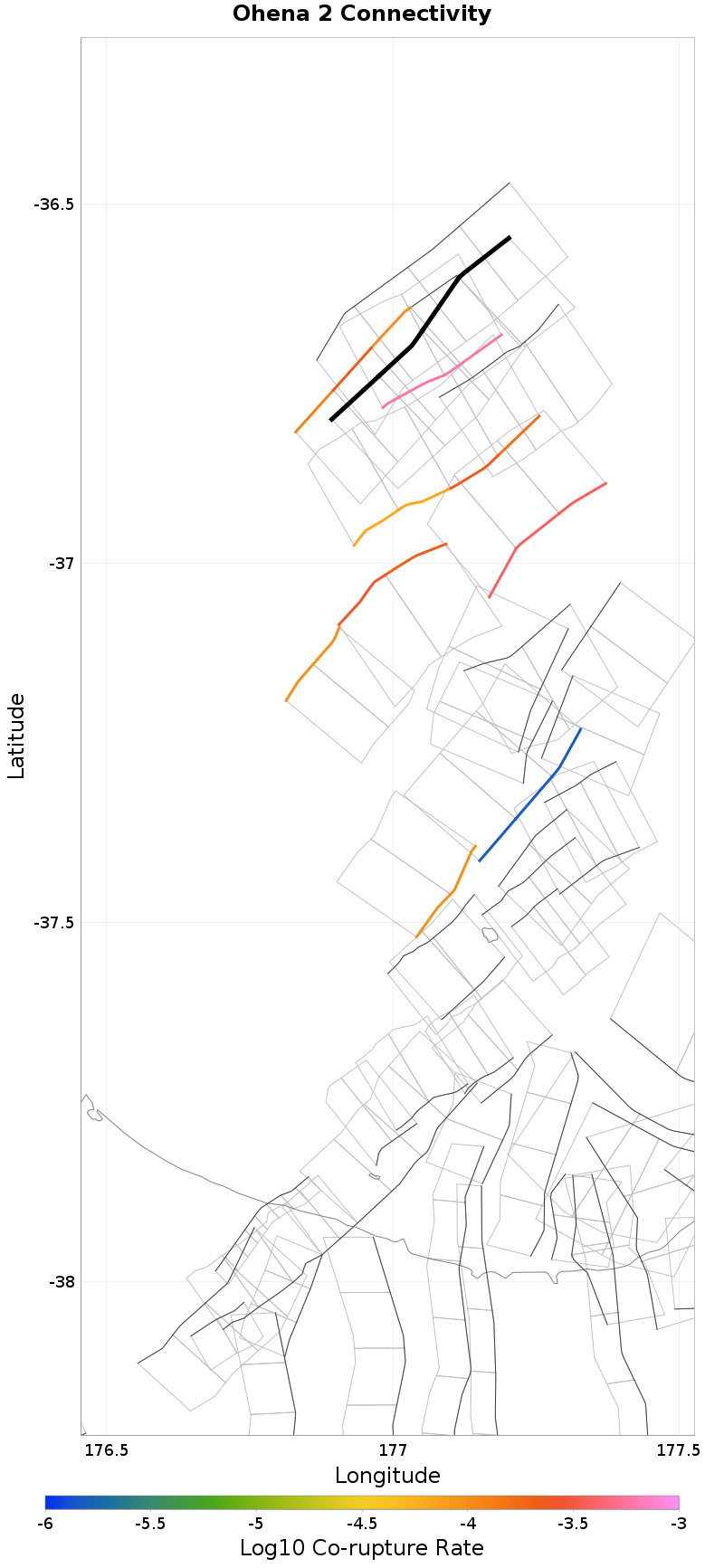

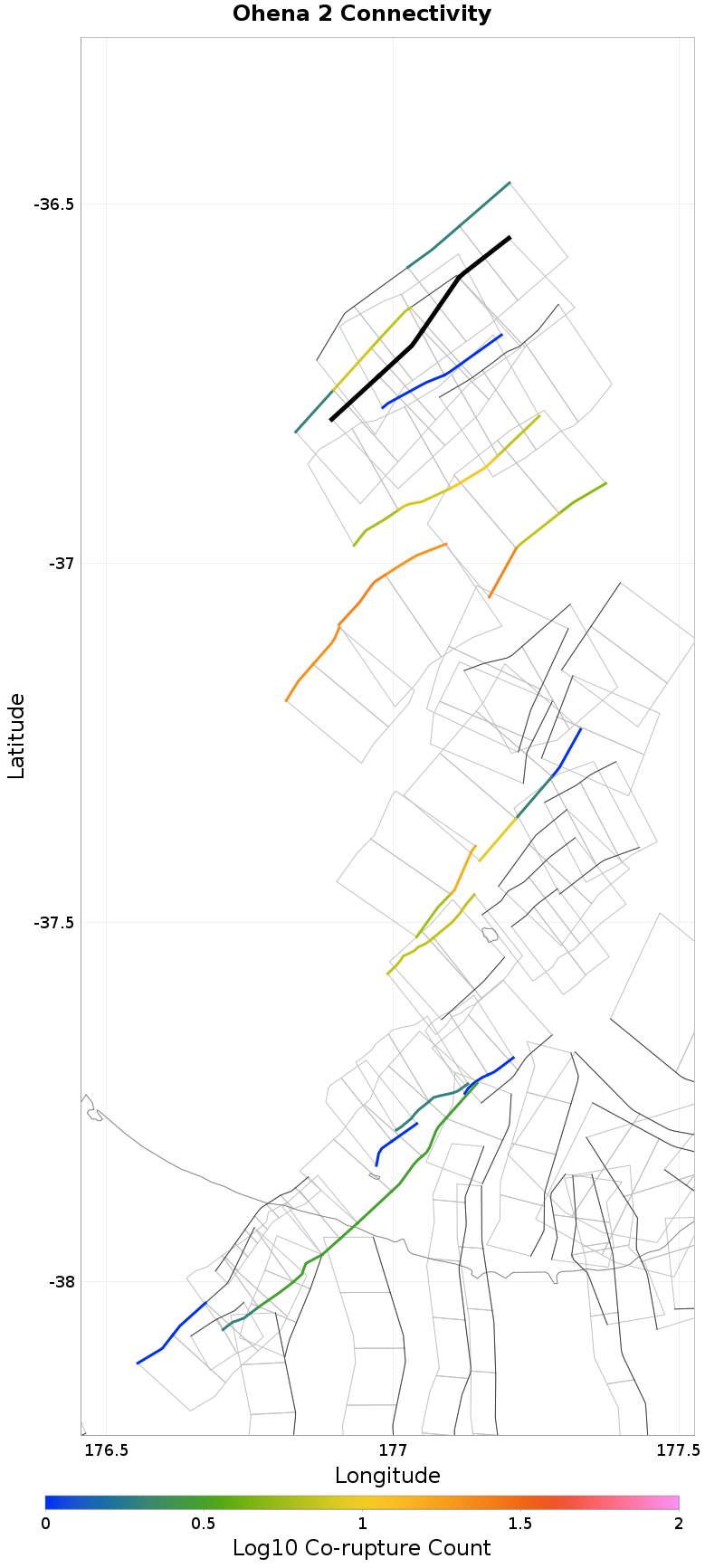

Connectivity
 |  |
|---|
Nearby Sections
Ngatoro South 5, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.42 km |
| Min Rate-Weighted Dist | 0.42 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.003806E-4 |
Tauranga Trough West 2, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.23 km |
| Min Rate-Weighted Dist | 0.23 km |
| Co-rupture Count | 11 |
| Co-rupture Rate | 2.2172213E-4 |
Ohena 3, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.82 km |
| Min Rate-Weighted Dist | 2.82 km |
| Co-rupture Count | 8 |
| Co-rupture Rate | 2.2172216E-4 |
Tauranga Trough East 2, 4.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.39 km |
| Min Rate-Weighted Dist | 5.06 km |
| Co-rupture Count | 24 |
| Co-rupture Rate | 3.7394426E-4 |
Ohena 4, 4.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.61 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Ngatoro South 2, 6.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 2.6782067E-4 |
Otara West 2, 19.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
