Otara West 2 Details
| Property | Value |
|---|---|
| Rupture Count | 396 |
| Ruptures Above Sect Min Mag | 396 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.80, 8.13] |
| Length Range | [21, 497] km |
| Total Rate | 5.988242E-4 /yr |
| Multi-Fault Rate | 5.988242E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

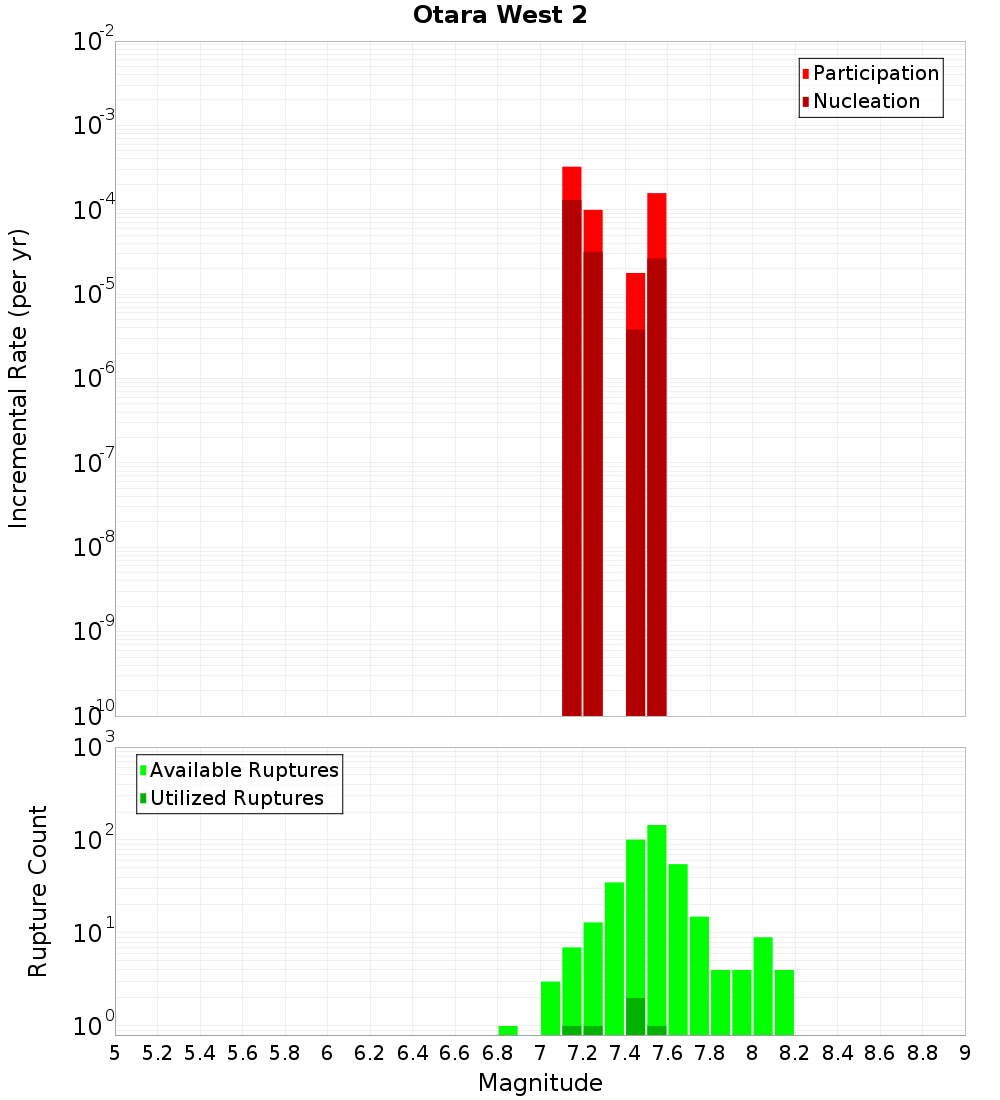

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Otara West 3, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 1, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.96 km |
| Min Rate-Weighted Dist | 1 km |
| Co-rupture Count | 211 |
| Co-rupture Rate | 5.988242E-4 |
Otara East 2, 1.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 67 |
| Co-rupture Rate | 9.969135E-5 |
Tuakana 6, 2.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.72 km |
| Co-rupture Count | 56 |
| Co-rupture Rate | 0.0 |
Otara East 1, 3.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Volkner 4, 4.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.57 km |
| Min Rate-Weighted Dist | 4.57 km |
| Co-rupture Count | 387 |
| Co-rupture Rate | 5.988242E-4 |
Te Arawa 3, 8.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough East 2, 9.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 11.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 9.969135E-5 |
Volkner 3, 13.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 57 |
| Co-rupture Rate | 0.0 |
Tuatoru 2, 15.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 1, 15.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ngatoro South 2, 17.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohena 2, 19.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
