Wakarara Details
| Property | Value |
|---|---|
| Rupture Count | 12,176 |
| Ruptures Above Sect Min Mag | 12,145 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.14, 8.23] |
| Length Range | [10, 603] km |
| Total Rate | 6.340154E-5 /yr |
| Multi-Fault Rate | 6.340154E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 91 |
Table Of Contents

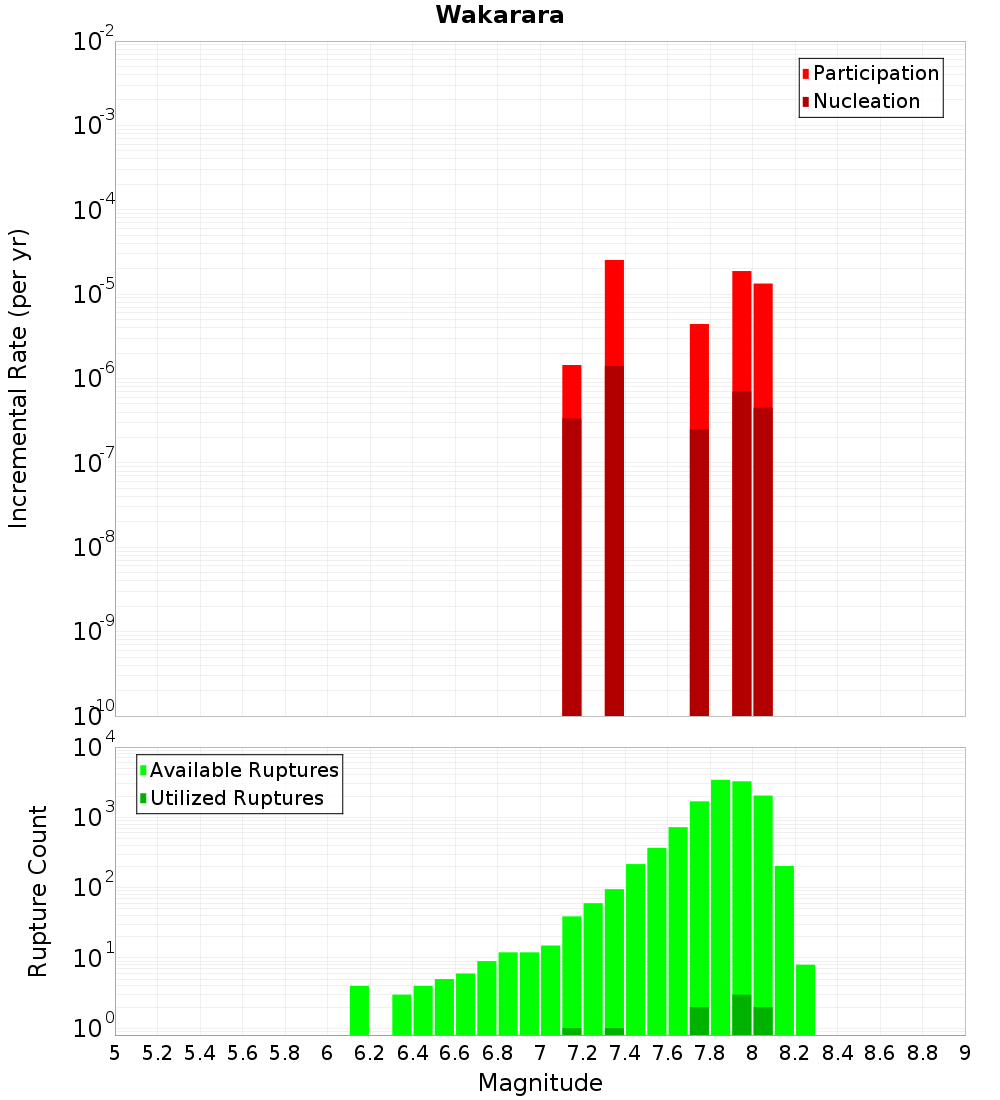

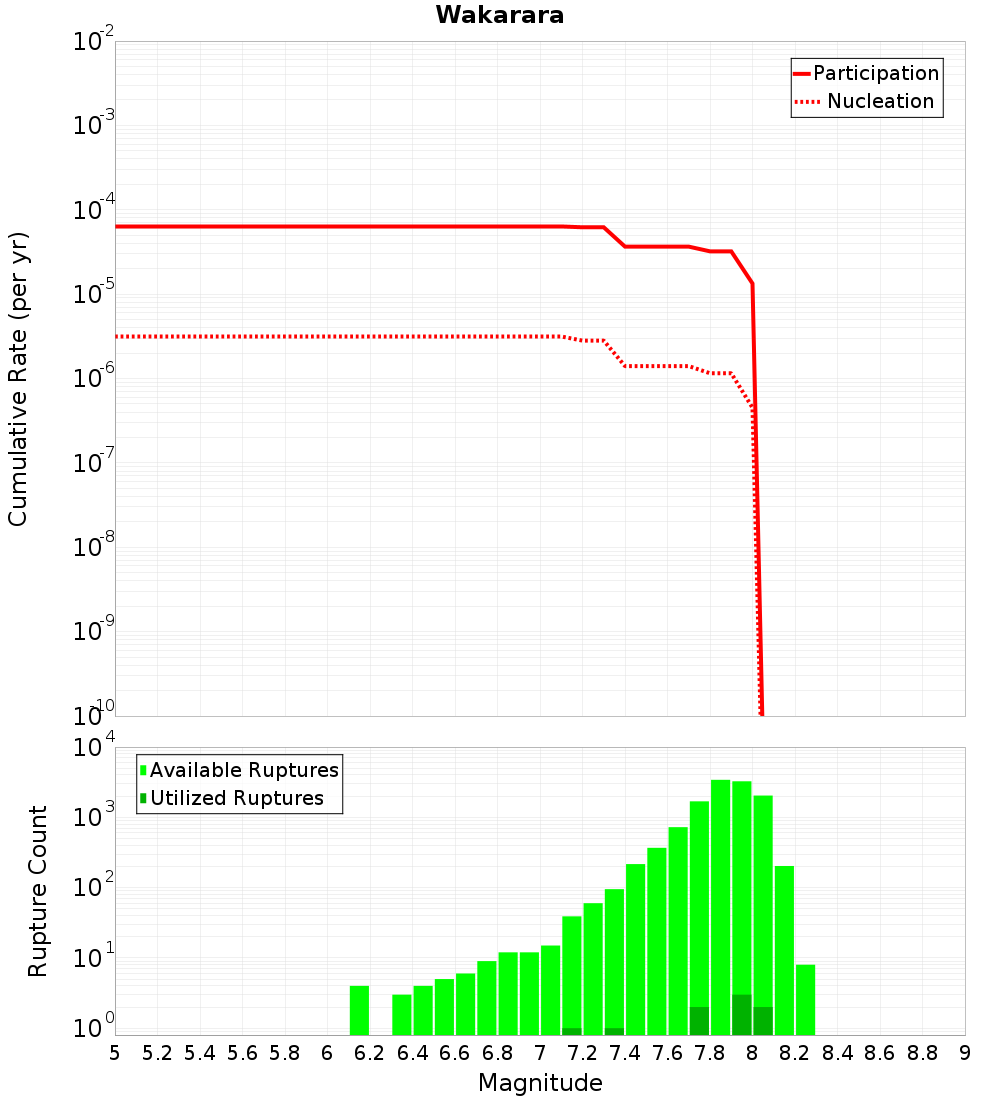

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

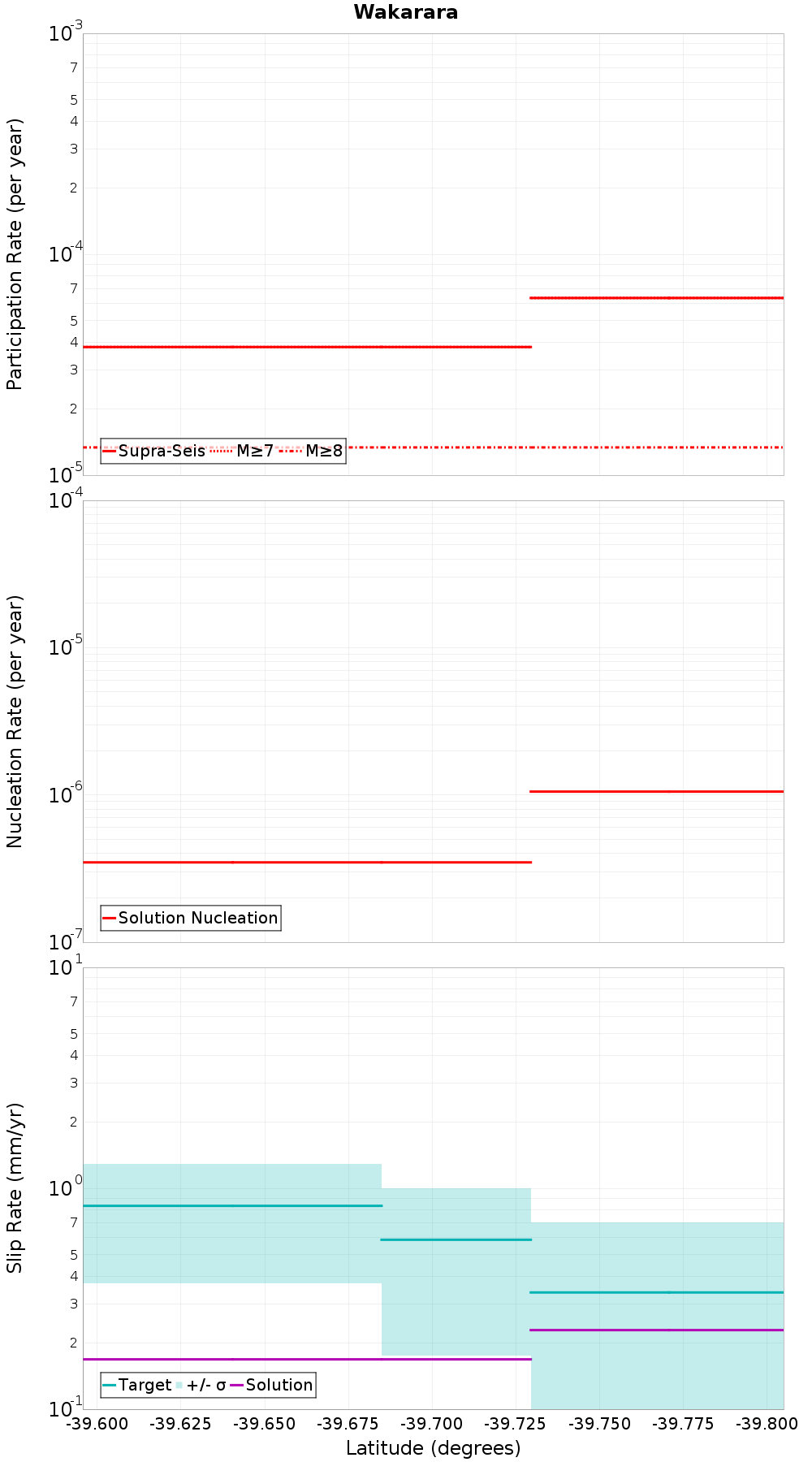

Along-Strike Values

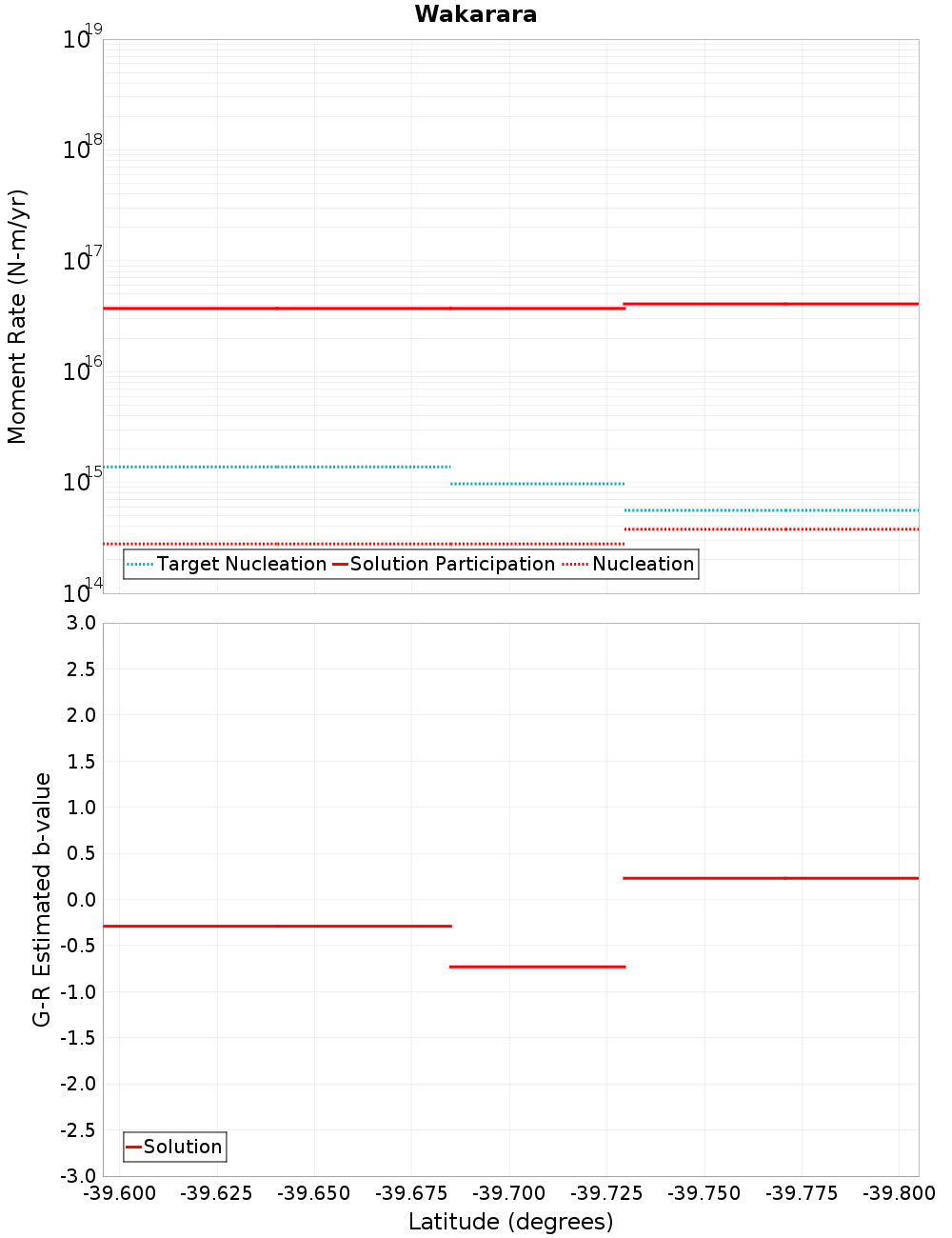

Moment-Rates and b-Values

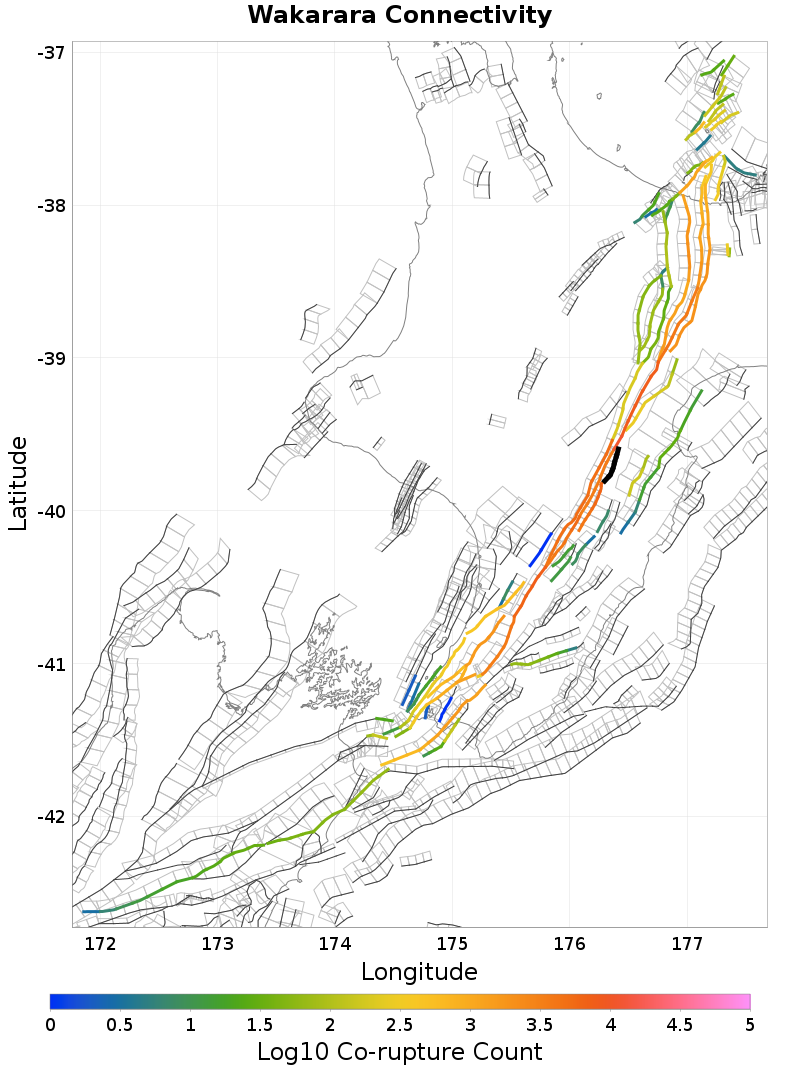

Connectivity
 |  |
|---|
Nearby Sections
Rangefront, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 6,314 |
| Co-rupture Rate | 6.340154E-5 |
Mohaka: South, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 14,107 |
| Co-rupture Rate | 6.153111E-5 |
Ruahine: Central, 2.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.84 km |
| Co-rupture Count | 5,118 |
| Co-rupture Rate | 0.0 |
Ruahine: North, 4.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.93 km |
| Co-rupture Count | 200 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8,141 |
| Co-rupture Rate | 3.0312118E-5 |
Ruataniwha, 13.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Ruahine: South, 14.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5,082 |
| Co-rupture Rate | 0.0 |
Te Heka, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.9 km |
| Min Rate-Weighted Dist | 14.9 km |
| Co-rupture Count | 156 |
| Co-rupture Rate | 2.5398971E-5 |
Patoka - Rangiora, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 293 |
| Co-rupture Rate | 0.0 |
Awanui, 17.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Oruawharo - Mangatoro, 18.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
