Wheao: South Details
| Property | Value |
|---|---|
| Rupture Count | 10,573 |
| Ruptures Above Sect Min Mag | 10,568 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.71, 8.22] |
| Length Range | [19, 602] km |
| Total Rate | 1.917005E-4 /yr |
| Multi-Fault Rate | 1.917005E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 85 |
Table Of Contents

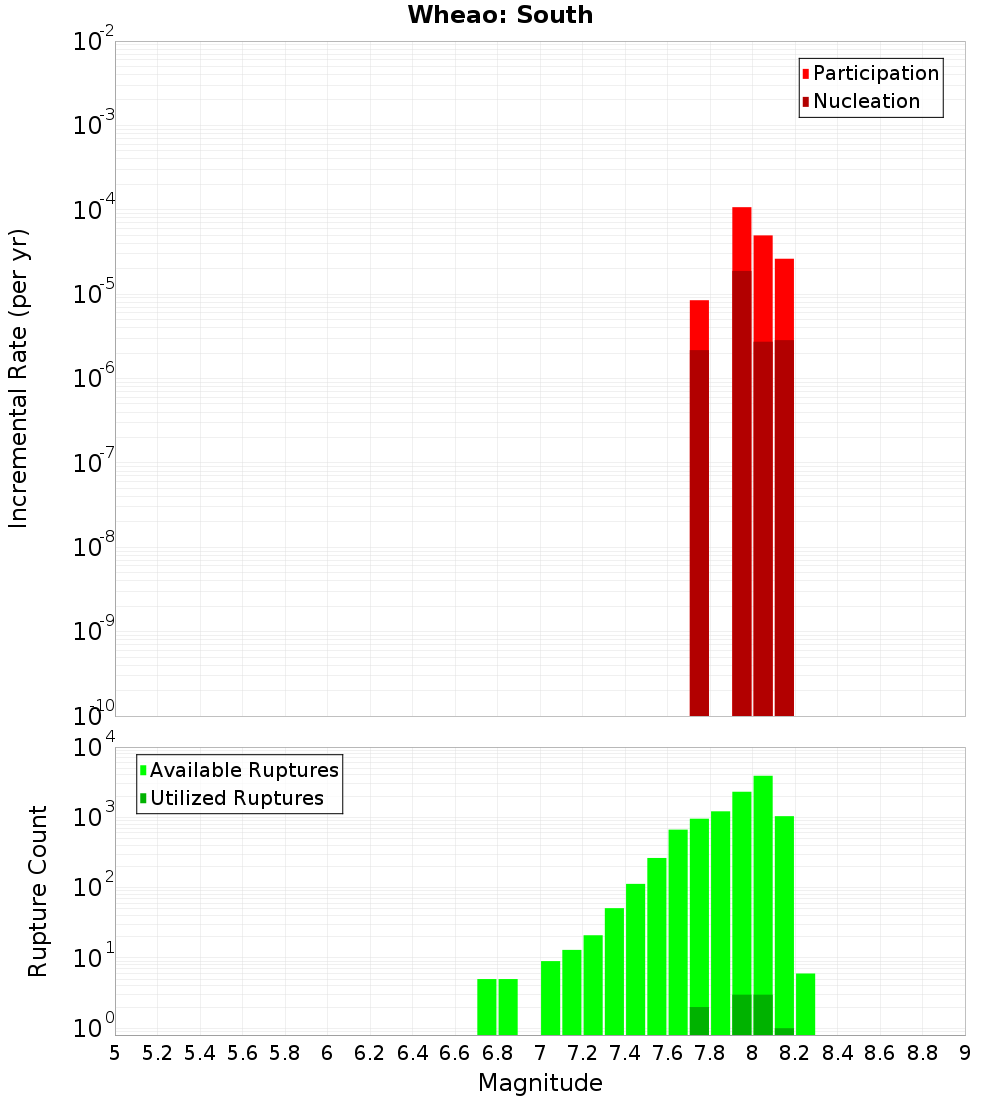

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

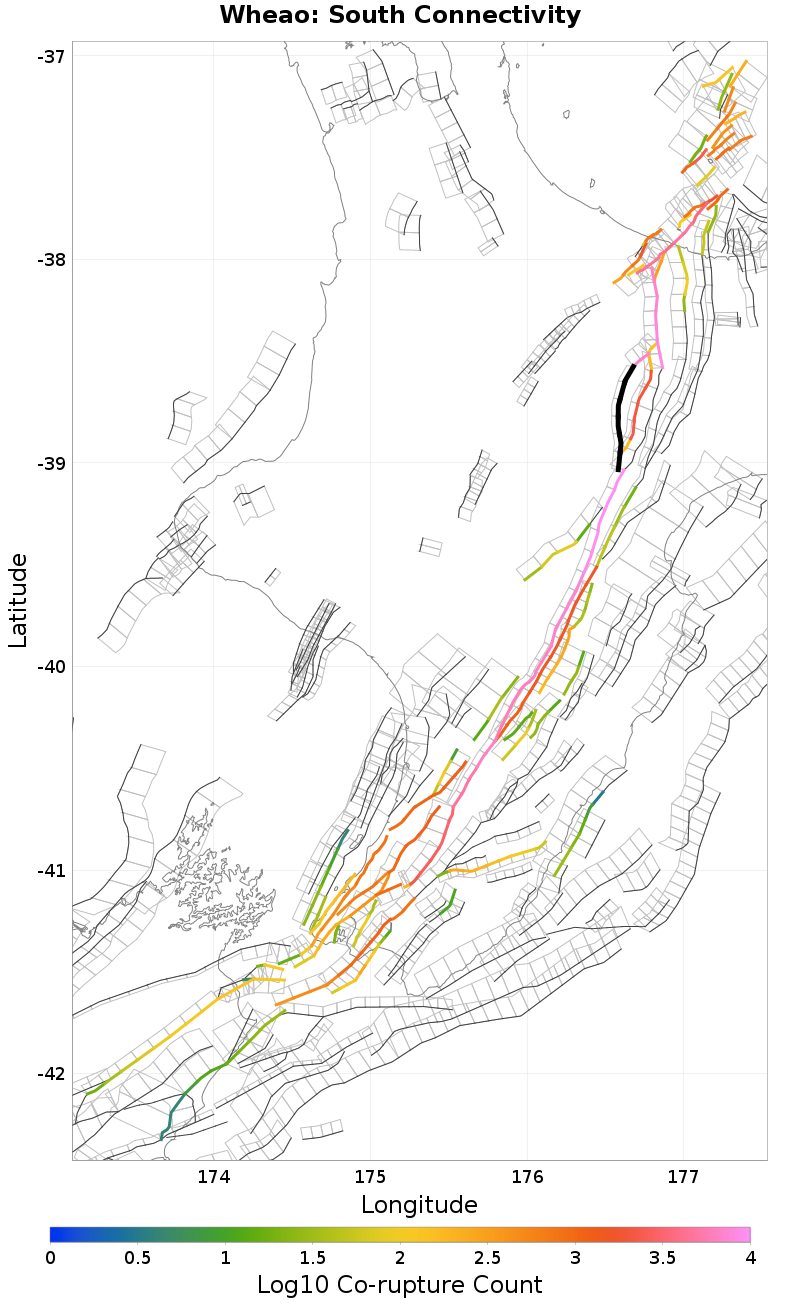

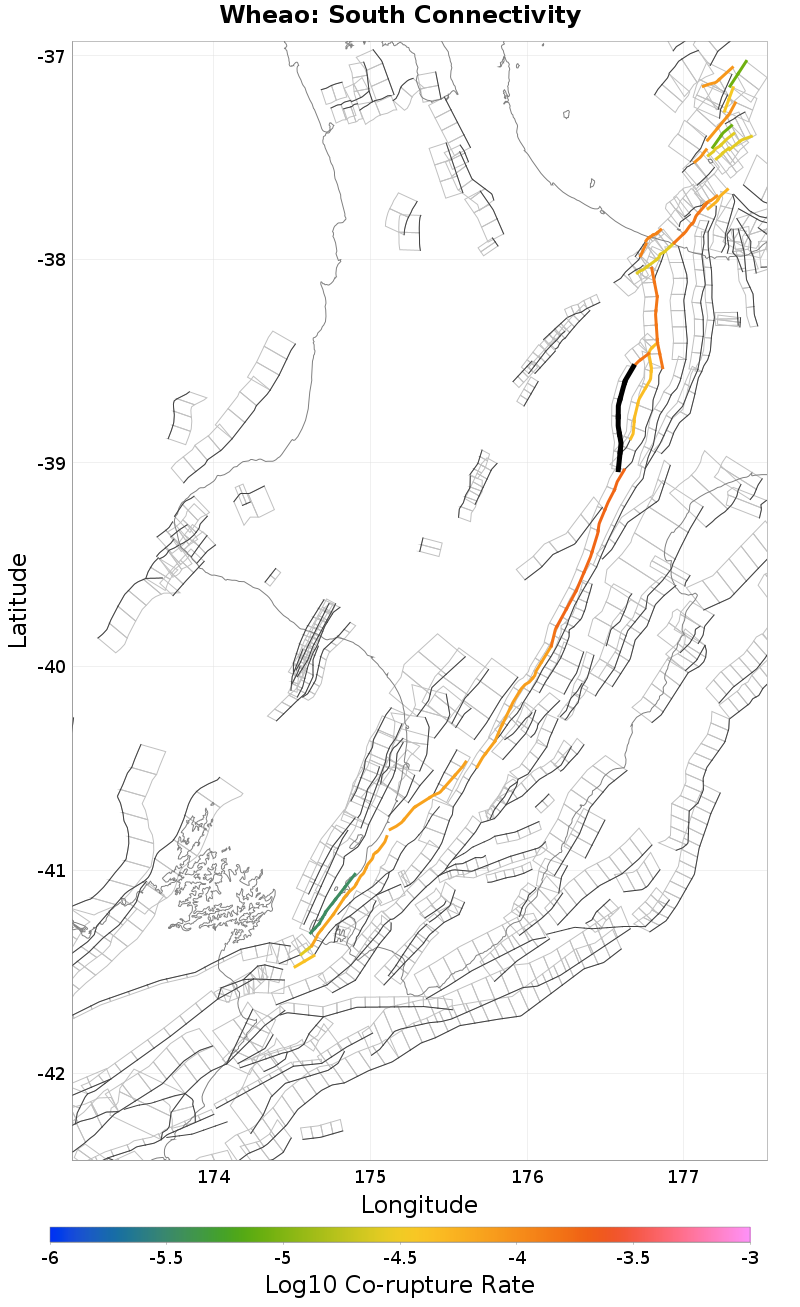

Connectivity
 |  |
|---|
Nearby Sections
Wheao: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 6,897 |
| Co-rupture Rate | 1.4679677E-4 |
Waiohau: South, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Whaiti South, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.47 km |
| Min Rate-Weighted Dist | 5.63 km |
| Co-rupture Count | 2,251 |
| Co-rupture Rate | 4.4903732E-5 |
Ruahine: North, 2.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.63 km |
| Min Rate-Weighted Dist | 2.63 km |
| Co-rupture Count | 9,614 |
| Co-rupture Rate | 1.832309E-4 |
Te Whaiti North, 11.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 147 |
| Co-rupture Rate | 4.4903732E-5 |
Waiohau: North, 11.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8,151 |
| Co-rupture Rate | 1.4679677E-4 |
Mohaka: North, 13.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 46 |
| Co-rupture Rate | 0.0 |
Whakatane: South, 14.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: South, 14.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaweka, 18.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 78 |
| Co-rupture Rate | 0.0 |
