Billys Ridge Details

PropertyValue
Rupture Count301
Ruptures Above Sect Min Mag300
Ruptures w/ Nonzero Rates4
Magnitude Range[6.90, 7.92]
Length Range[23, 215] km
Total Rate1.3355983E-5 /yr
Multi-Fault Rate1.3355983E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults20

Table Of Contents

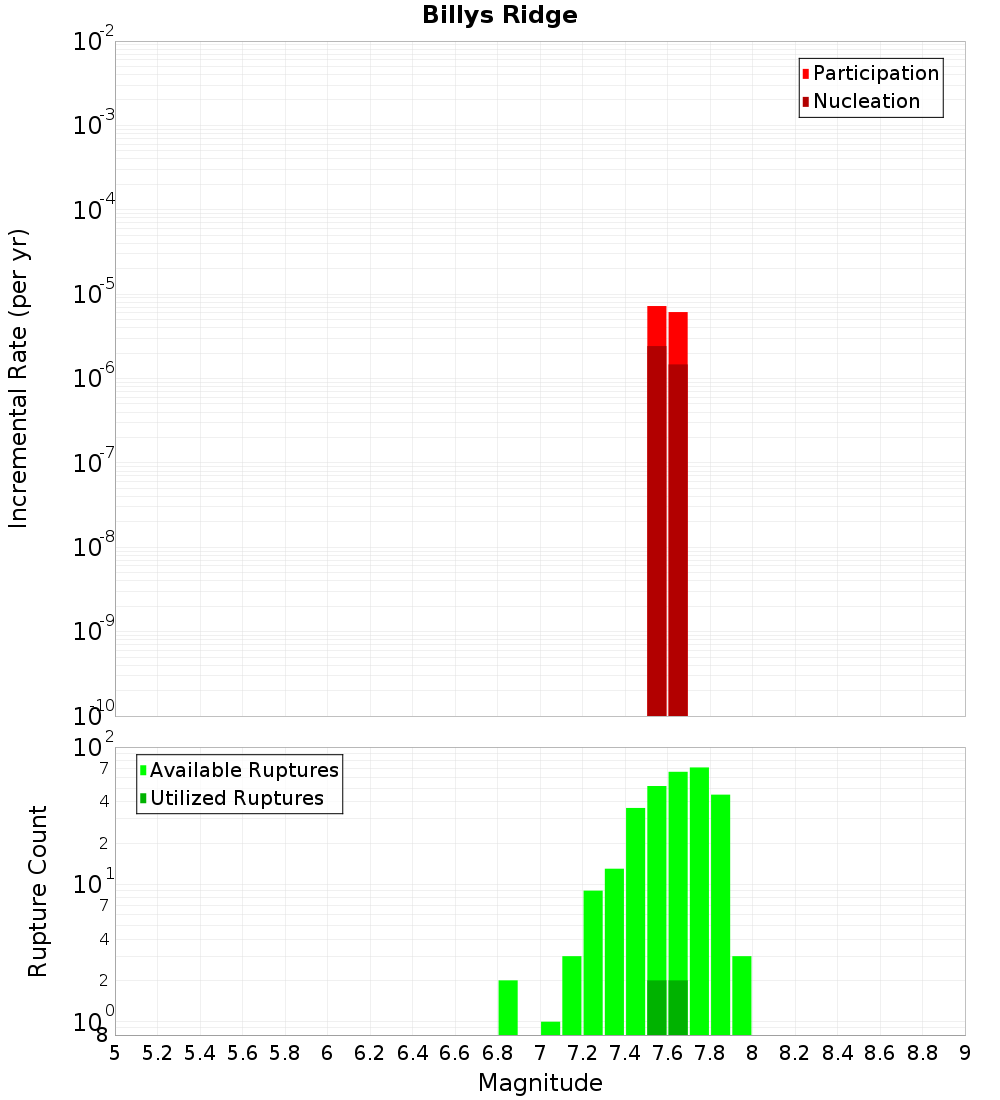

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

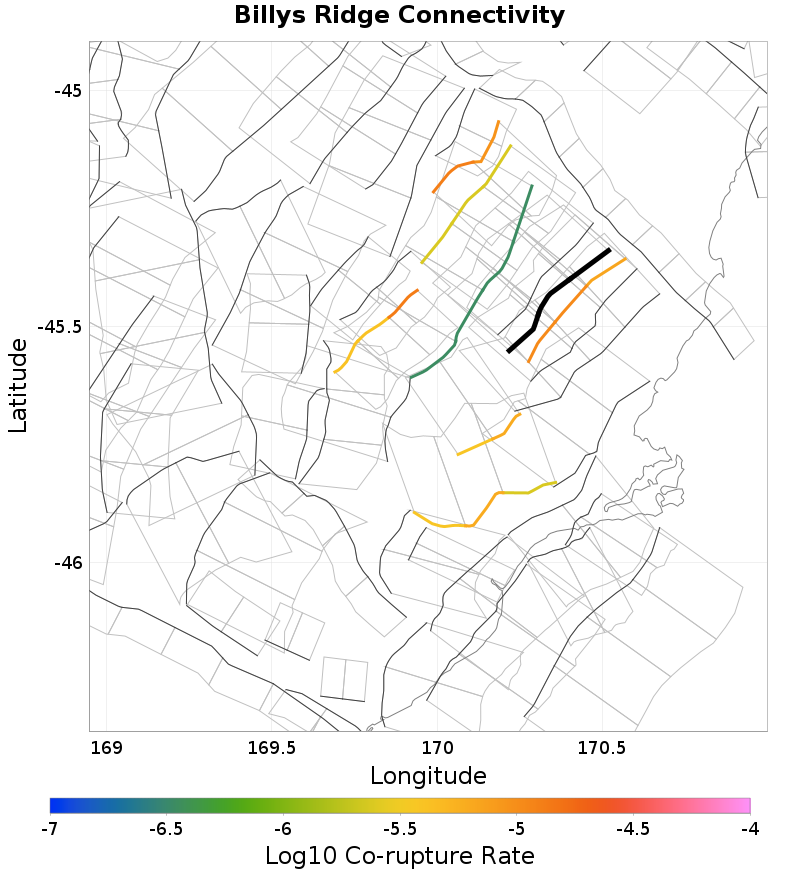

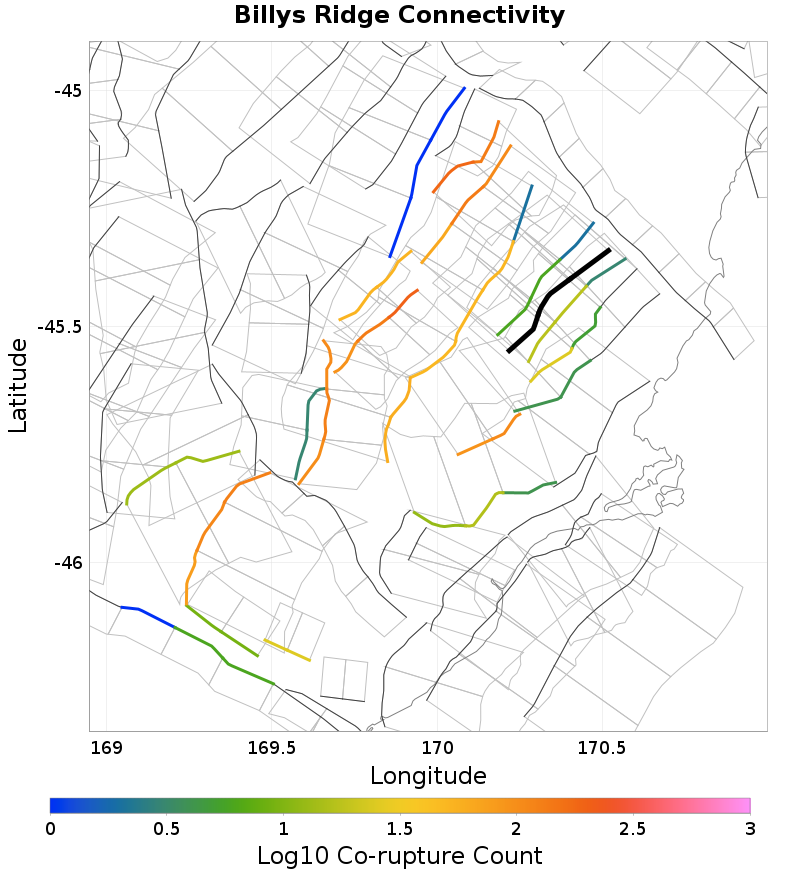

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ranfurly, 0.11 km away
Waipiata, 0.15 km away
Murphys Creek, 2.04 km away
Pylap, 2.07 km away
Horse Flat, 2.26 km away
Logan Burn, 4.07 km away
Waihemo, 4.7 km away
Dunback Hill, 5.53 km away
Hyde North, 9.03 km away
Nichols Rock, 9.84 km away
Flat Stream - Glenpark, 9.9 km away
Long Valley, 10.82 km away
Cross Eden, 13.23 km away
Sliver Stream - Merton, 18.66 km away

Ranfurly, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.11 km
Min Rate-Weighted Dist0.11 km
Co-rupture Count182
Co-rupture Rate1.3014086E-5

Waipiata, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.15 km
Co-rupture Count134
Co-rupture Rate2.381669E-6

Murphys Creek, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate1.0632418E-5

Pylap, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.07 km
Co-rupture Count52
Co-rupture Rate0.0

Horse Flat, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.26 km
Co-rupture Count6
Co-rupture Rate0.0

Logan Burn, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.07 km
Min Rate-Weighted Dist4.07 km
Co-rupture Count211
Co-rupture Rate1.3355983E-5

Waihemo, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 5.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Hyde North, 9.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate3.4189674E-7

Nichols Rock, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate6.1294045E-6

Flat Stream - Glenpark, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Long Valley, 10.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cross Eden, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
