Cape Foulwind 1 Details
| Property | Value |
|---|---|
| Rupture Count | 343 |
| Ruptures Above Sect Min Mag | 335 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.65, 7.94] |
| Length Range | [18, 314] km |
| Total Rate | 3.7595E-5 /yr |
| Multi-Fault Rate | 3.7595E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

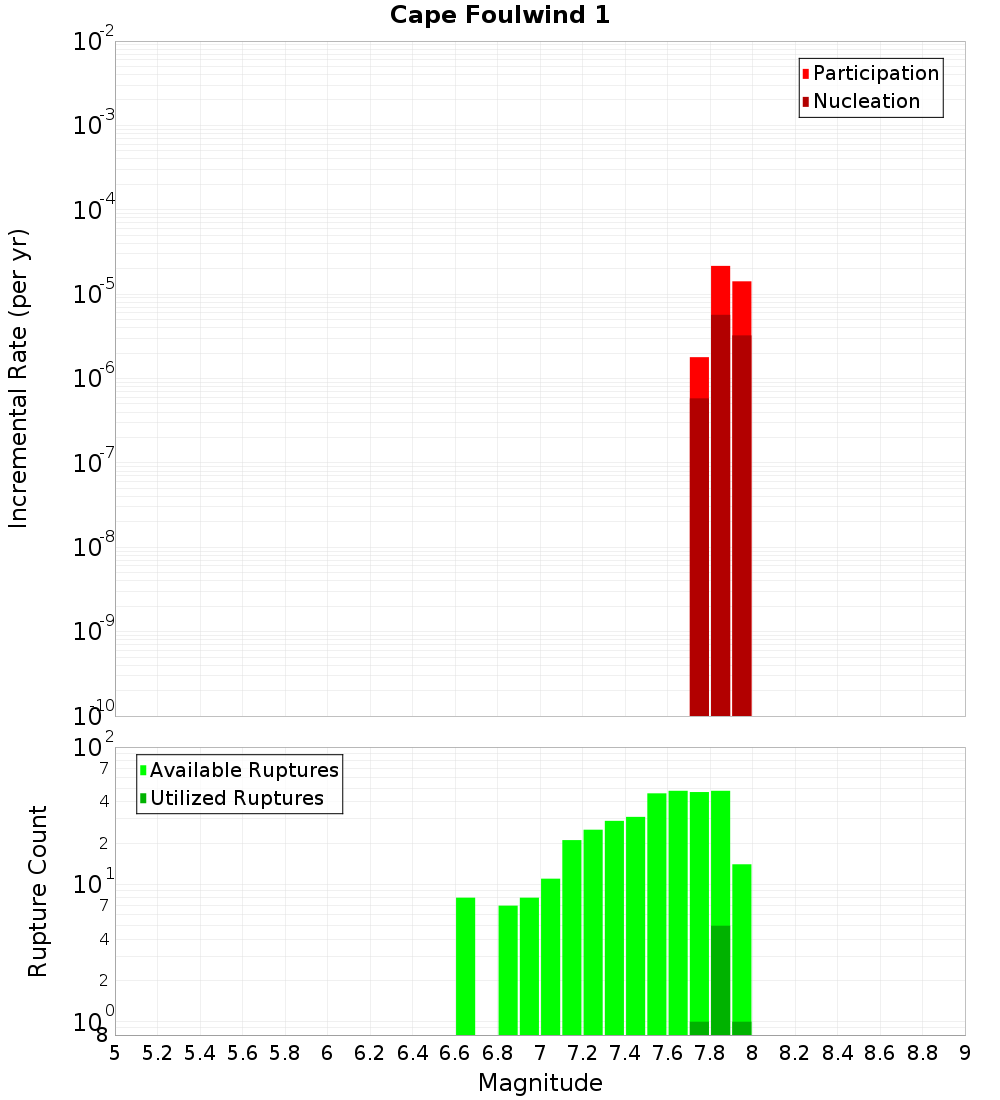

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

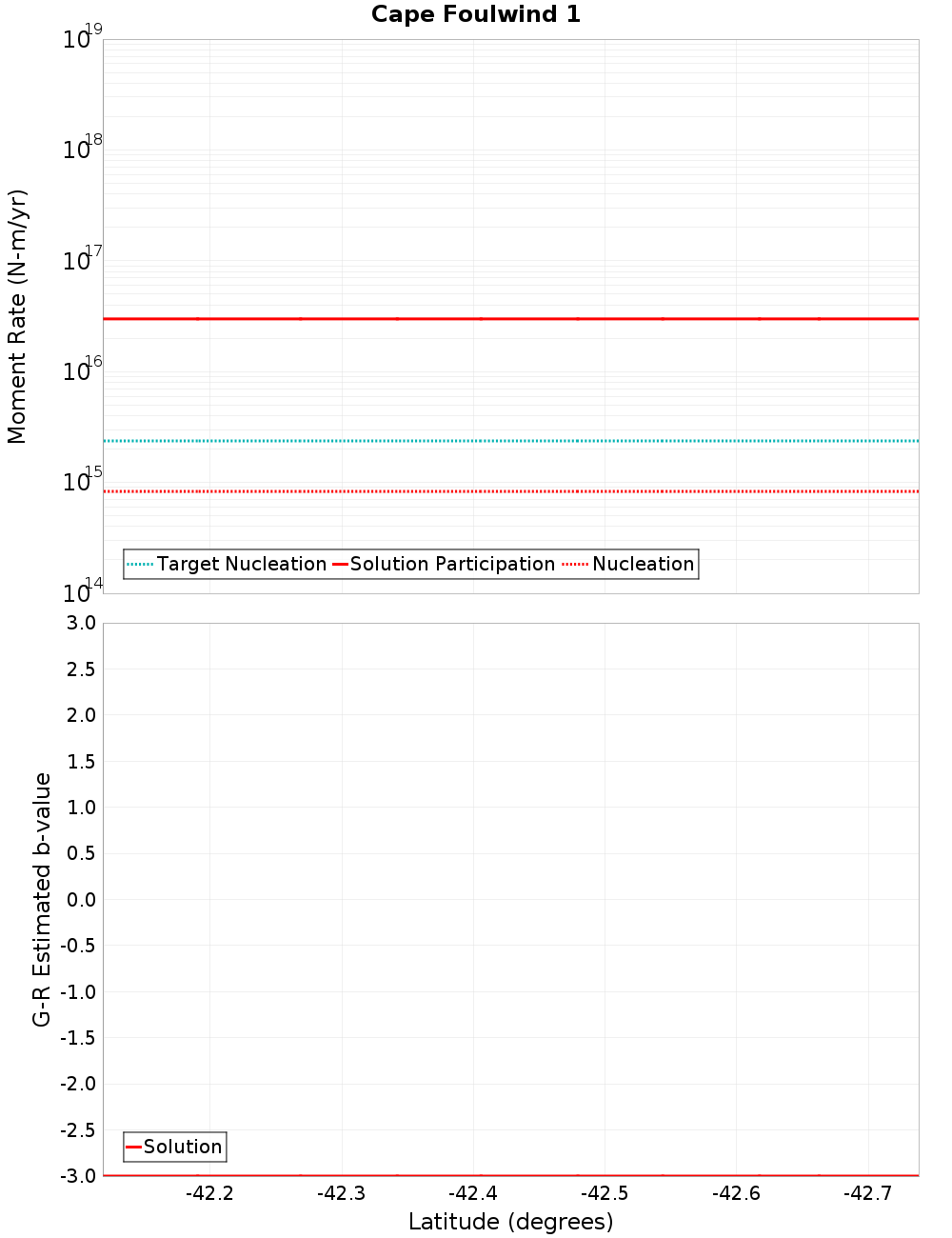

Moment-Rates and b-Values

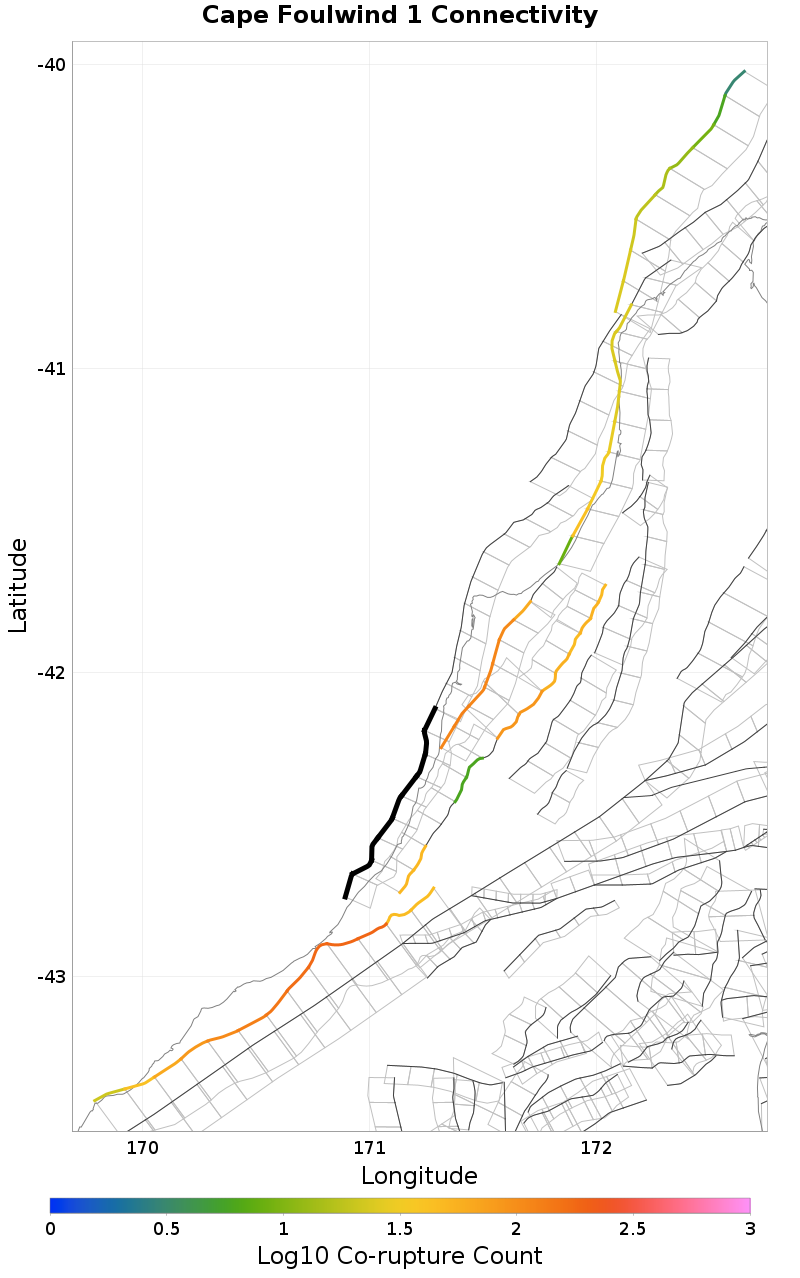

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Foulwind 2, 0 km away |
| Maimai: South, 0.4 km away |
| Paparoa West, 4.6 km away |
| Maimai, 4.81 km away |
| Hohonu: South, 14.49 km away |
| Kelly, 16.69 km away |
Cape Foulwind 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: South, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.53 km |
| Co-rupture Count | 56 |
| Co-rupture Rate | 0.0 |
Paparoa West, 4.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.6 km |
| Co-rupture Count | 146 |
| Co-rupture Rate | 3.7595E-5 |
Maimai, 4.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.81 km |
| Min Rate-Weighted Dist | 4.81 km |
| Co-rupture Count | 87 |
| Co-rupture Rate | 3.7595E-5 |
Hohonu: South, 14.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.49 km |
| Min Rate-Weighted Dist | 14.49 km |
| Co-rupture Count | 186 |
| Co-rupture Rate | 3.7595E-5 |
Kelly, 16.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
