Catherine Details
| Property | Value |
|---|---|
| Rupture Count | 3 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.80, 7.25] |
| Length Range | [20, 50] km |
| Total Rate | 1.682268E-5 /yr |
| Multi-Fault Rate | 1.682268E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

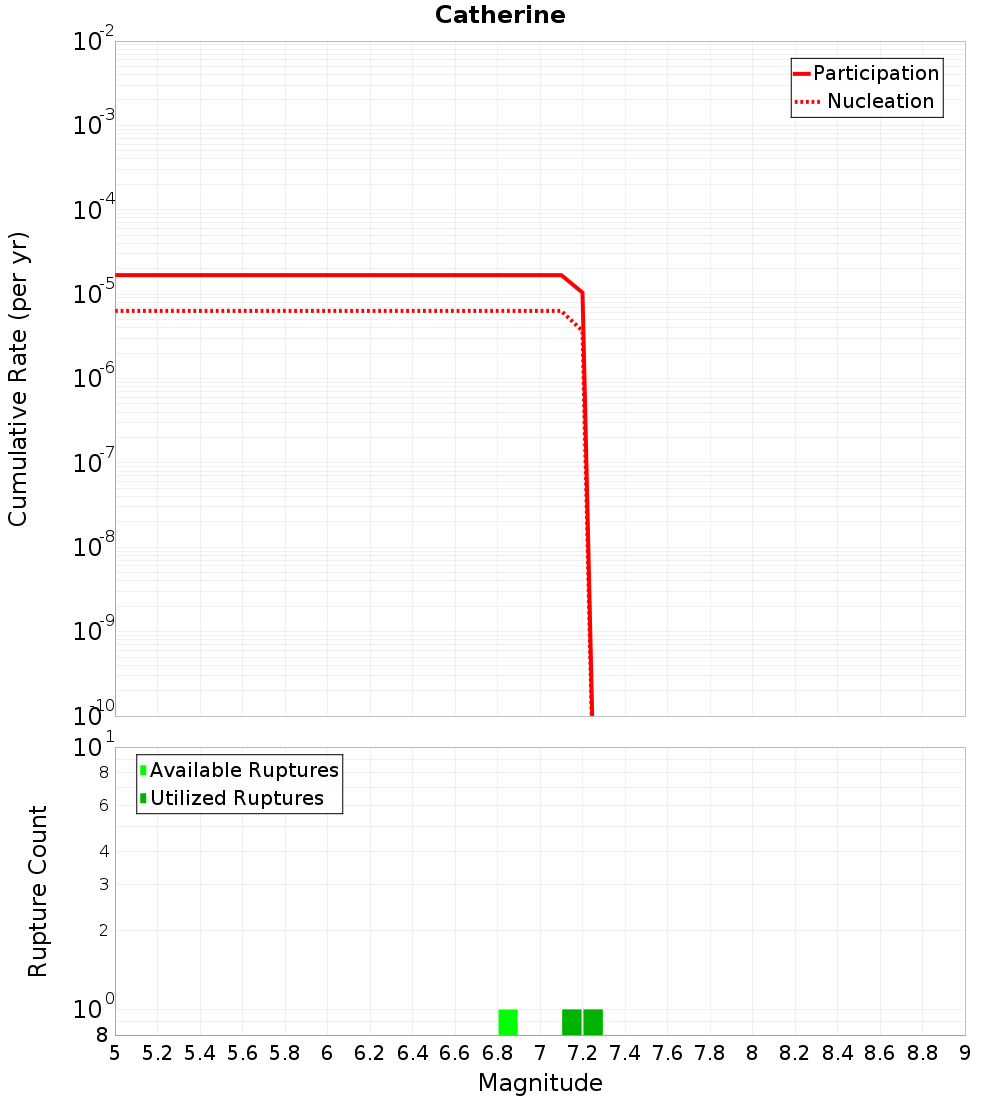

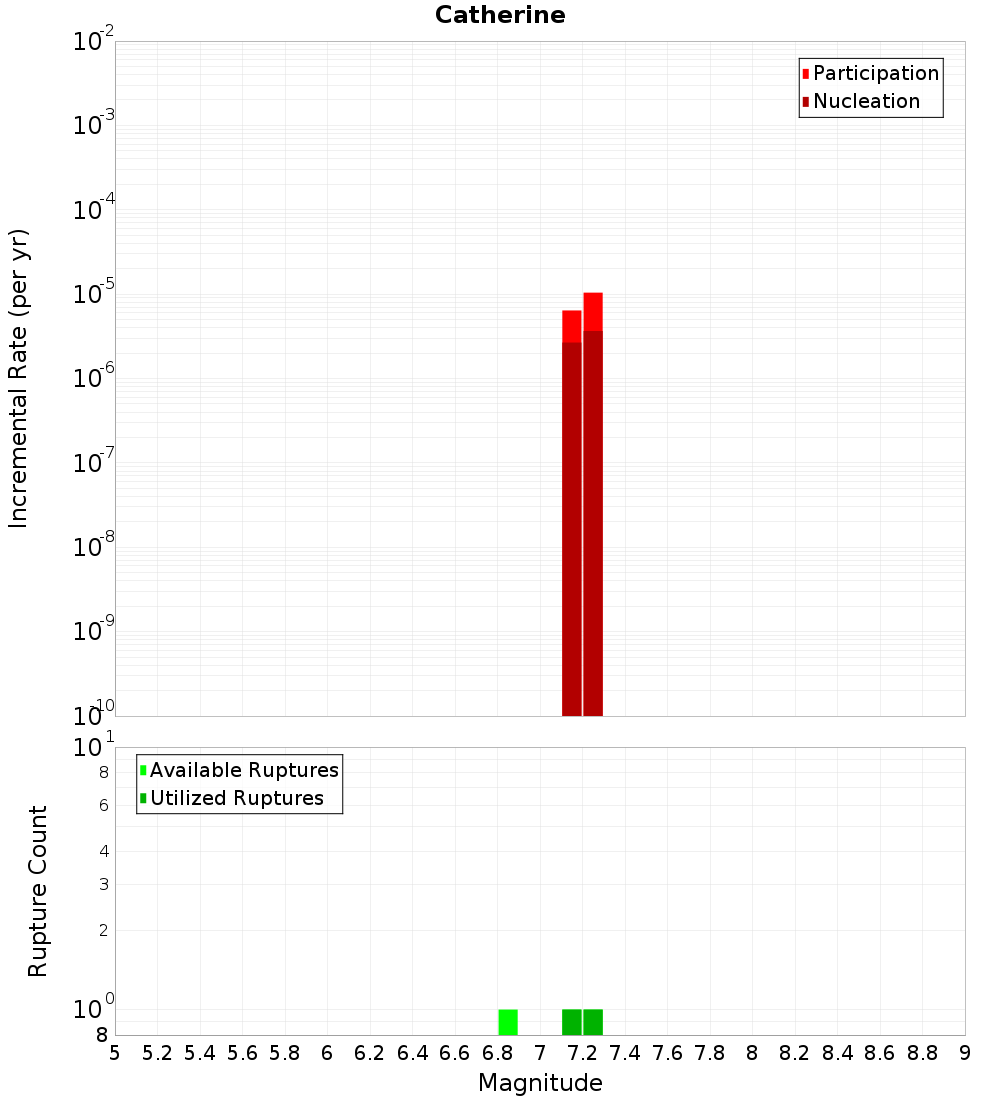

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

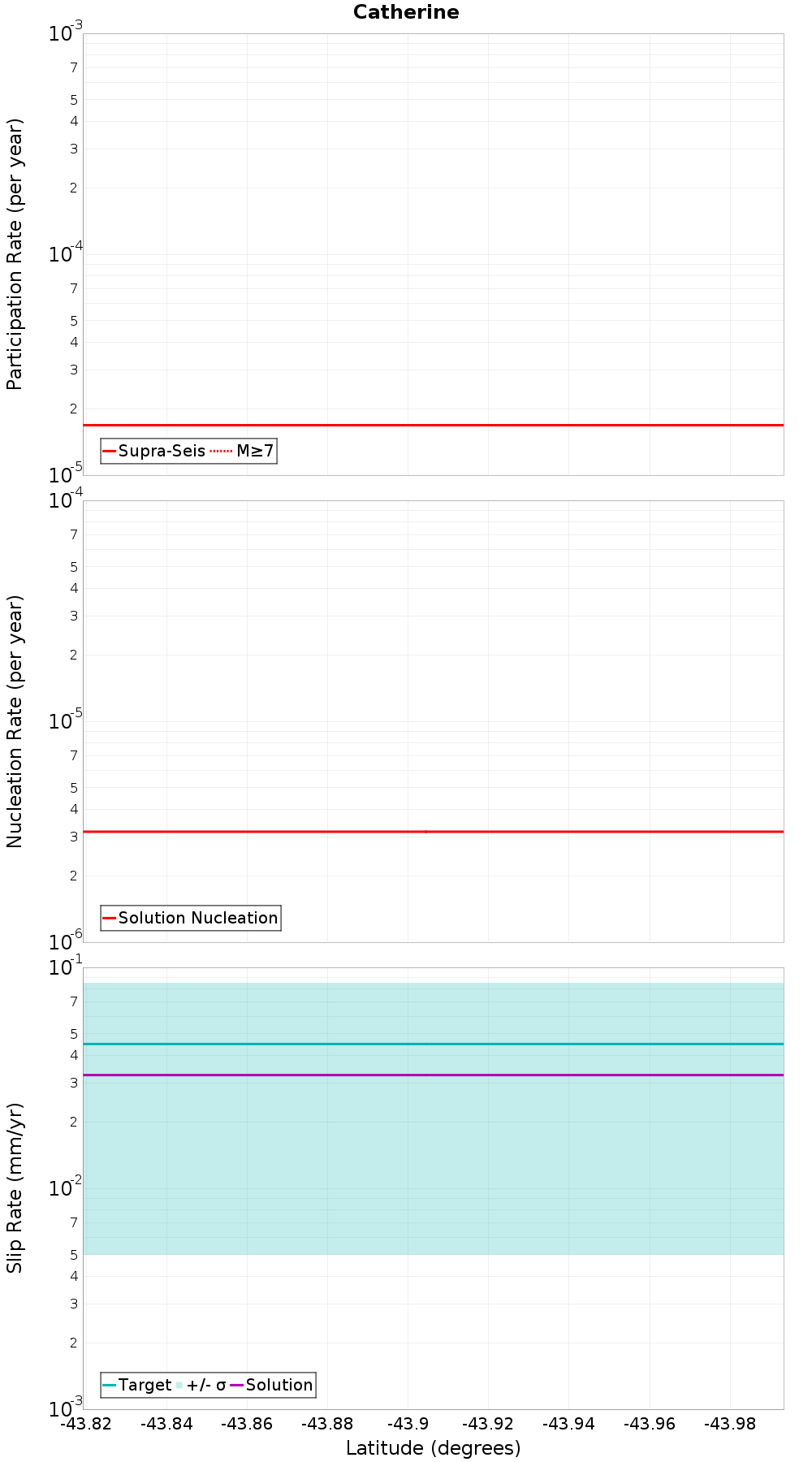

Along-Strike Values

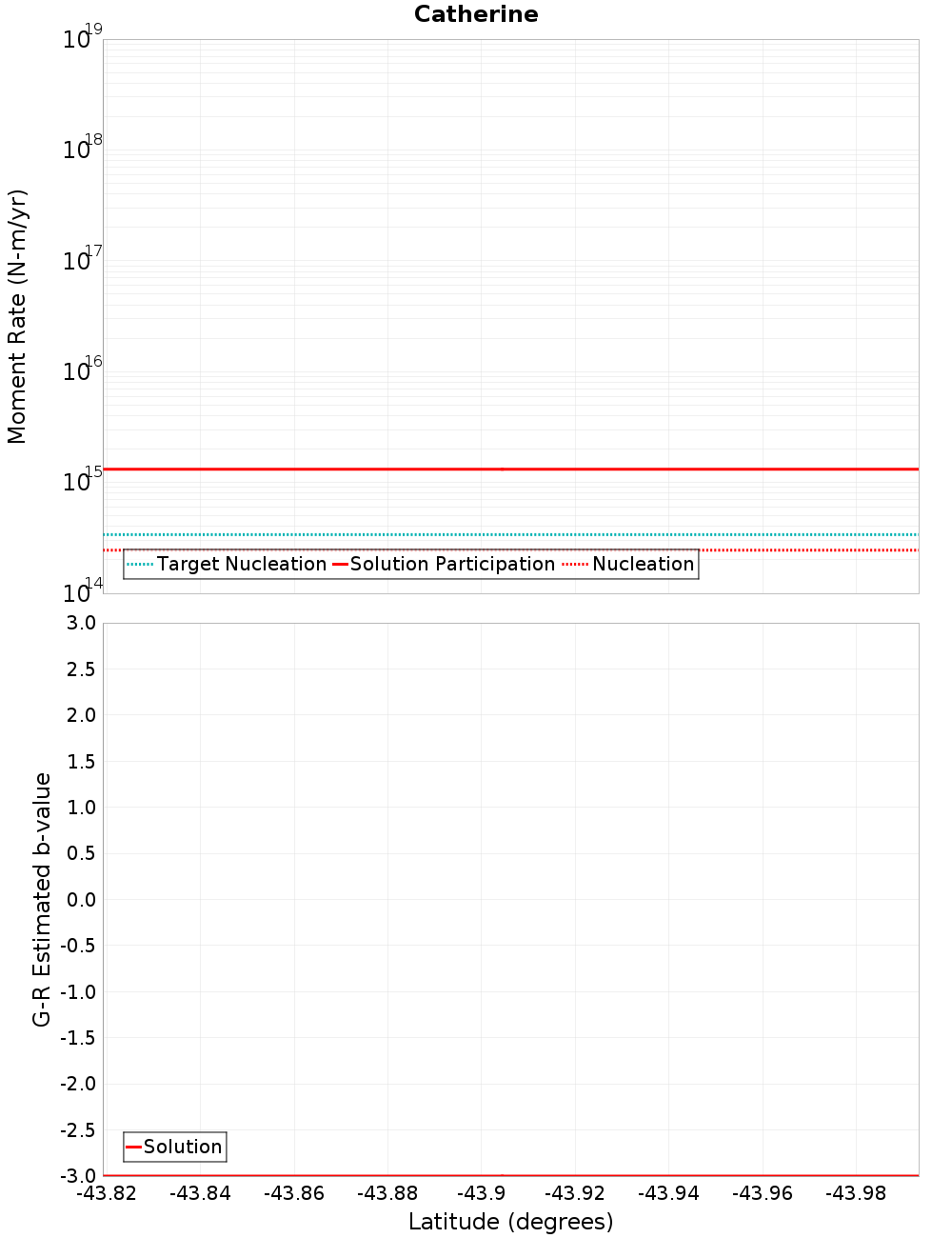

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Brothers, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ben McLeod, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.32 km |
| Min Rate-Weighted Dist | 0.32 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.4062624E-6 |
Edith, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sugarloaf, 2.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opawa, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 10.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.7 km |
| Min Rate-Weighted Dist | 10.7 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.0416417E-5 |
Fox Peak, 13.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Klondyke Moor, 16.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Heron, 19.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
