Dunstan Details

PropertyValue
Rupture Count153
Ruptures Above Sect Min Mag151
Ruptures w/ Nonzero Rates13
Magnitude Range[7.08, 8.00]
Length Range[30, 244] km
Total Rate3.1210267E-4 /yr
Multi-Fault Rate9.89916E-5 /yr (31.72%)
Directly-Connected Faults8
All Co-Rupturing Faults28

Table Of Contents

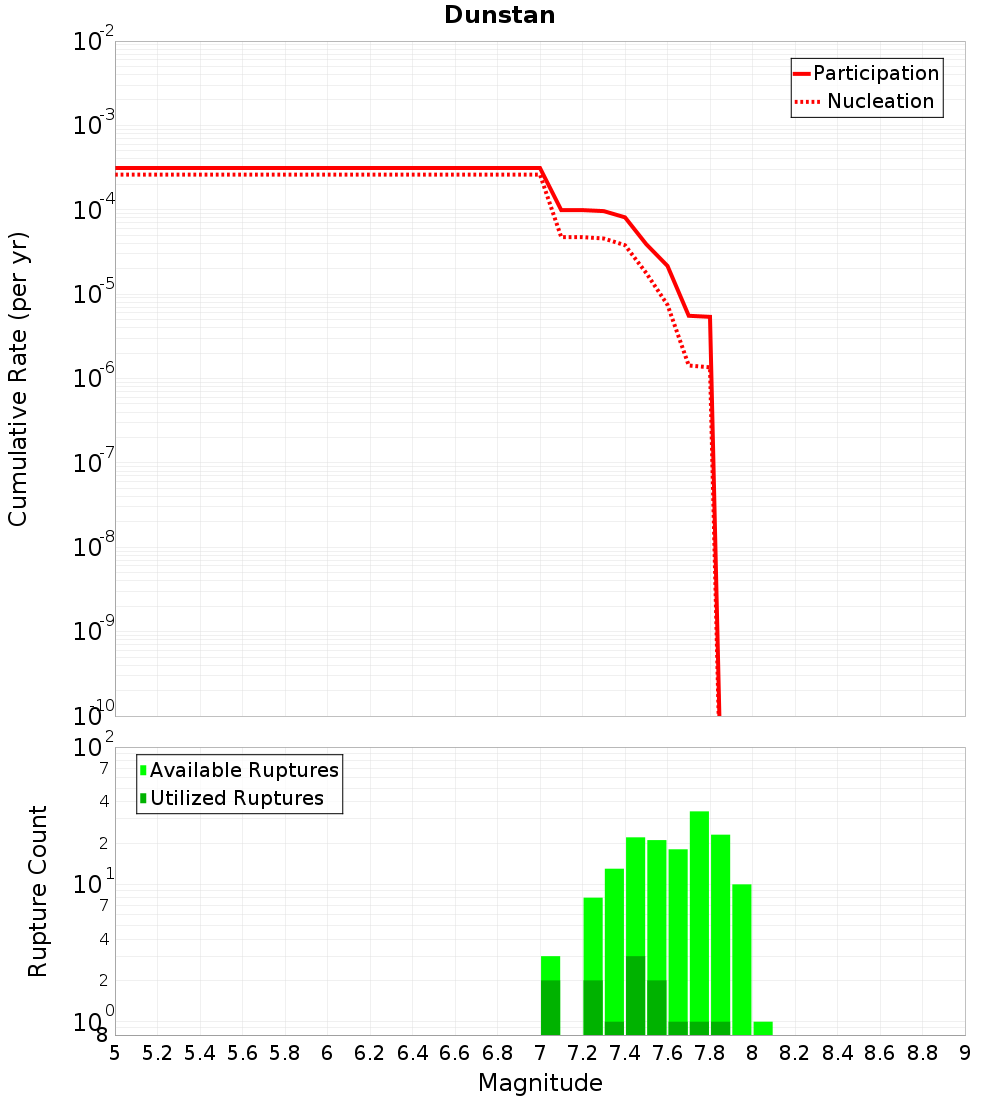

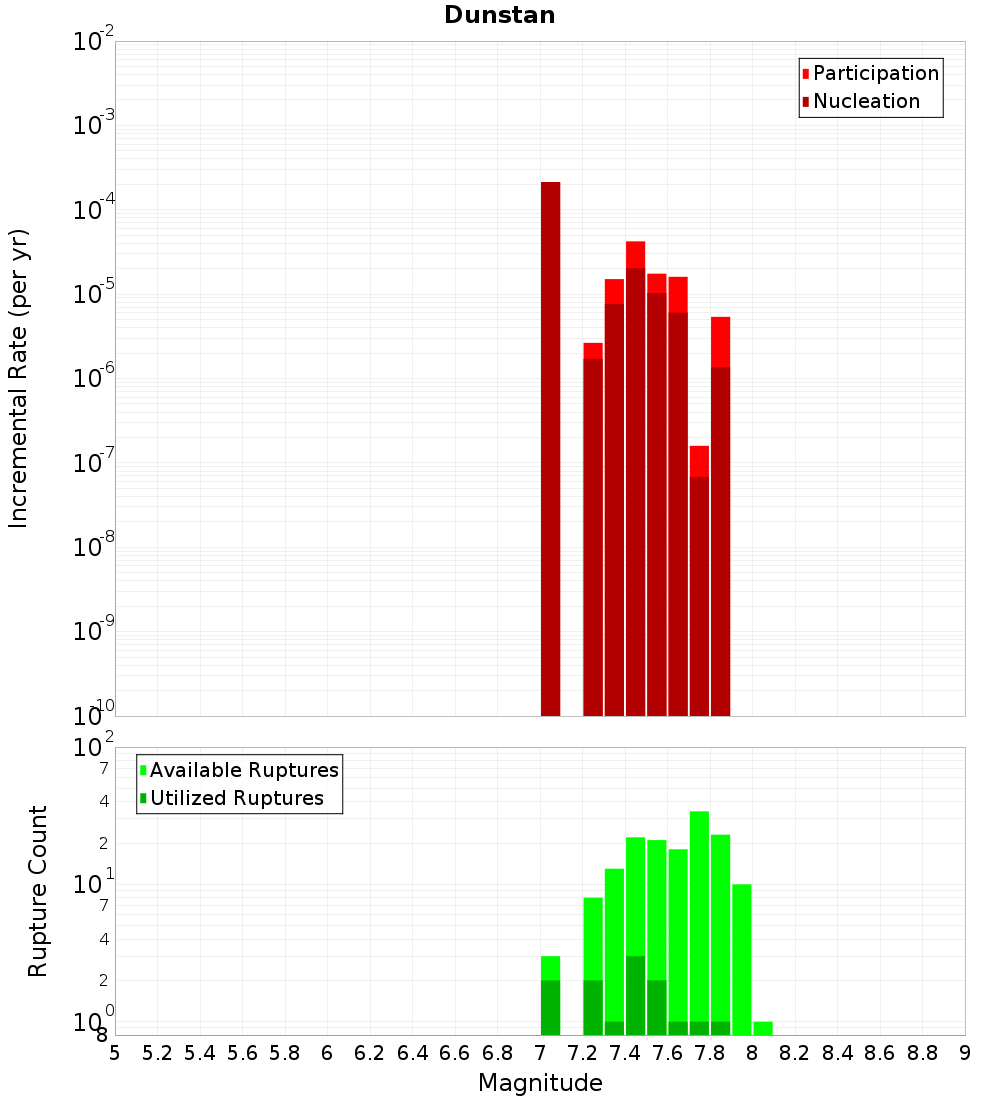

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

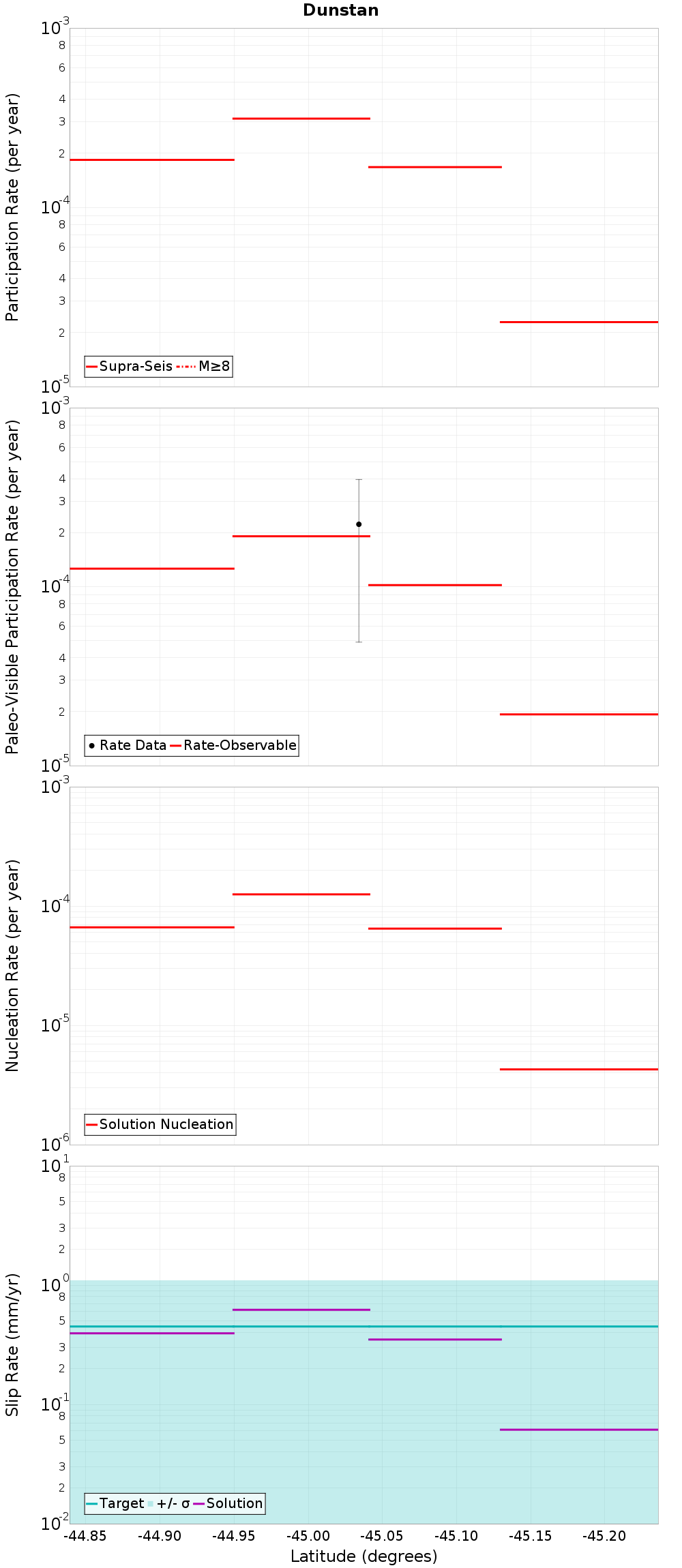

Along-Strike Values

(top)

Along-strike plot

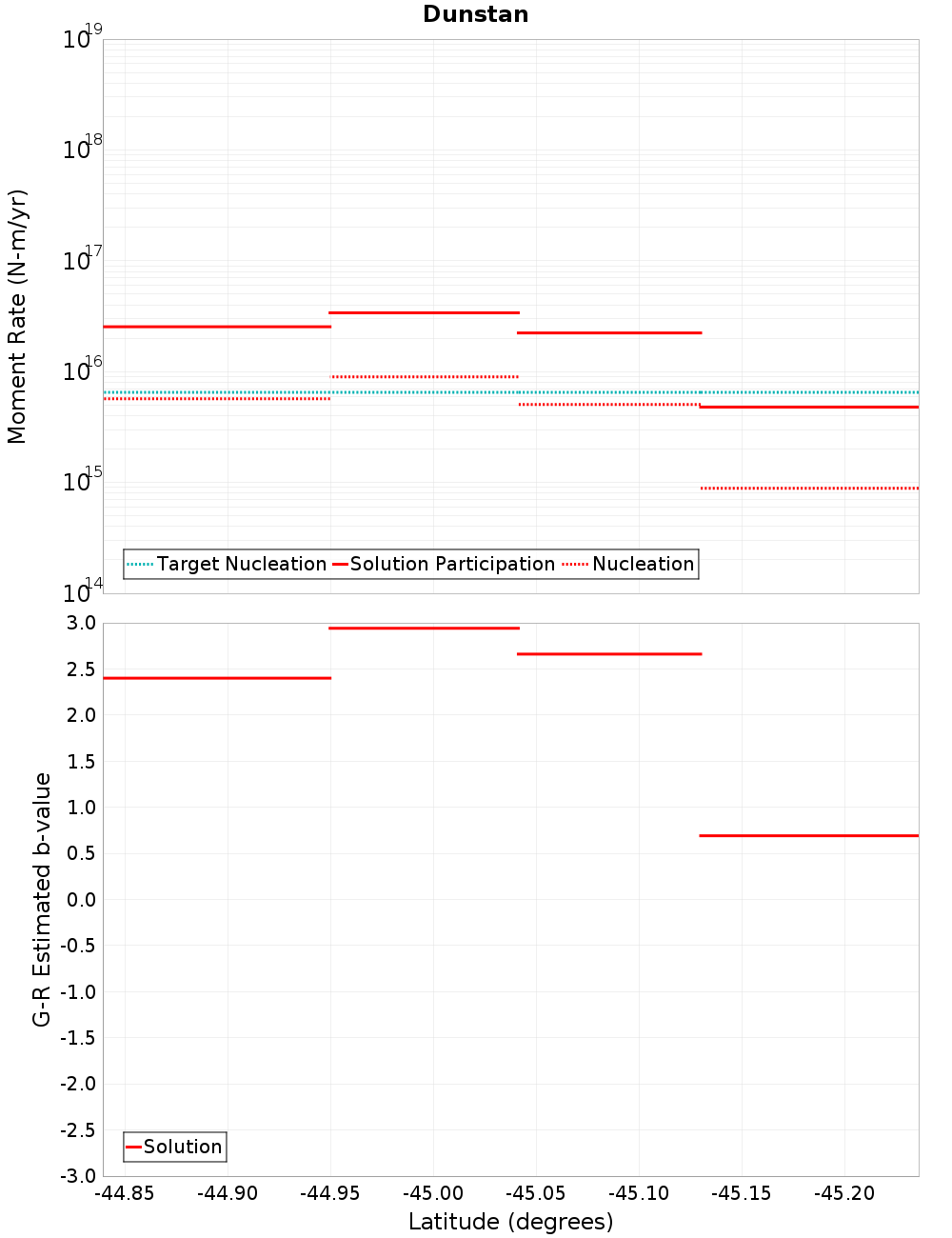

Moment-Rates and b-Values

(top)

Along-strike plot

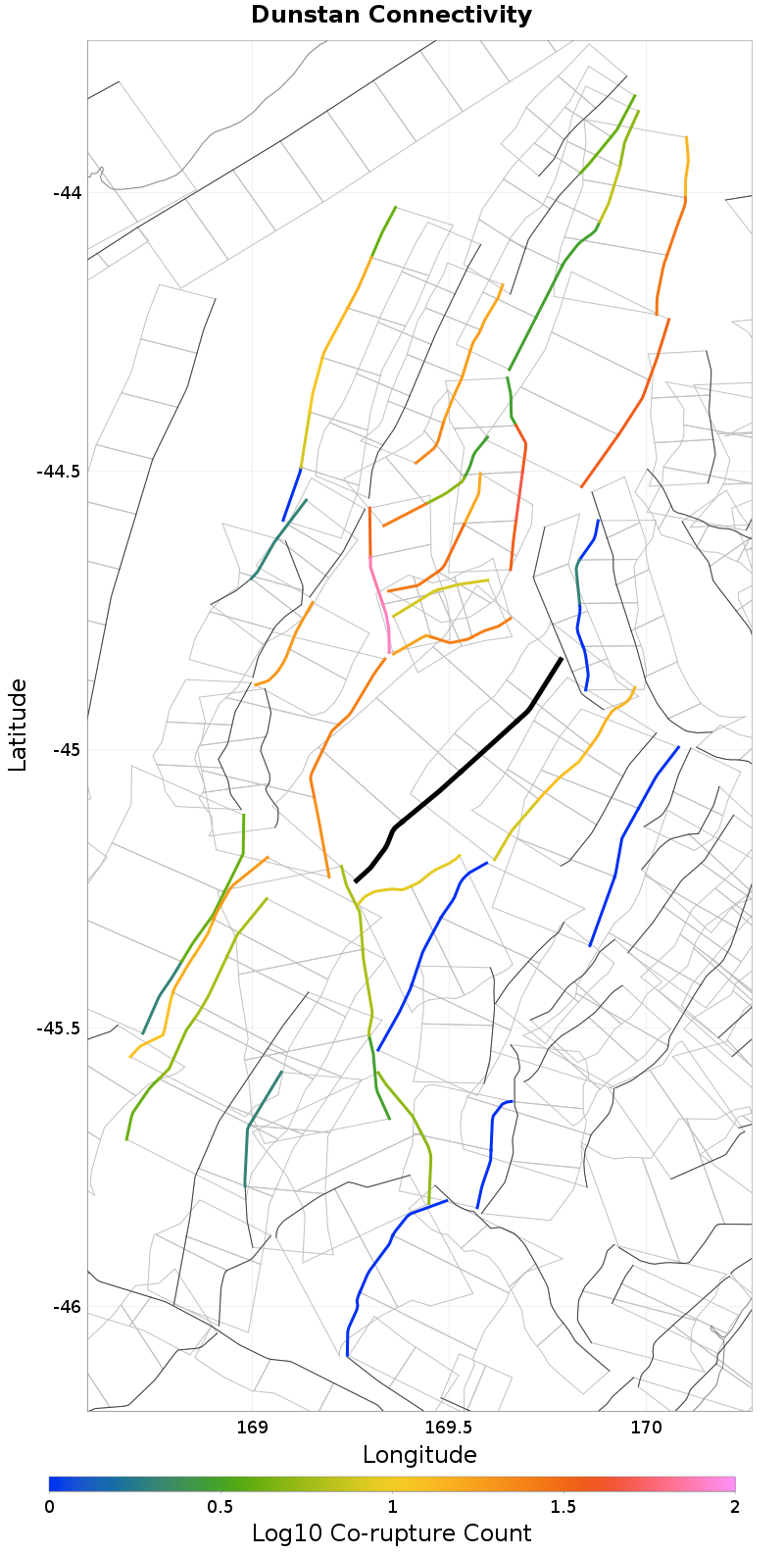

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Goodger, 0.12 km awayDromedary, 5.95 km away
Lindis River, 0.15 km awayRoaring Lion, 6.22 km away
Grandview, 0.3 km awayRaggedy - Blackstone, 9.93 km away
Blue Lake, 1.26 km awayRoaring Meg, 10.28 km away
Old Man, 1.91 km awayGarvie, 12.96 km away
Cluden, 3.31 km awayHawkdun, 15.22 km away
Galloway, 3.61 km awayGaribaldi, 16.04 km away
Pisa, 4.43 km awayLittle Valley, 16.36 km away
Paddys Ridge, 4.63 km awayNW Cardrona South, 16.52 km away
Omarama Saddle, 5.06 km awayNevis, 18.03 km away

Goodger, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.12 km
Min Rate-Weighted Dist0.13 km
Co-rupture Count8
Co-rupture Rate1.8986775E-5

Lindis River, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.15 km
Min Rate-Weighted Dist0.15 km
Co-rupture Count30
Co-rupture Rate1.5757174E-5

Grandview, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.3 km
Min Rate-Weighted Dist0.3 km
Co-rupture Count81
Co-rupture Rate5.5376663E-6

Blue Lake, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 1.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Cluden, 3.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.31 km
Min Rate-Weighted Dist3.31 km
Co-rupture Count25
Co-rupture Rate1.5068086E-5

Galloway, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.65 km
Min Rate-Weighted Dist11.65 km
Co-rupture Count9
Co-rupture Rate5.3783865E-6

Pisa, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Paddys Ridge, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.63 km
Min Rate-Weighted Dist4.63 km
Co-rupture Count19
Co-rupture Rate1.6189588E-5

Omarama Saddle, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate6.5199774E-6

Dromedary, 5.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.95 km
Min Rate-Weighted Dist13.09 km
Co-rupture Count49
Co-rupture Rate2.1424925E-5

Roaring Lion, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Raggedy - Blackstone, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.93 km
Min Rate-Weighted Dist9.93 km
Co-rupture Count14
Co-rupture Rate2.9511782E-5

Roaring Meg, 10.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 12.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Hawkdun, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 16.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 16.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

NW Cardrona South, 16.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 18.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
