EarthquakeFlat - Tumunui Details

PropertyValue
Rupture Count7,707
Ruptures Above Sect Min Mag7,494
Ruptures w/ Nonzero Rates27
Magnitude Range[5.97, 7.56]
Length Range[8, 181] km
Total Rate0.0014902976 /yr
Multi-Fault Rate0.0014902976 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults25

Table Of Contents

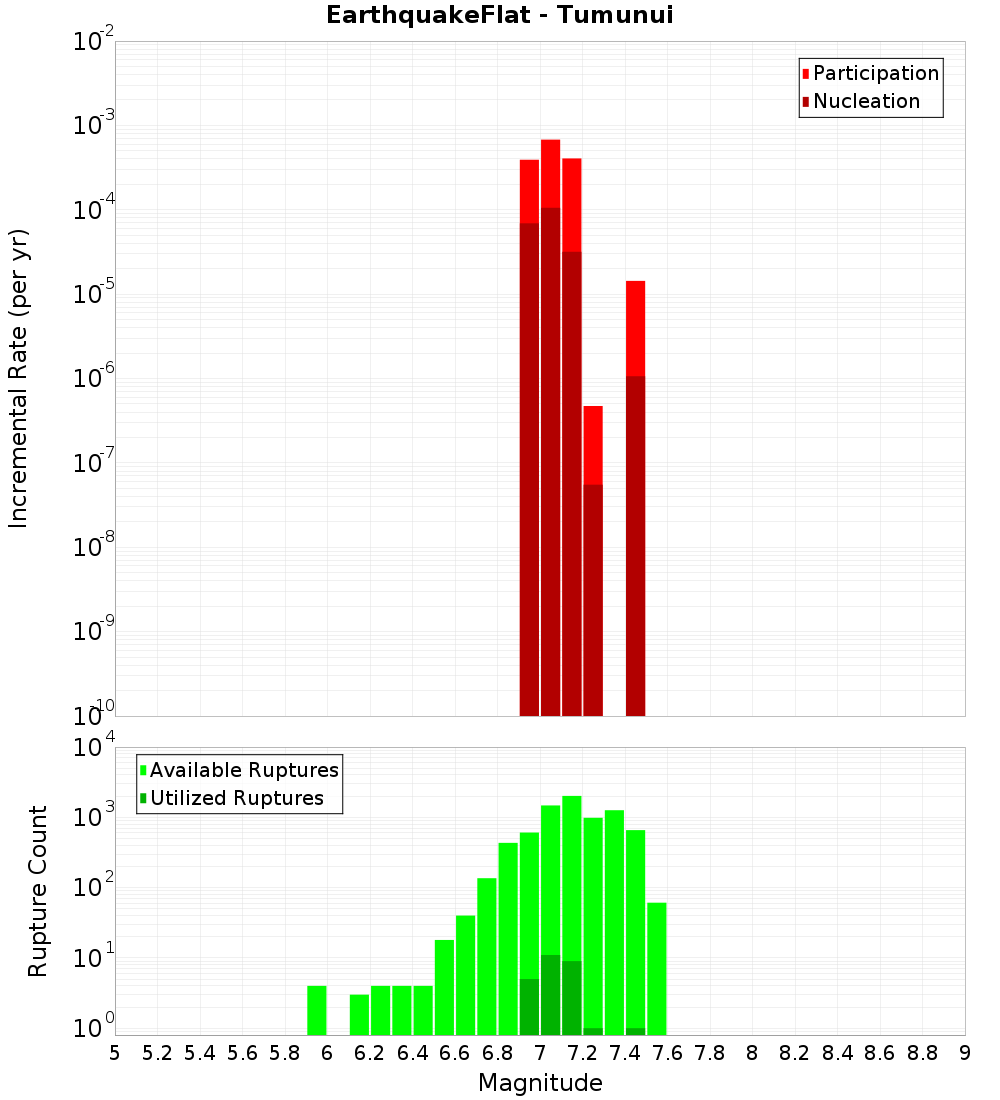

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

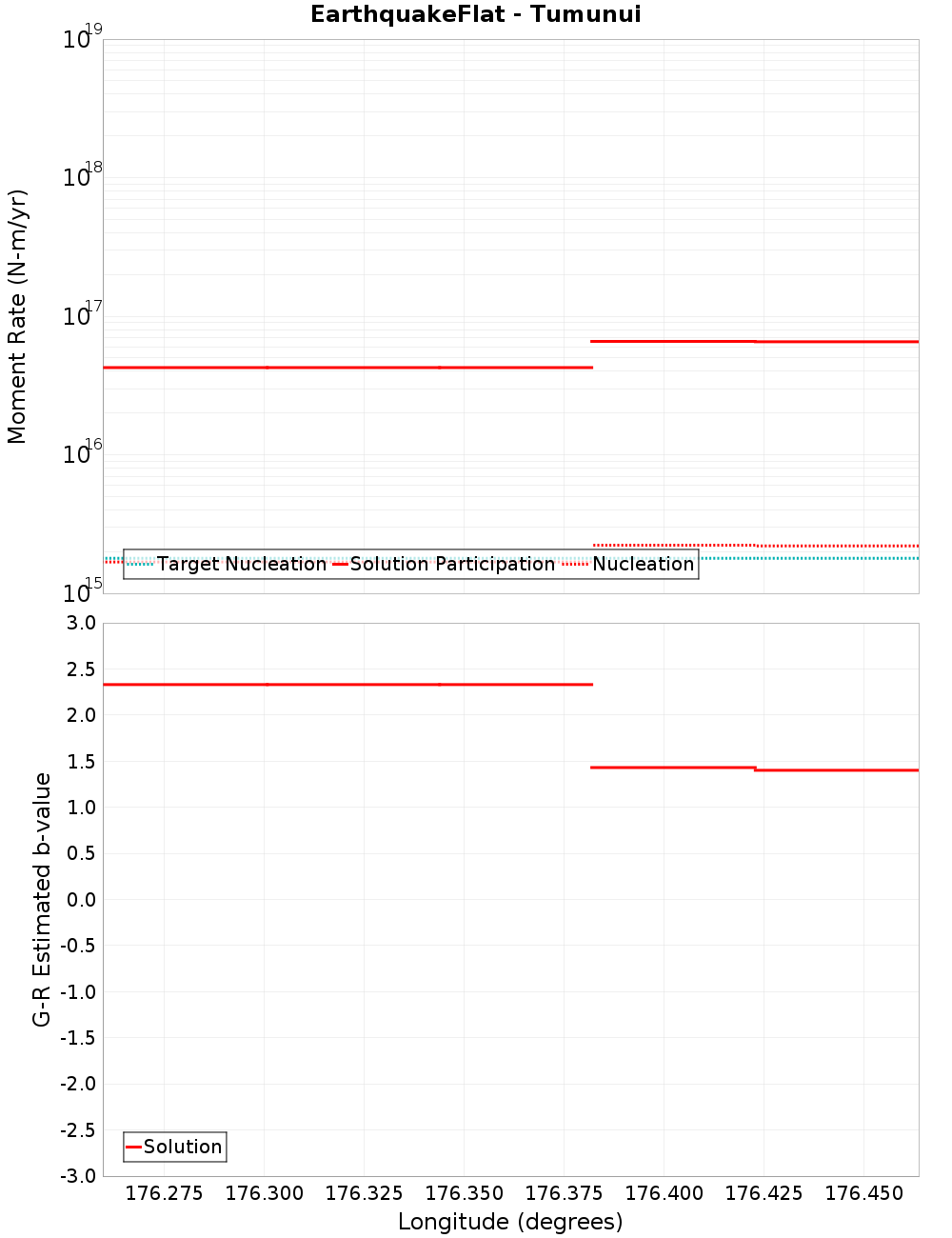

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maleme, 0.79 km away
Paeroa, 1.55 km away
Puketerata North, 7.65 km away
Braemar, 12.8 km away
Orakeikorako, 19.26 km away

Maleme, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.79 km
Min Rate-Weighted Dist0.79 km
Co-rupture Count4,505
Co-rupture Rate8.074228E-4

Paeroa, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.55 km
Min Rate-Weighted Dist1.89 km
Co-rupture Count4,784
Co-rupture Rate8.549367E-4

Puketerata North, 7.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count2,406
Co-rupture Rate5.934255E-4

Braemar, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.8 km
Min Rate-Weighted Dist12.8 km
Co-rupture Count7,592
Co-rupture Rate0.001350322

Orakeikorako, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count3,215
Co-rupture Rate7.451181E-4
