Gable End North Details
| Property | Value |
|---|---|
| Rupture Count | 227 |
| Ruptures Above Sect Min Mag | 218 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.47, 7.52] |
| Length Range | [15, 157] km |
| Total Rate | 0.0015183665 /yr |
| Multi-Fault Rate | 0.0015183665 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

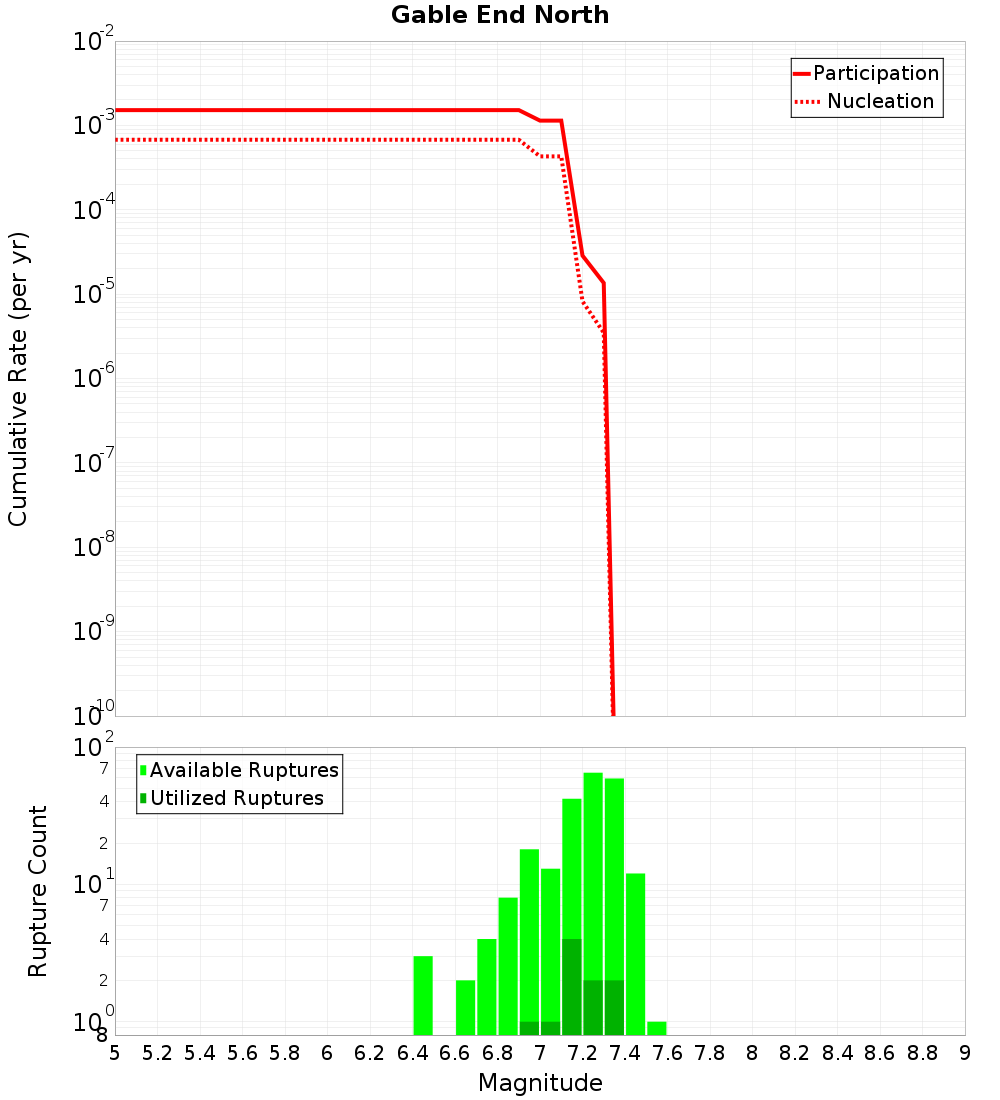

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pakarae, 0.38 km away |
| Ariel Bank 2, 0.91 km away |
| Ariel Bank, 2.26 km away |
| Te Ikaarongamai, 3.53 km away |
| Gable End South, 5.71 km away |
| Ariel East, 9.99 km away |
Pakarae, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 23 |
| Co-rupture Rate | 0.0010944208 |
Ariel Bank 2, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.91 km |
| Min Rate-Weighted Dist | 0.91 km |
| Co-rupture Count | 145 |
| Co-rupture Rate | 0.0011098349 |
Ariel Bank, 2.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.26 km |
| Min Rate-Weighted Dist | 2.26 km |
| Co-rupture Count | 102 |
| Co-rupture Rate | 4.406596E-5 |
Te Ikaarongamai, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.53 km |
| Min Rate-Weighted Dist | 3.53 km |
| Co-rupture Count | 36 |
| Co-rupture Rate | 3.798797E-4 |
Gable End South, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.71 km |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
Ariel East, 9.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 51 |
| Co-rupture Rate | 0.0 |
