Hohonu: South Details

Property	Value
Rupture Count	6,179
Ruptures Above Sect Min Mag	6,169
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.85, 8.31]
Length Range	[23, 761] km
Total Rate	9.666981E-5 /yr
Multi-Fault Rate	9.505964E-5 /yr (98.33%)
Directly-Connected Faults	6
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

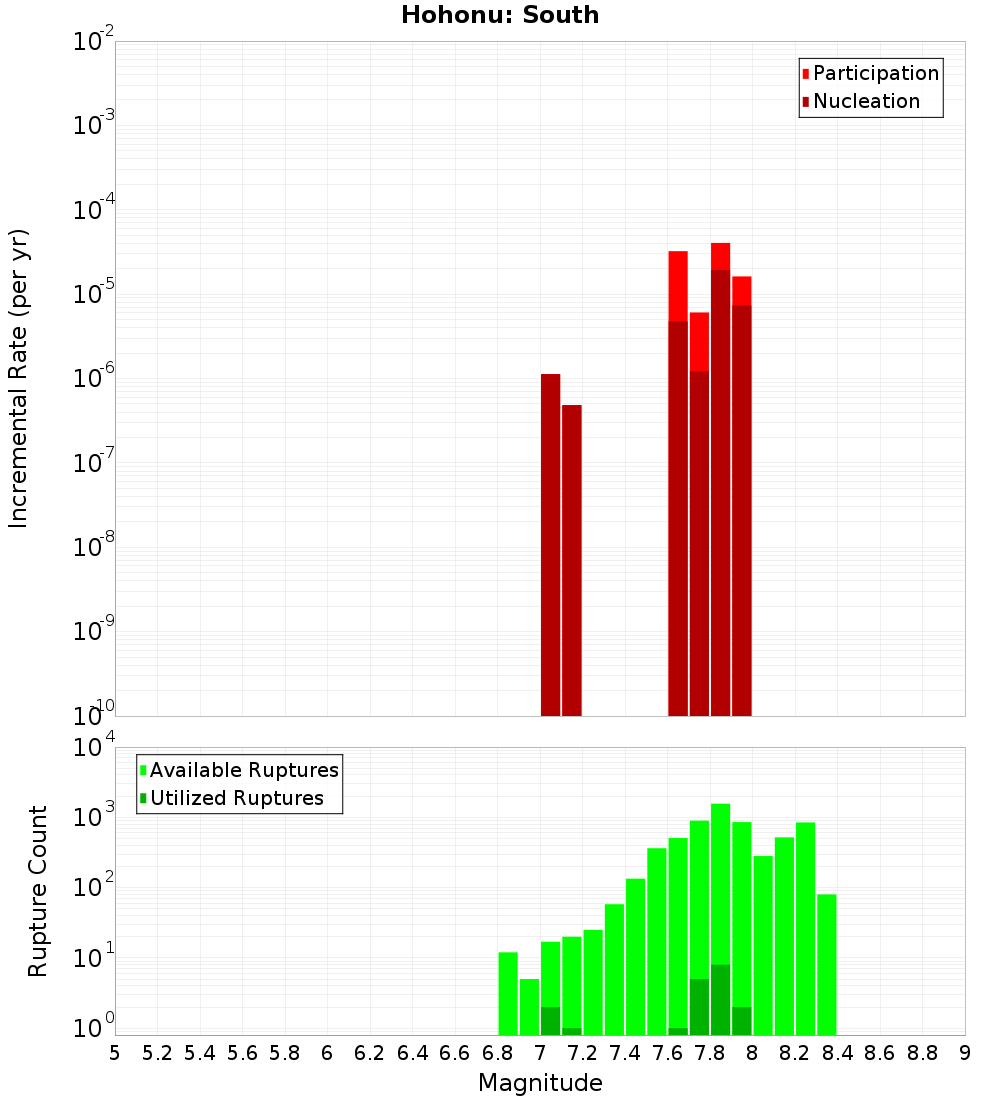

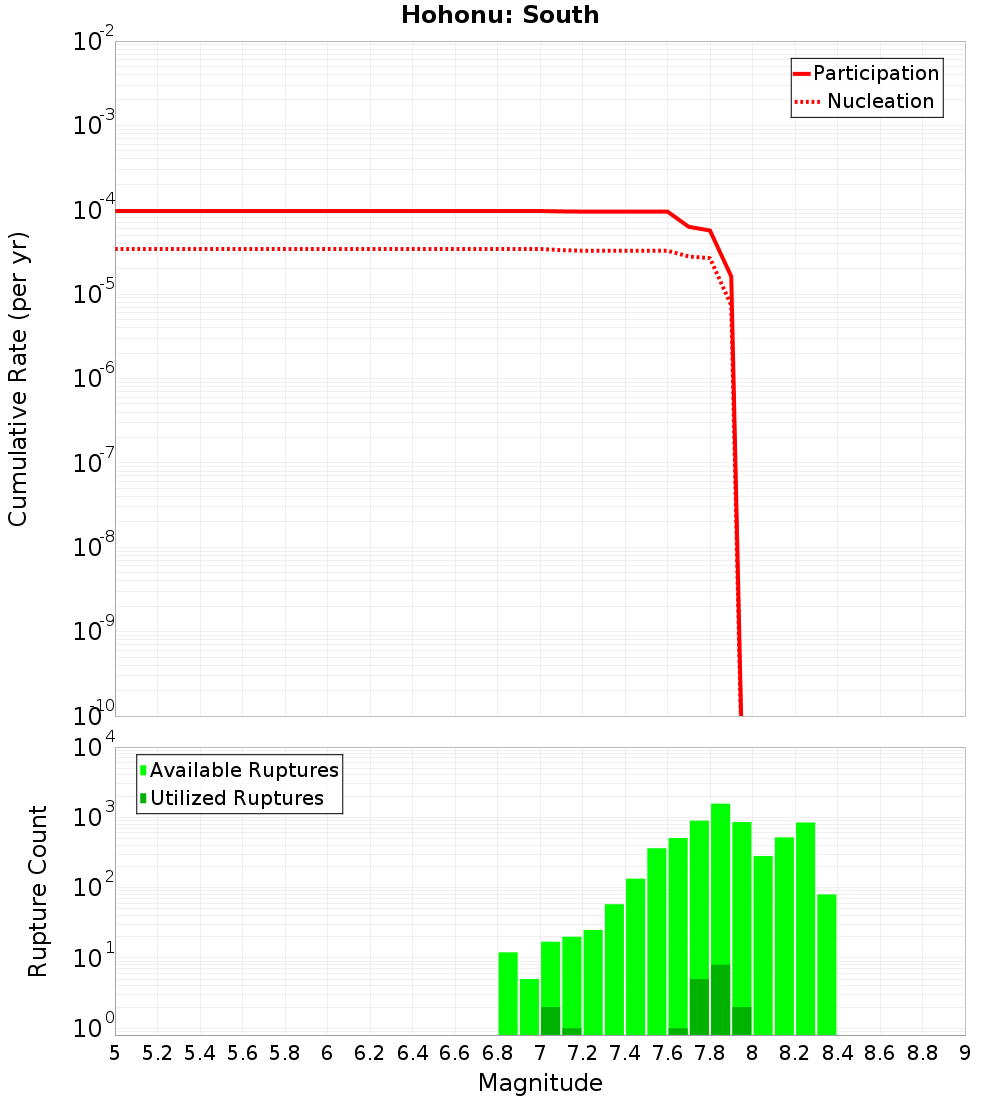

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Kaniere to Springs Junction, 0.1 km away
Kelly, 0.17 km away
Alpine: Jacksons to Kaniere, 0.83 km away
Browning Pass, 3.12 km away
Maimai: South, 7.36 km away
Hope: Taramakau, 10.77 km away
Cape Foulwind 1, 14.49 km away

Alpine: Kaniere to Springs Junction, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.26 km
Co-rupture Count	161
Co-rupture Rate	0.0

Kelly, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.17 km
Co-rupture Count	2,287
Co-rupture Rate	0.0

Alpine: Jacksons to Kaniere, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.83 km
Co-rupture Count	2,010
Co-rupture Rate	0.0

Browning Pass, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.12 km
Min Rate-Weighted Dist	5.44 km
Co-rupture Count	1,742
Co-rupture Rate	3.3716944E-6

Maimai: South, 7.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	7.36 km
Min Rate-Weighted Dist	7.36 km
Co-rupture Count	128
Co-rupture Rate	5.409294E-5

Hope: Taramakau, 10.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	2,211
Co-rupture Rate	3.3716944E-6

Cape Foulwind 1, 14.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	14.49 km
Min Rate-Weighted Dist	14.49 km
Co-rupture Count	186
Co-rupture Rate	3.7595E-5
