Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 88 |
| Ruptures Above Sect Min Mag | 84 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.90, 7.69] |
| Length Range | [25, 154] km |
| Total Rate | 2.8978082E-5 /yr |
| Multi-Fault Rate | 2.8978082E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

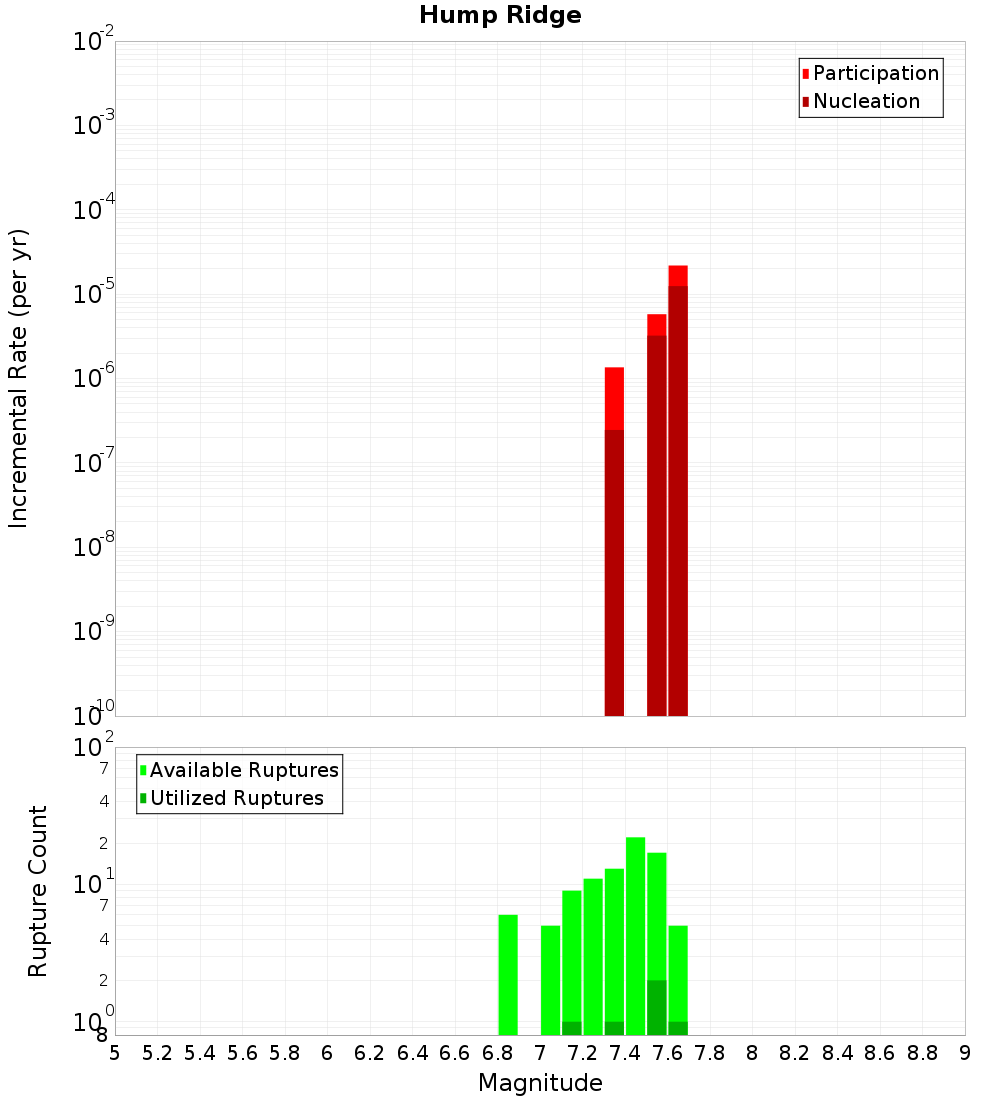

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

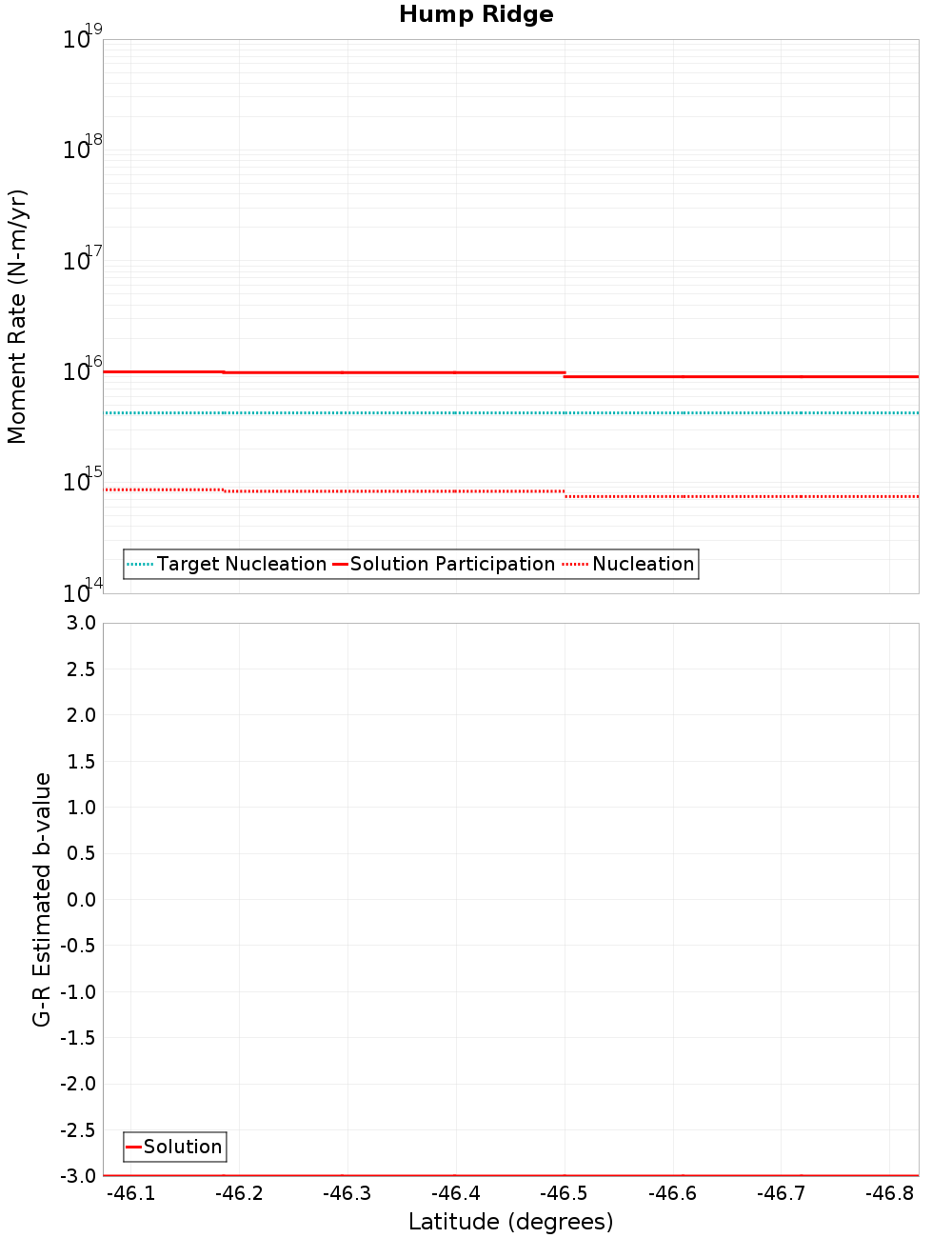

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.04 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.29 km away |
| Monowai, 10.61 km away |
Hauroko: South, 3.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.04 km |
| Min Rate-Weighted Dist | 9 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 2.319708E-5 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.59 km |
| Min Rate-Weighted Dist | 14.57 km |
| Co-rupture Count | 24 |
| Co-rupture Rate | 3.1895802E-6 |
Solander, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.29 km |
| Min Rate-Weighted Dist | 5.29 km |
| Co-rupture Count | 12 |
| Co-rupture Rate | 3.1895802E-6 |
Monowai, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.61 km |
| Min Rate-Weighted Dist | 10.61 km |
| Co-rupture Count | 14 |
| Co-rupture Rate | 3.9475617E-6 |
