Kidnappers Ridge Details

PropertyValue
Rupture Count96
Ruptures Above Sect Min Mag91
Ruptures w/ Nonzero Rates3
Magnitude Range[6.69, 7.53]
Length Range[19, 144] km
Total Rate3.118086E-4 /yr
Multi-Fault Rate3.118086E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults6

Table Of Contents

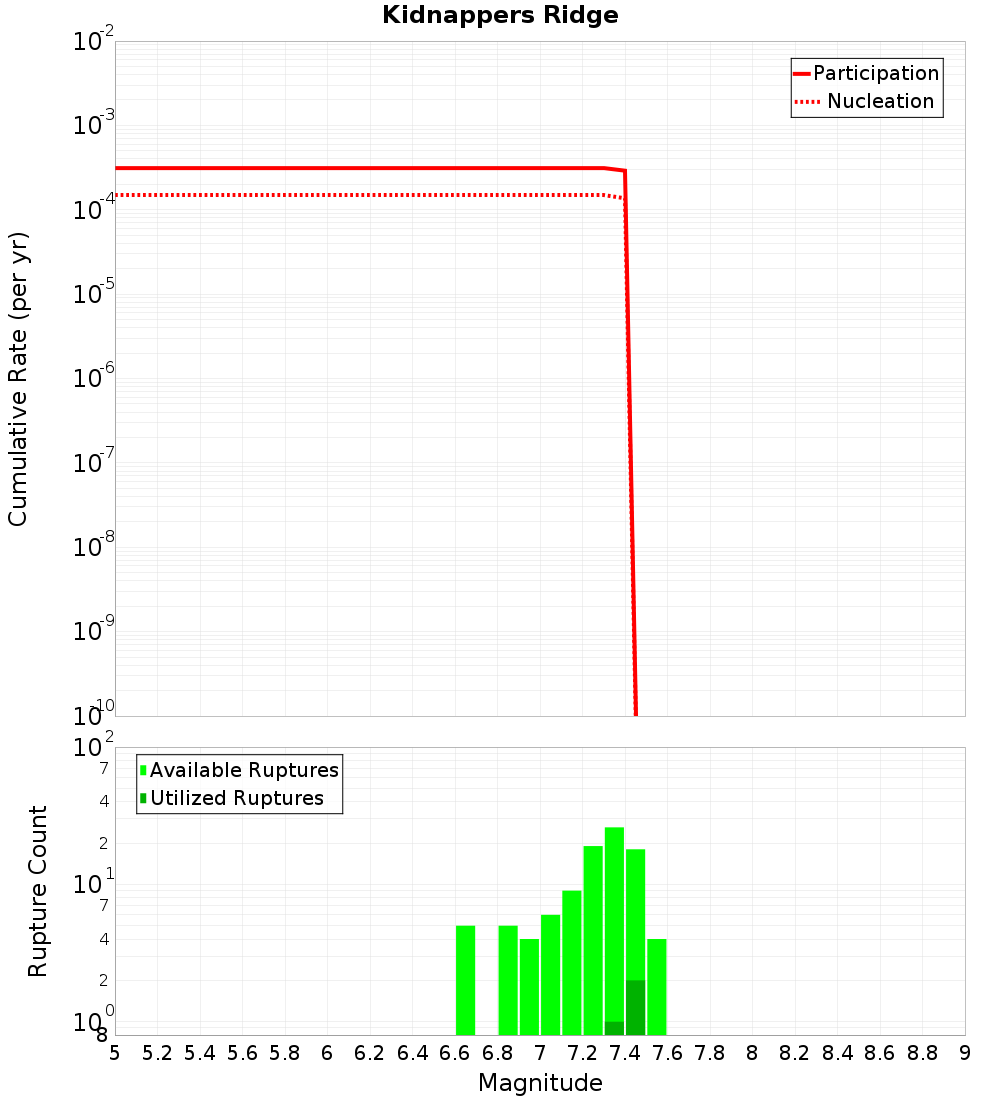

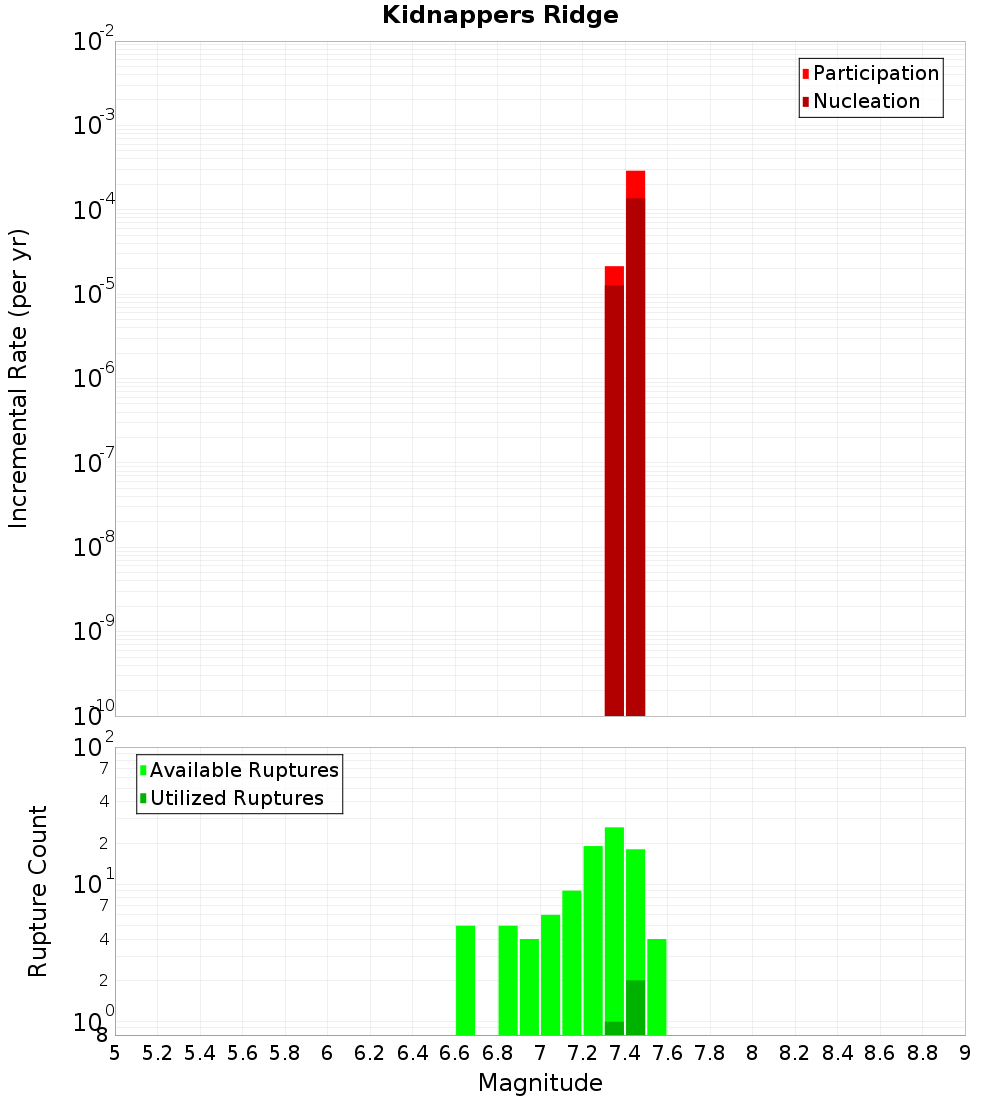

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

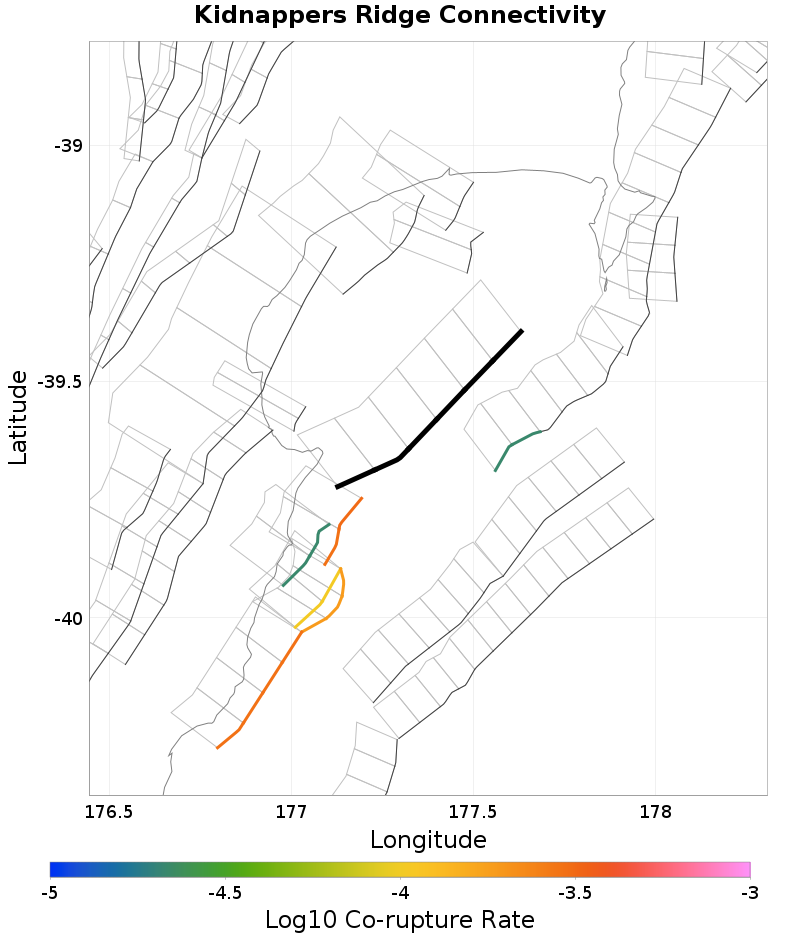

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimarama 3 & 4, 3.47 km away
Waimarama 1 & 2, 8.69 km away
Hawke Bay 8, 10.61 km away
Lachlan 1 & 2, 10.87 km away
Tukituki Thrust, 11.4 km away
Hawke Bay 5 & 11, 11.89 km away
Kairakau North, 16.64 km away
Lachlan 3, 17.32 km away
Kairakau 2, 17.5 km away
Awanui, 18.2 km away
Hawke Bay 4, 19.31 km away

Waimarama 3 & 4, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.47 km
Min Rate-Weighted Dist3.47 km
Co-rupture Count76
Co-rupture Rate3.118086E-4

Waimarama 1 & 2, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate2.1439768E-5

Hawke Bay 8, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 1 & 2, 10.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.87 km
Min Rate-Weighted Dist10.87 km
Co-rupture Count16
Co-rupture Rate2.1439768E-5

Tukituki Thrust, 11.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 5 & 11, 11.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau North, 16.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate1.03099934E-4

Lachlan 3, 17.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau 2, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.872689E-4

Awanui, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 4, 19.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
