Lachlan 3 Details
| Property | Value |
|---|---|
| Rupture Count | 179 |
| Ruptures Above Sect Min Mag | 155 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.48, 7.52] |
| Length Range | [15, 157] km |
| Total Rate | 8.260829E-4 /yr |
| Multi-Fault Rate | 8.260829E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

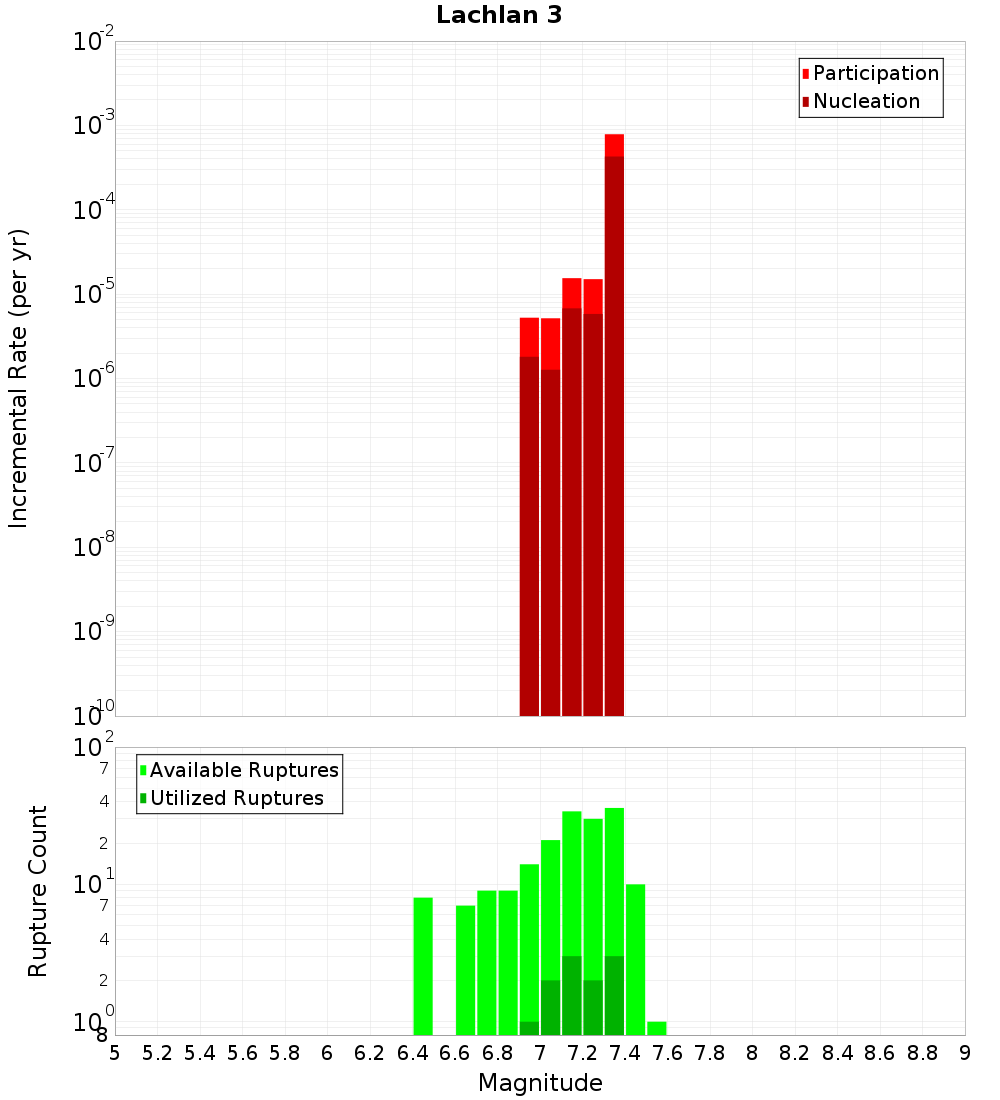

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

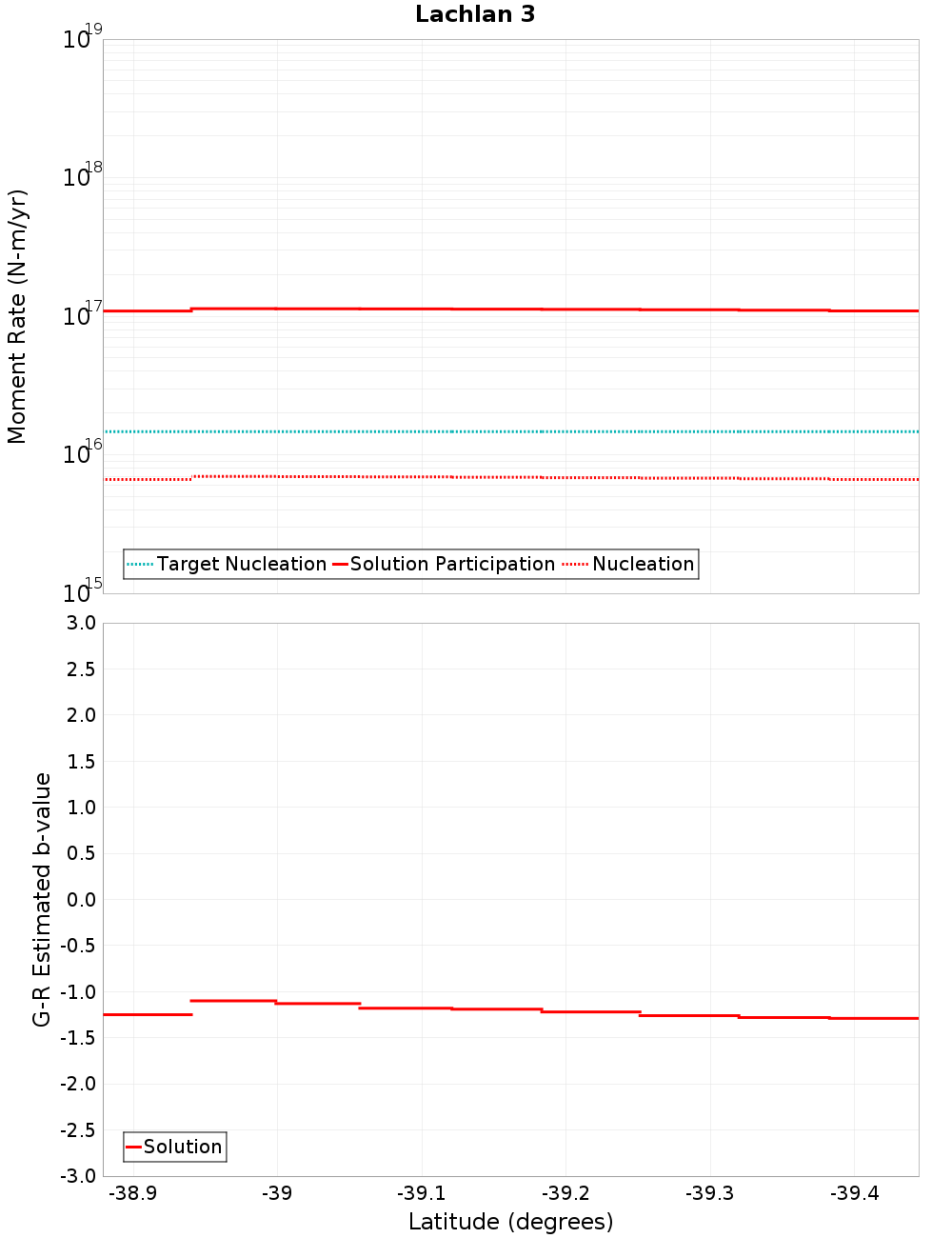

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Lachlan 1 & 2, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mahia 2, 2.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel East, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.11 km |
| Min Rate-Weighted Dist | 3.11 km |
| Co-rupture Count | 53 |
| Co-rupture Rate | 7.715904E-4 |
Poverty Bay, 3.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.9 km |
| Co-rupture Count | 35 |
| Co-rupture Rate | 0.0 |
Ariel Bank, 6.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.74 km |
| Min Rate-Weighted Dist | 13.48 km |
| Co-rupture Count | 94 |
| Co-rupture Rate | 5.449252E-5 |
Gable End South, 14.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 0.0 |
Kidnappers Ridge, 17.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Ikaarongamai, 19.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 7.8201696E-4 |
Motu o Kura North, 19.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
