Leader: Central Details

Property	Value
Rupture Count	1,862
Ruptures Above Sect Min Mag	1,860
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.46, 8.34]
Length Range	[10, 828] km
Total Rate	3.846085E-5 /yr
Multi-Fault Rate	3.846085E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	81

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

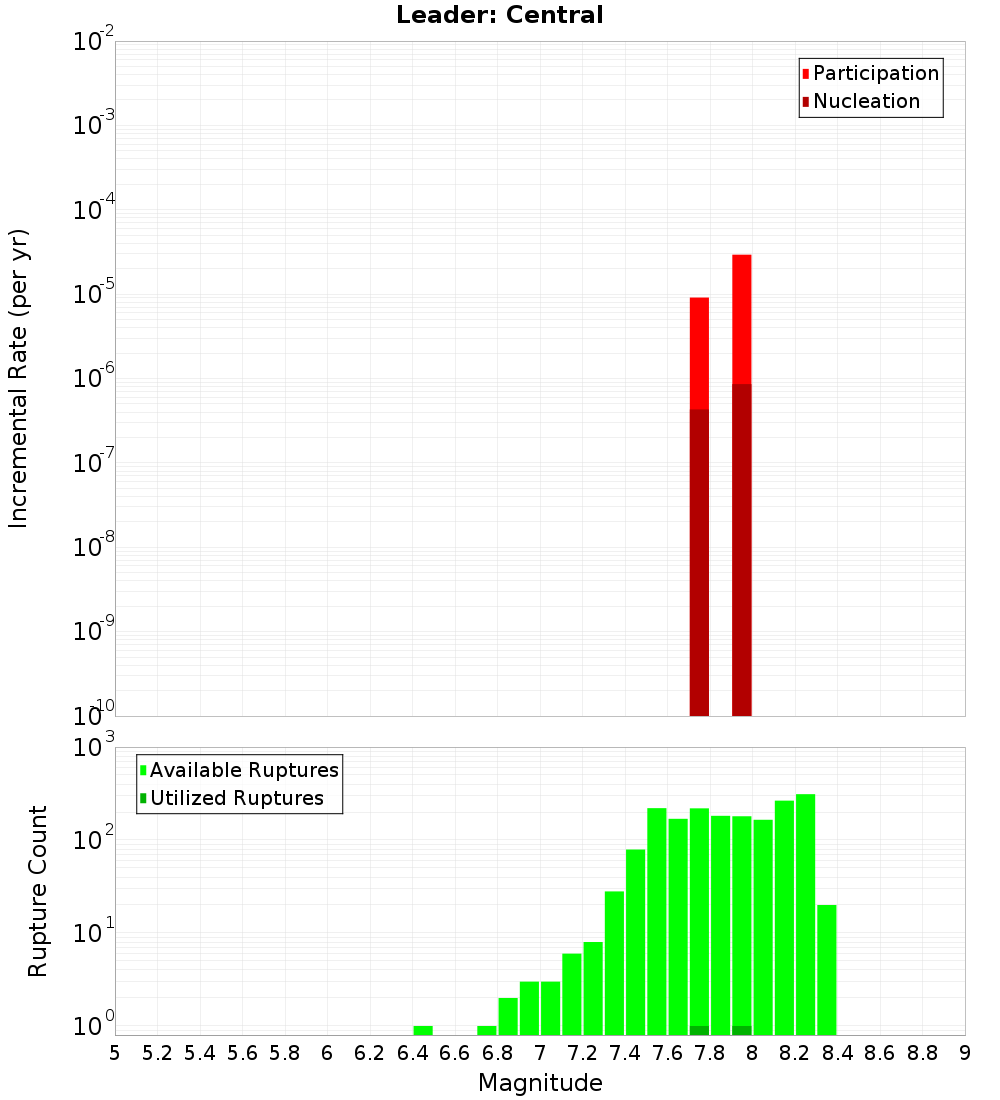

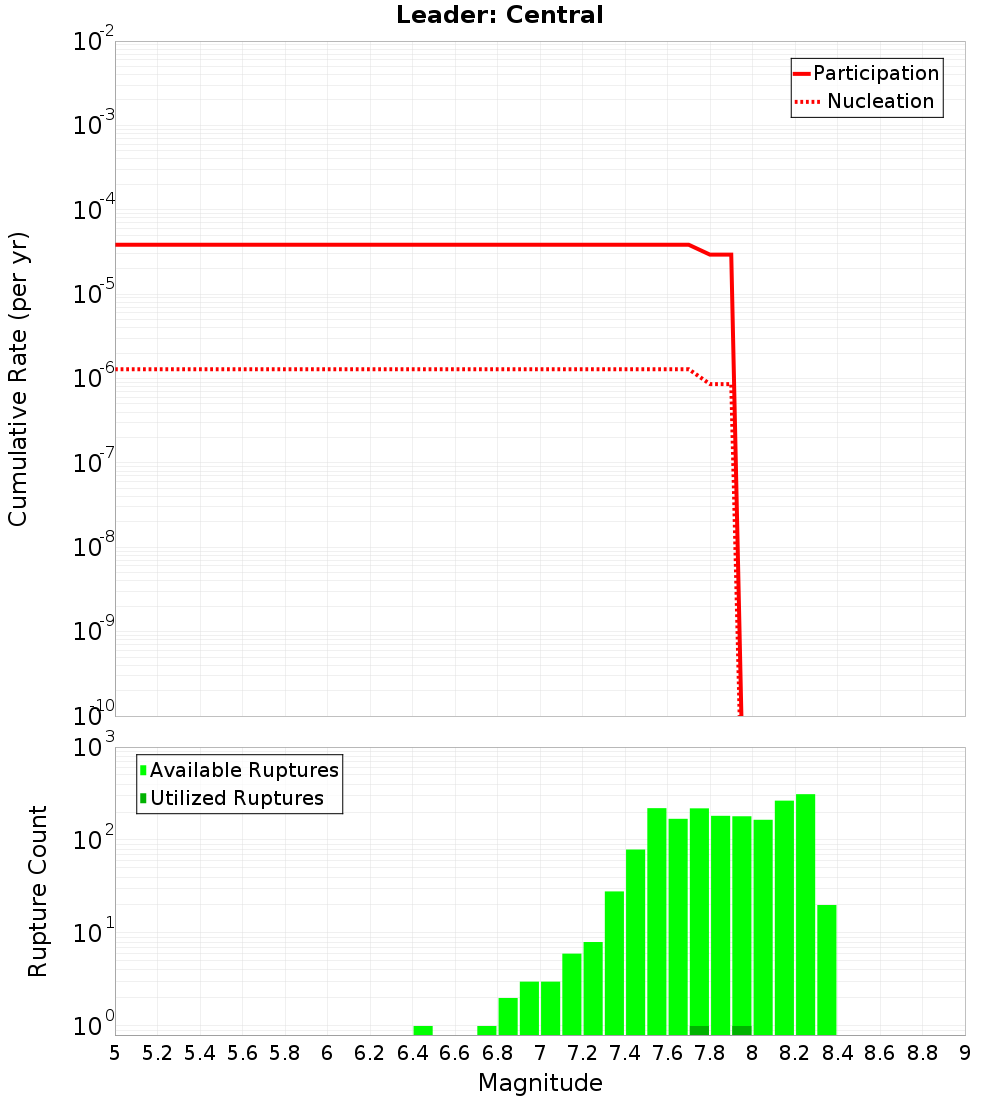

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

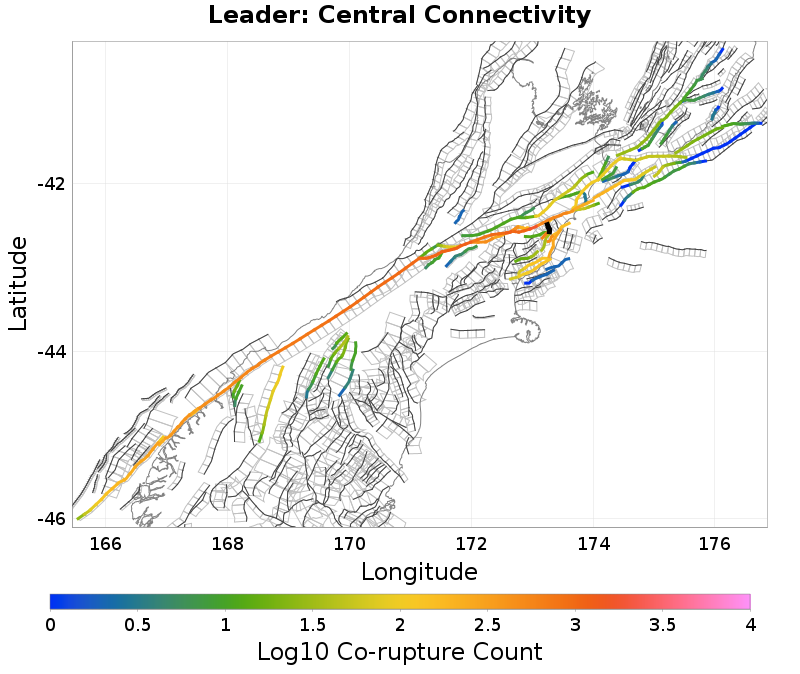

Connectivity

Nearby Sections

Fault Section
Leader: North, 0 km away
Leader: South, 0 km away
Hundalee, 0.23 km away
Kaiwara North, 2.03 km away
The Humps, 2.9 km away
Hope: Conway, 4.87 km away
StoneJug, 9.21 km away
Hawkswood, 10.65 km away
Elliott, 16.7 km away
Leonard Mound, 17.52 km away
Hope: Hanmer SE, 18.24 km away

Leader: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	115
Co-rupture Rate	9.110059E-6

Leader: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	635
Co-rupture Rate	9.110059E-6

Hundalee, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.23 km
Co-rupture Count	447
Co-rupture Rate	0.0

Kaiwara North, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	9.110059E-6

The Humps, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.9 km
Co-rupture Count	12
Co-rupture Rate	0.0

Hope: Conway, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.87 km
Min Rate-Weighted Dist	4.87 km
Co-rupture Count	1,731
Co-rupture Rate	2.9350791E-5

StoneJug, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 10.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	265
Co-rupture Rate	0.0

Elliott, 16.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	9.110059E-6

Leonard Mound, 17.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hanmer SE, 18.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	1,057
Co-rupture Rate	0.0
