Little Hillfoot Details

Property	Value
Rupture Count	27
Ruptures Above Sect Min Mag	26
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.86, 7.97]
Length Range	[21, 213] km
Total Rate	2.344851E-5 /yr
Multi-Fault Rate	2.3528662E-8 /yr (0.10%)
Directly-Connected Faults	2
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

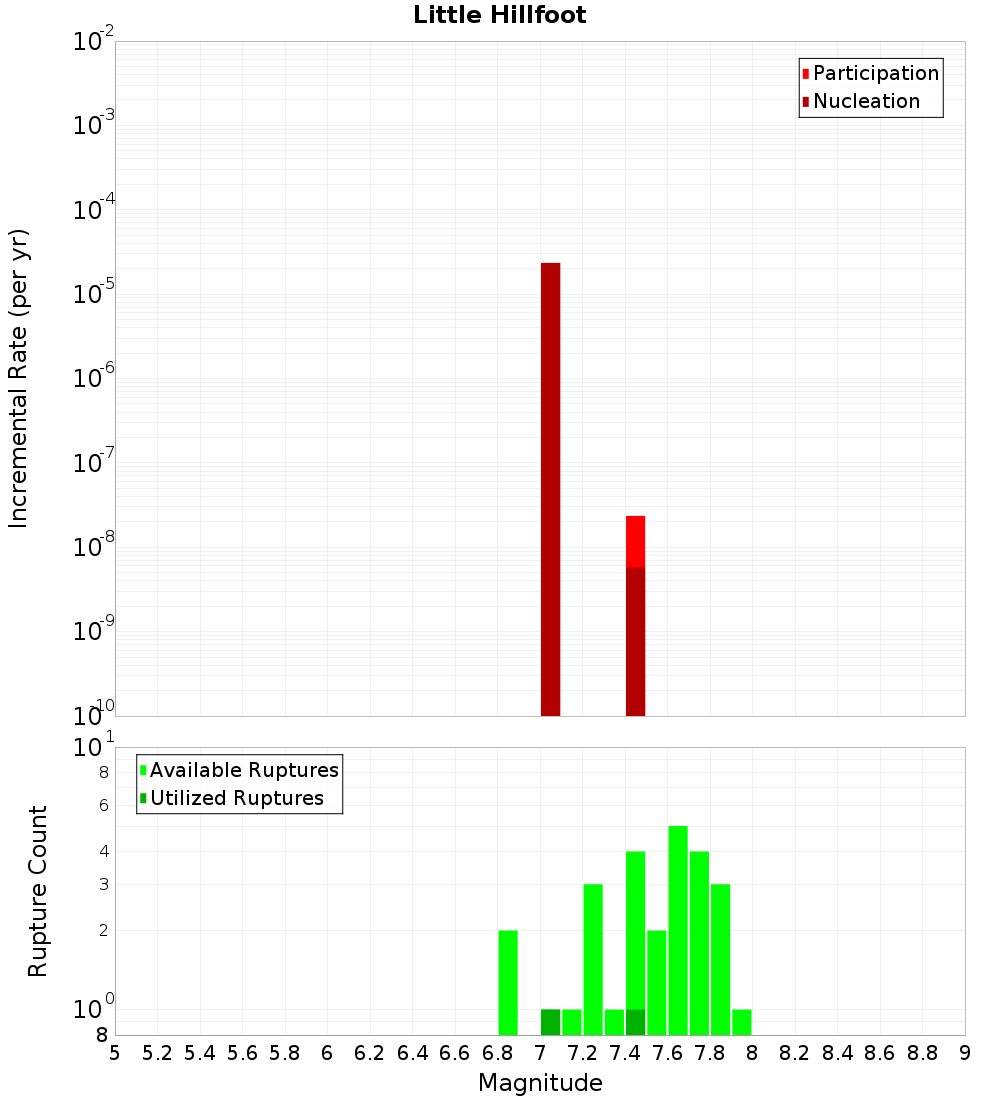

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Settlement, 0.3 km away
Hillfoot, 0.55 km away
Otanomomo, 1.78 km away
Titri South, 5.15 km away
Clifton, 8.06 km away
Beacon Hill, 10.39 km away
Blue Mountain, 14.2 km away
Akatore, 16.66 km away

Settlement, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.3 km
Co-rupture Count	4
Co-rupture Rate	0.0

Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otanomomo, 1.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clifton, 8.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.39 km
Min Rate-Weighted Dist	10.39 km
Co-rupture Count	22
Co-rupture Rate	2.3528662E-8

Blue Mountain, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Akatore, 16.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
