London Hill Details

PropertyValue
Rupture Count2,554
Ruptures Above Sect Min Mag2,551
Ruptures w/ Nonzero Rates2
Magnitude Range[6.64, 8.39]
Length Range[16, 902] km
Total Rate2.291056E-5 /yr
Multi-Fault Rate2.291056E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults81

Table Of Contents

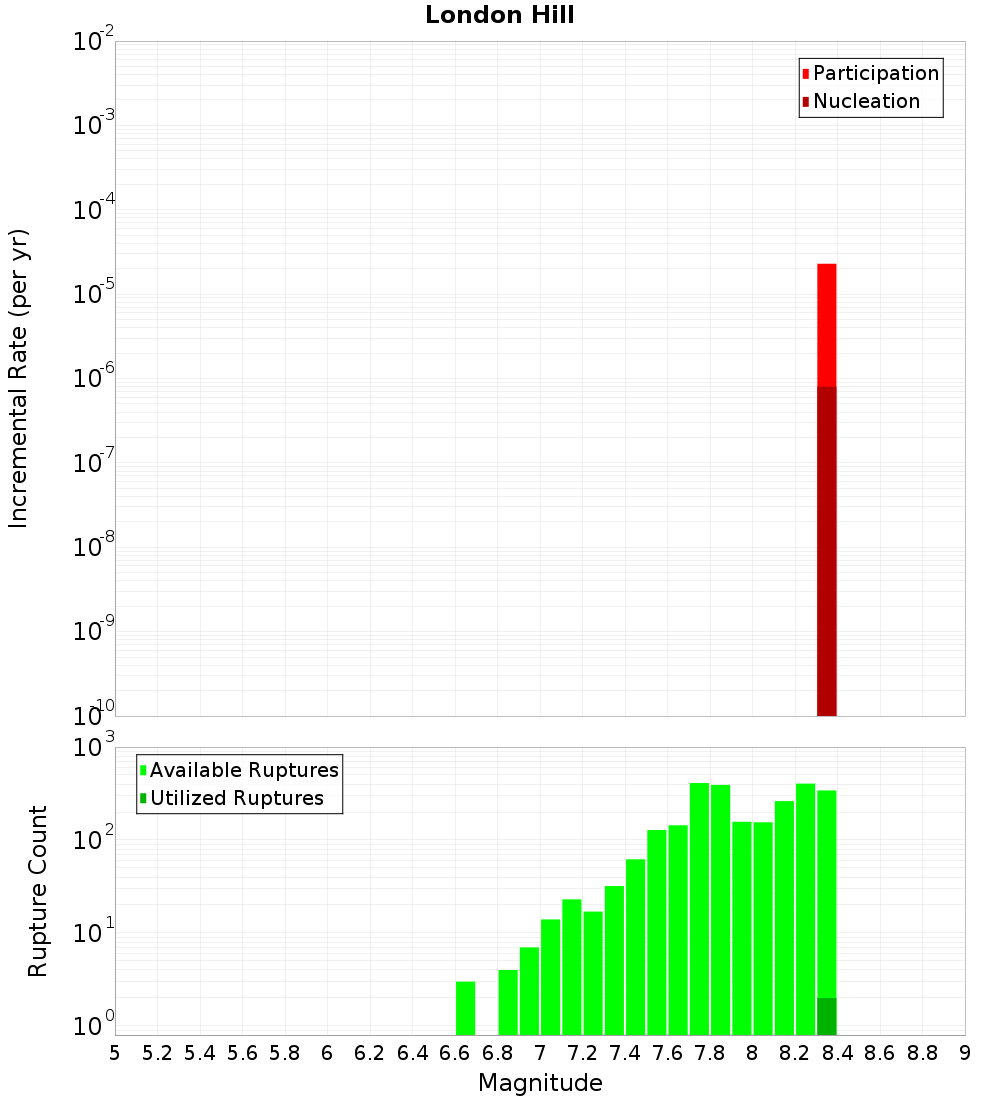

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

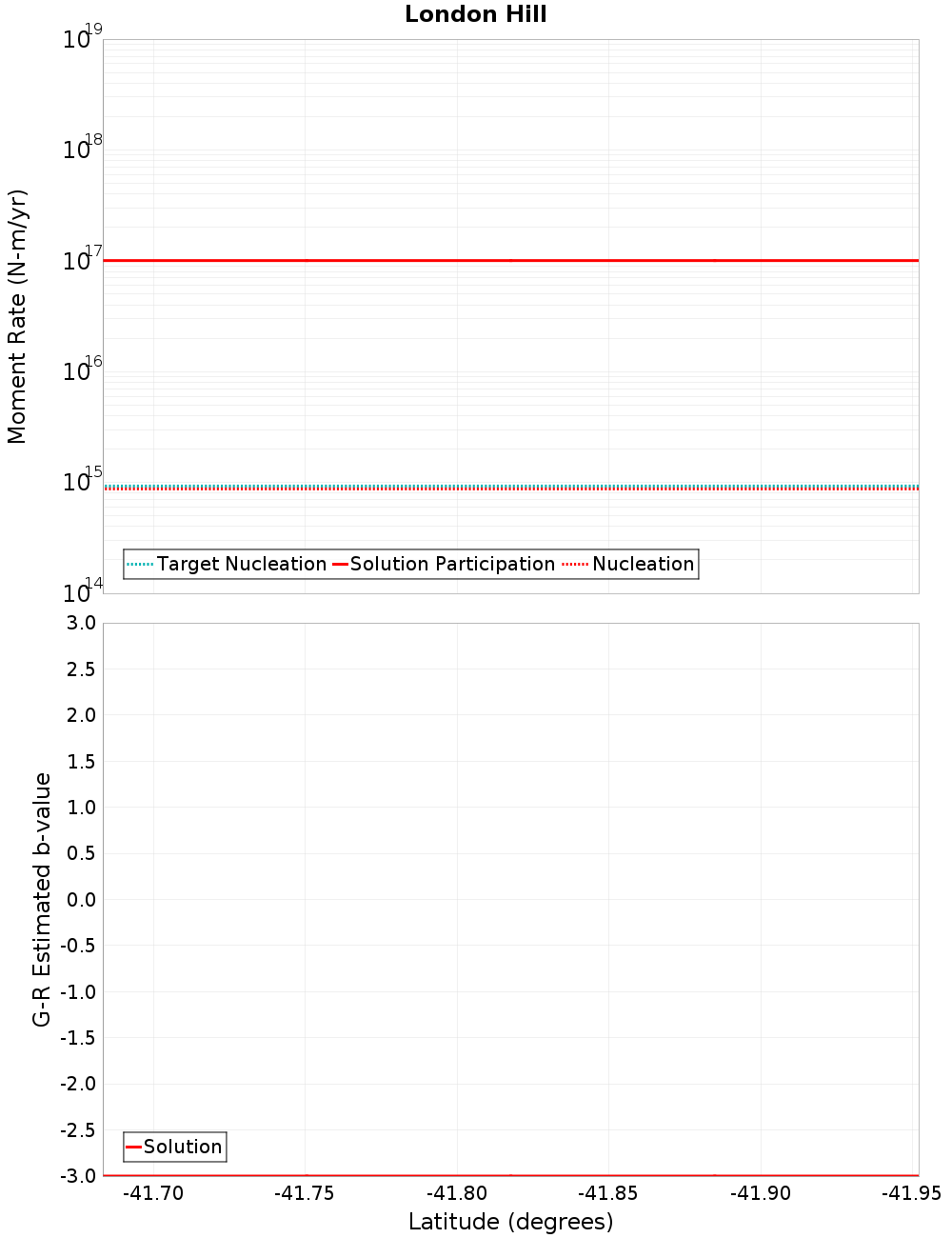

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kekerengu 1, 0 km awayClarence: Northeast, 10.86 km away
Needles, 0 km awayAwatere: Northeast 2, 14.08 km away
Needles East 2, 0.11 km awayVernon 4, 15.11 km away
Chancet, 0.33 km awayVernon 3, 15.44 km away
Upper Slope, 0.35 km awayVernon 2, 15.83 km away
Wharanui, 0.35 km awayCloudy 1, 16.07 km away
Hope: Te Rapa, 5.18 km awayTe Rapa 1, 18.3 km away
BooBoo, 7.46 km awayVernon 1, 18.53 km away
Wairarapa: Needles, 9.46 km awayAwatere: Northeast 1, 19.17 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Co-rupture Count1,178
Co-rupture Rate2.291056E-5

Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Co-rupture Count199
Co-rupture Rate0.0

Needles East 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.11 km
Min Rate-Weighted Dist0.11 km
Co-rupture Count285
Co-rupture Rate2.291056E-5

Chancet, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.33 km
Co-rupture Count11
Co-rupture Rate0.0

Upper Slope, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Co-rupture Count192
Co-rupture Rate0.0

Wharanui, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Co-rupture Count1
Co-rupture Rate0.0

Hope: Te Rapa, 5.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.18 km
Co-rupture Count1,078
Co-rupture Rate0.0

BooBoo, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count263
Co-rupture Rate0.0

Wairarapa: Needles, 9.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 2, 14.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Vernon 4, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 3, 15.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 15.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Cloudy 1, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Rapa 1, 18.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count127
Co-rupture Rate0.0

Vernon 1, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awatere: Northeast 1, 19.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
