Madden Banks Details

PropertyValue
Rupture Count13,427
Ruptures Above Sect Min Mag13,364
Ruptures w/ Nonzero Rates13
Magnitude Range[6.33, 8.33]
Length Range[13, 953] km
Total Rate4.4802844E-4 /yr
Multi-Fault Rate4.4802844E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults42

Table Of Contents

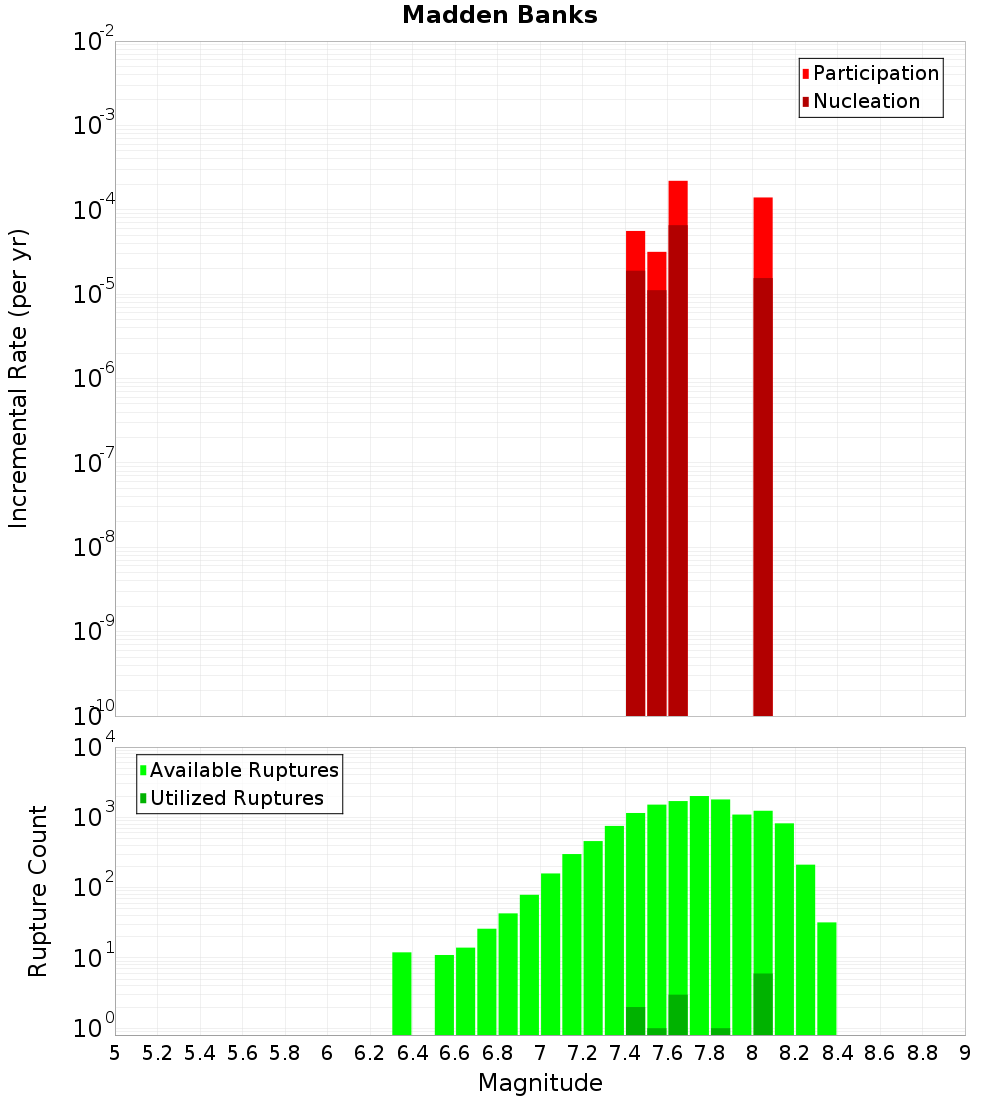

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motu o Kura East, 0.5 km away
Uruti East - PorWest 1, 4.32 km away
Uruti North, 6.83 km away
Motu o Kura Ridge, 7.97 km away
Whareama Bank, 8.19 km away

Motu o Kura East, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.5 km
Min Rate-Weighted Dist0.5 km
Co-rupture Count7,899
Co-rupture Rate4.4802844E-4

Uruti East - PorWest 1, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.32 km
Min Rate-Weighted Dist4.32 km
Co-rupture Count9,633
Co-rupture Rate1.398752E-4

Uruti North, 6.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.83 km
Min Rate-Weighted Dist6.83 km
Co-rupture Count2,862
Co-rupture Rate9.085386E-5

Motu o Kura Ridge, 7.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count2,244
Co-rupture Rate2.0846819E-4

Whareama Bank, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.19 km
Min Rate-Weighted Dist8.19 km
Co-rupture Count533
Co-rupture Rate1.6121617E-4
