Marlborough Slope 4 Details
| Property | Value |
|---|---|
| Rupture Count | 494 |
| Ruptures Above Sect Min Mag | 489 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.58, 7.94] |
| Length Range | [17, 425] km |
| Total Rate | 6.255736E-5 /yr |
| Multi-Fault Rate | 6.255736E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

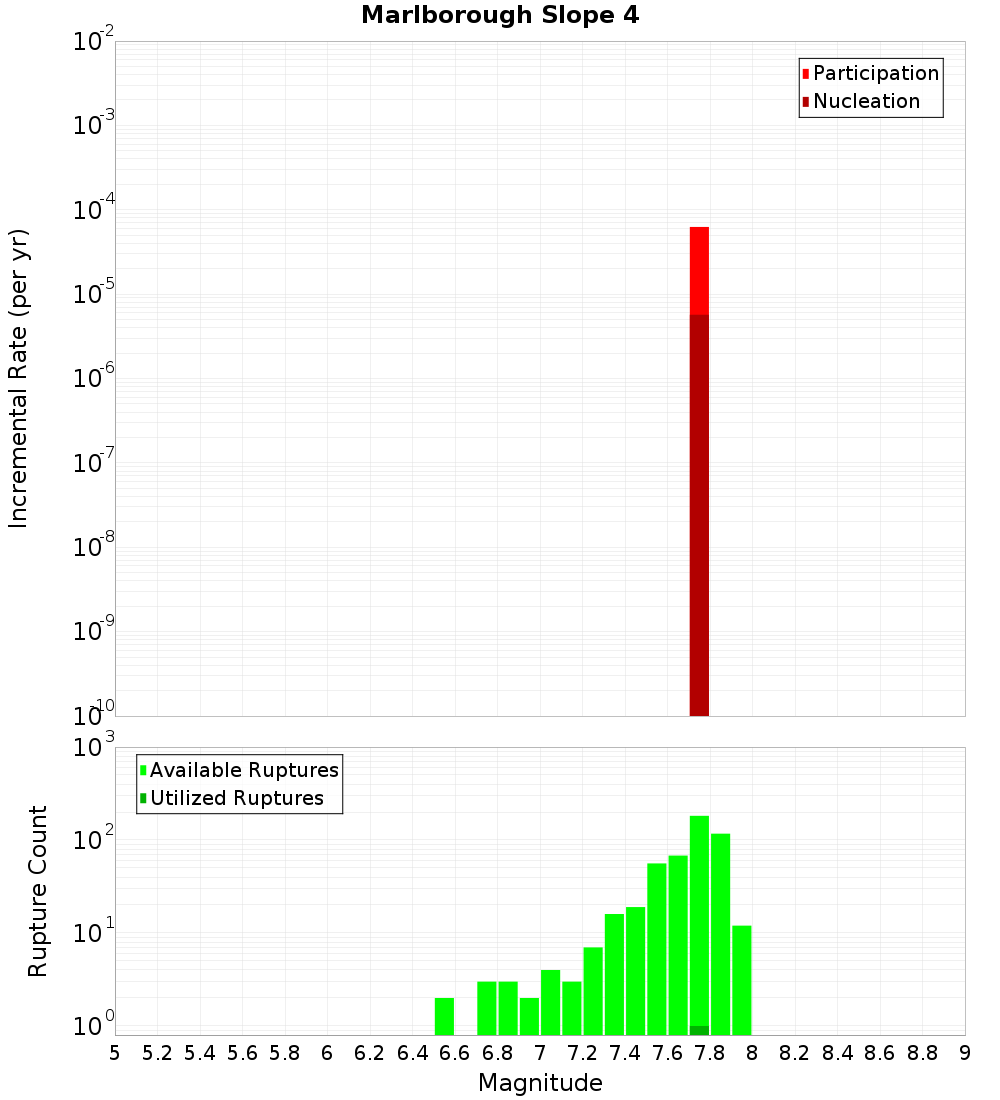

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

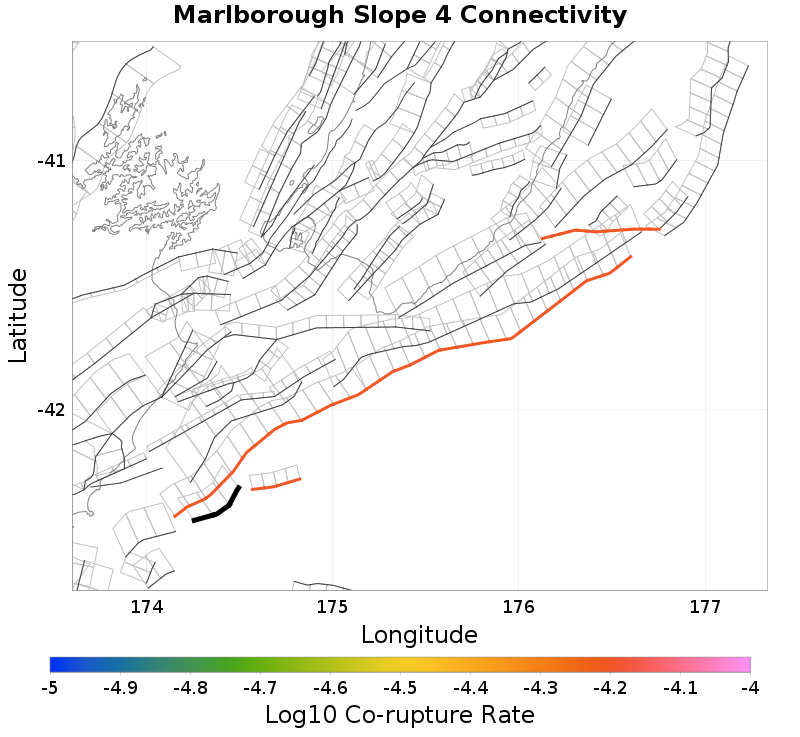

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kekerengu Bank, 4.71 km away |
| Marlborough Slope 3, 6.08 km away |
| Marlborough Slope 2, 6.99 km away |
| Upper Slope, 12.3 km away |
| Kaikoura - Mangamaunu, 15.06 km away |
Kekerengu Bank, 4.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.71 km |
| Min Rate-Weighted Dist | 4.71 km |
| Co-rupture Count | 485 |
| Co-rupture Rate | 6.255736E-5 |
Marlborough Slope 3, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.08 km |
| Min Rate-Weighted Dist | 6.08 km |
| Co-rupture Count | 191 |
| Co-rupture Rate | 6.255736E-5 |
Marlborough Slope 2, 6.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Upper Slope, 12.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaikoura - Mangamaunu, 15.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
