Motu o Kura North Details
| Property | Value |
|---|---|
| Rupture Count | 1,454 |
| Ruptures Above Sect Min Mag | 1,436 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.35, 8.18] |
| Length Range | [13, 691] km |
| Total Rate | 2.547318E-4 /yr |
| Multi-Fault Rate | 2.547318E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

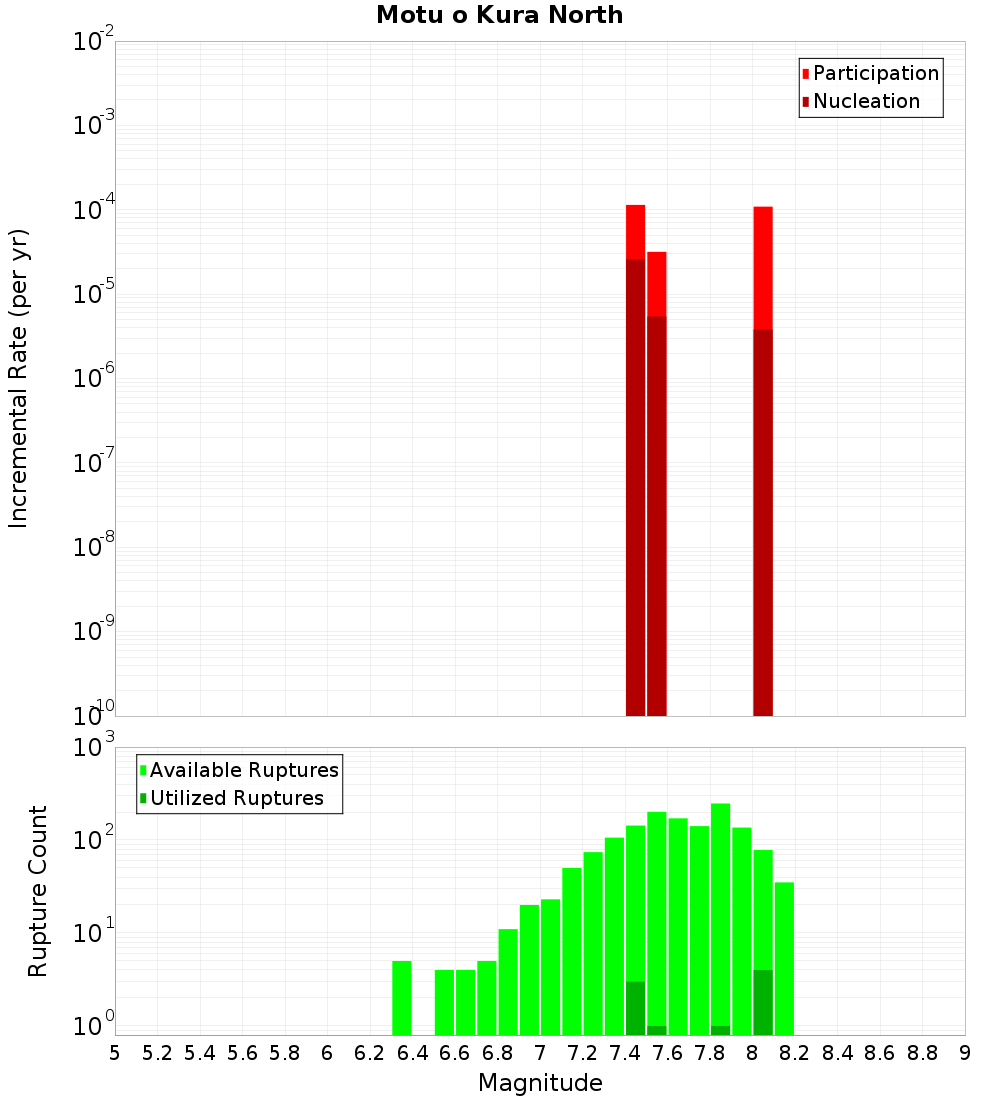

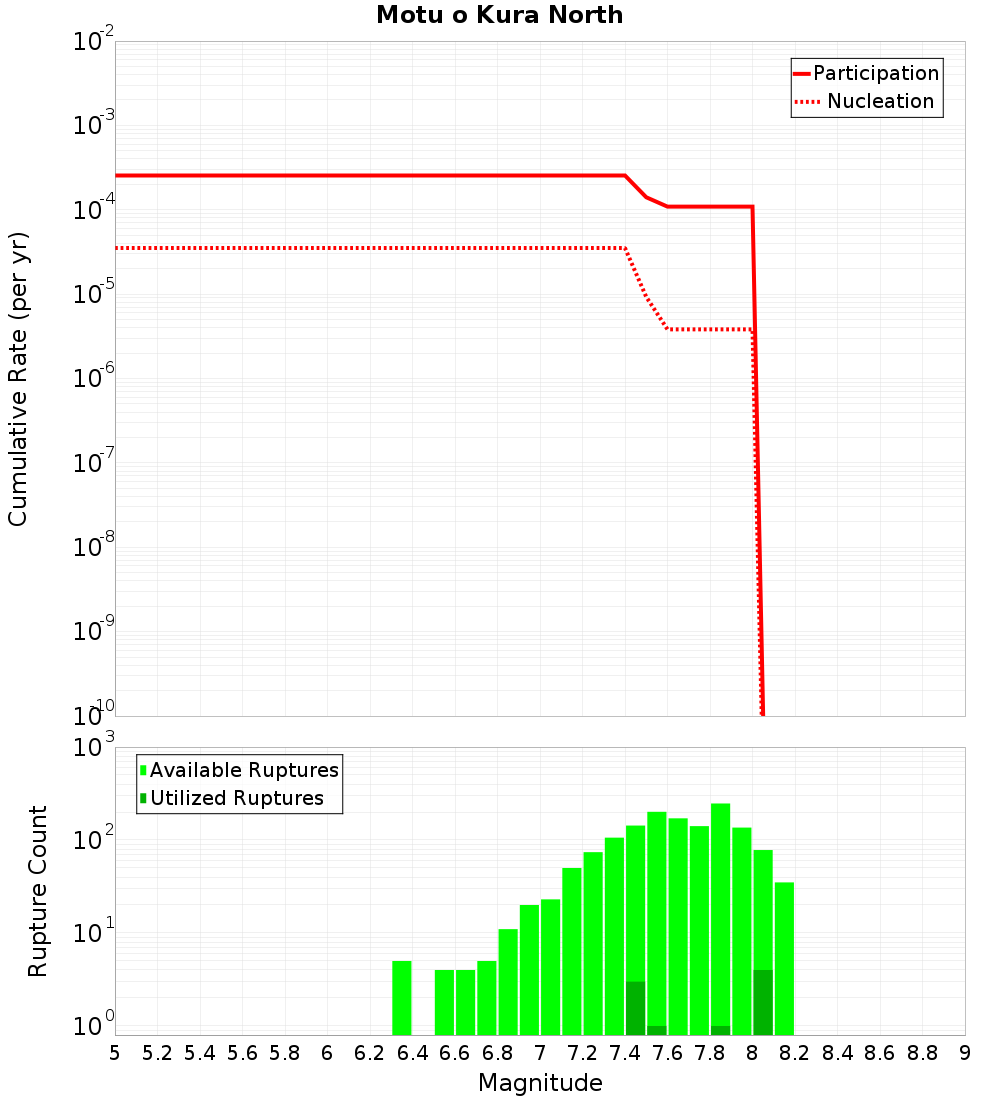

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura Ridge, 0 km away |
| Motu o Kura East, 7.07 km away |
| Lachlan 1 & 2, 10.61 km away |
| Lachlan 3, 19.7 km away |
Motu o Kura Ridge, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 1,315 |
| Co-rupture Rate | 2.547318E-4 |
Motu o Kura East, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.07 km |
| Min Rate-Weighted Dist | 7.07 km |
| Co-rupture Count | 1,374 |
| Co-rupture Rate | 2.547318E-4 |
Lachlan 1 & 2, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.61 km |
| Min Rate-Weighted Dist | 10.84 km |
| Co-rupture Count | 105 |
| Co-rupture Rate | 1.1416764E-4 |
Lachlan 3, 19.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
