Needles Details

Property	Value
Rupture Count	22,128
Ruptures Above Sect Min Mag	22,121
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.62, 8.42]
Length Range	[17, 977] km
Total Rate	0.0016614859 /yr
Multi-Fault Rate	0.0016614859 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	123

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

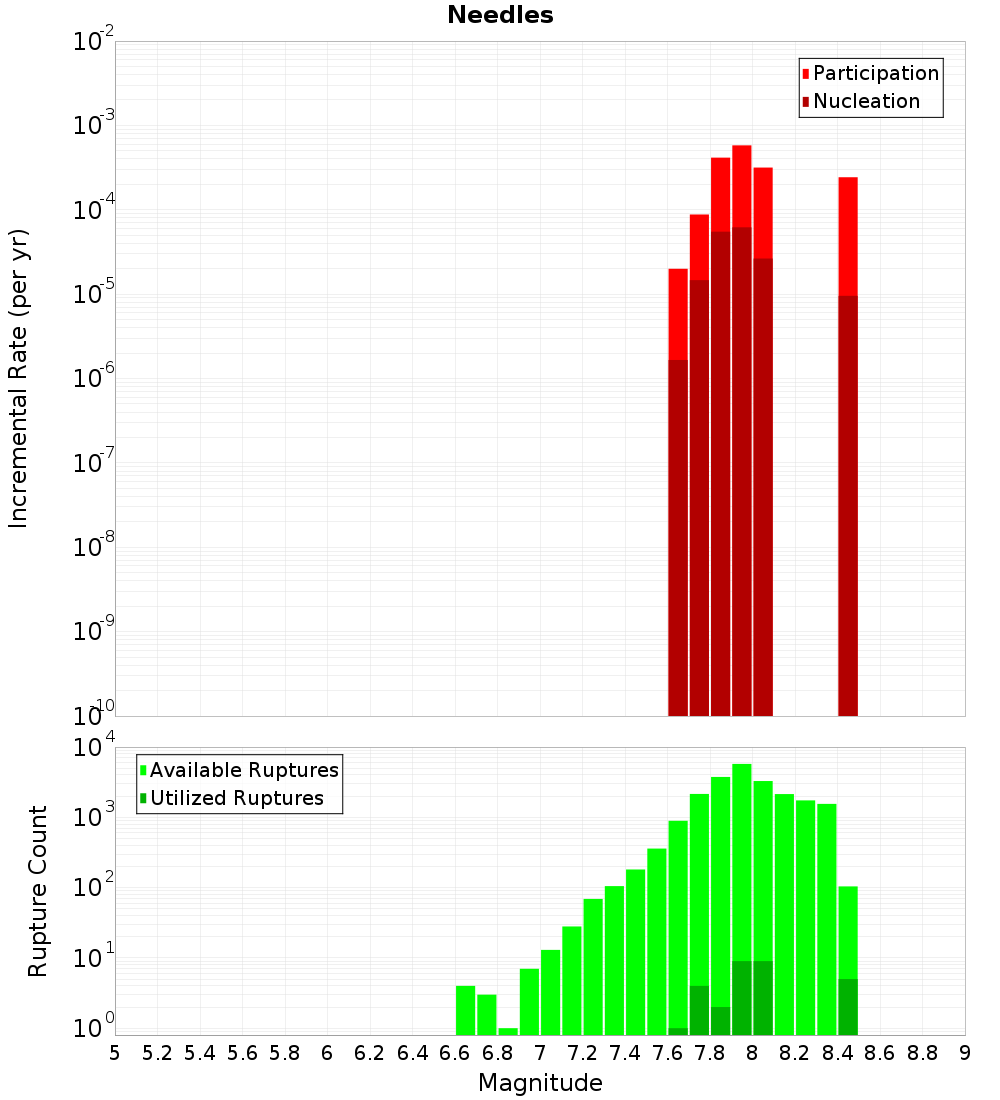

Magnitude-Frequency Distribution

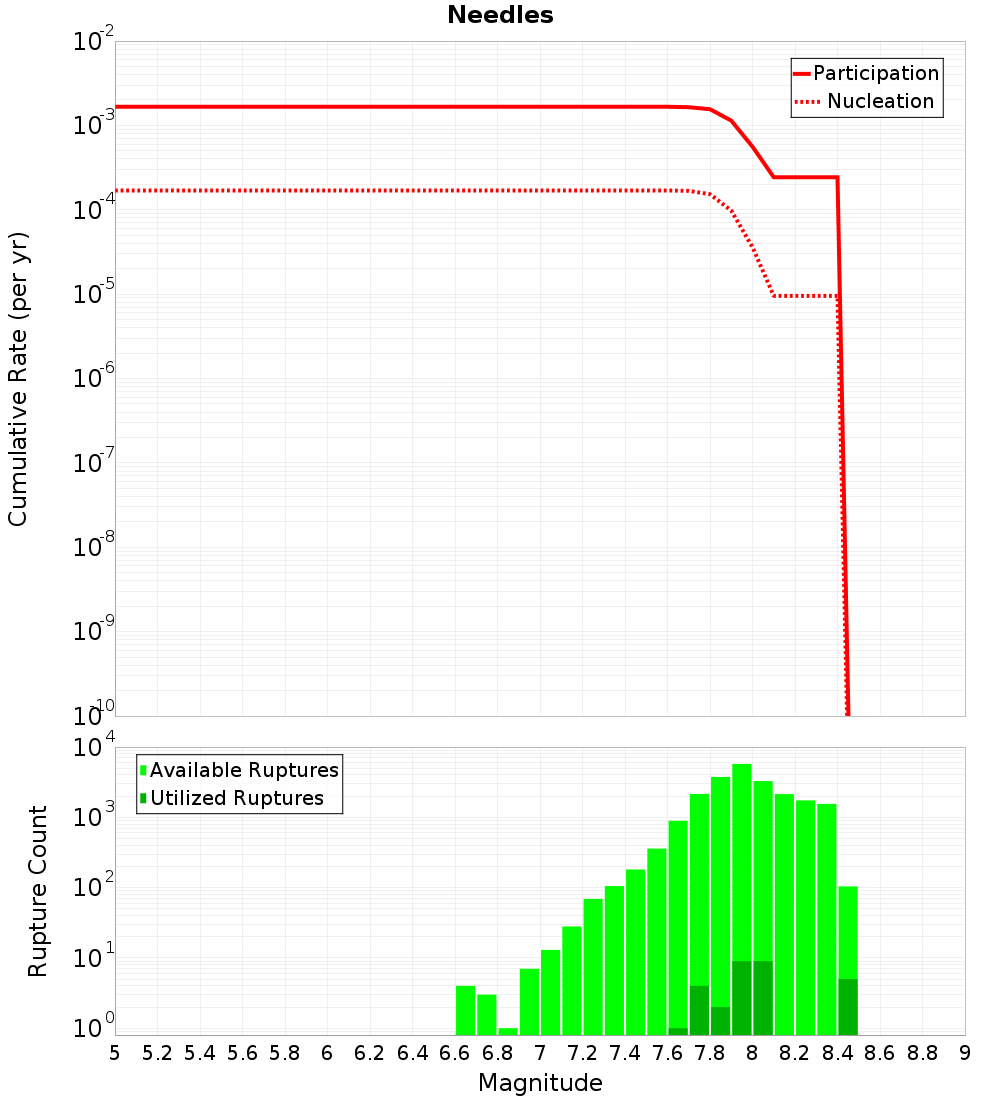

Incremental	Cumulative

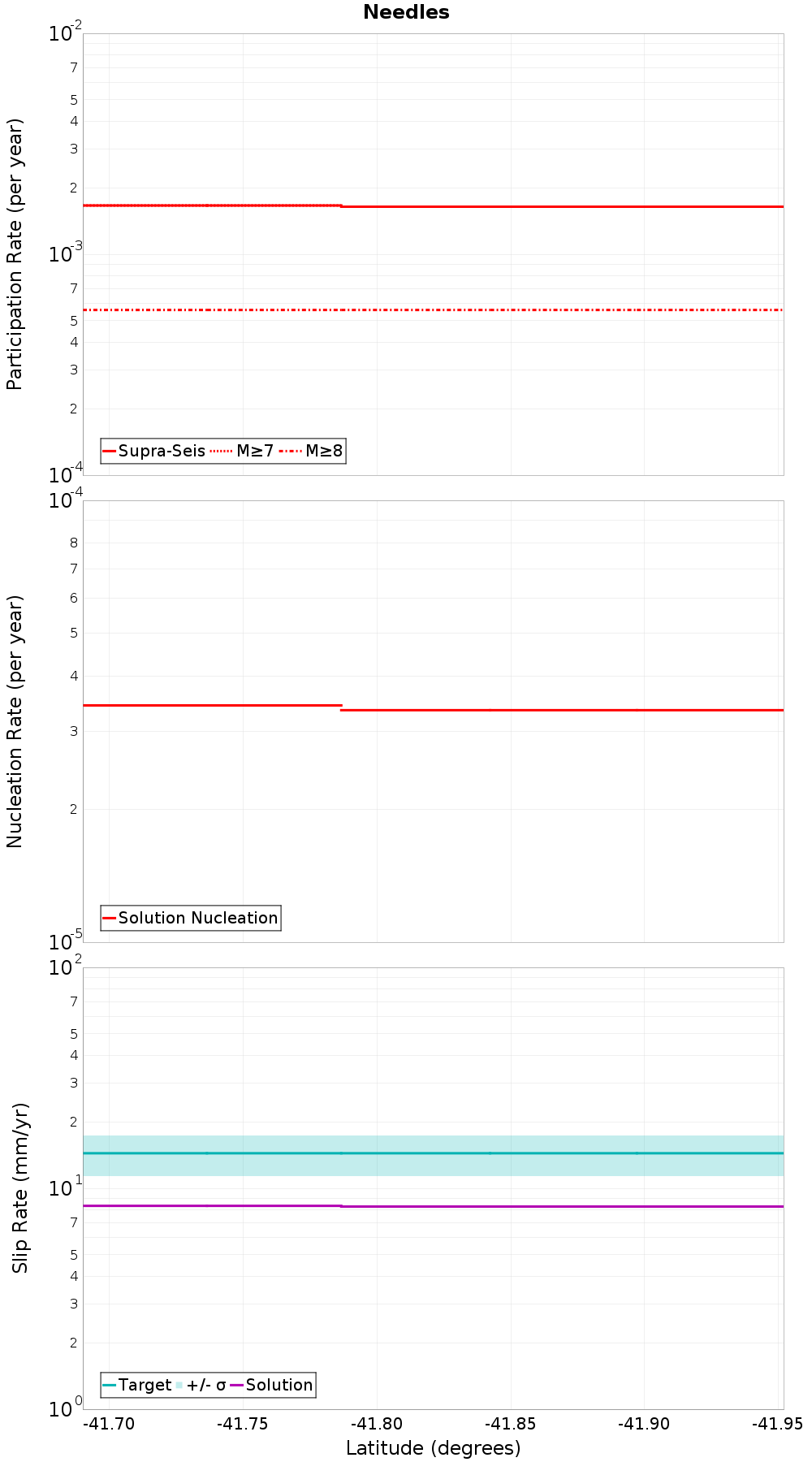

Along-Strike Values

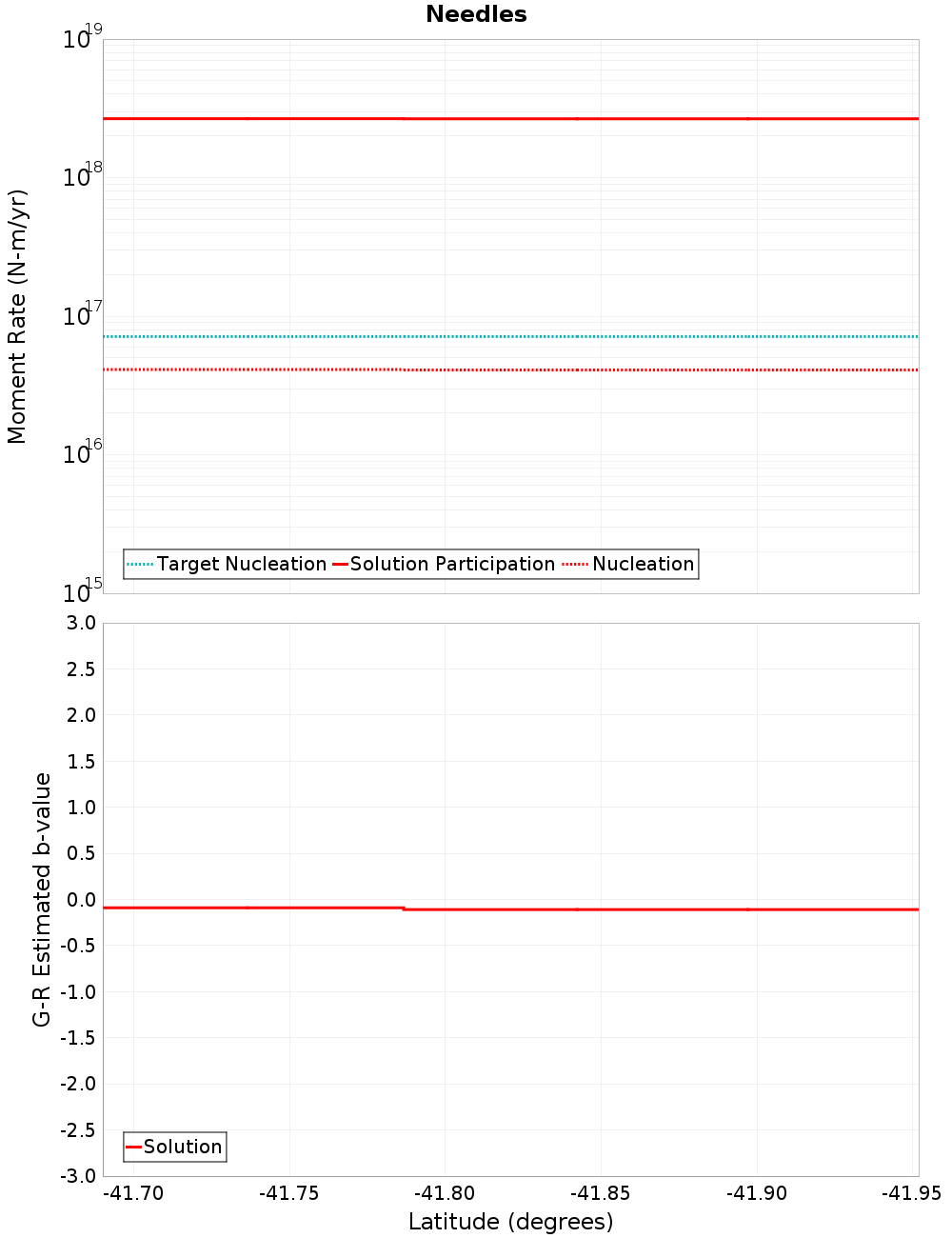

Moment-Rates and b-Values

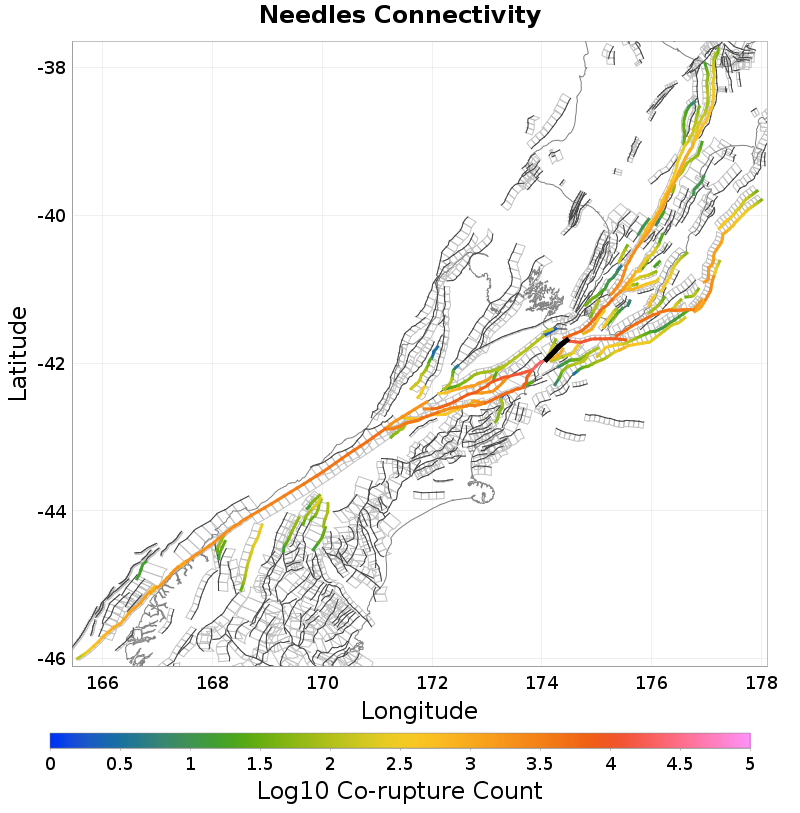

Connectivity

Nearby Sections

Fault Section	Fault Section
Kekerengu 1, 0 km away	Cloudy 3, 12.89 km away
London Hill, 0 km away	Upper Slope, 13.53 km away
Needles East 2, 0.13 km away	Vernon 3, 14.11 km away
BooBoo, 0.24 km away	Cloudy 1, 15.68 km away
Wairarapa: Needles, 4.57 km away	Vernon 2, 15.92 km away
Chancet, 6.52 km away	Cloudy 2, 16.43 km away
Vernon 4, 7.01 km away	Campbell Bank, 17.87 km away
Wharanui, 10.37 km away	Hope: Te Rapa, 18.14 km away
Clarence: Northeast, 11.97 km away	Vernon 1, 19.52 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	20,066
Co-rupture Rate	0.0016415119

London Hill, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Co-rupture Count	199
Co-rupture Rate	0.0

Needles East 2, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.13 km
Min Rate-Weighted Dist	0.33 km
Co-rupture Count	996
Co-rupture Rate	1.9973932E-5

BooBoo, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.24 km
Min Rate-Weighted Dist	0.24 km
Co-rupture Count	13,899
Co-rupture Rate	0.0012989157

Wairarapa: Needles, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.57 km
Min Rate-Weighted Dist	4.57 km
Co-rupture Count	6,076
Co-rupture Rate	3.4259615E-4

Chancet, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	292
Co-rupture Rate	1.4295412E-5

Vernon 4, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharanui, 10.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Upper Slope, 13.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	122
Co-rupture Rate	0.0

Vernon 3, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 15.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 2, 15.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	132
Co-rupture Rate	1.9973932E-5

Cloudy 2, 16.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Bank, 17.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	373
Co-rupture Rate	3.7633803E-5

Hope: Te Rapa, 18.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	0.0

Vernon 1, 19.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
