Oaonui Details

Property	Value
Rupture Count	19
Ruptures Above Sect Min Mag	19
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.81, 7.51]
Length Range	[22, 103] km
Total Rate	1.9017671E-4 /yr
Multi-Fault Rate	1.9017671E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

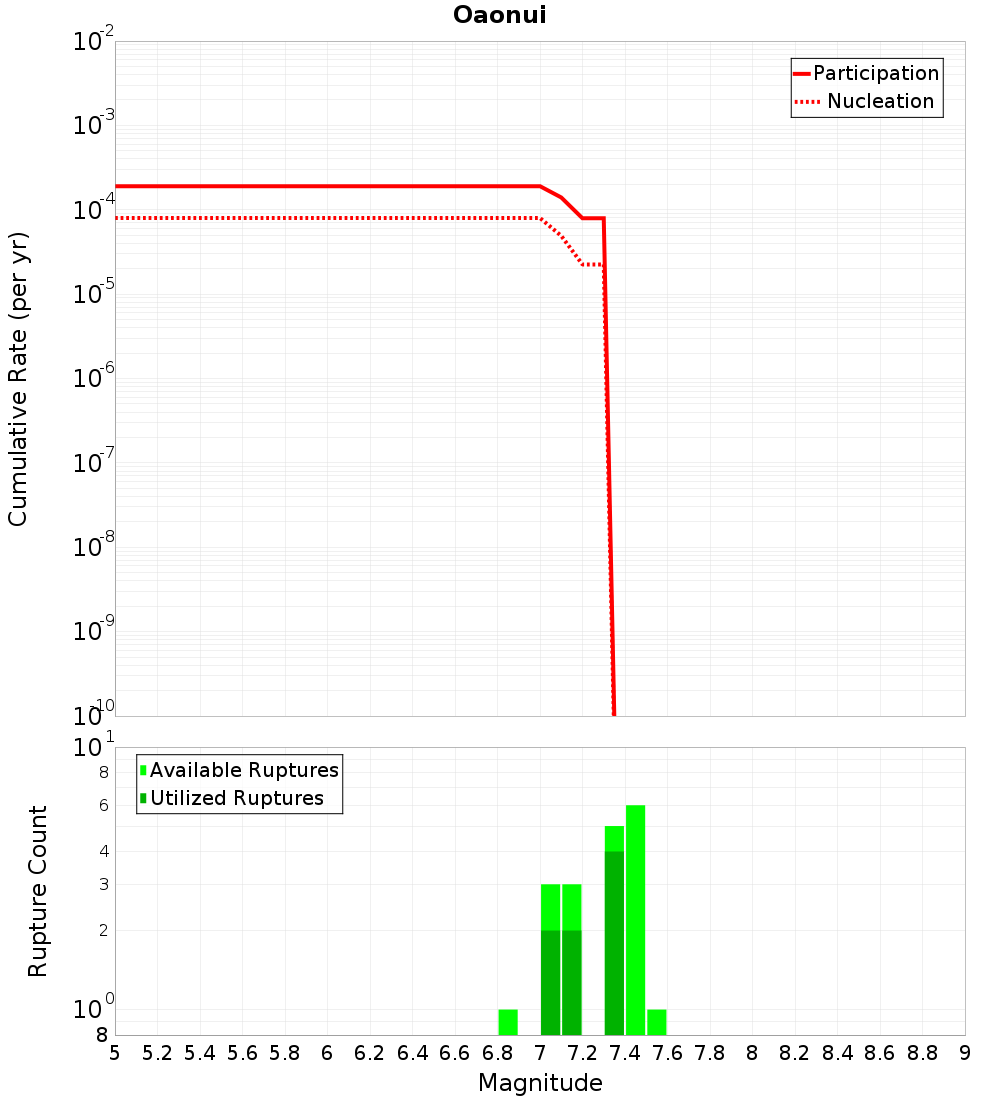

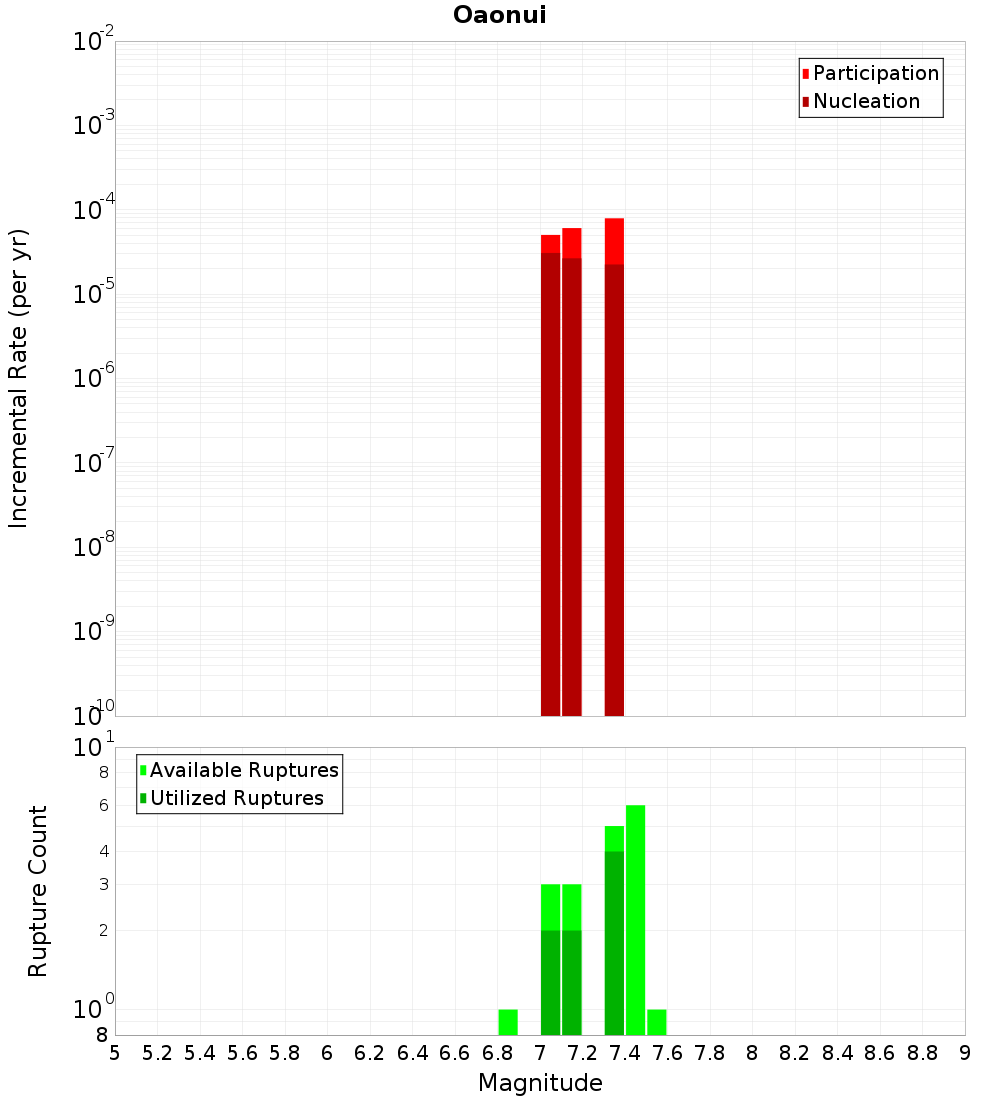

Magnitude-Frequency Distribution

Incremental	Cumulative

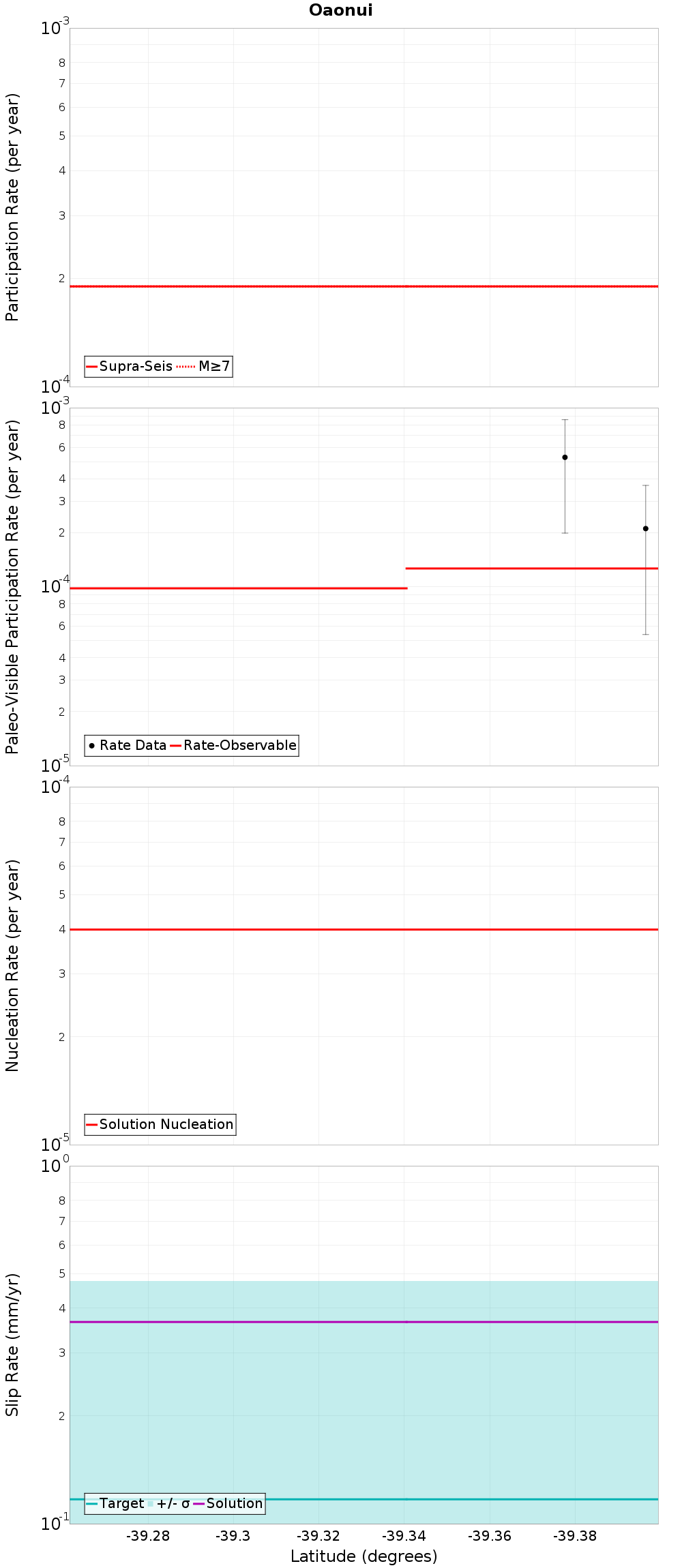

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rahotu, 0.12 km away
Warea, 0.29 km away
Manahi 2, 0.31 km away
Cape Egmont: North, 0.6 km away
Manahi 1, 1.04 km away
Ihaia, 5.28 km away
Kiri, 10.41 km away
Cape Egmont: Central, 13.19 km away
Pihama, 13.29 km away
Inglewood, 16.63 km away

Rahotu, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Warea, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Manahi 2, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: North, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.6 km
Min Rate-Weighted Dist	0.6 km
Co-rupture Count	12
Co-rupture Rate	1.7338929E-4

Manahi 1, 1.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.04 km
Min Rate-Weighted Dist	1.04 km
Co-rupture Count	12
Co-rupture Rate	1.6787428E-5

Ihaia, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kiri, 10.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: Central, 13.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	1.3983539E-4

Pihama, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Inglewood, 16.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
