Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 46 |
| Ruptures Above Sect Min Mag | 43 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.76, 7.63] |
| Length Range | [20, 169] km |
| Total Rate | 2.7072392E-4 /yr |
| Multi-Fault Rate | 2.7072392E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

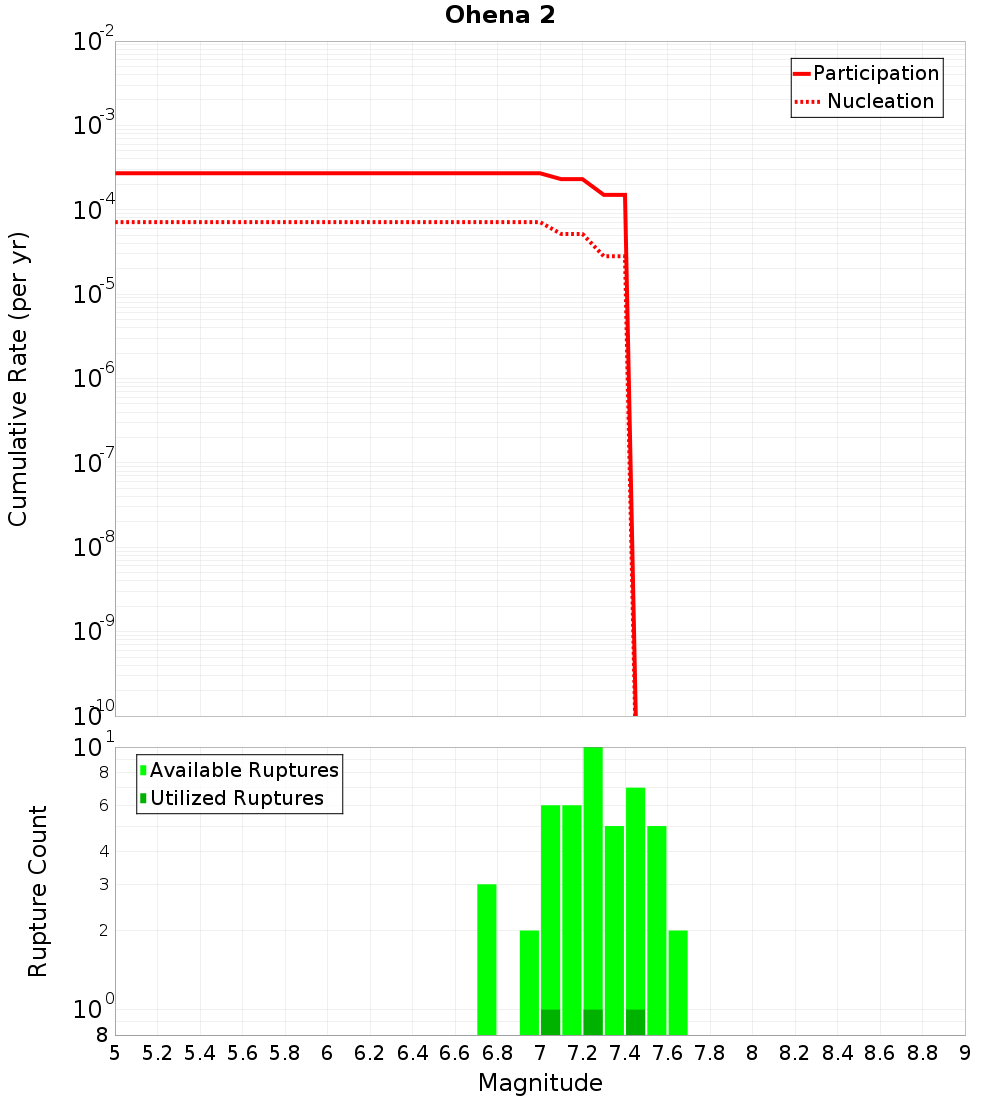

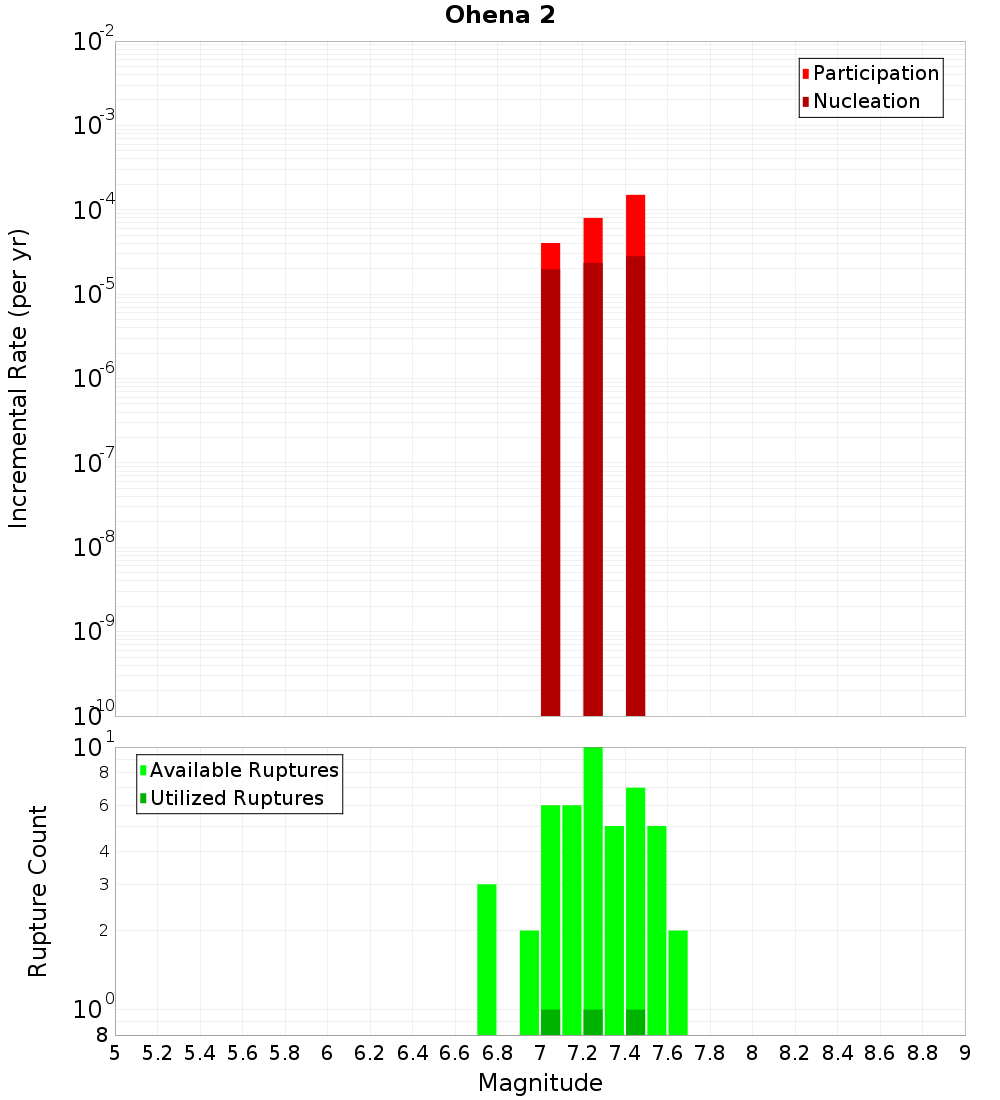

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ngatoro South 5, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.42 km |
| Min Rate-Weighted Dist | 0.42 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 4.037981E-5 |
Tauranga Trough West 2, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.23 km |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.5031805E-4 |
Ohena 3, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.82 km |
| Min Rate-Weighted Dist | 2.82 km |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.5031805E-4 |
Tauranga Trough East 2, 4.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.39 km |
| Min Rate-Weighted Dist | 4.43 km |
| Co-rupture Count | 24 |
| Co-rupture Rate | 8.0026046E-5 |
Ohena 4, 4.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.61 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Ngatoro South 2, 6.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 2.303441E-4 |
Otara West 2, 19.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
