Opotiki 3 Details

PropertyValue
Rupture Count1,760
Ruptures Above Sect Min Mag1,757
Ruptures w/ Nonzero Rates11
Magnitude Range[6.63, 8.17]
Length Range[16, 540] km
Total Rate7.85649E-5 /yr
Multi-Fault Rate7.85649E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

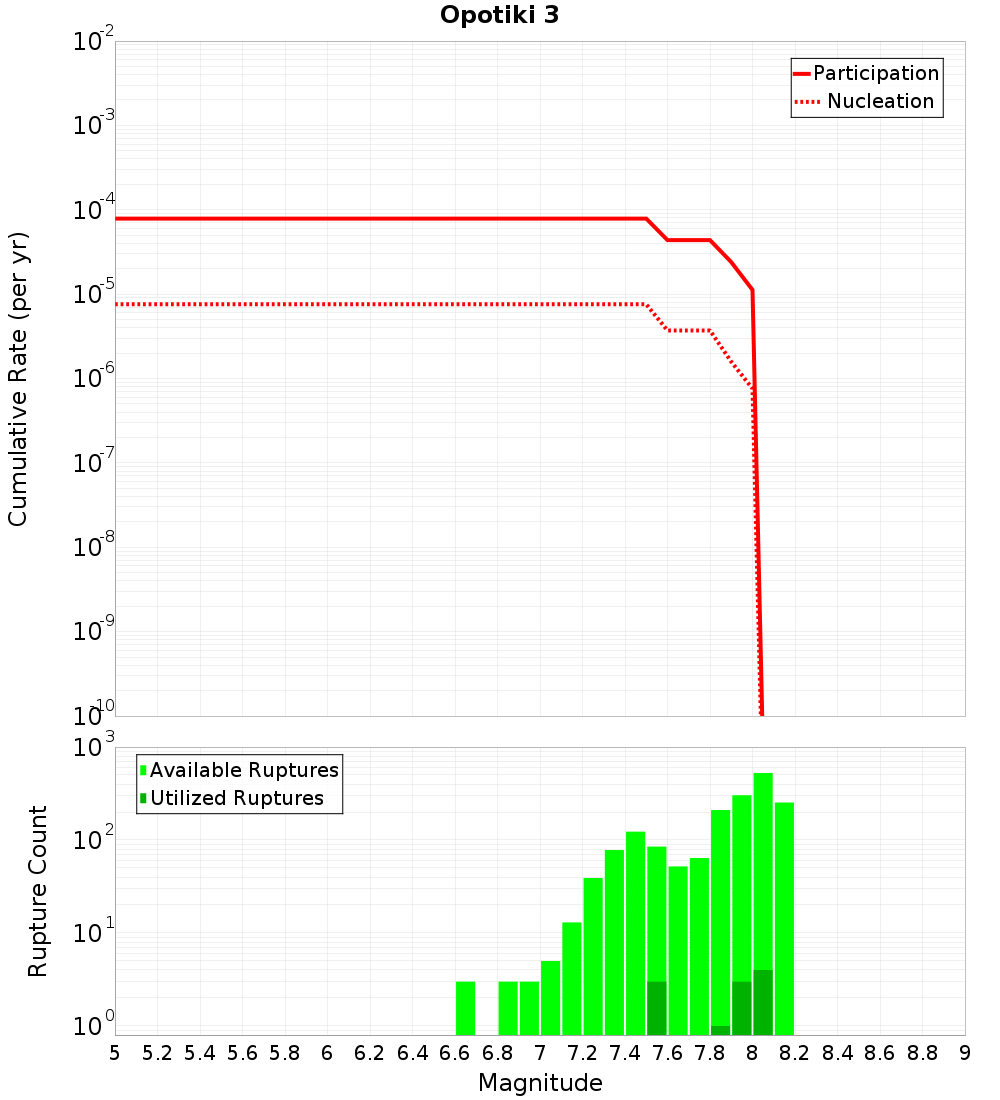

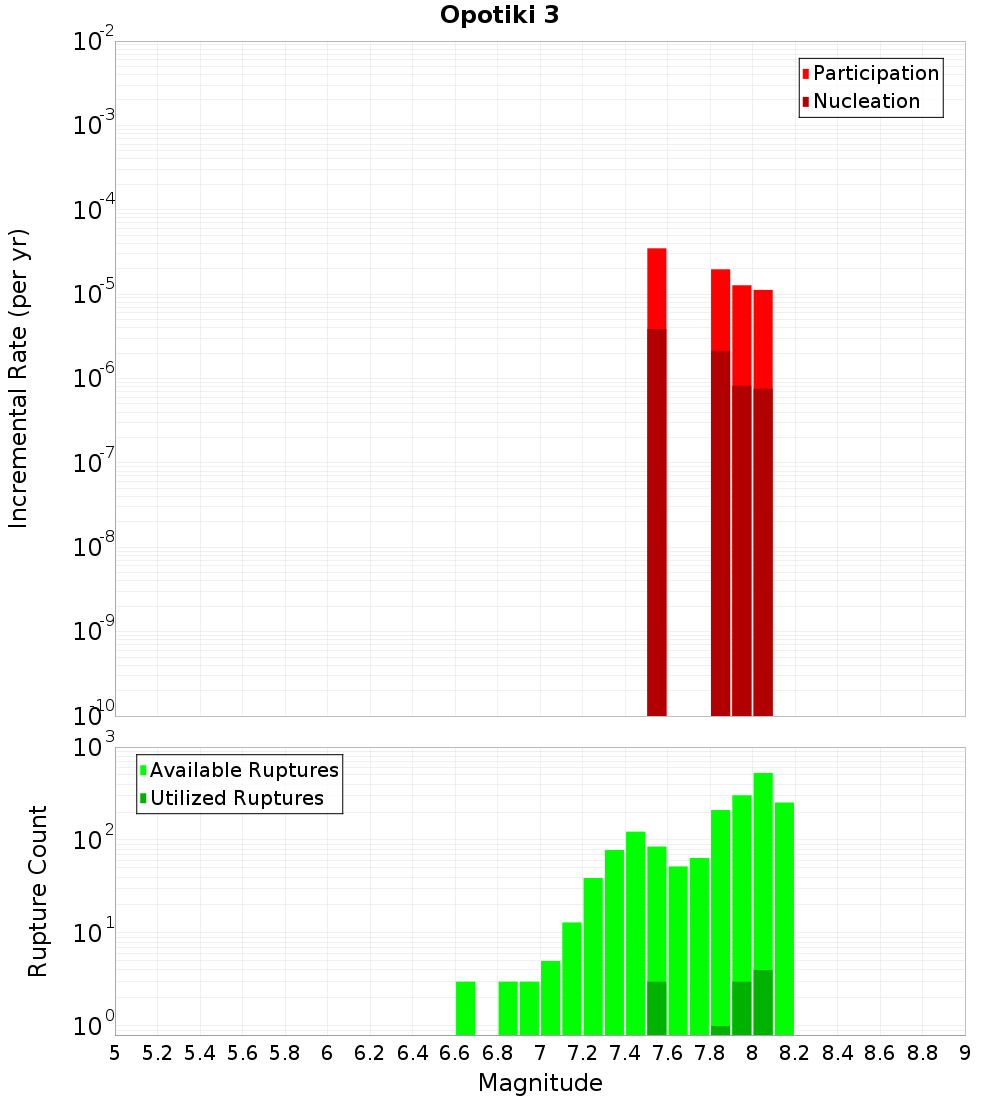

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

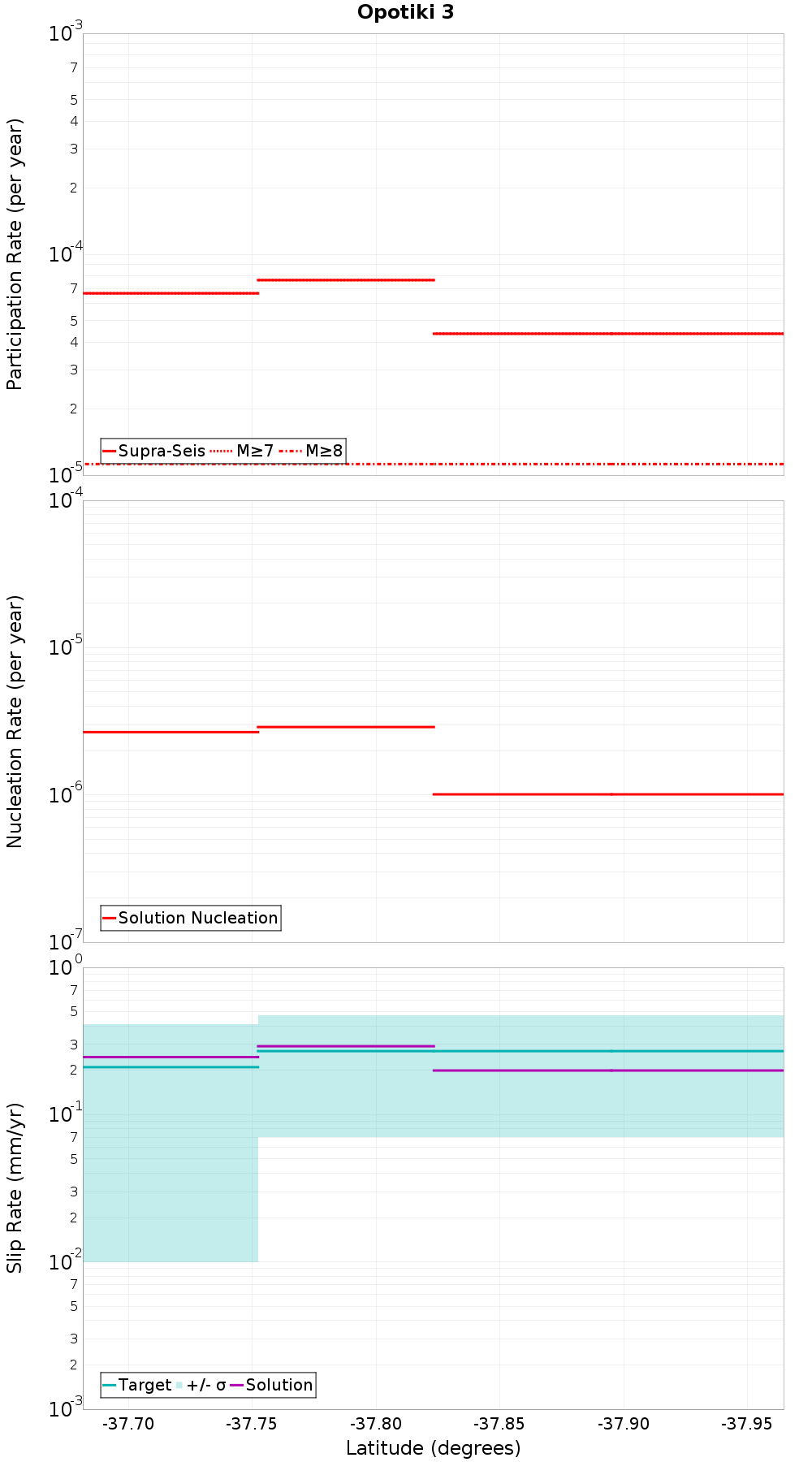

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

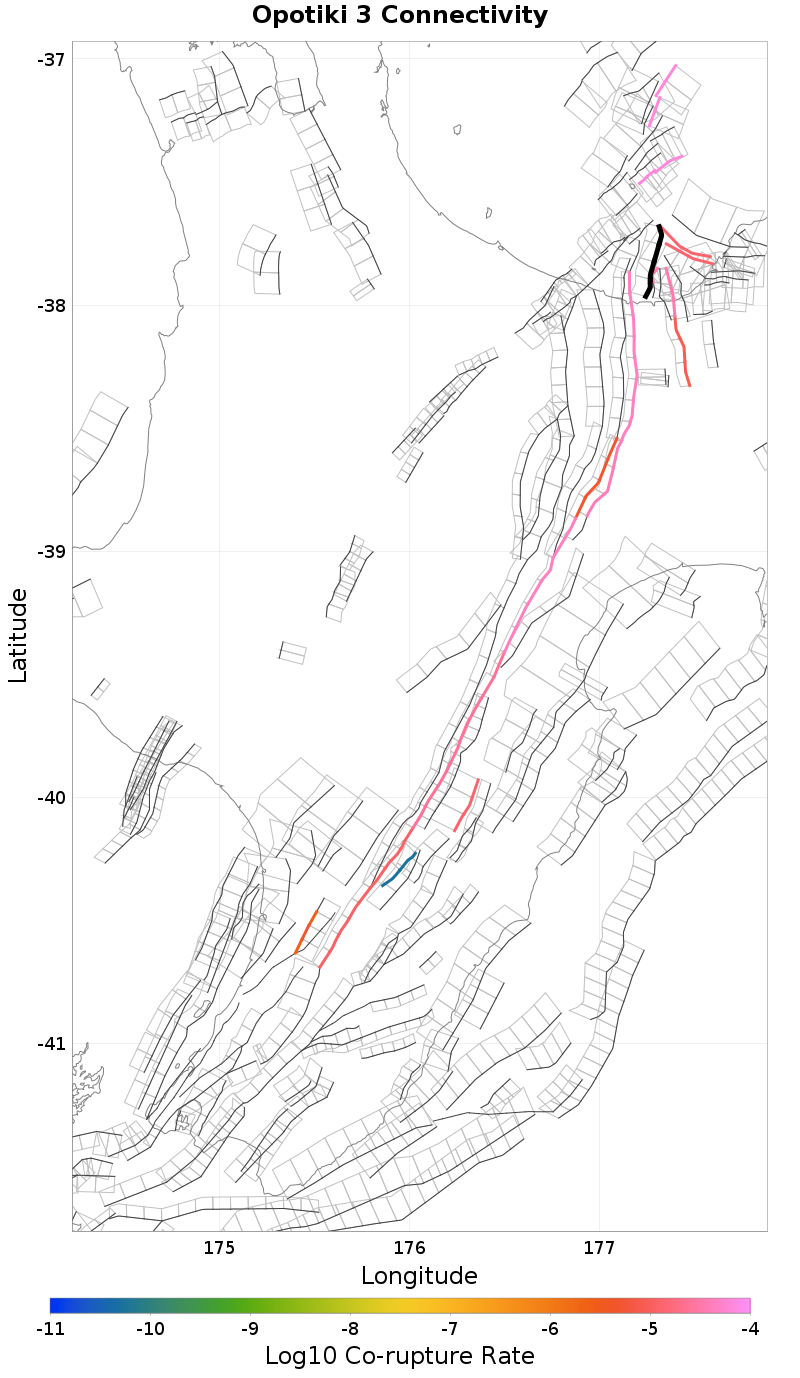

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 1, 0.21 km awayWaimana: North, 8.42 km away
Opotiki 2, 1.03 km awayOhiwa 1, 8.42 km away
Ohae 2, 3.15 km awayTuatoru 1, 8.71 km away
Tirohanga, 3.42 km awayTe Arawa 1, 9.65 km away
Opape 1, 3.74 km awayWhakaari 4, 10.54 km away
White Island 2, 3.82 km awayWhite Island 1, 13.82 km away
Waiotahi: North, 3.87 km awayRangitaiki 2, 15.11 km away
Kotare - Moutuhora, 6.08 km awayTe Arawa 2, 15.69 km away
Waimana - Waikaremoana, 7.68 km awayCalypso 2, 16.56 km away
Hariki, 8.05 km awayOhae 3, 16.66 km away

Ohae 1, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.3064307E-5

Opotiki 2, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.37 km
Min Rate-Weighted Dist3.37 km
Co-rupture Count55
Co-rupture Rate3.49082E-5

Ohae 2, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.3141032E-5

Tirohanga, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count99
Co-rupture Rate0.0

Waiotahi: North, 3.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.87 km
Min Rate-Weighted Dist3.87 km
Co-rupture Count1,481
Co-rupture Rate4.3656702E-5

Kotare - Moutuhora, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate3.49082E-5

Waimana - Waikaremoana, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.05 km
Co-rupture Count2
Co-rupture Rate0.0

Waimana: North, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.71 km
Min Rate-Weighted Dist8.71 km
Co-rupture Count732
Co-rupture Rate6.583005E-5

Te Arawa 1, 9.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Whakaari 4, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate0.0

White Island 1, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count196
Co-rupture Rate0.0

Rangitaiki 2, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0

Te Arawa 2, 15.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Calypso 2, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0

Ohae 3, 16.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
