Orakeikorako Details
| Property | Value |
|---|---|
| Rupture Count | 3,778 |
| Ruptures Above Sect Min Mag | 3,271 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.01, 7.54] |
| Length Range | [8, 180] km |
| Total Rate | 7.451181E-4 /yr |
| Multi-Fault Rate | 7.451181E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

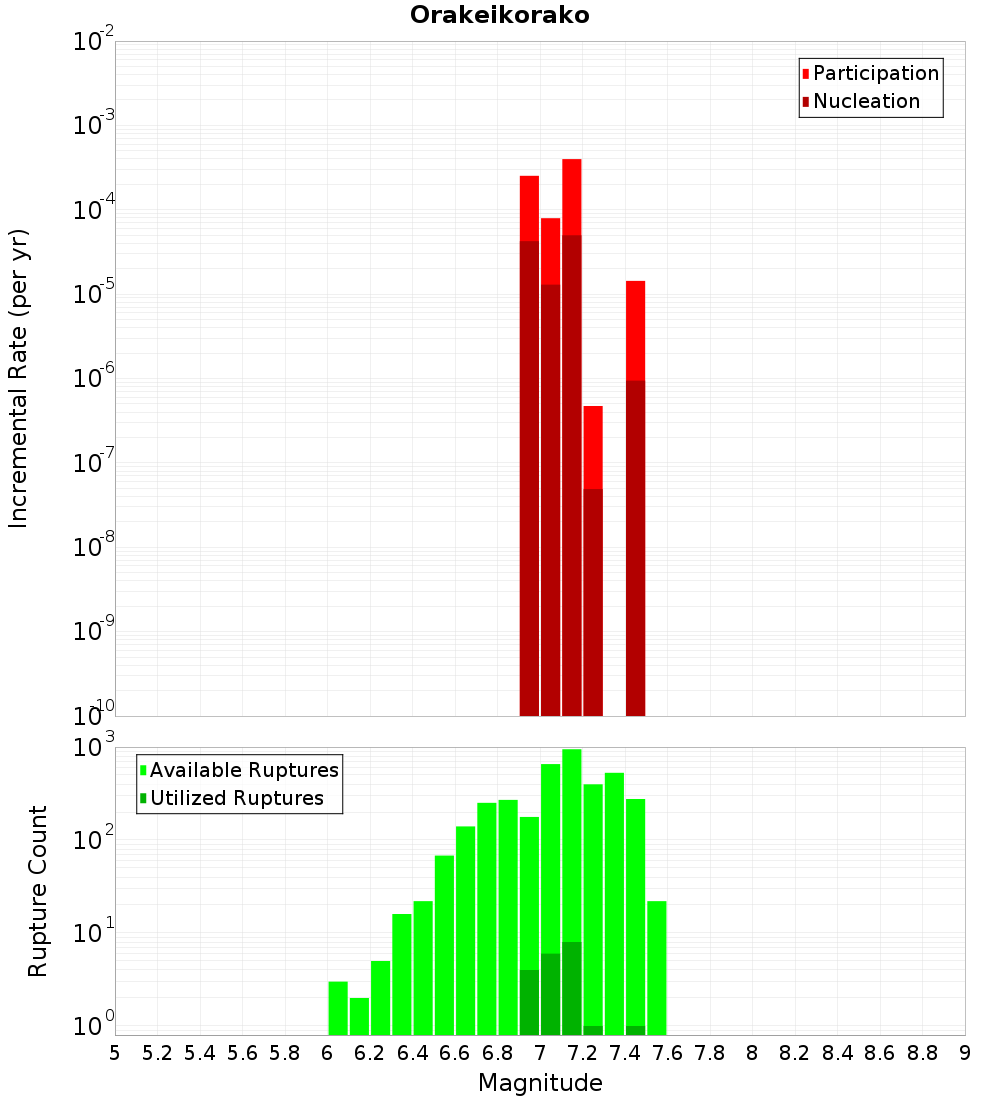

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

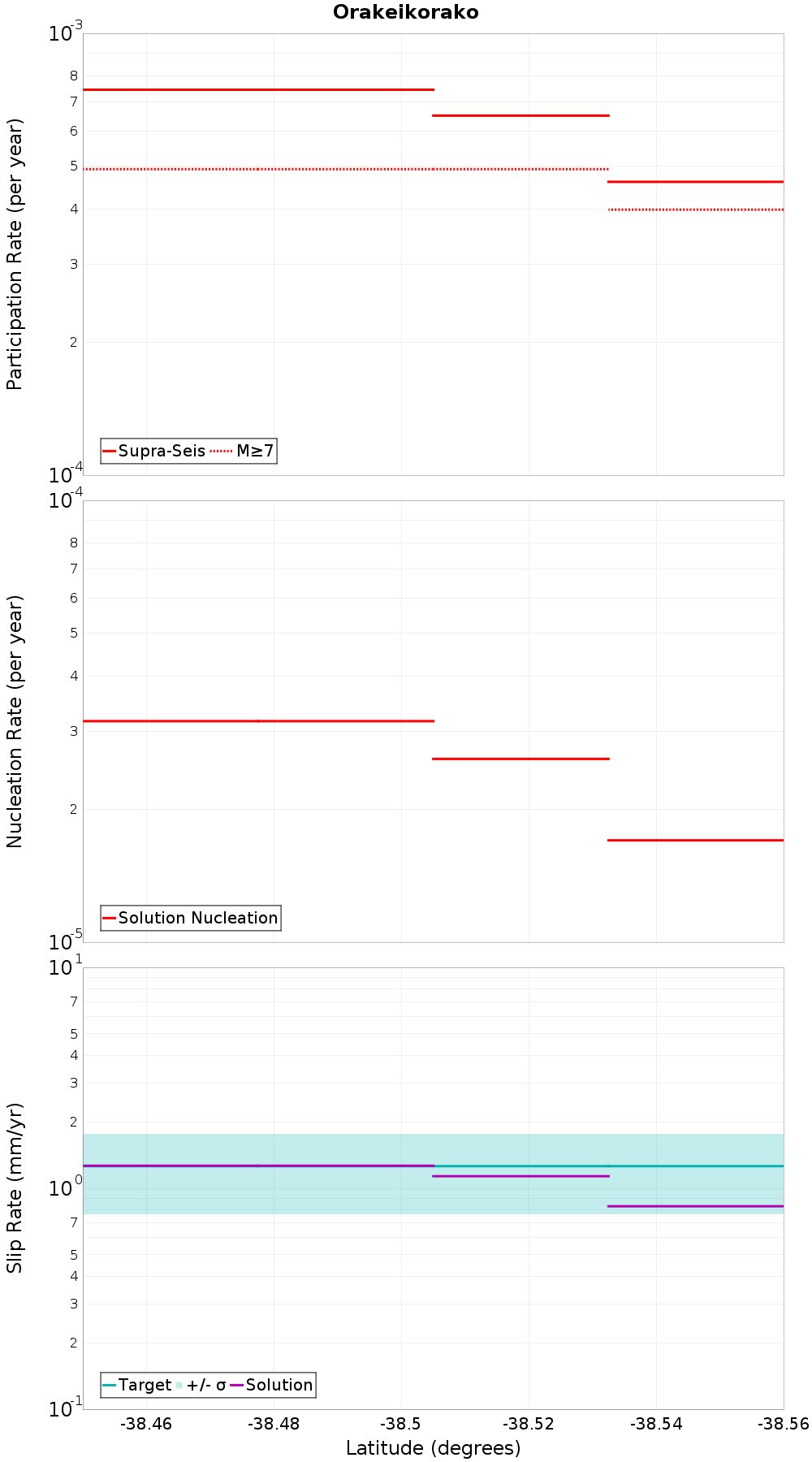

Along-Strike Values

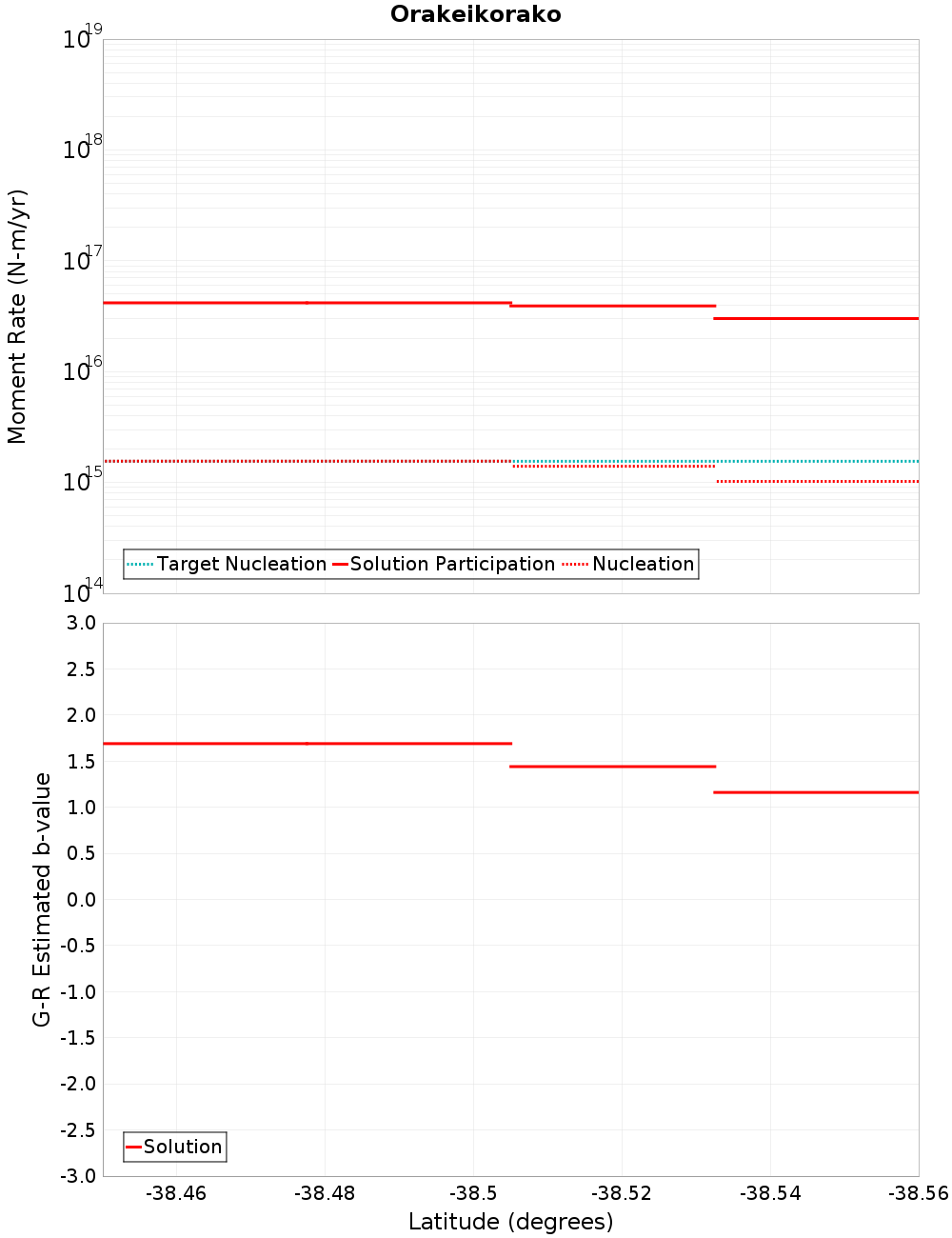

Moment-Rates and b-Values

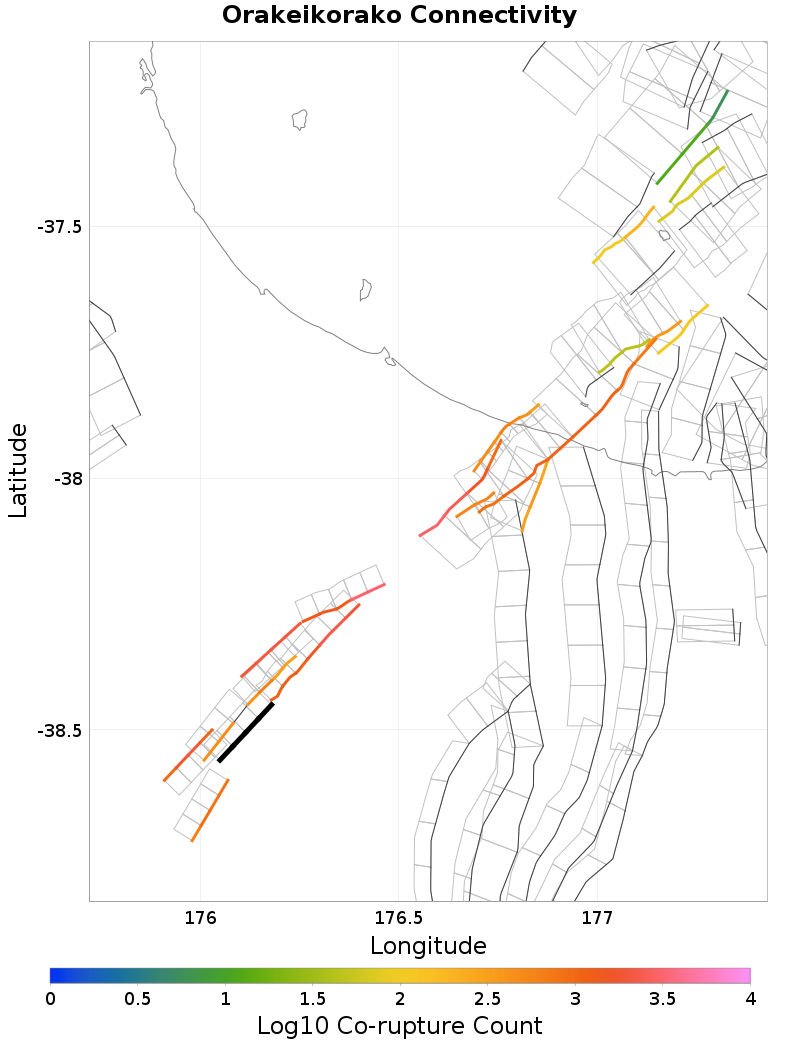

Connectivity
 |  |
|---|
Nearby Sections
Whangamata West, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.46 km |
| Min Rate-Weighted Dist | 0.61 km |
| Co-rupture Count | 2,083 |
| Co-rupture Rate | 3.7098816E-4 |
Maleme, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 2,159 |
| Co-rupture Rate | 3.9590805E-4 |
Paeroa, 0.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.93 km |
| Min Rate-Weighted Dist | 0.93 km |
| Co-rupture Count | 2,430 |
| Co-rupture Rate | 5.2127196E-4 |
Puketerata, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.99 km |
| Min Rate-Weighted Dist | 2.99 km |
| Co-rupture Count | 457 |
| Co-rupture Rate | 9.385077E-5 |
Puketerata North, 3.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.28 km |
| Co-rupture Count | 627 |
| Co-rupture Rate | 0.0 |
Kaiapo, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.37 km |
| Min Rate-Weighted Dist | 4.37 km |
| Co-rupture Count | 1,146 |
| Co-rupture Rate | 6.74011E-4 |
EarthquakeFlat - Tumunui, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,215 |
| Co-rupture Rate | 7.451181E-4 |
