Pihama Details

Property	Value
Rupture Count	73
Ruptures Above Sect Min Mag	71
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.70, 7.80]
Length Range	[17, 206] km
Total Rate	1.3096308E-4 /yr
Multi-Fault Rate	1.3096308E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

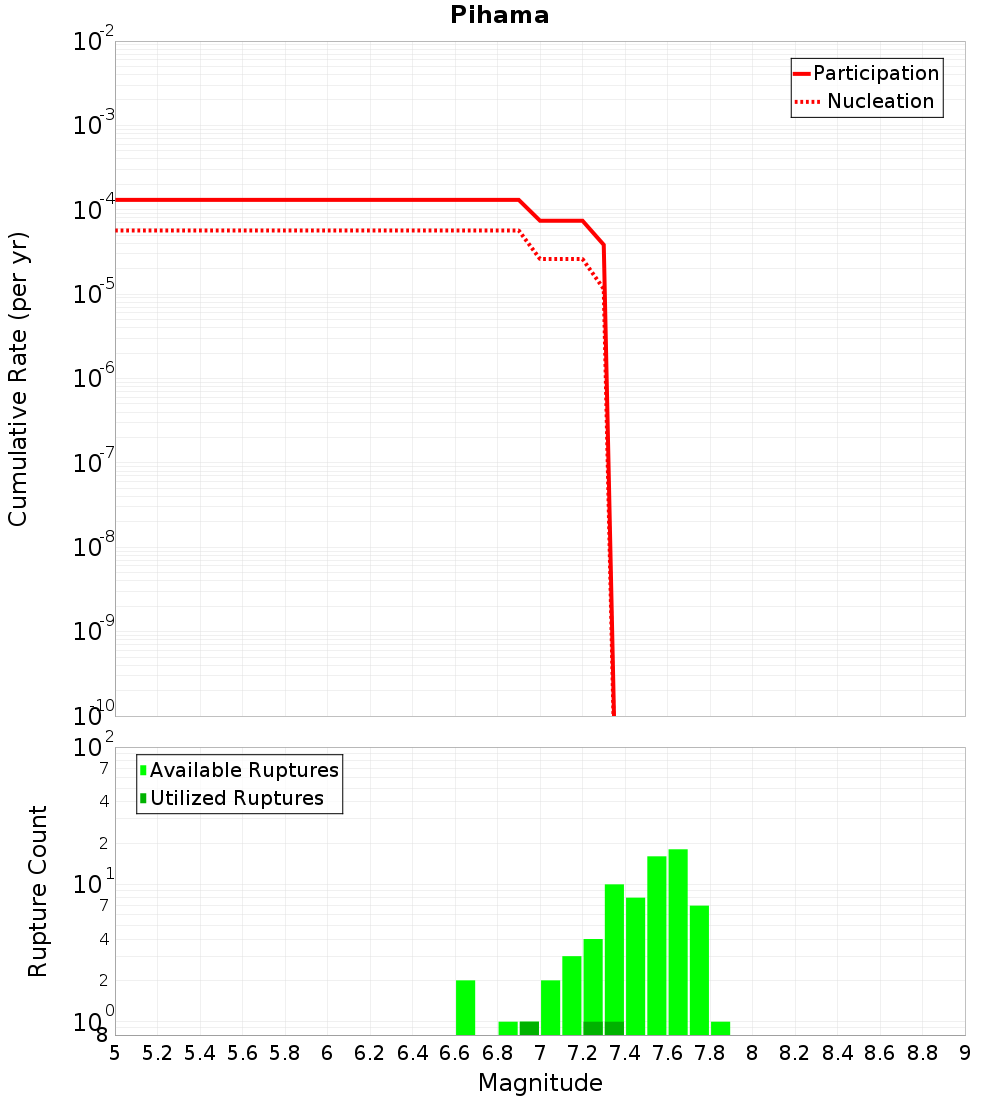

Magnitude-Frequency Distribution

Incremental	Cumulative

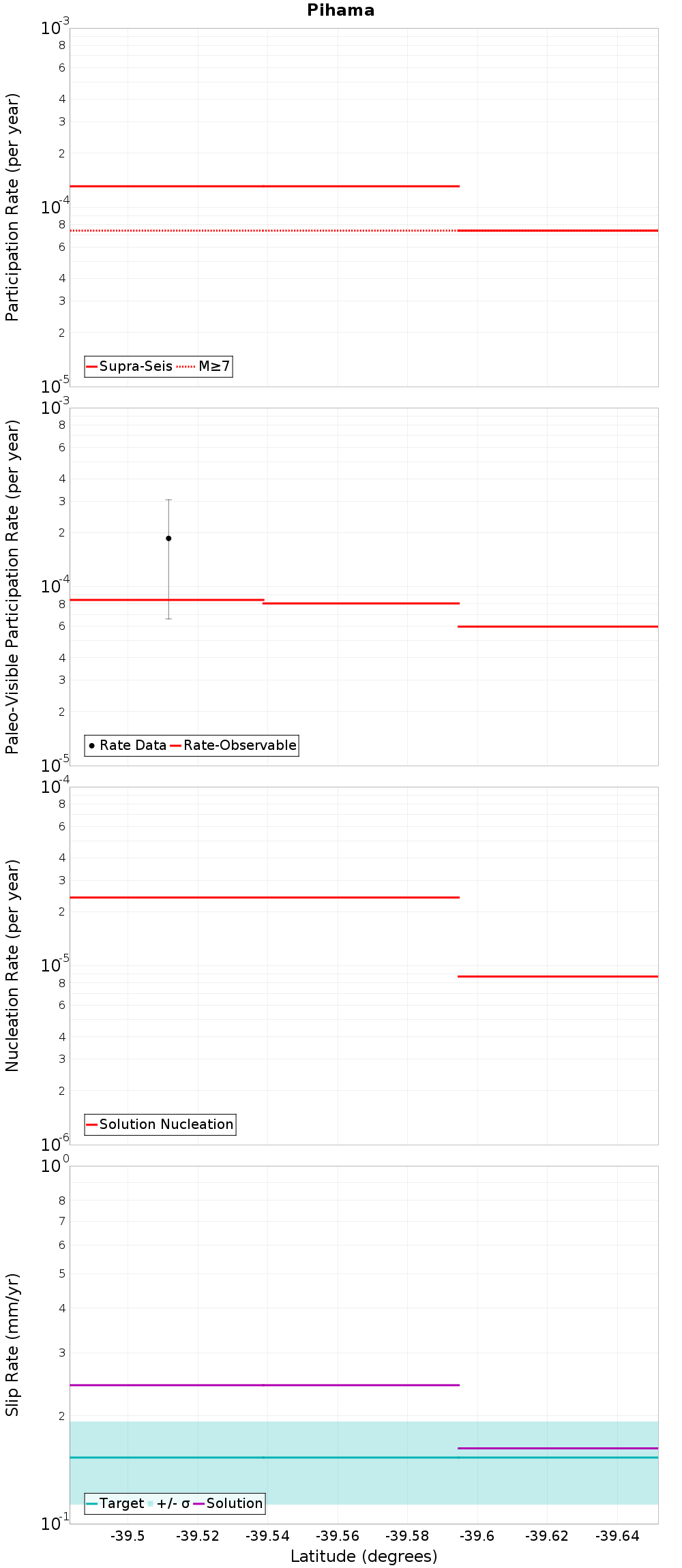

Along-Strike Values

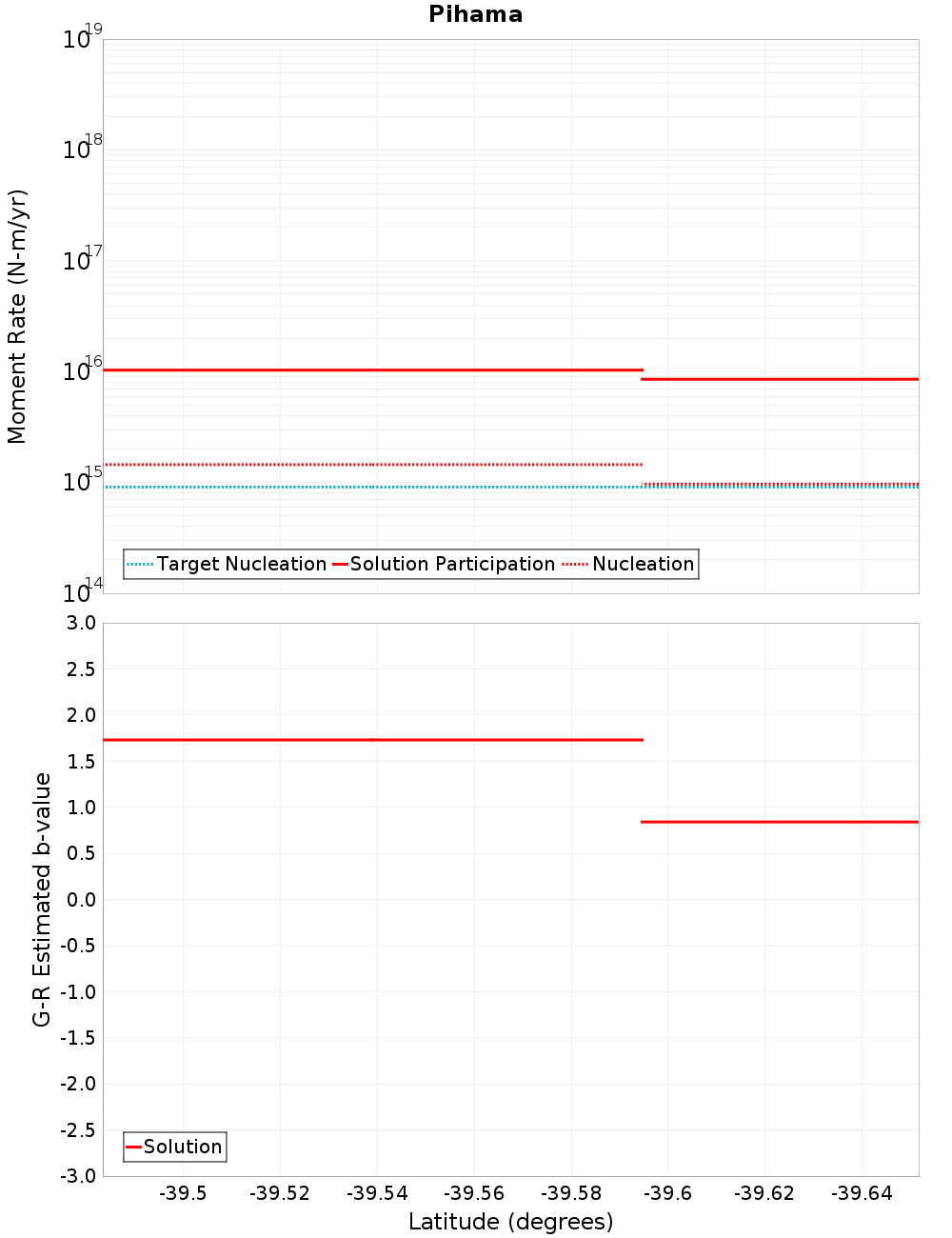

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Cape Egmont: South, 0.32 km away
Manahi 1, 0.36 km away
Cape Egmont: North, 0.42 km away
Cape Egmont: Central, 0.59 km away
Kiri, 2.03 km away
Rahotu, 2.31 km away
Manahi 2, 4.73 km away
Ihaia, 6.13 km away
Warea, 9.04 km away
Oaonui, 13.29 km away

Cape Egmont: South, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.32 km
Min Rate-Weighted Dist	0.32 km
Co-rupture Count	53
Co-rupture Rate	7.412665E-5

Manahi 1, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: North, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: Central, 0.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kiri, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.03 km
Min Rate-Weighted Dist	2.03 km
Co-rupture Count	62
Co-rupture Rate	1.3096308E-4

Rahotu, 2.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Manahi 2, 4.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ihaia, 6.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Warea, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	56
Co-rupture Rate	0.0

Oaonui, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
