Pukerua - Shepherds Gully: 2 Details

PropertyValue
Rupture Count1,538
Ruptures Above Sect Min Mag1,535
Ruptures w/ Nonzero Rates8
Magnitude Range[6.30, 8.18]
Length Range[7, 536] km
Total Rate3.371252E-4 /yr
Multi-Fault Rate3.371252E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults50

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

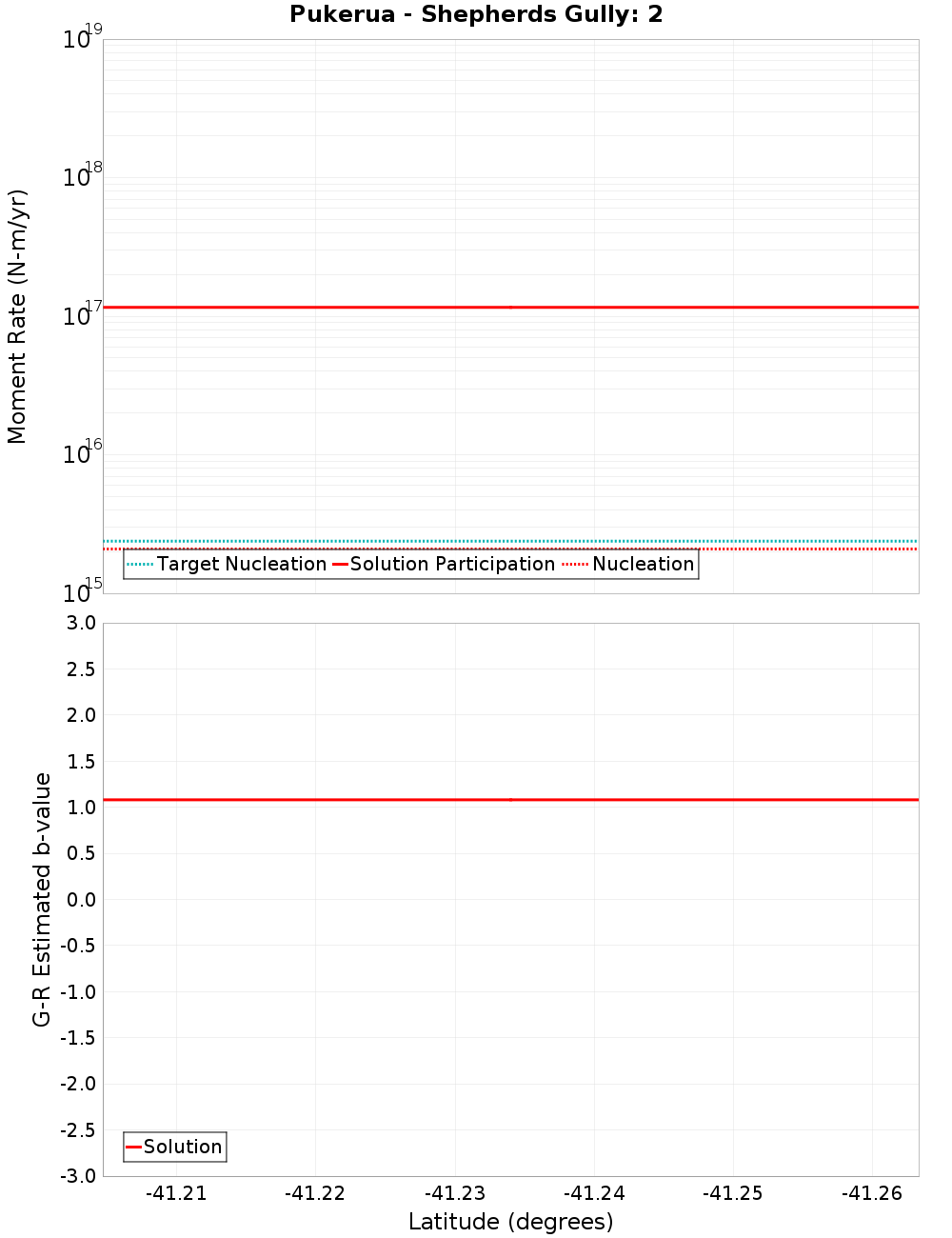

Moment-Rates and b-Values

(top)

Along-strike plot

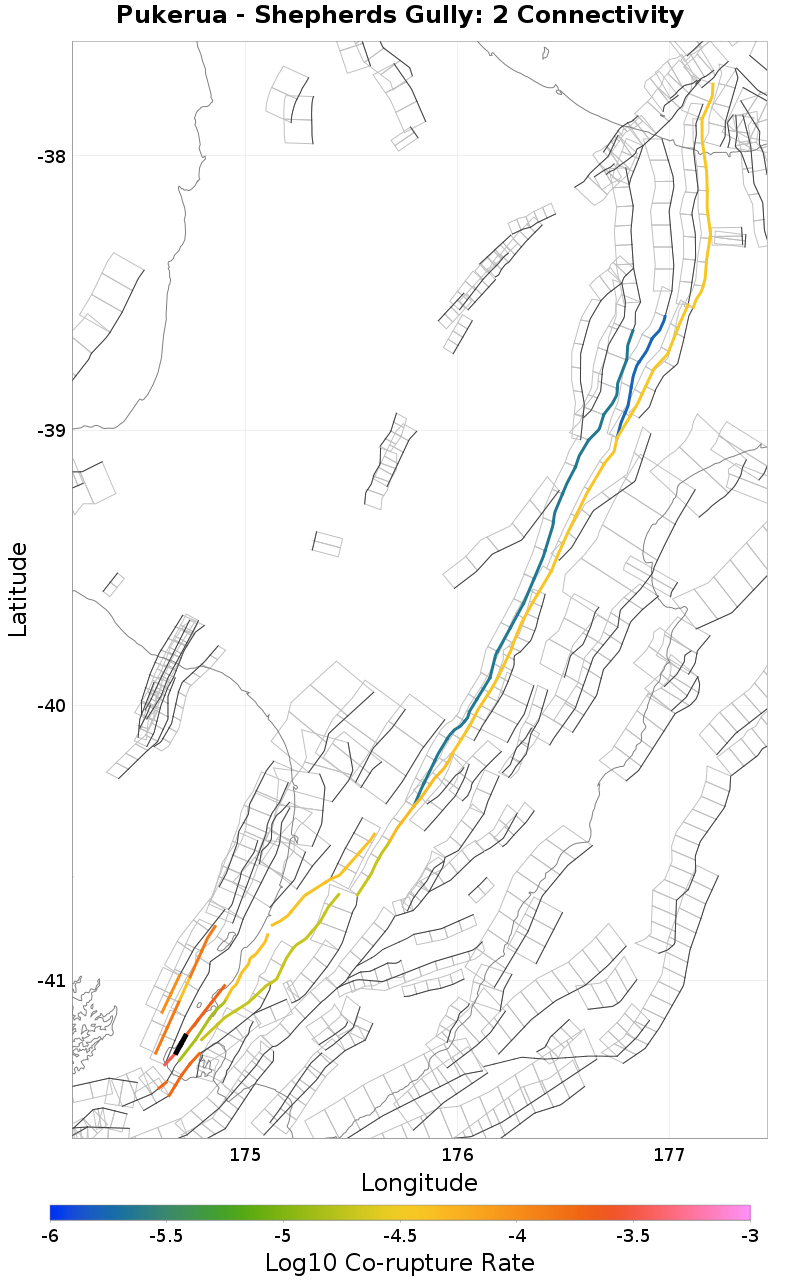

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pukerua - Shepherds Gully: 3, 0 km awayWellington Hutt Valley: 4, 8.22 km away
Pukerua - Shepherds Gully: 1, 0 km awayWhitemans Valley, 9.23 km away
Shepherds Gully - Mana, 2.37 km awayAotea - Evans Bay, 9.64 km away
Ohariu, 2.91 km awayOhariu South 2, 10.73 km away
Moonshine, 6.63 km awayWellington Hutt Valley: 1, 12.54 km away
Wellington Hutt Valley: 3, 7.12 km awayFisherman 1, 13.34 km away
Wellington Hutt Valley: 2, 7.27 km awayOhariu South 1, 15.36 km away
Okupe 1, 7.34 km awayWairau 3, 19.66 km away
Otaheke South, 8.06 km away

Pukerua - Shepherds Gully: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count1,255
Co-rupture Rate2.0467026E-4

Pukerua - Shepherds Gully: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count829
Co-rupture Rate3.371252E-4

Shepherds Gully - Mana, 2.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.91 km
Co-rupture Count1,791
Co-rupture Rate5.5293687E-5

Moonshine, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate1.9581794E-5

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count166
Co-rupture Rate1.8384073E-4

Wellington Hutt Valley: 2, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count189
Co-rupture Rate1.8384073E-4

Okupe 1, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count165
Co-rupture Rate2.363929E-4

Otaheke South, 8.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.06 km
Co-rupture Count12
Co-rupture Rate0.0

Wellington Hutt Valley: 4, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Ohariu South 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate1.8384073E-4

Wellington Hutt Valley: 1, 12.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count130
Co-rupture Rate0.0

Fisherman 1, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate9.799078E-5

Ohariu South 1, 15.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Wairau 3, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
