Puketerata Details
| Property | Value |
|---|---|
| Rupture Count | 3,447 |
| Ruptures Above Sect Min Mag | 3,063 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.14, 7.52] |
| Length Range | [10, 181] km |
| Total Rate | 8.3903025E-4 /yr |
| Multi-Fault Rate | 8.3903025E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

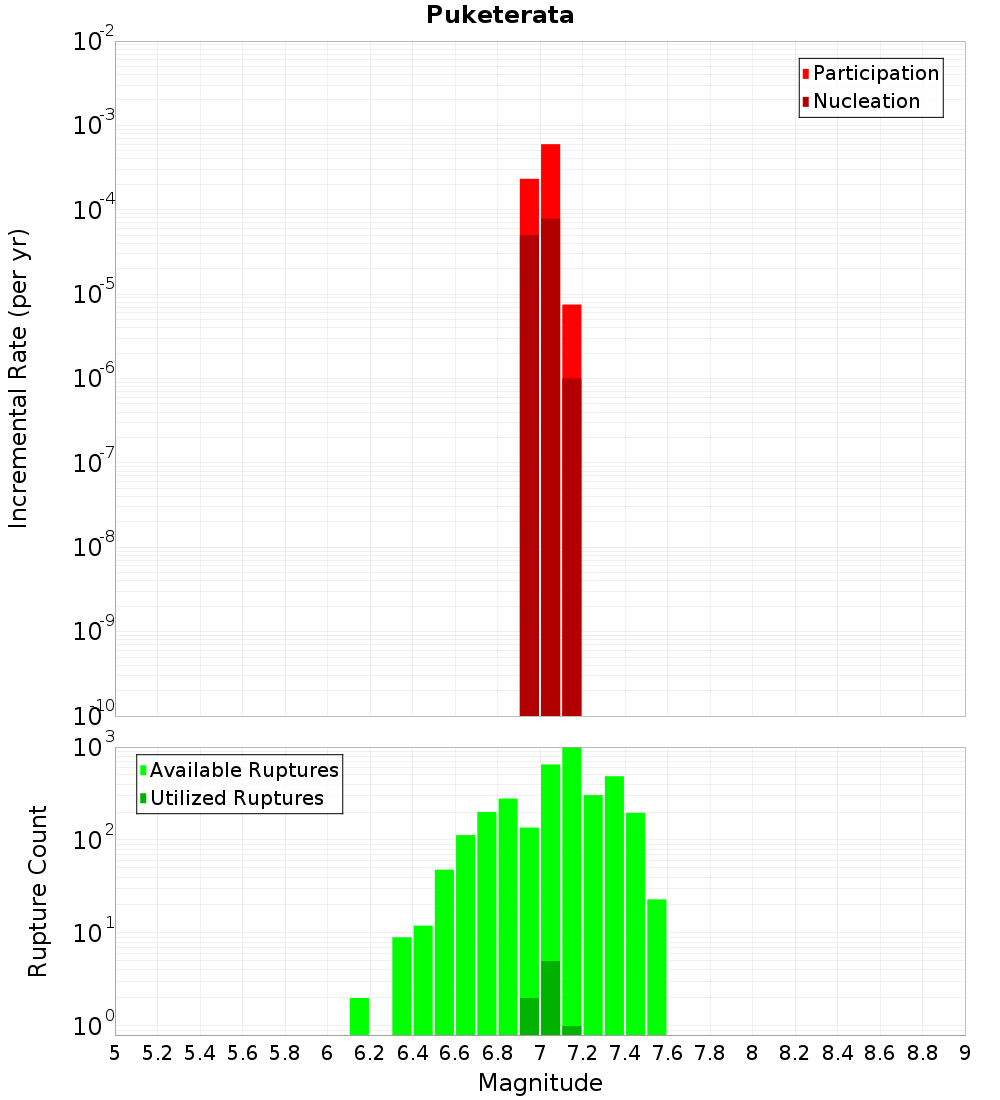

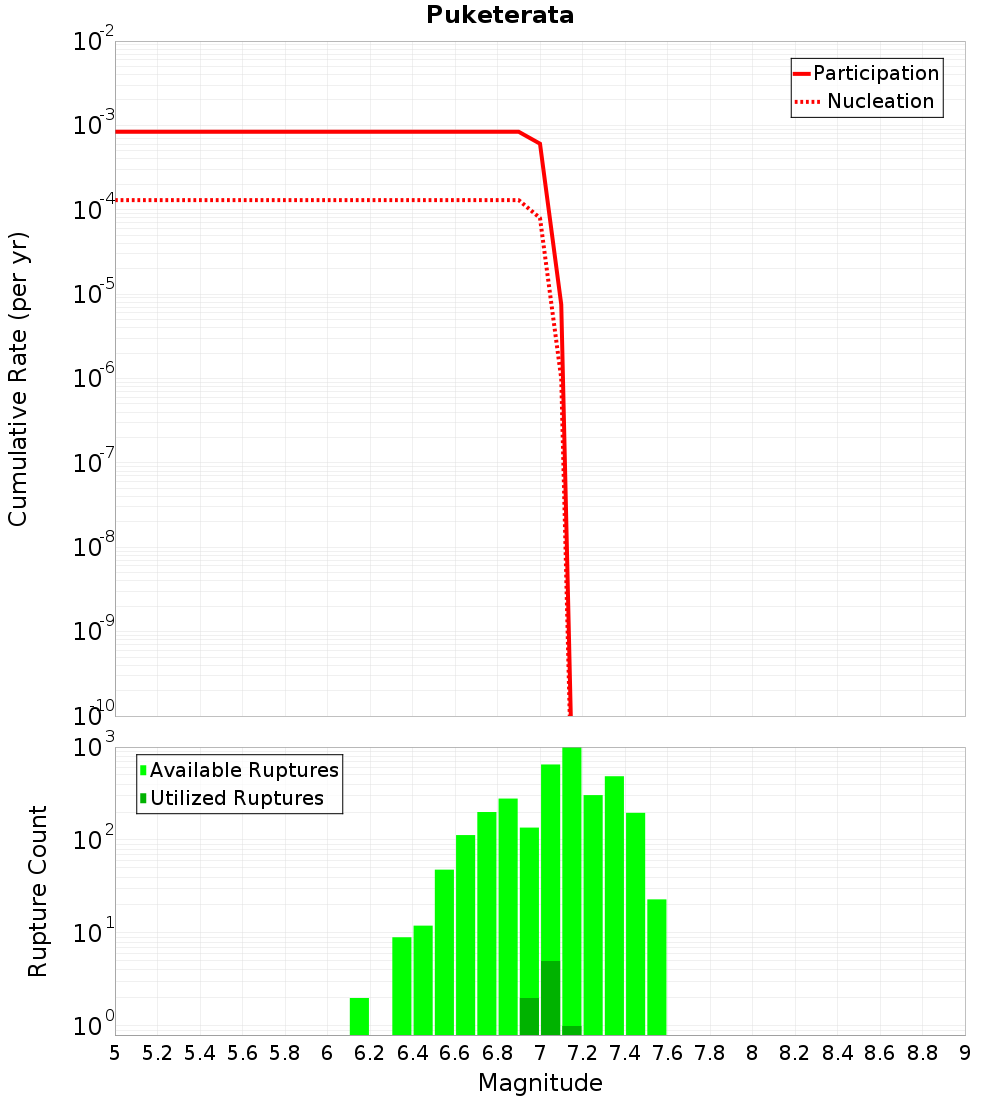

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

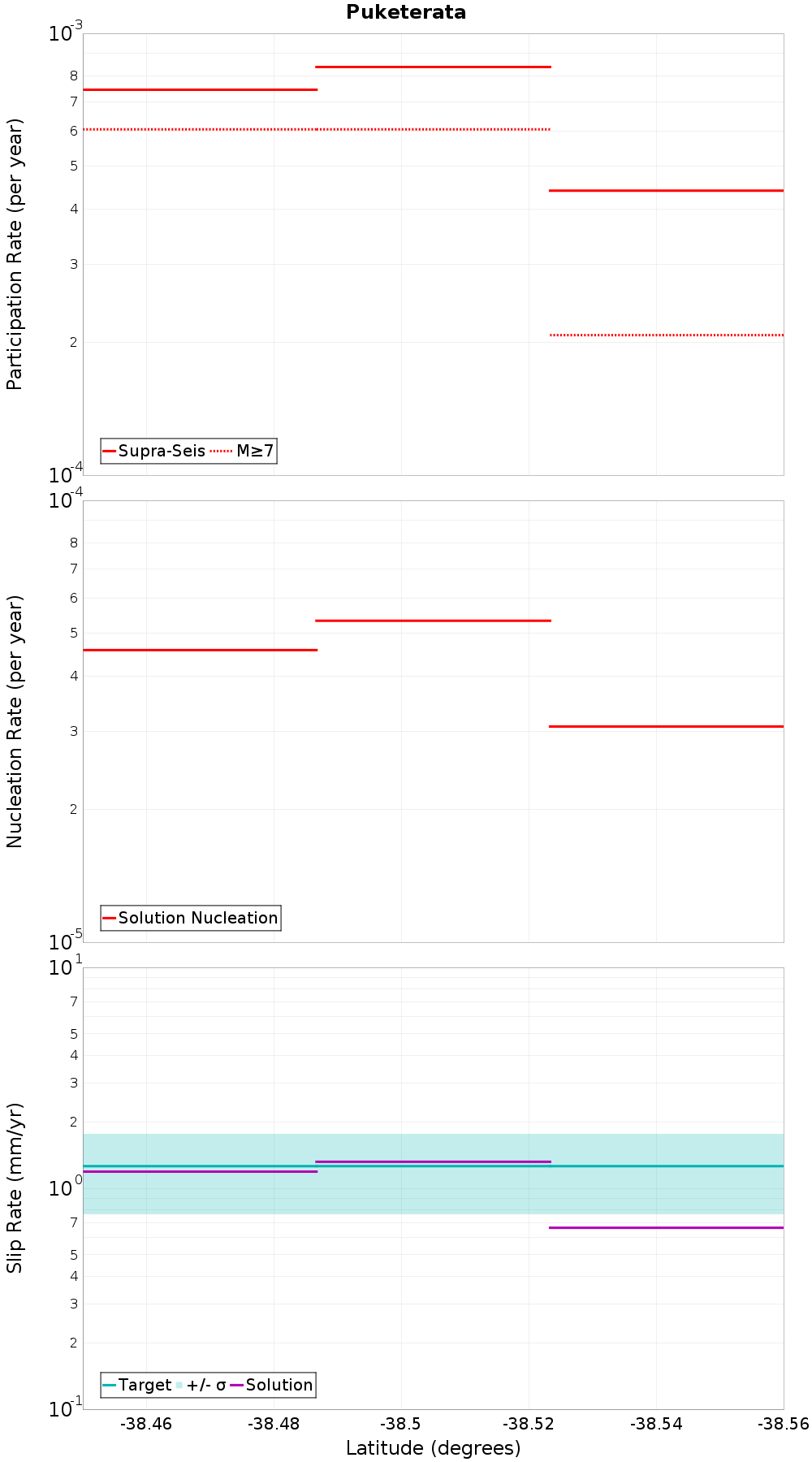

Along-Strike Values
Moment-Rates and b-Values

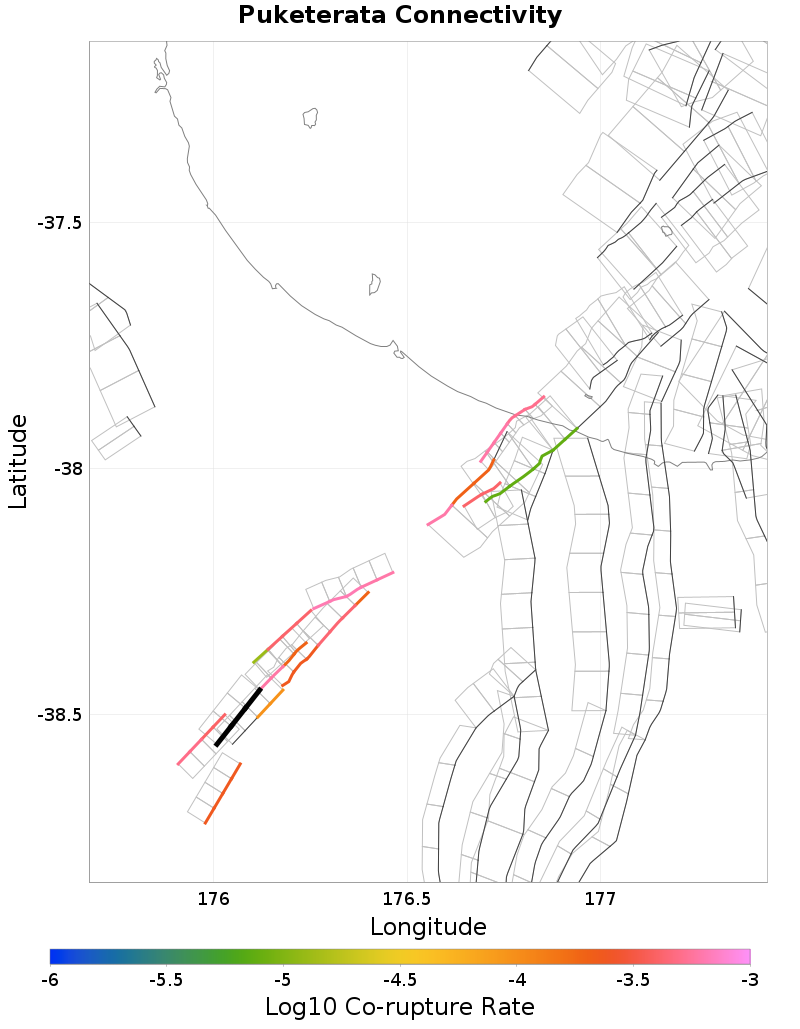

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata North, 0.1 km away |
| Whangamata West, 0.11 km away |
| Orakeikorako, 2.41 km away |
| Maleme, 3.57 km away |
| Paeroa, 5.08 km away |
| Kaiapo, 5.97 km away |
Puketerata North, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.1 km |
| Min Rate-Weighted Dist | 0.1 km |
| Co-rupture Count | 1,920 |
| Co-rupture Rate | 5.934255E-4 |
Whangamata West, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.11 km |
| Min Rate-Weighted Dist | 0.4 km |
| Co-rupture Count | 2,377 |
| Co-rupture Rate | 4.9451337E-4 |
Orakeikorako, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.99 km |
| Min Rate-Weighted Dist | 2.99 km |
| Co-rupture Count | 457 |
| Co-rupture Rate | 9.385077E-5 |
Maleme, 3.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.57 km |
| Min Rate-Weighted Dist | 3.57 km |
| Co-rupture Count | 2,267 |
| Co-rupture Rate | 4.1151477E-4 |
Paeroa, 5.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.08 km |
| Min Rate-Weighted Dist | 5.08 km |
| Co-rupture Count | 2,106 |
| Co-rupture Rate | 4.275155E-4 |
Kaiapo, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.97 km |
| Min Rate-Weighted Dist | 5.97 km |
| Co-rupture Count | 947 |
| Co-rupture Rate | 2.328273E-4 |
