Ridge Road - Okaia 2 Details
| Property | Value |
|---|---|
| Rupture Count | 1,024 |
| Ruptures Above Sect Min Mag | 787 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.15, 7.23] |
| Length Range | [10, 123] km |
| Total Rate | 1.18935386E-4 /yr |
| Multi-Fault Rate | 1.18935386E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

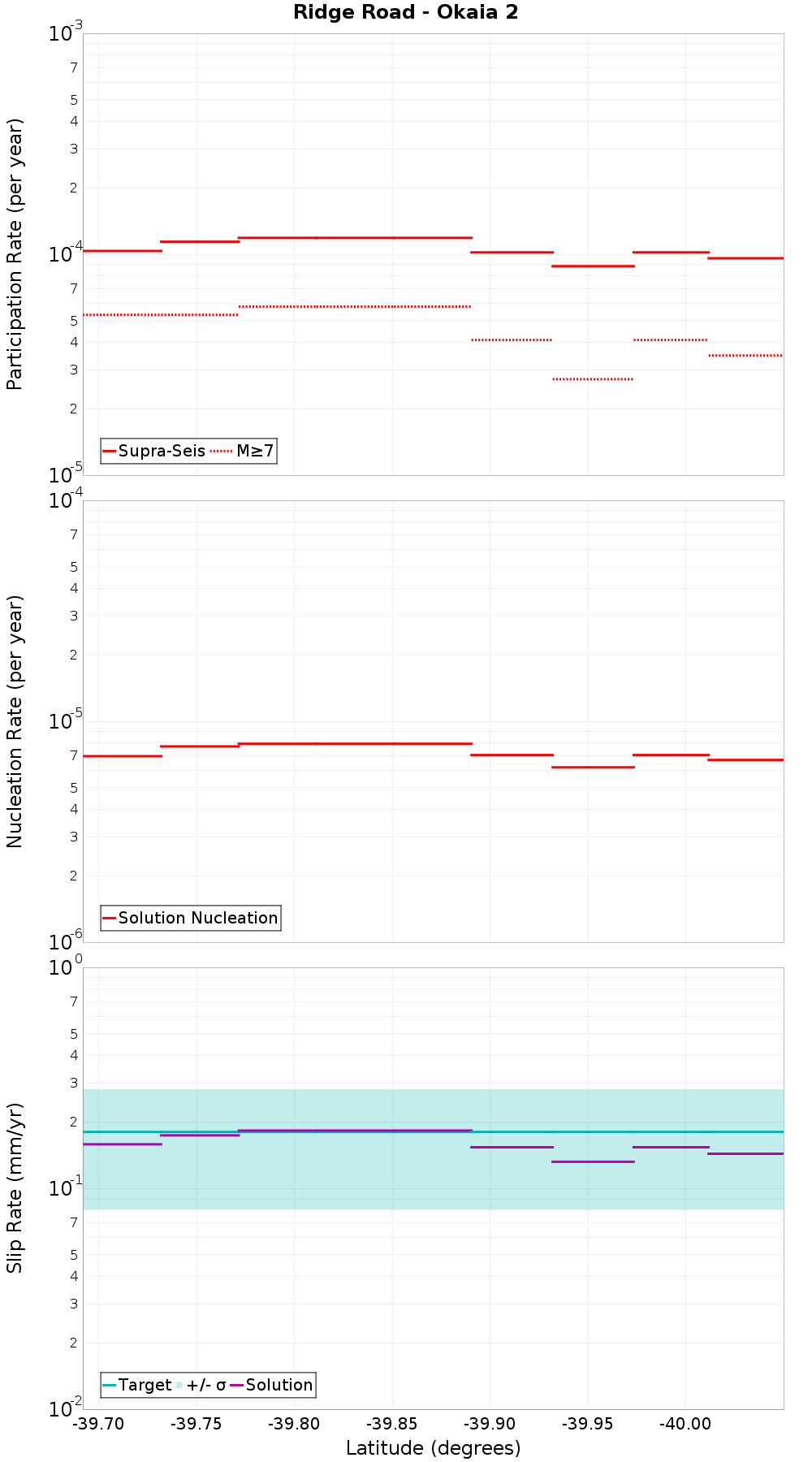

Along-Strike Values
Moment-Rates and b-Values

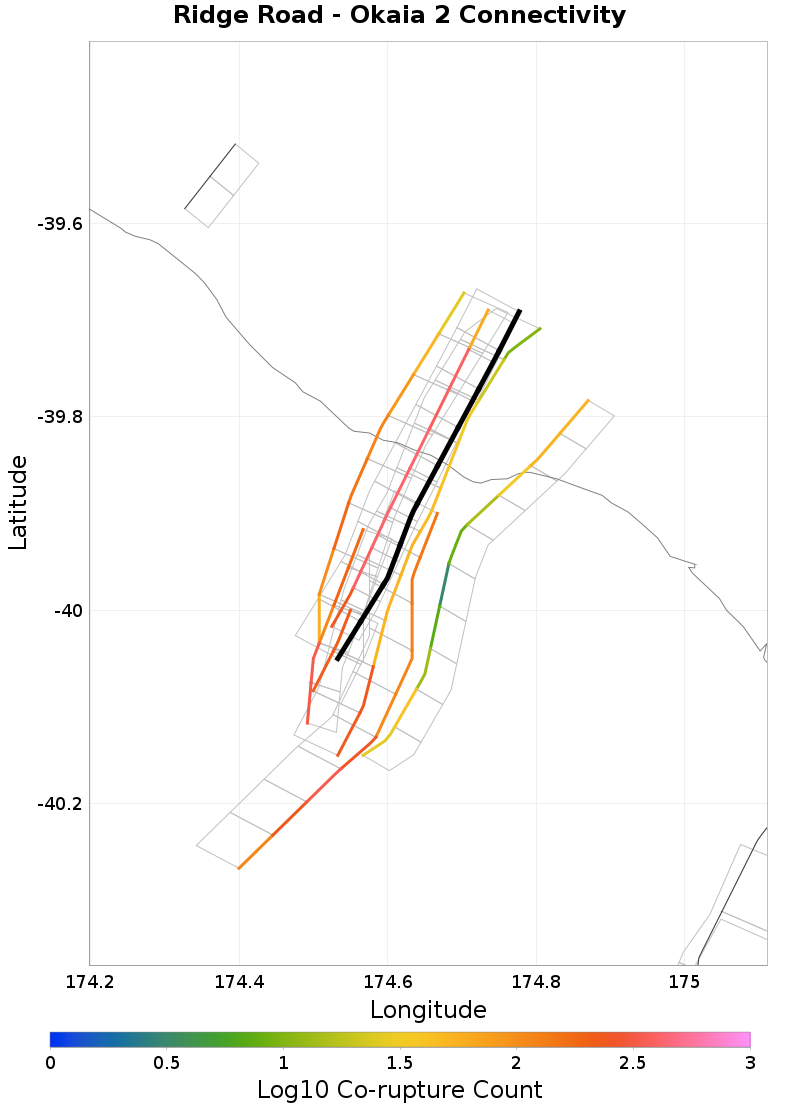

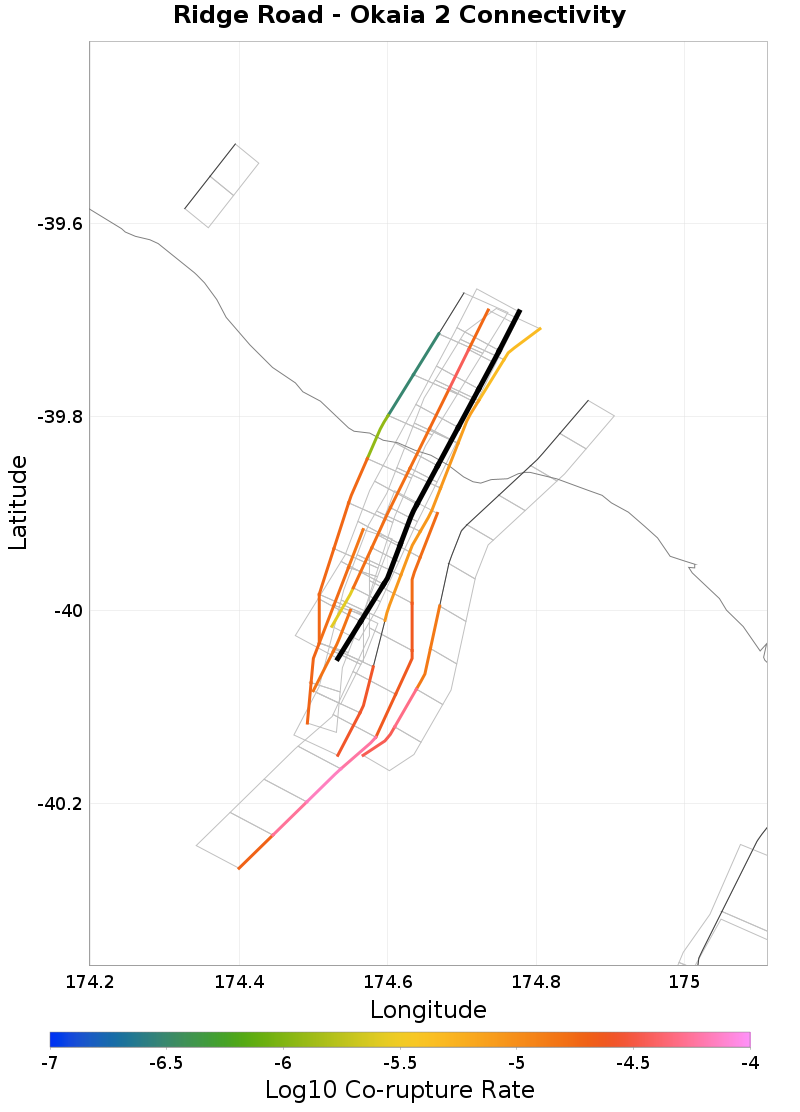

Connectivity
 |  |
|---|
Nearby Sections
Waverley - Okaia 1, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.26 km |
| Co-rupture Count | 189 |
| Co-rupture Rate | 1.8152248E-5 |
Okaia 3, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.28 km |
| Min Rate-Weighted Dist | 0.28 km |
| Co-rupture Count | 220 |
| Co-rupture Rate | 1.5476362E-5 |
Moumahaki - Okaia 4, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 561 |
| Co-rupture Rate | 3.6142093E-5 |
Okaia 5, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.41 km |
| Min Rate-Weighted Dist | 0.44 km |
| Co-rupture Count | 441 |
| Co-rupture Rate | 3.6109373E-5 |
Waitotara 10 & 11, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.45 km |
| Min Rate-Weighted Dist | 3.45 km |
| Co-rupture Count | 295 |
| Co-rupture Rate | 3.458718E-5 |
Waitotara 8 & 9, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.25 km |
| Min Rate-Weighted Dist | 2.25 km |
| Co-rupture Count | 434 |
| Co-rupture Rate | 6.977629E-5 |
Nukumuru - Waitotara 1-6, 5.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.79 km |
| Min Rate-Weighted Dist | 8.74 km |
| Co-rupture Count | 91 |
| Co-rupture Rate | 4.9164682E-5 |
