South Wedge 5 Details

Property	Value
Rupture Count	24,422
Ruptures Above Sect Min Mag	24,416
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.76, 8.40]
Length Range	[21, 903] km
Total Rate	4.4856097E-5 /yr
Multi-Fault Rate	4.4856097E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

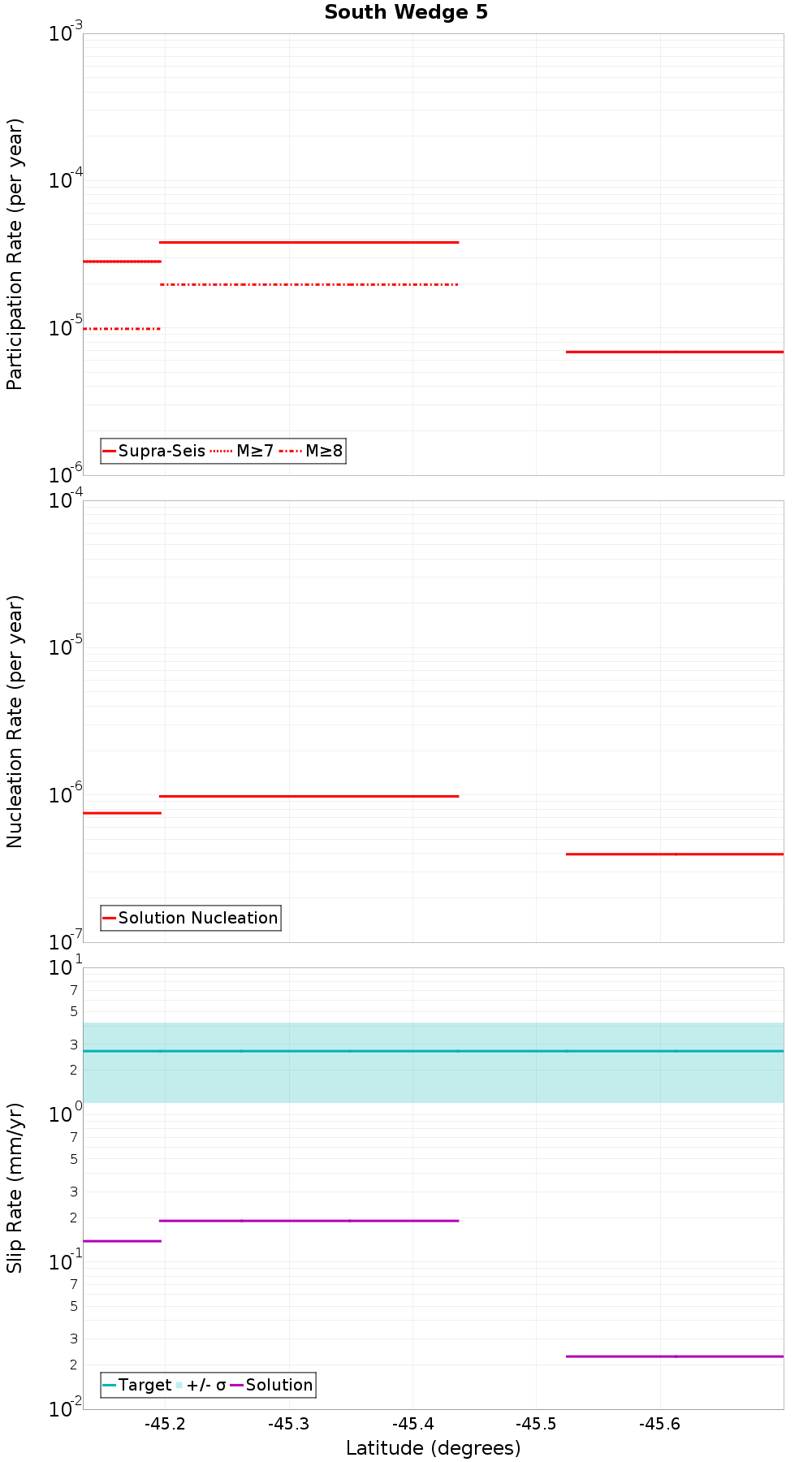

Along-Strike Values

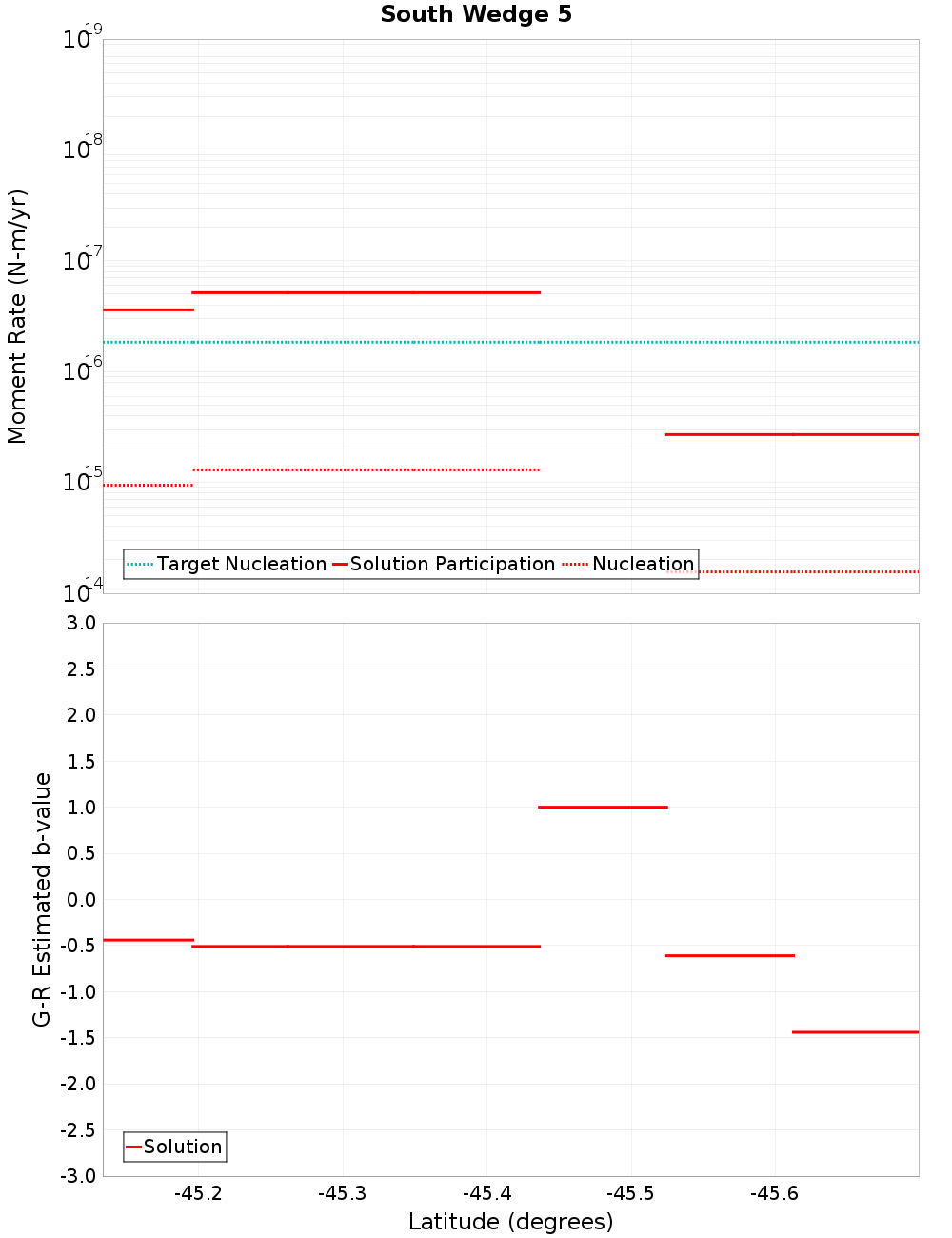

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Five Fingers, 0.13 km away
South Wedge 3-6-10, 0.46 km away
Central Wedge 4 - South Wedge 411, 1.31 km away
Alpine: Resolution - Dagg, 5.57 km away
Caswell High 5, 6.15 km away
Caswell High 3, 6.15 km away
South Wedge 2, 6.48 km away
Caswell High 4, 7.73 km away
Caswell 211, 9.47 km away
South Wedge 1, 10.53 km away
Caswell High 1, 13.27 km away
Five Fingers, 15.44 km away
Caswell High 67, 15.54 km away

Alpine: Resolution - Five Fingers, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.31 km
Co-rupture Count	352
Co-rupture Rate	0.0

South Wedge 3-6-10, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.46 km
Min Rate-Weighted Dist	0.46 km
Co-rupture Count	2,499
Co-rupture Rate	6.859424E-6

Central Wedge 4 - South Wedge 411, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.31 km
Co-rupture Count	4,882
Co-rupture Rate	6.859424E-6

Alpine: Resolution - Dagg, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.57 km
Min Rate-Weighted Dist	9.27 km
Co-rupture Count	19,804
Co-rupture Rate	3.799667E-5

Caswell High 5, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.15 km
Min Rate-Weighted Dist	6.36 km
Co-rupture Count	7,276
Co-rupture Rate	2.8187138E-5

Caswell High 3, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.15 km
Min Rate-Weighted Dist	6.15 km
Co-rupture Count	4,496
Co-rupture Rate	9.809533E-6

South Wedge 2, 6.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	1,209
Co-rupture Rate	0.0

Caswell High 4, 7.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	7.73 km
Co-rupture Count	8,076
Co-rupture Rate	0.0

Caswell 211, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.47 km
Co-rupture Count	1,986
Co-rupture Rate	0.0

South Wedge 1, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	0.0

Caswell High 1, 13.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	13.27 km
Co-rupture Count	641
Co-rupture Rate	0.0

Five Fingers, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 67, 15.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?	true
Directly Connected?	false
Co-rupture Count	1,139
Co-rupture Rate	0.0
