Te Ikaarongamai Details
| Property | Value |
|---|---|
| Rupture Count | 121 |
| Ruptures Above Sect Min Mag | 108 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.33, 7.40] |
| Length Range | [12, 128] km |
| Total Rate | 0.0011618966 /yr |
| Multi-Fault Rate | 0.0011618966 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

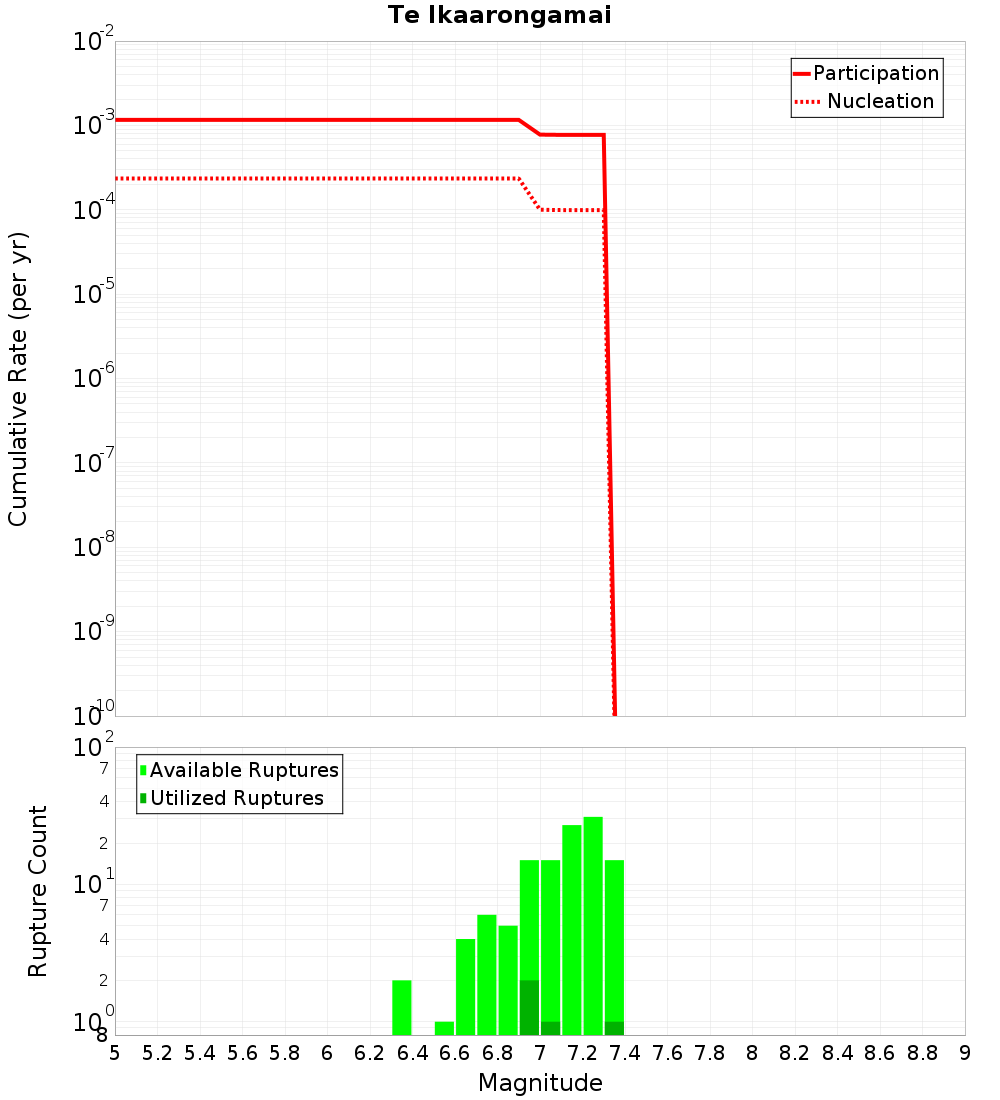

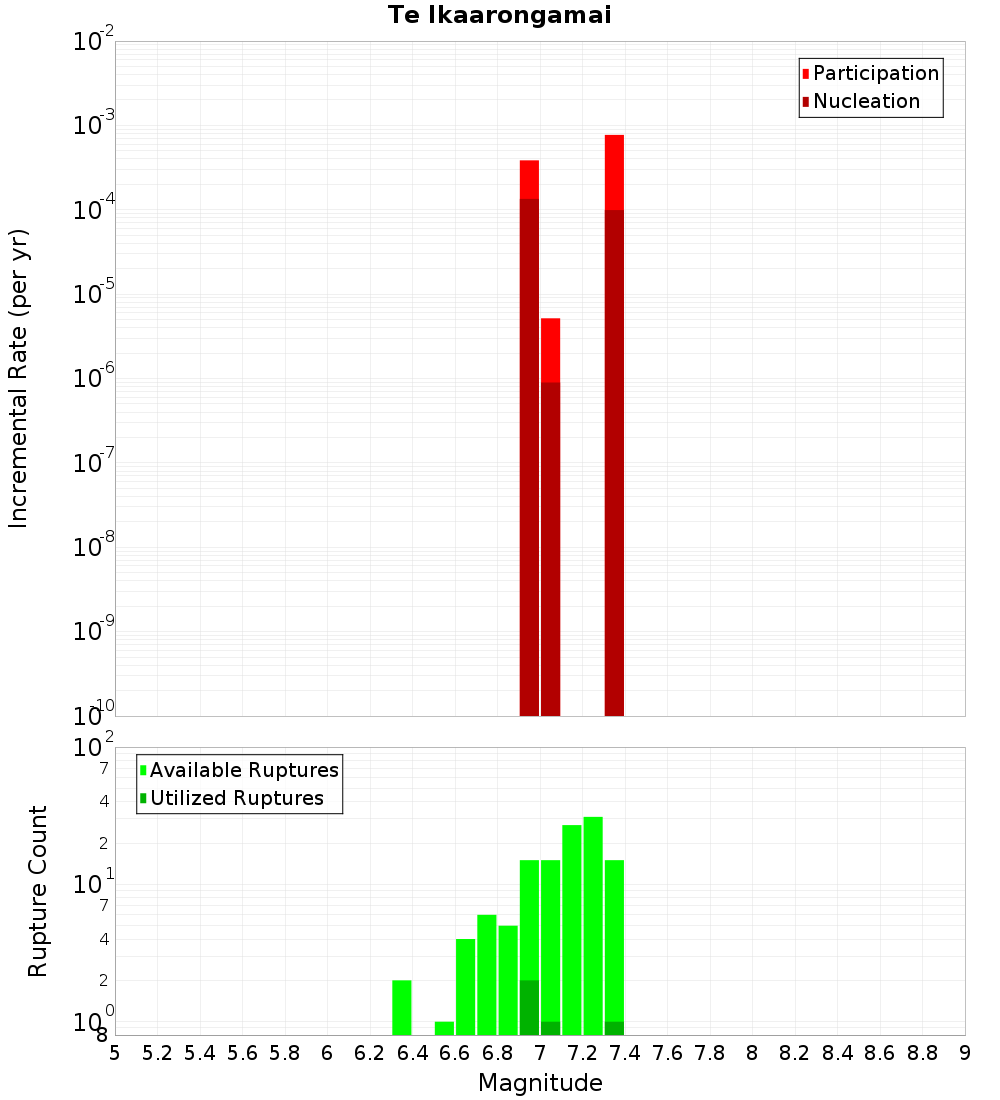

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

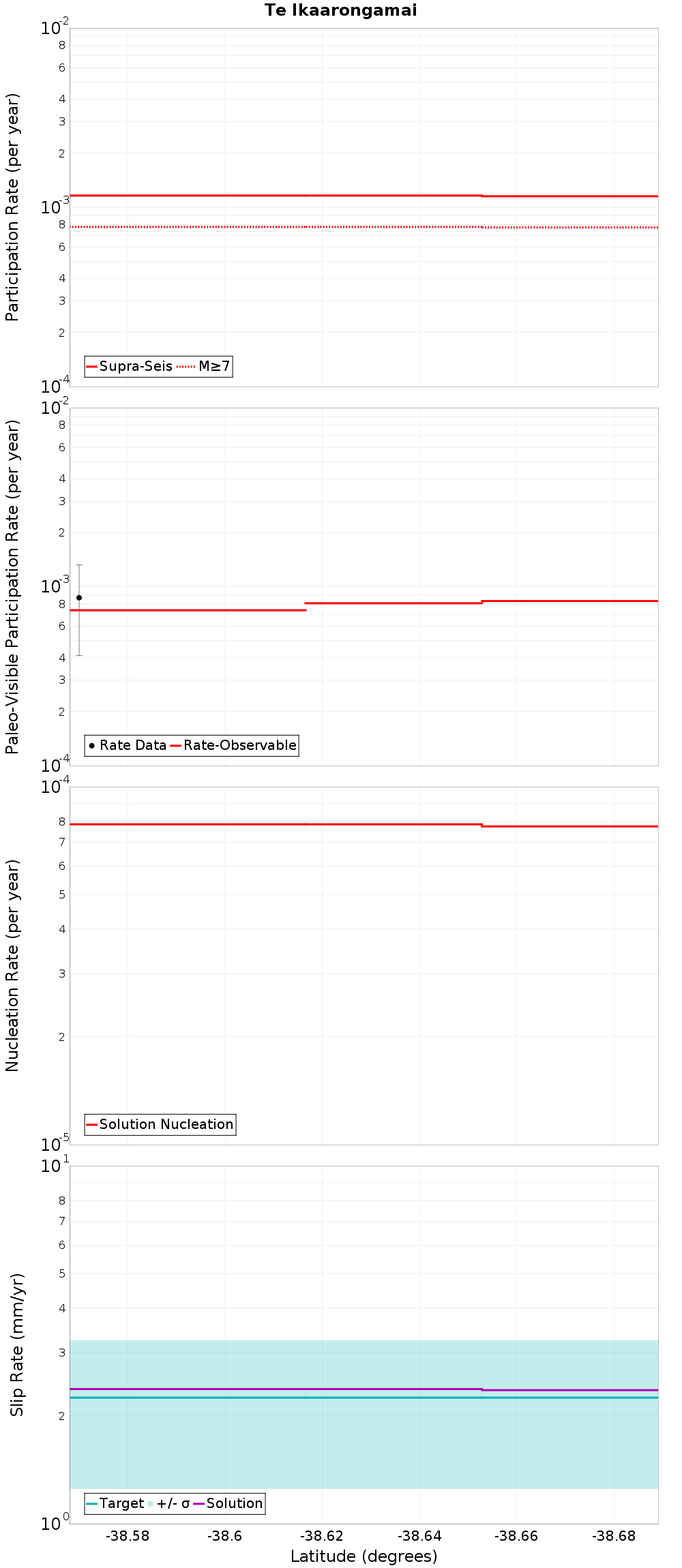

Along-Strike Values
Moment-Rates and b-Values

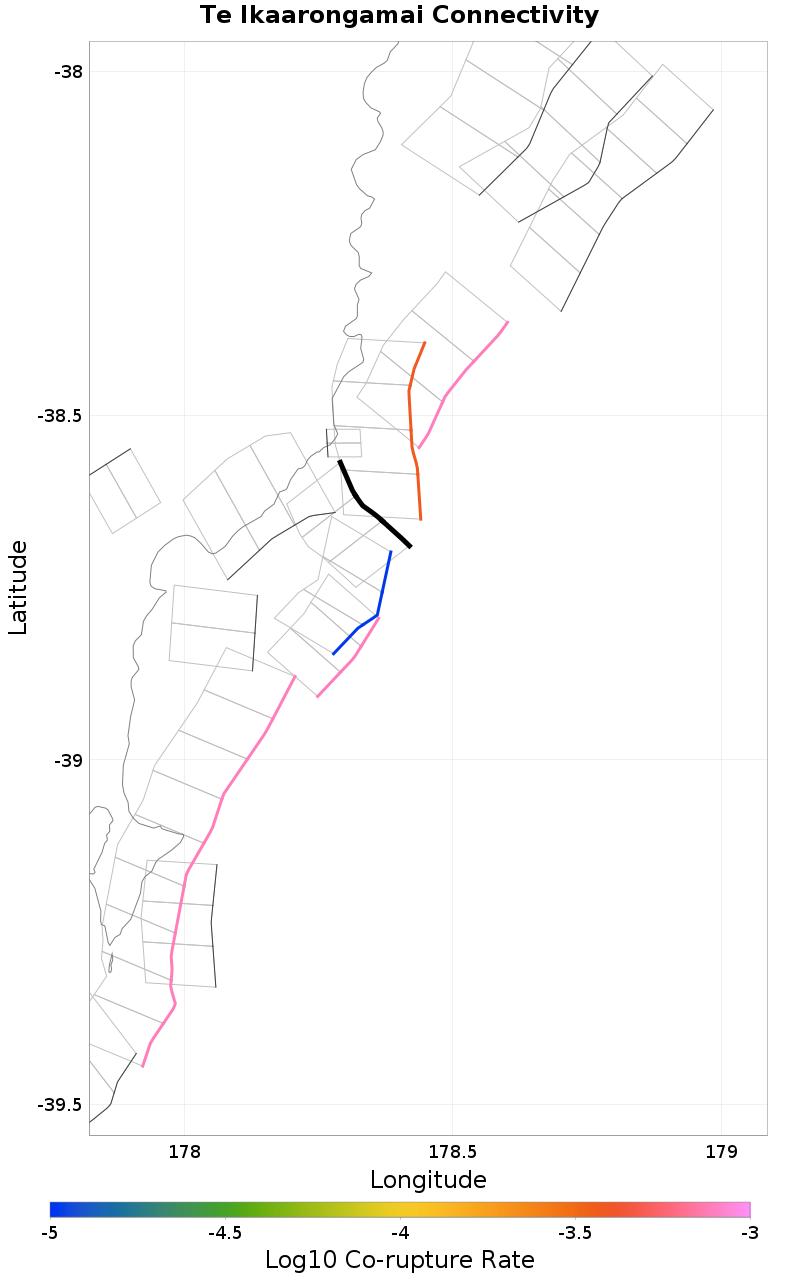

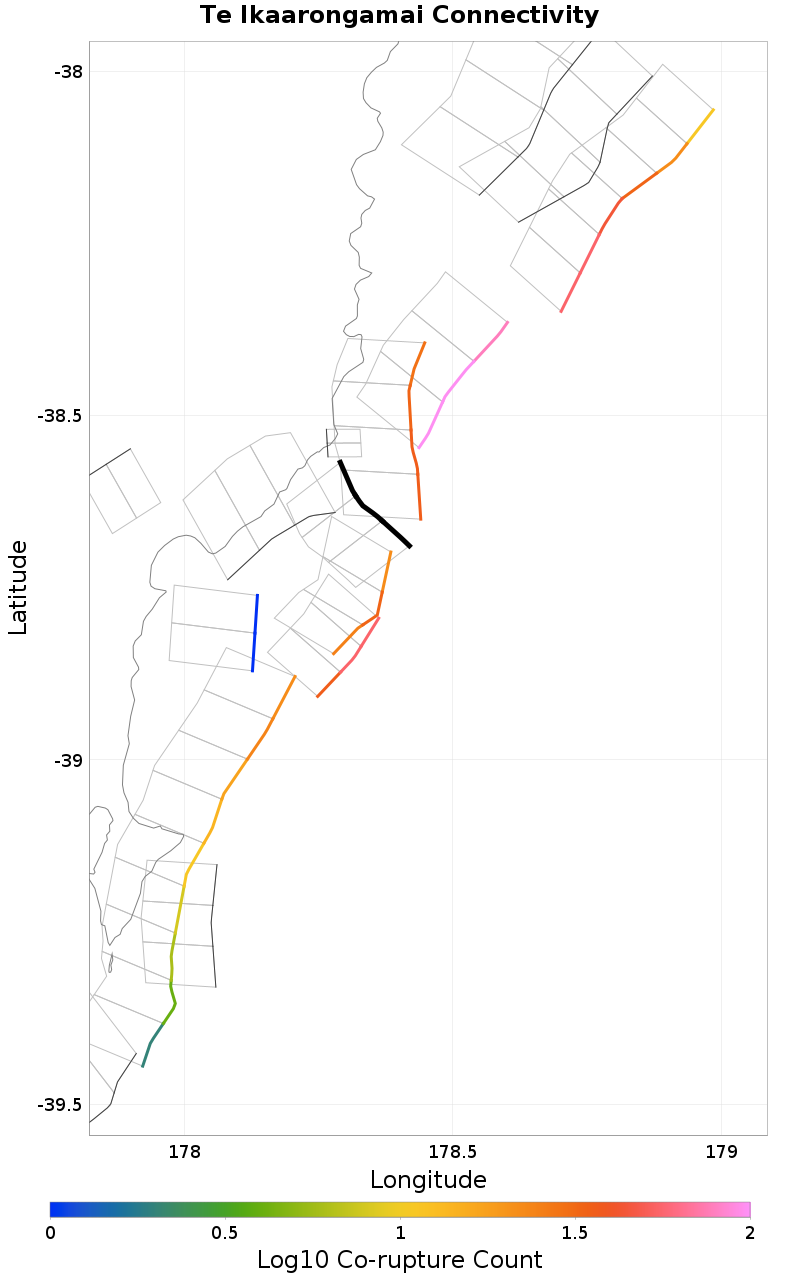

Connectivity
 |  |
|---|
Nearby Sections
Ariel Bank, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.36 km |
| Min Rate-Weighted Dist | 0.36 km |
| Co-rupture Count | 33 |
| Co-rupture Rate | 1.042656E-5 |
Gable End South, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel East, 1.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.44 km |
| Min Rate-Weighted Dist | 1.44 km |
| Co-rupture Count | 55 |
| Co-rupture Rate | 7.715904E-4 |
Pakarae, 1.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gable End North, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.53 km |
| Min Rate-Weighted Dist | 3.53 km |
| Co-rupture Count | 36 |
| Co-rupture Rate | 3.798797E-4 |
Ariel Bank 2, 11.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.27 km |
| Min Rate-Weighted Dist | 11.27 km |
| Co-rupture Count | 97 |
| Co-rupture Rate | 7.76761E-4 |
Poverty Bay, 14.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Lachlan 3, 19.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 7.8201696E-4 |
