Volkner 4 Details
| Property | Value |
|---|---|
| Rupture Count | 7,890 |
| Ruptures Above Sect Min Mag | 7,888 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.72, 8.17] |
| Length Range | [17, 552] km |
| Total Rate | 5.9416716E-4 /yr |
| Multi-Fault Rate | 5.9416716E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 70 |
Table Of Contents

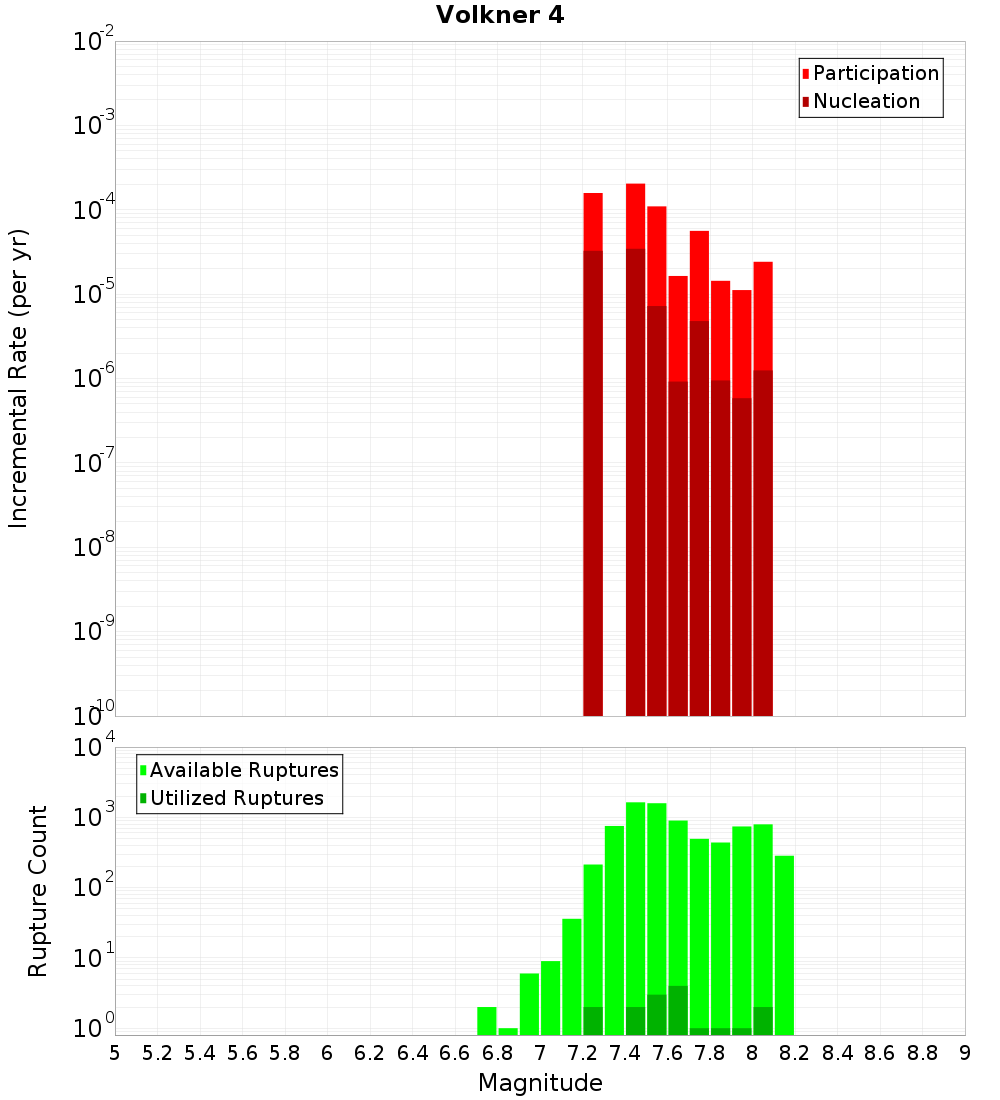

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

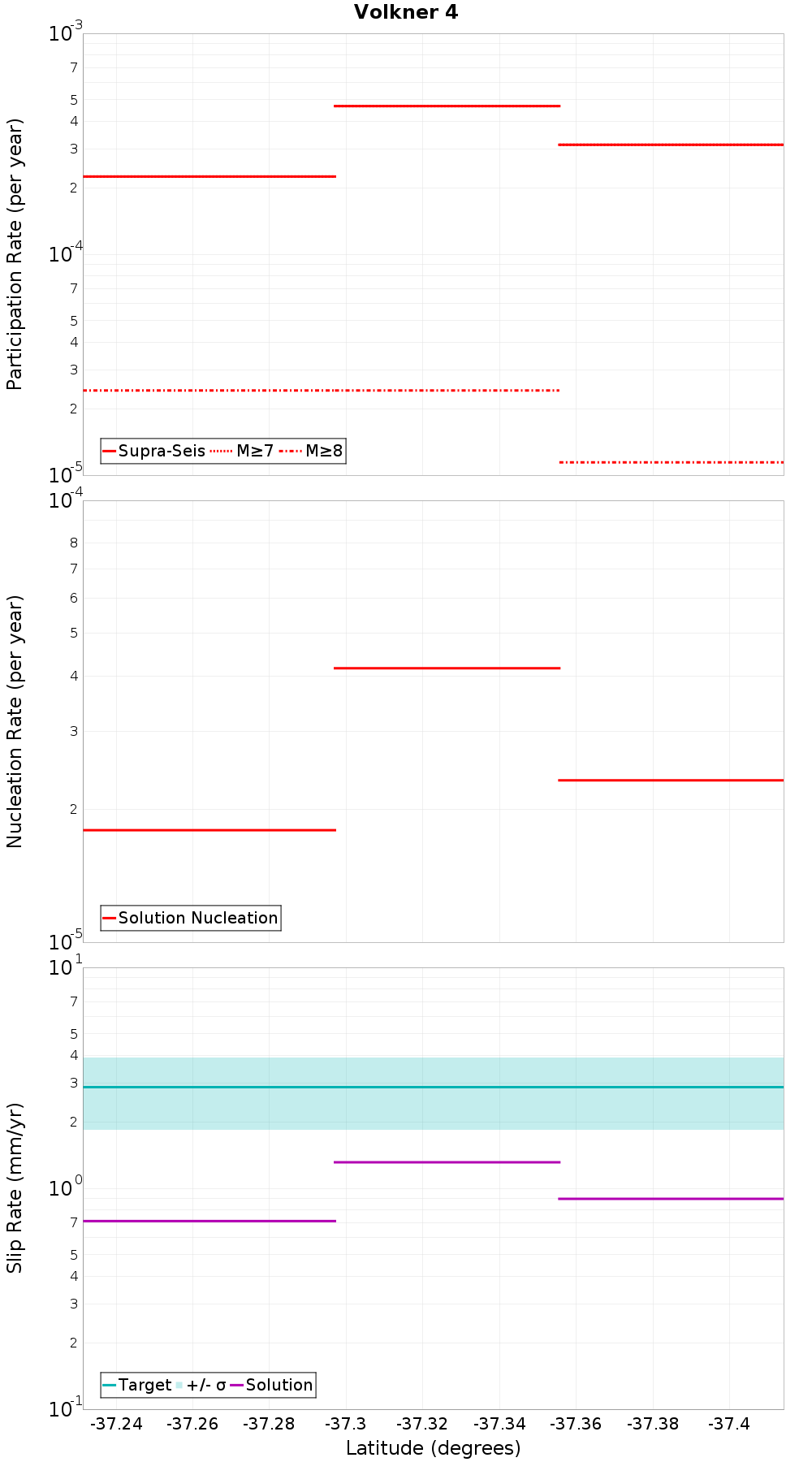

Along-Strike Values
Moment-Rates and b-Values

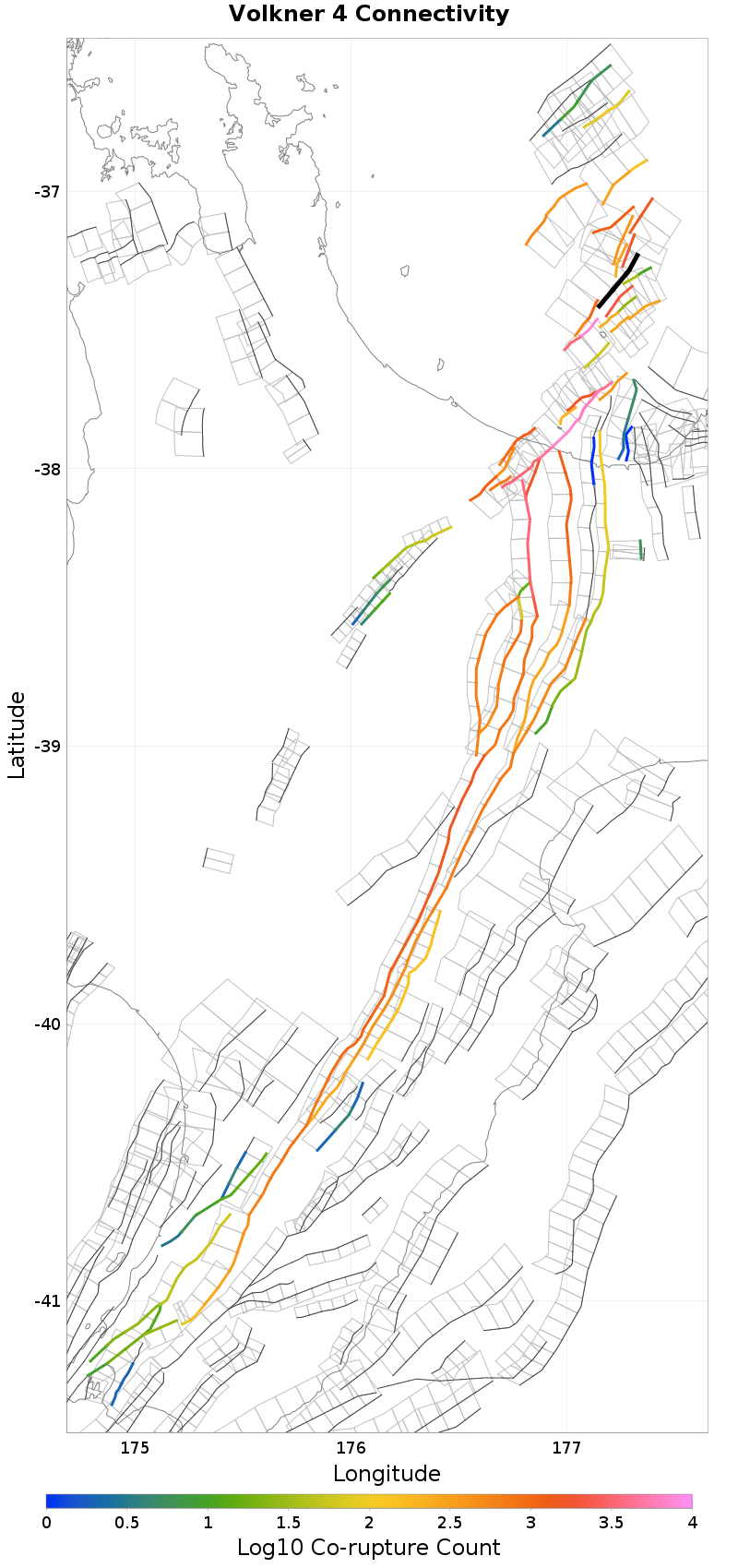

Connectivity
 |  |
|---|
Nearby Sections
Otara East 1, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 2,004 |
| Co-rupture Rate | 4.3197862E-5 |
Otara West 3, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.37 km |
| Min Rate-Weighted Dist | 0.37 km |
| Co-rupture Count | 1,161 |
| Co-rupture Rate | 9.1555004E-5 |
Volkner 3, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.38 km |
| Min Rate-Weighted Dist | 1.38 km |
| Co-rupture Count | 1,031 |
| Co-rupture Rate | 1.2609978E-4 |
Otara West 1, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.61 km |
| Min Rate-Weighted Dist | 1.61 km |
| Co-rupture Count | 292 |
| Co-rupture Rate | 2.4340689E-4 |
Te Arawa 3, 1.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 37 |
| Co-rupture Rate | 0.0 |
Te Arawa 2, 4.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.02 km |
| Min Rate-Weighted Dist | 4.02 km |
| Co-rupture Count | 2,125 |
| Co-rupture Rate | 2.8127915E-4 |
Otara West 2, 4.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.57 km |
| Min Rate-Weighted Dist | 4.57 km |
| Co-rupture Count | 387 |
| Co-rupture Rate | 2.4340689E-4 |
Whakaari 4, 5.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.31 km |
| Min Rate-Weighted Dist | 5.31 km |
| Co-rupture Count | 7,645 |
| Co-rupture Rate | 4.3621263E-4 |
Otara East 2, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.35 km |
| Min Rate-Weighted Dist | 5.35 km |
| Co-rupture Count | 1,411 |
| Co-rupture Rate | 2.0115235E-4 |
Tuakana 7, 5.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 372 |
| Co-rupture Rate | 1.2609978E-4 |
Te Arawa 1, 6.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 244 |
| Co-rupture Rate | 2.8811648E-5 |
Tuakana 6, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 514 |
| Co-rupture Rate | 1.2609978E-4 |
Tuatoru 2, 10.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 291 |
| Co-rupture Rate | 0.0 |
Tuatoru 1, 11.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 281 |
| Co-rupture Rate | 8.9907604E-5 |
Calypso 2, 12.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 56 |
| Co-rupture Rate | 8.9907604E-5 |
Tauranga Trough East 2, 19.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 303 |
| Co-rupture Rate | 1.2609978E-4 |
