Waitotara 10 & 11 Details
| Property | Value |
|---|---|
| Rupture Count | 733 |
| Ruptures Above Sect Min Mag | 532 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.19, 7.23] |
| Length Range | [11, 123] km |
| Total Rate | 1.3807835E-4 /yr |
| Multi-Fault Rate | 1.3807835E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

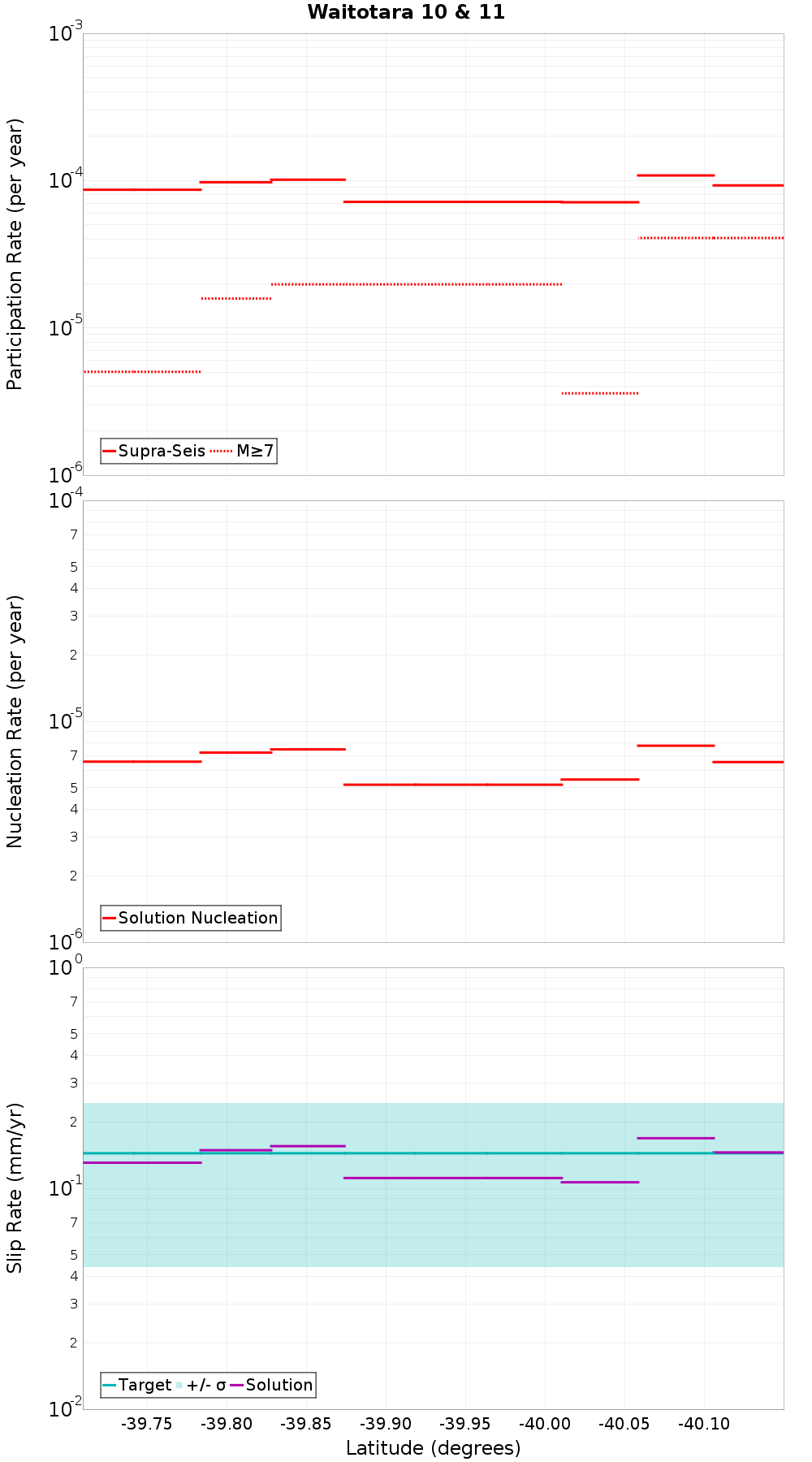

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Waverley - Okaia 1, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.33 km |
| Co-rupture Count | 163 |
| Co-rupture Rate | 3.15512E-7 |
Okaia 5, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.45 km |
| Co-rupture Count | 137 |
| Co-rupture Rate | 0.0 |
Okaia 3, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Min Rate-Weighted Dist | 0.65 km |
| Co-rupture Count | 294 |
| Co-rupture Rate | 2.5841953E-5 |
Moumahaki - Okaia 4, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Min Rate-Weighted Dist | 0.4 km |
| Co-rupture Count | 237 |
| Co-rupture Rate | 3.061718E-5 |
Ridge Road - Okaia 2, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.45 km |
| Min Rate-Weighted Dist | 3.45 km |
| Co-rupture Count | 279 |
| Co-rupture Rate | 2.6023059E-5 |
Waitotara 8 & 9, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.2 km |
| Min Rate-Weighted Dist | 1.63 km |
| Co-rupture Count | 469 |
| Co-rupture Rate | 1.224057E-4 |
Nukumuru - Waitotara 1-6, 2.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.6 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 1.9264406E-5 |
