Wanaka Details

PropertyValue
Rupture Count617
Ruptures Above Sect Min Mag614
Ruptures w/ Nonzero Rates10
Magnitude Range[6.84, 8.09]
Length Range[22, 324] km
Total Rate1.6321466E-5 /yr
Multi-Fault Rate5.4924635E-6 /yr (33.65%)
Directly-Connected Faults2
All Co-Rupturing Faults18

Table Of Contents

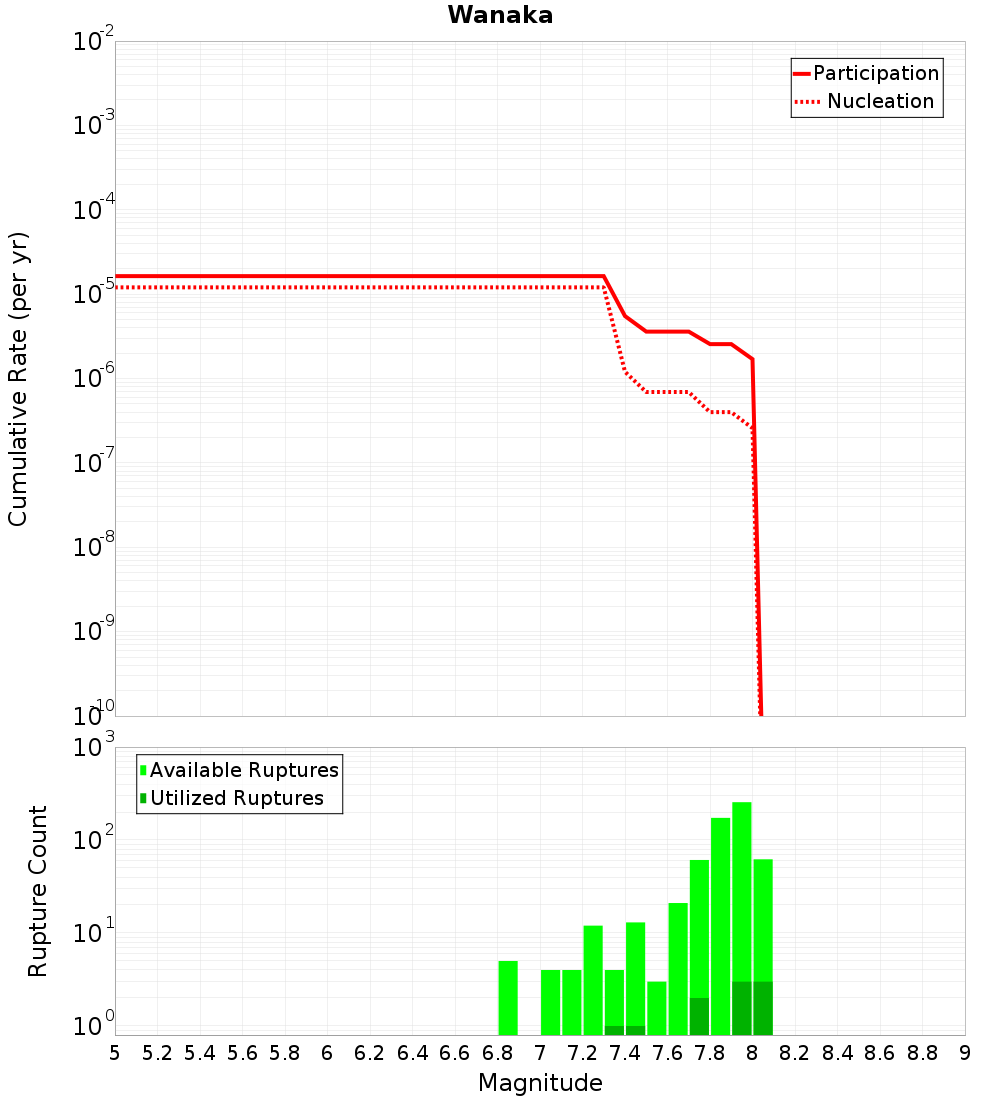

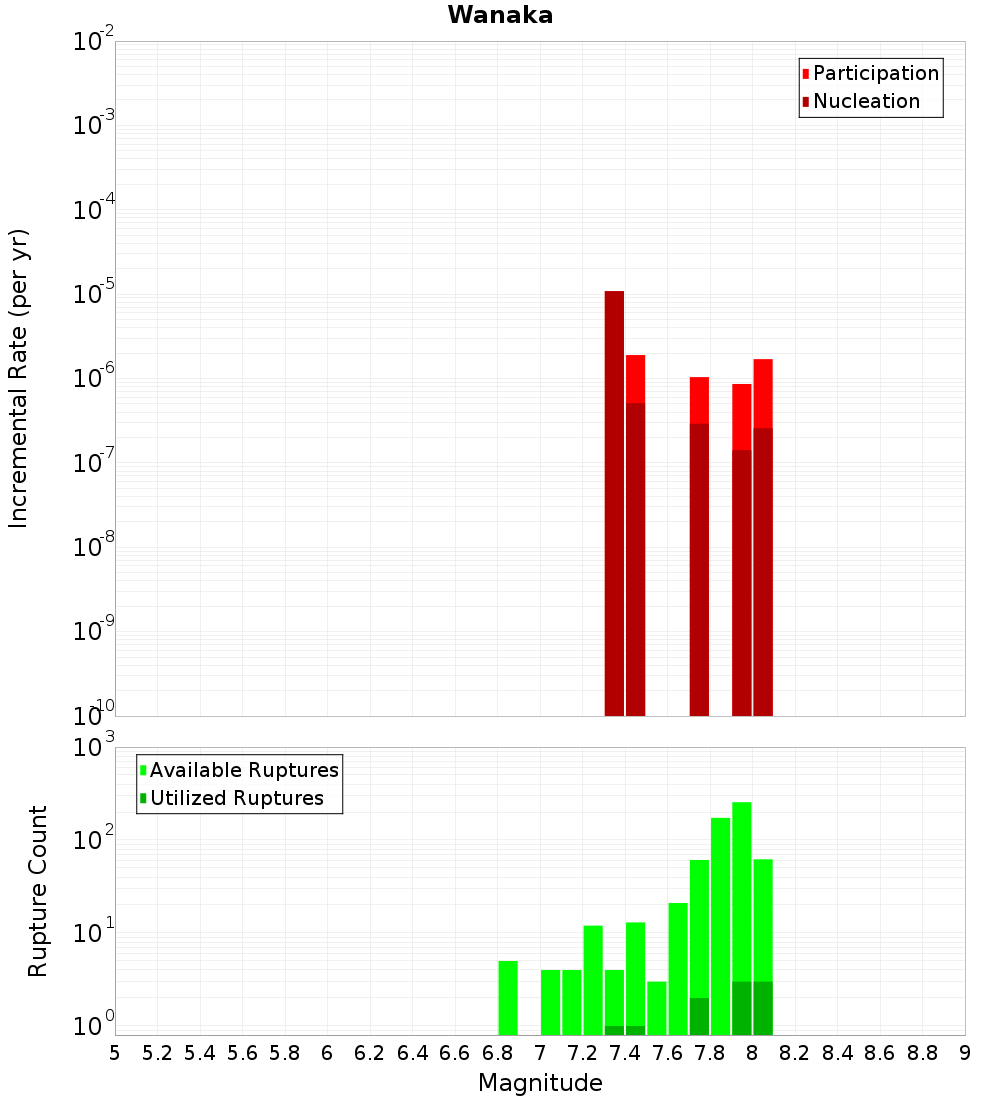

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

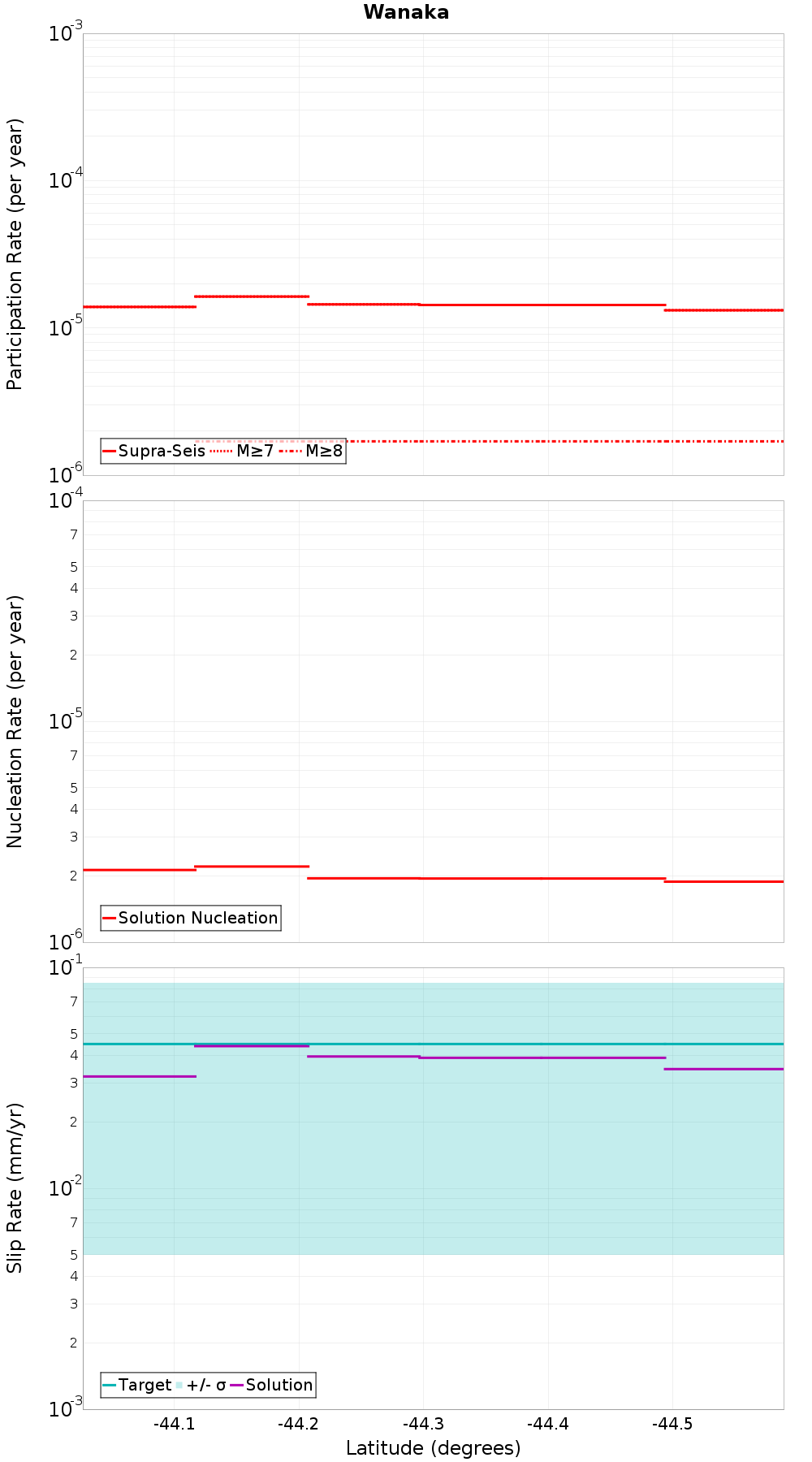

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

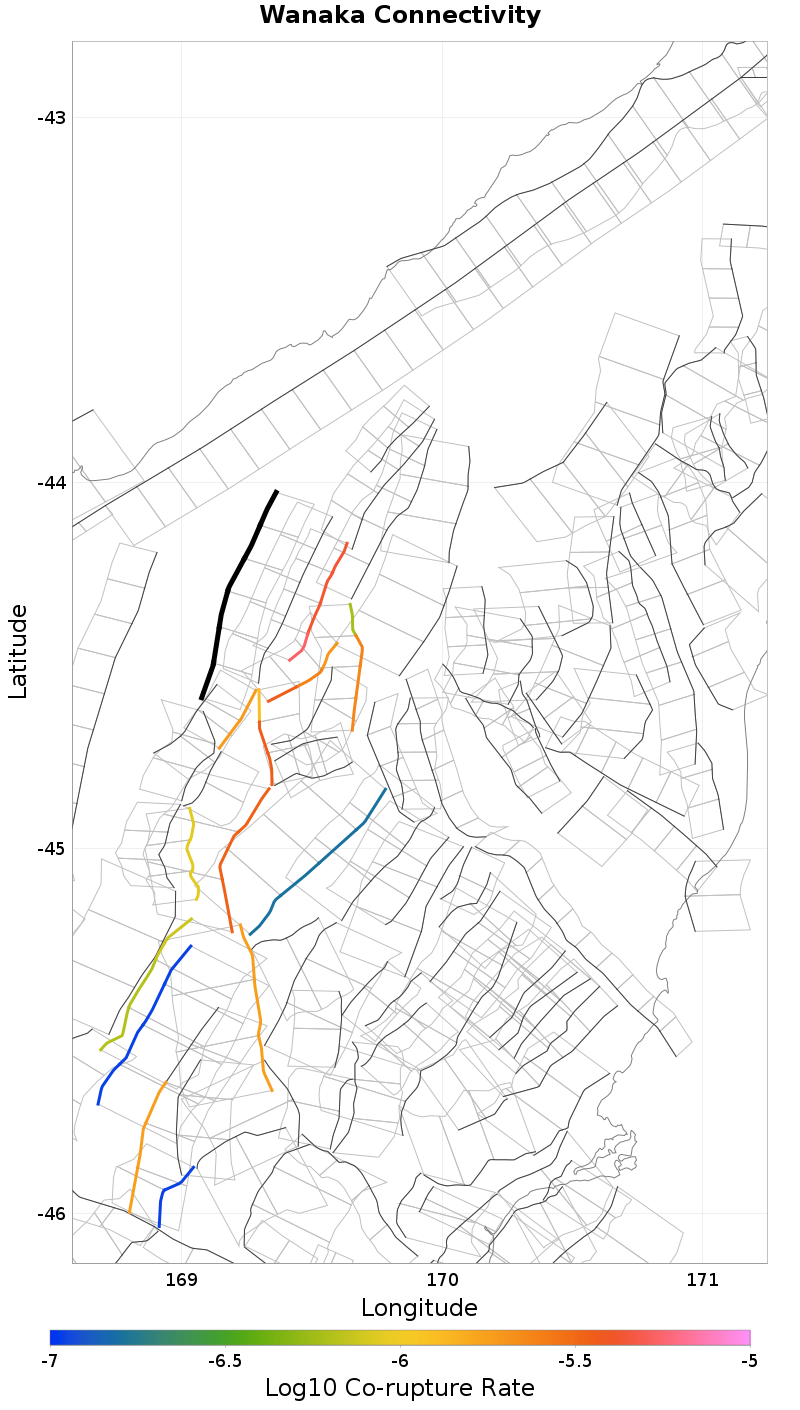

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hunter Valley, 0.22 km away
Cardrona - Hawea, 0.22 km away
Timaru Creek, 0.32 km away
Dingle, 0.43 km away
Motatapu, 1.16 km away
NW Cardrona North, 3.89 km away
Hopkins, 4.94 km away
Barrier Range, 10.76 km away
Dromedary, 12.35 km away
Grandview, 12.59 km away
Cluden, 13.1 km away
Alpine: Jacksons to Kaniere, 15.24 km away
Paddys Ridge, 16.65 km away
Huxley, 19.3 km away

Hunter Valley, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cardrona - Hawea, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.896159E-6

Timaru Creek, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count484
Co-rupture Rate3.5963046E-6

Dingle, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.43 km
Min Rate-Weighted Dist0.89 km
Co-rupture Count571
Co-rupture Rate5.4868624E-6

Motatapu, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 3.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hopkins, 4.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 10.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.35 km
Min Rate-Weighted Dist12.35 km
Co-rupture Count310
Co-rupture Rate2.448491E-6

Grandview, 12.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count582
Co-rupture Rate3.5963046E-6

Cluden, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Jacksons to Kaniere, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 16.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Huxley, 19.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
