Whangamoa Details
| Property | Value |
|---|---|
| Rupture Count | 1,114 |
| Ruptures Above Sect Min Mag | 1,108 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.85, 8.38] |
| Length Range | [23, 899] km |
| Total Rate | 8.939379E-5 /yr |
| Multi-Fault Rate | 4.4120145E-5 /yr (49.35%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 47 |
Table Of Contents

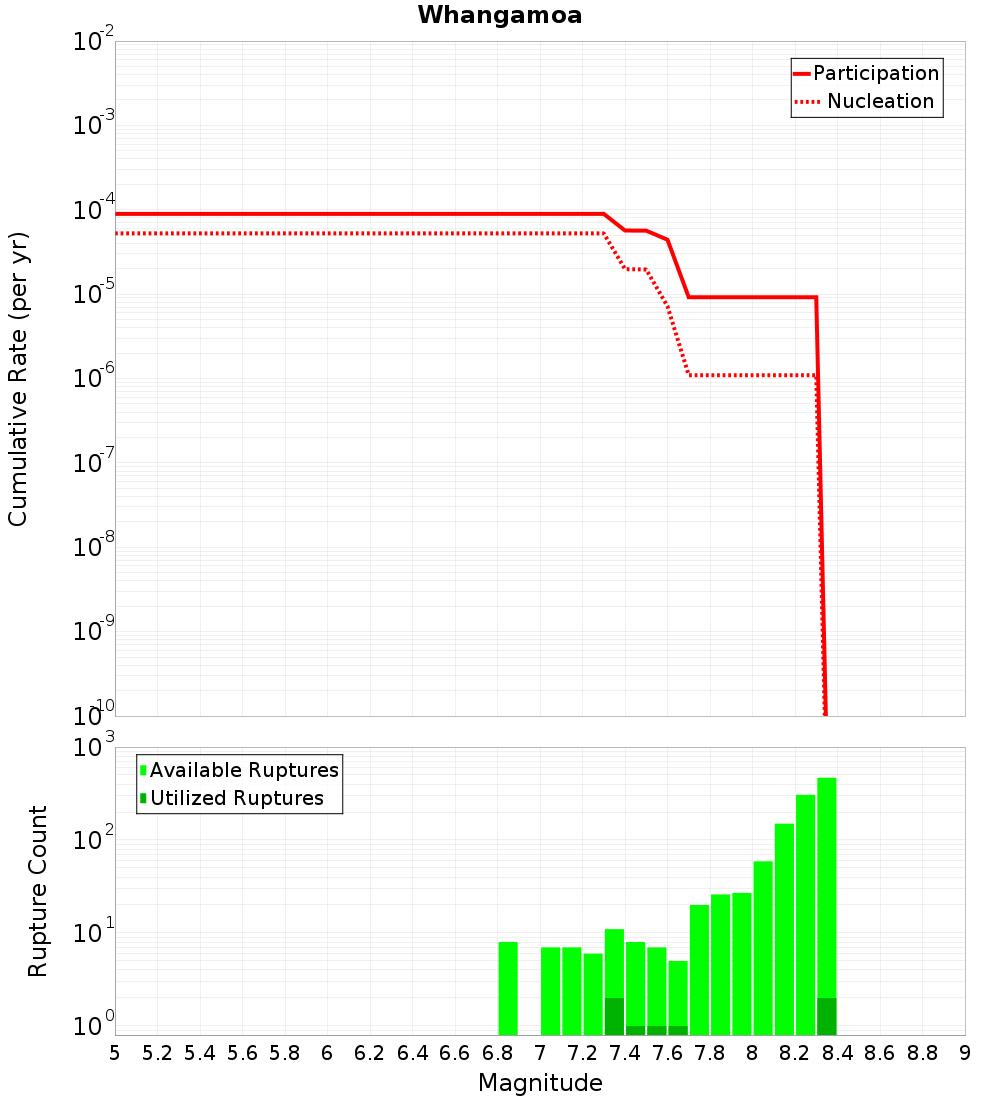

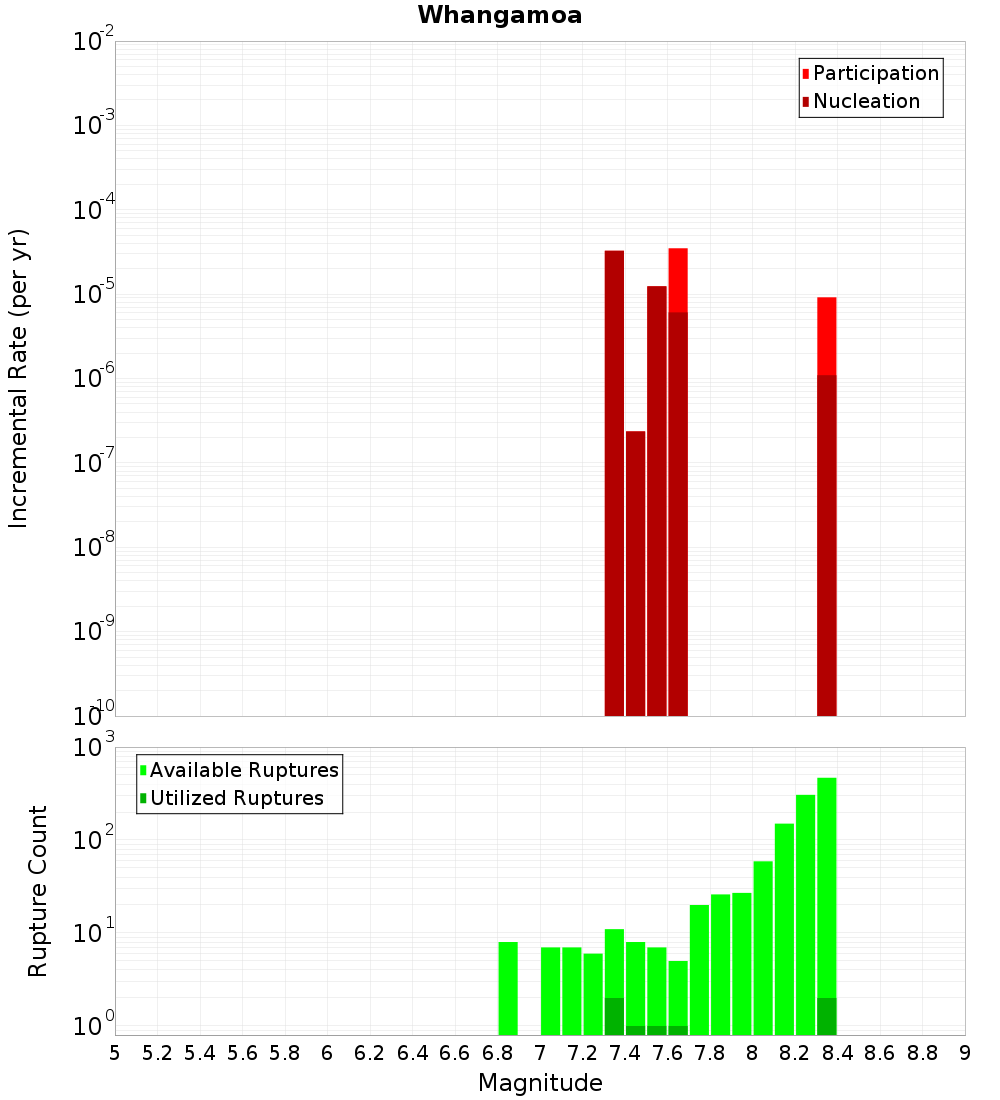

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

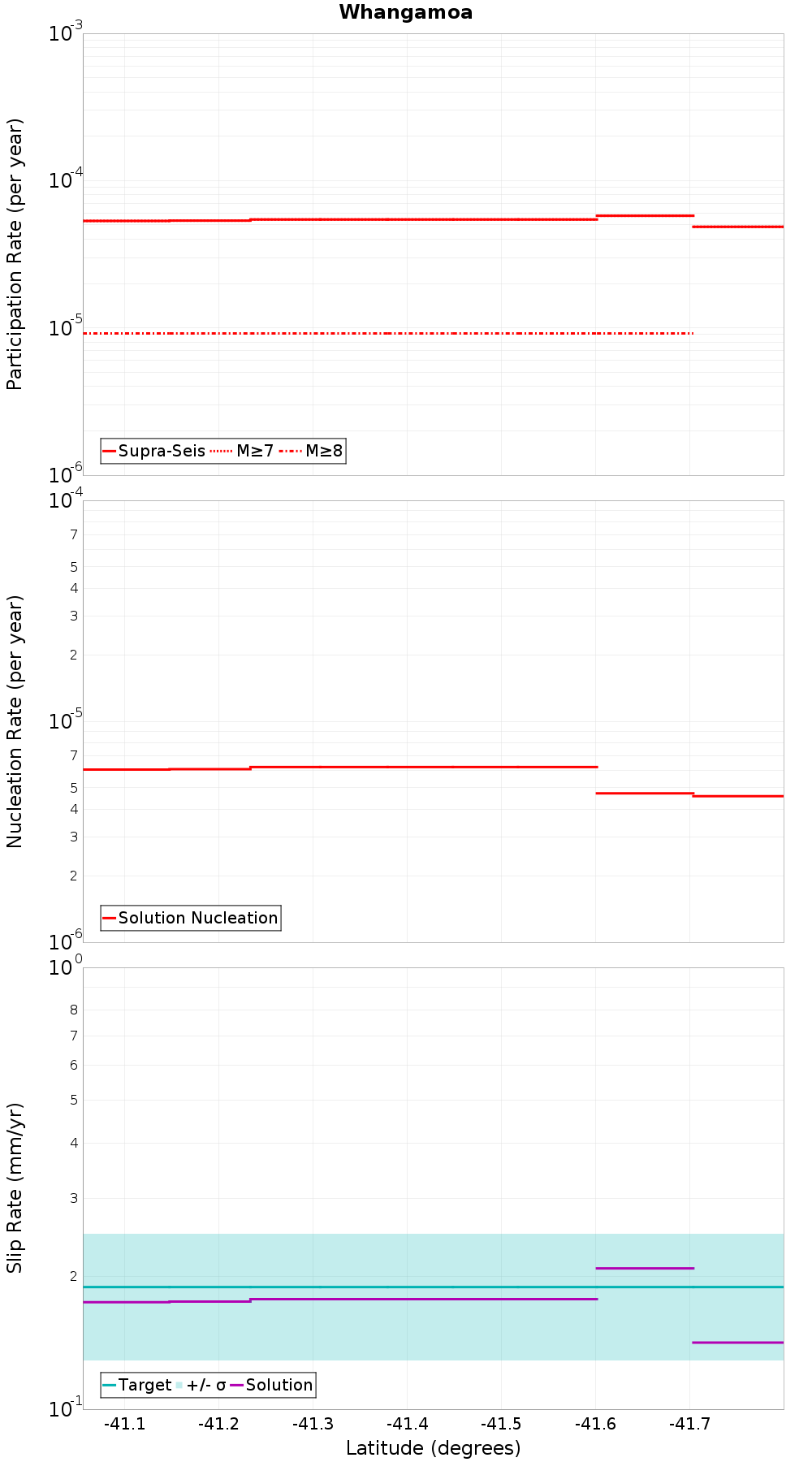

Along-Strike Values
Moment-Rates and b-Values

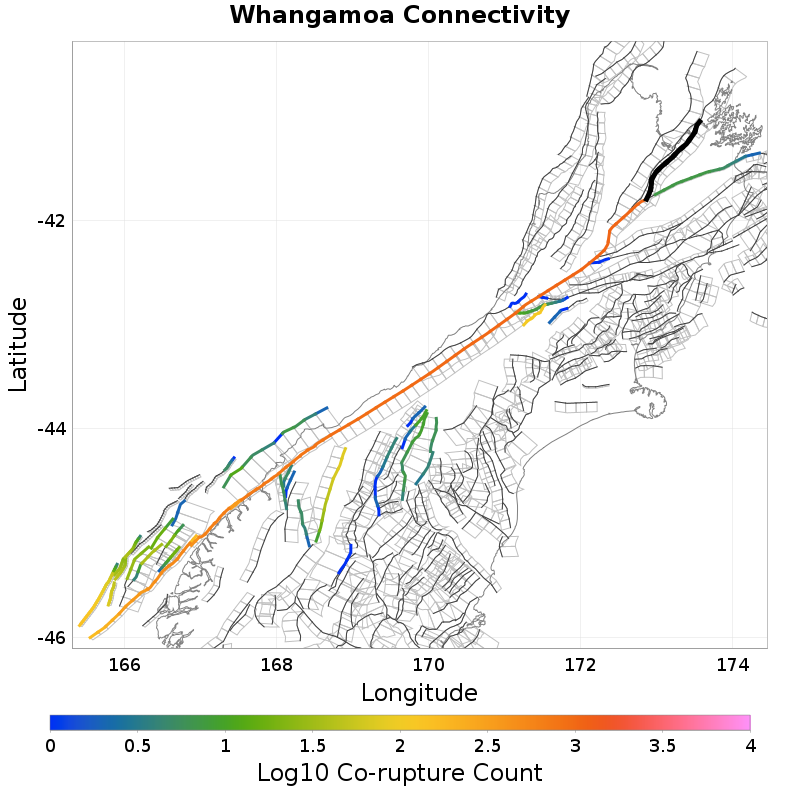

Connectivity
 |  |
|---|
Nearby Sections
Wairau, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.28 km |
| Min Rate-Weighted Dist | 0.28 km |
| Co-rupture Count | 7 |
| Co-rupture Rate | 3.495182E-5 |
Alpine: Springs Junction to Tophouse, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 11.34 km |
| Co-rupture Count | 1,071 |
| Co-rupture Rate | 9.168326E-6 |
Waimea Offshore, 0.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Flaxmore - Waimea - Tahunanui, 2.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Surville, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tutaki, 15.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruby Bay - Moutere, 15.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
