Braemar Details
| Property | Value |
|---|---|
| Rupture Count | 15,202 |
| Ruptures Above Sect Min Mag | 15,150 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.54, 8.26] |
| Length Range | [14, 537] km |
| Total Rate | 9.341437E-4 /yr |
| Multi-Fault Rate | 9.341437E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 94 |
Table Of Contents

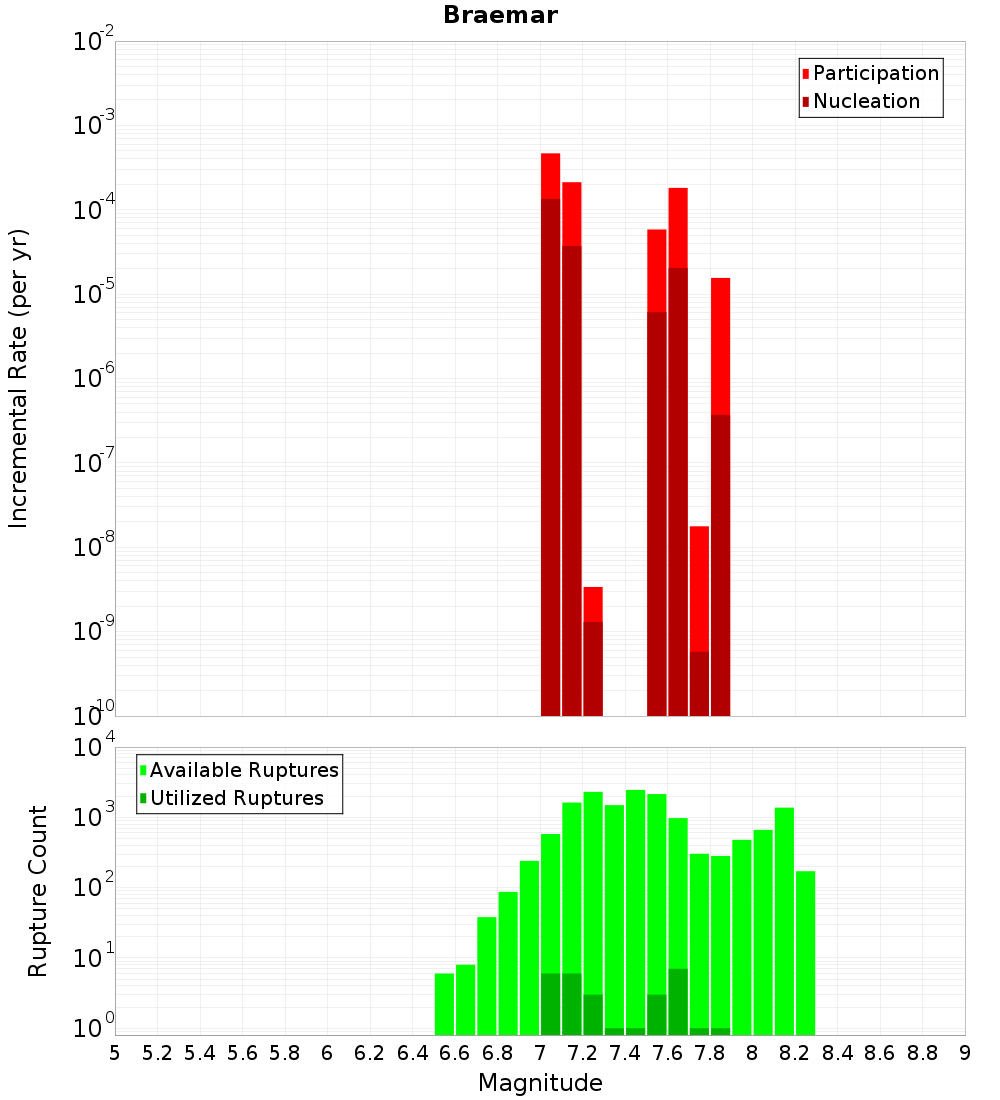

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

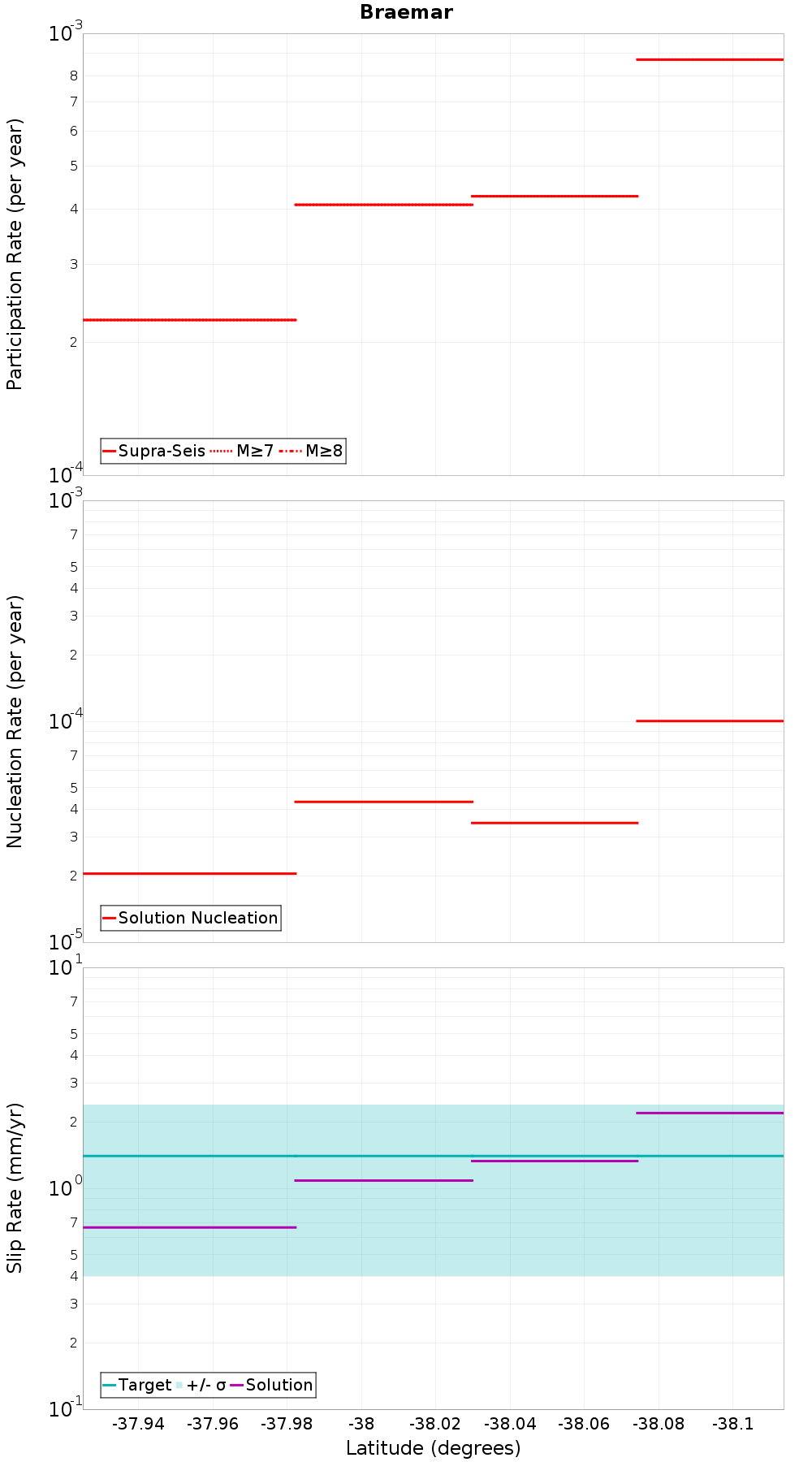

Along-Strike Values

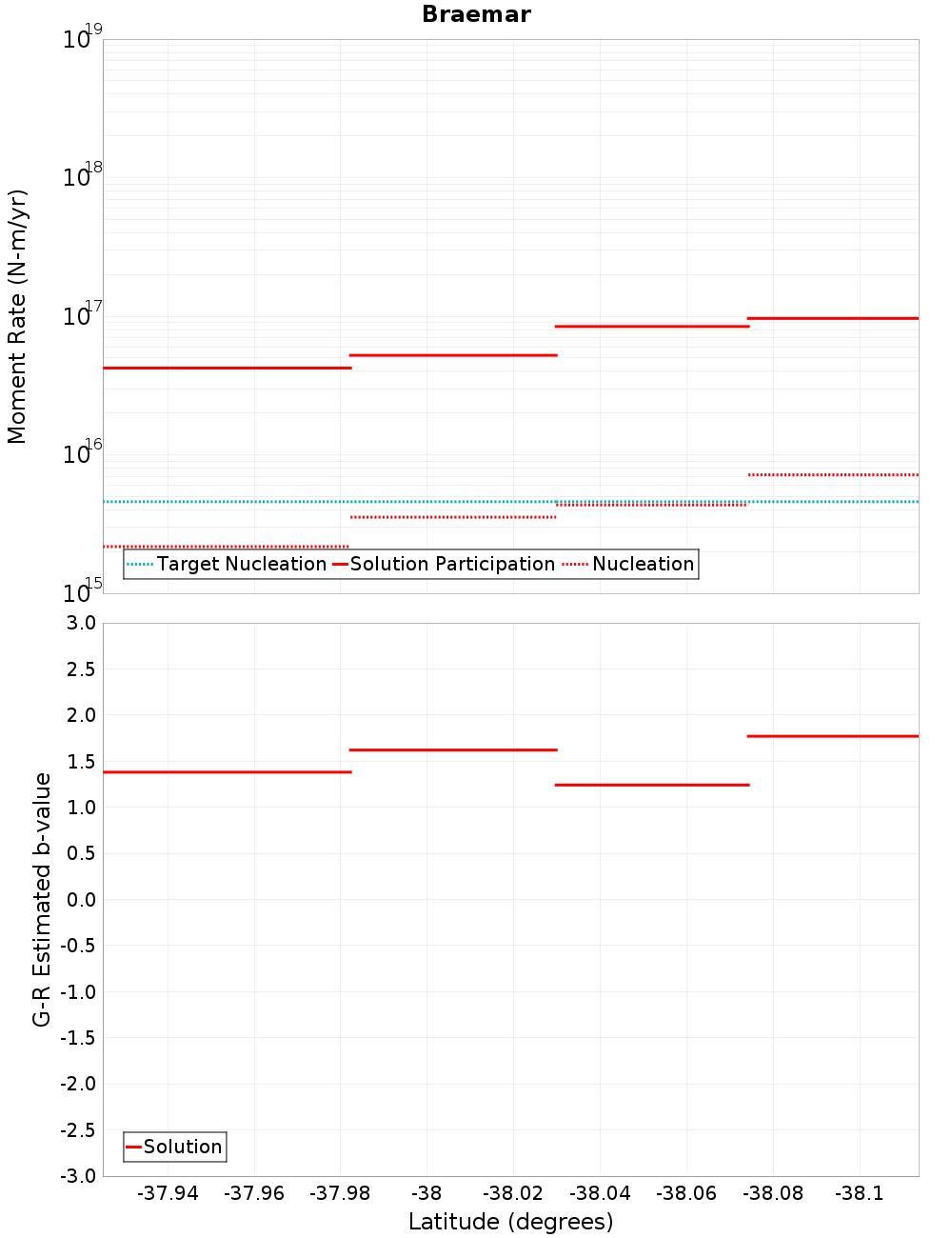

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Rotoitipakau, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 0.55 km |
| Co-rupture Count | 4,170 |
| Co-rupture Rate | 6.1115983E-4 |
Waiohau: North, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 2.92 km |
| Co-rupture Count | 3,927 |
| Co-rupture Rate | 1.558192E-5 |
Awakeri, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.35 km |
| Min Rate-Weighted Dist | 0.35 km |
| Co-rupture Count | 2,259 |
| Co-rupture Rate | 4.6519748E-5 |
Edgecumbe 1987, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.3 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 5,252 |
| Co-rupture Rate | 1.936343E-4 |
Matata, 1.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.02 km |
| Min Rate-Weighted Dist | 1.89 km |
| Co-rupture Count | 6,536 |
| Co-rupture Rate | 6.1868195E-4 |
Edgecumbe Coastal, 4.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.61 km |
| Co-rupture Count | 5,546 |
| Co-rupture Rate | 2.4015406E-4 |
Whakatane: North, 6.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
White Island 1, 11.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8,182 |
| Co-rupture Rate | 1.2744956E-4 |
EarthquakeFlat - Tumunui, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.8 km |
| Min Rate-Weighted Dist | 12.8 km |
| Co-rupture Count | 7,143 |
| Co-rupture Rate | 7.517603E-4 |
Waimana: North, 19.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 58 |
| Co-rupture Rate | 0.0 |
