Calypso 2 Details
| Property | Value |
|---|---|
| Rupture Count | 1,618 |
| Ruptures Above Sect Min Mag | 1,617 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.61, 8.23] |
| Length Range | [14, 504] km |
| Total Rate | 5.7052437E-4 /yr |
| Multi-Fault Rate | 5.7052437E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 50 |
Table Of Contents

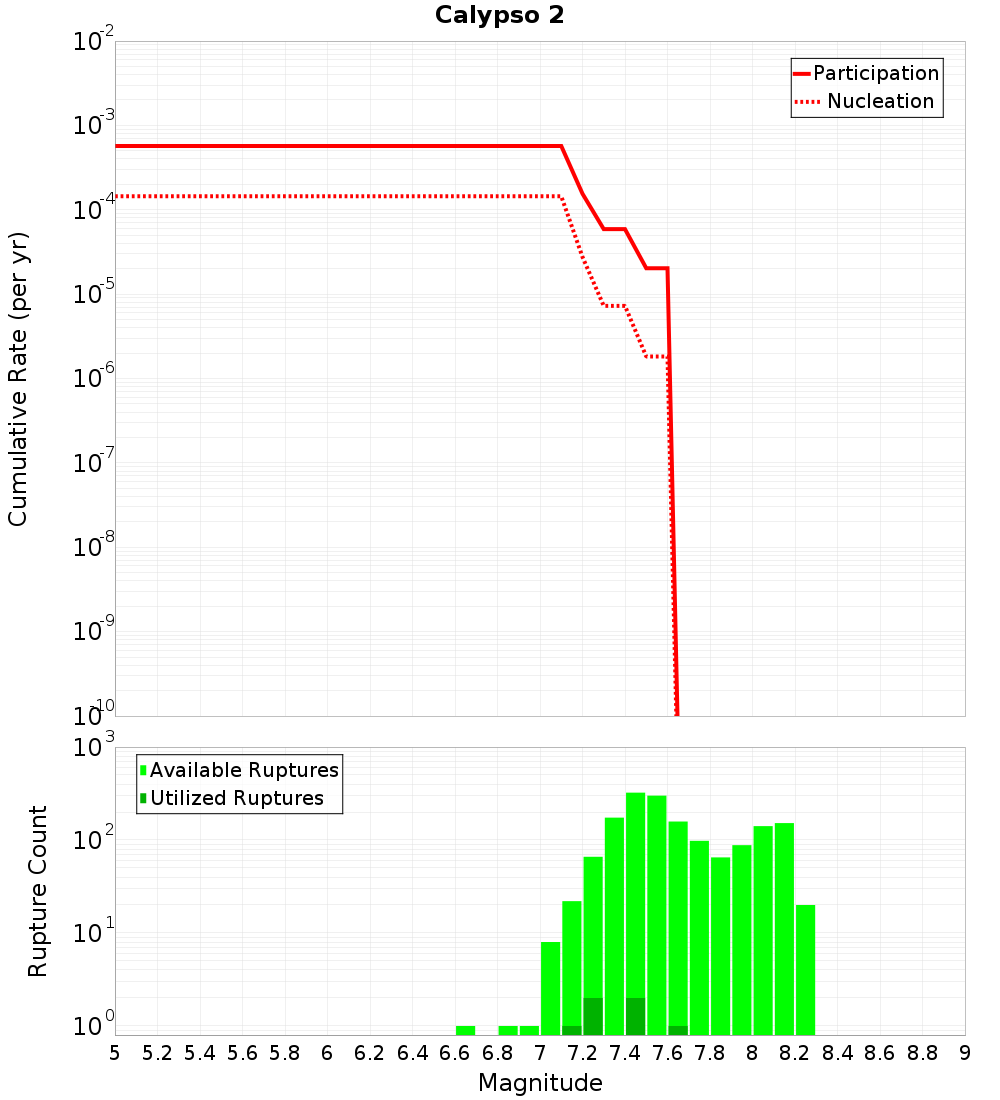

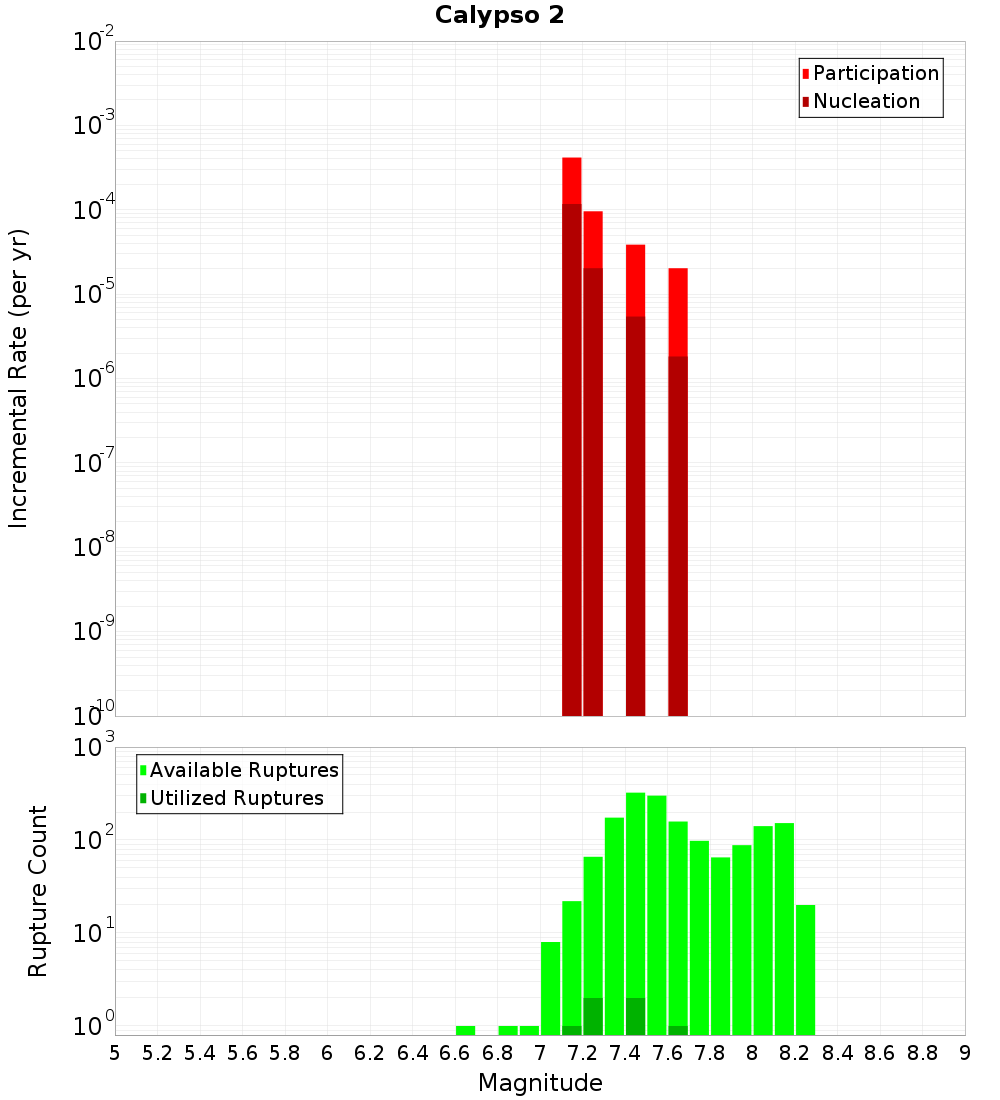

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

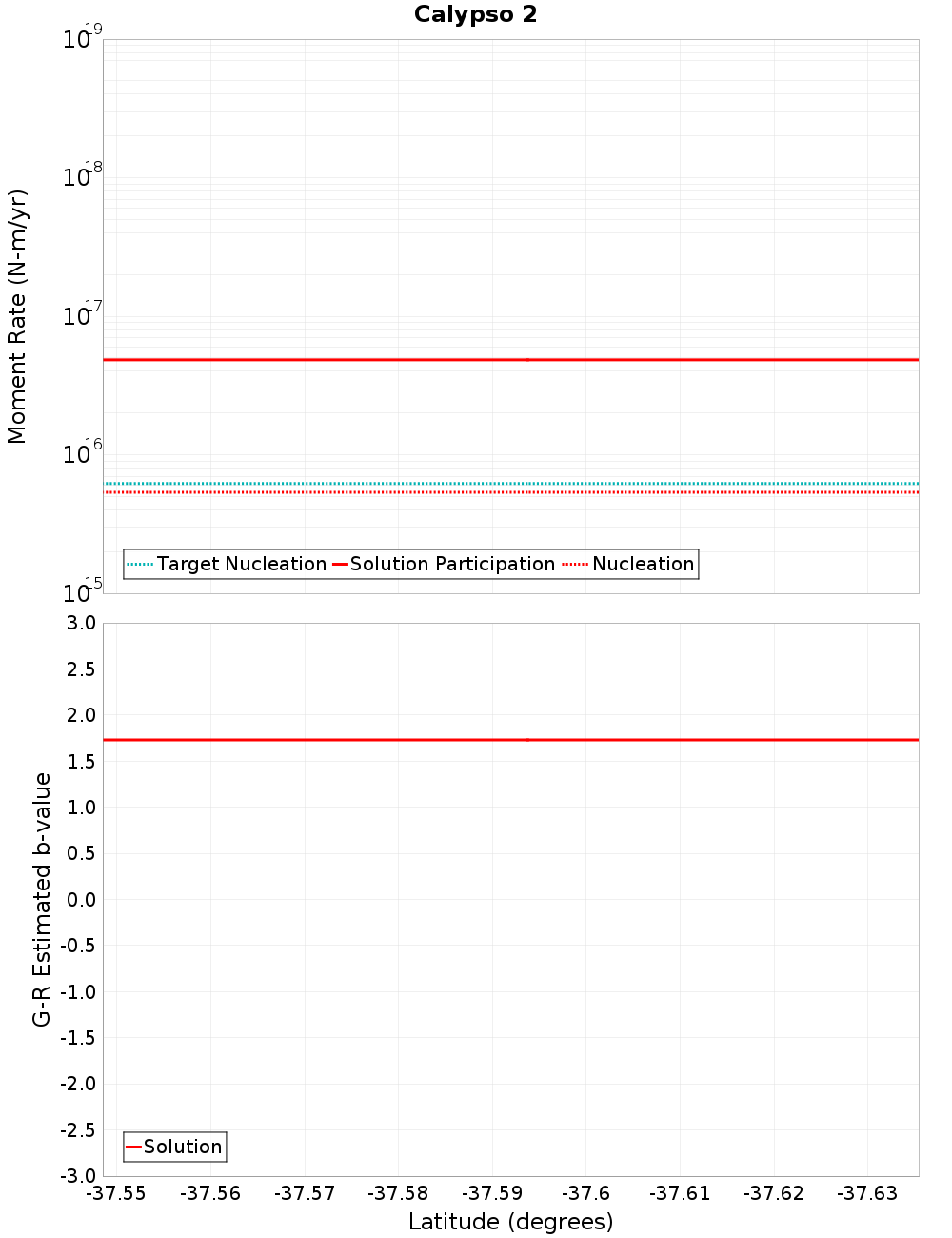

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Whakaari 4, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 621 |
| Co-rupture Rate | 3.5992132E-5 |
Te Arawa 1, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.54 km |
| Min Rate-Weighted Dist | 1.54 km |
| Co-rupture Count | 1,115 |
| Co-rupture Rate | 4.5175556E-4 |
Tuatoru 1, 3.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.86 km |
| Min Rate-Weighted Dist | 3.86 km |
| Co-rupture Count | 394 |
| Co-rupture Rate | 1.18768825E-4 |
Te Arawa 2, 6.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 37 |
| Co-rupture Rate | 5.121691E-5 |
Rangitaiki 2, 8.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.03 km |
| Min Rate-Weighted Dist | 8.03 km |
| Co-rupture Count | 880 |
| Co-rupture Rate | 2.2876642E-5 |
Ohiwa 1, 8.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 74 |
| Co-rupture Rate | 0.0 |
White Island 1, 8.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,414 |
| Co-rupture Rate | 2.0275374E-5 |
Volkner 3, 9.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 2, 10.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 513 |
| Co-rupture Rate | 0.0 |
Volkner 4, 12.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 56 |
| Co-rupture Rate | 5.121691E-5 |
Tuatoru 2, 12.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 138 |
| Co-rupture Rate | 1.03544044E-4 |
Rangitaiki 1, 14.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 125 |
| Co-rupture Rate | 2.6012679E-6 |
Waimana - Waikaremoana, 14.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 3, 16.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 51 |
| Co-rupture Rate | 0.0 |
Ohae 1, 17.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 3, 18.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 32 |
| Co-rupture Rate | 4.9643085E-4 |
Hariki, 18.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
