Carterton Details

Property	Value
Rupture Count	2,926
Ruptures Above Sect Min Mag	2,905
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.49, 8.24]
Length Range	[14, 527] km
Total Rate	5.237179E-4 /yr
Multi-Fault Rate	5.237179E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

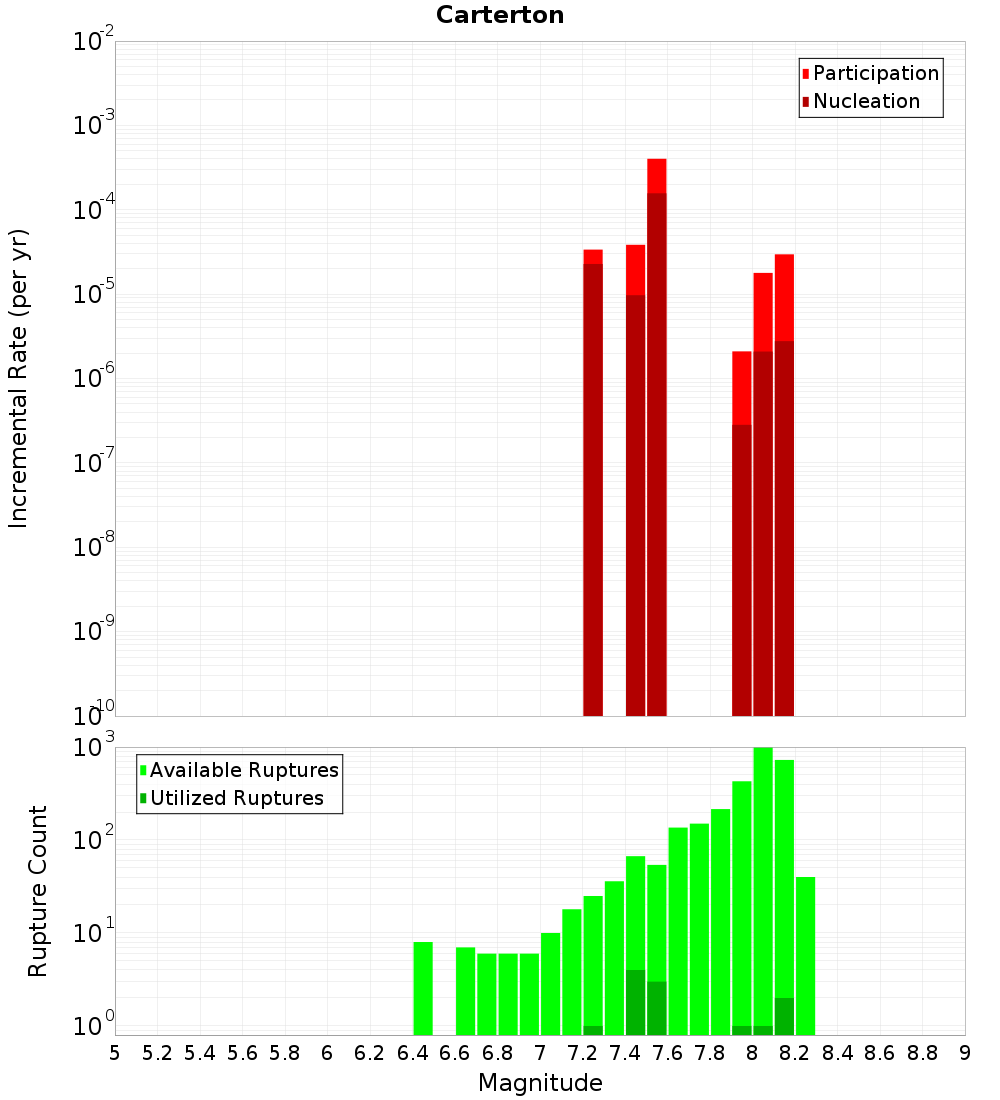

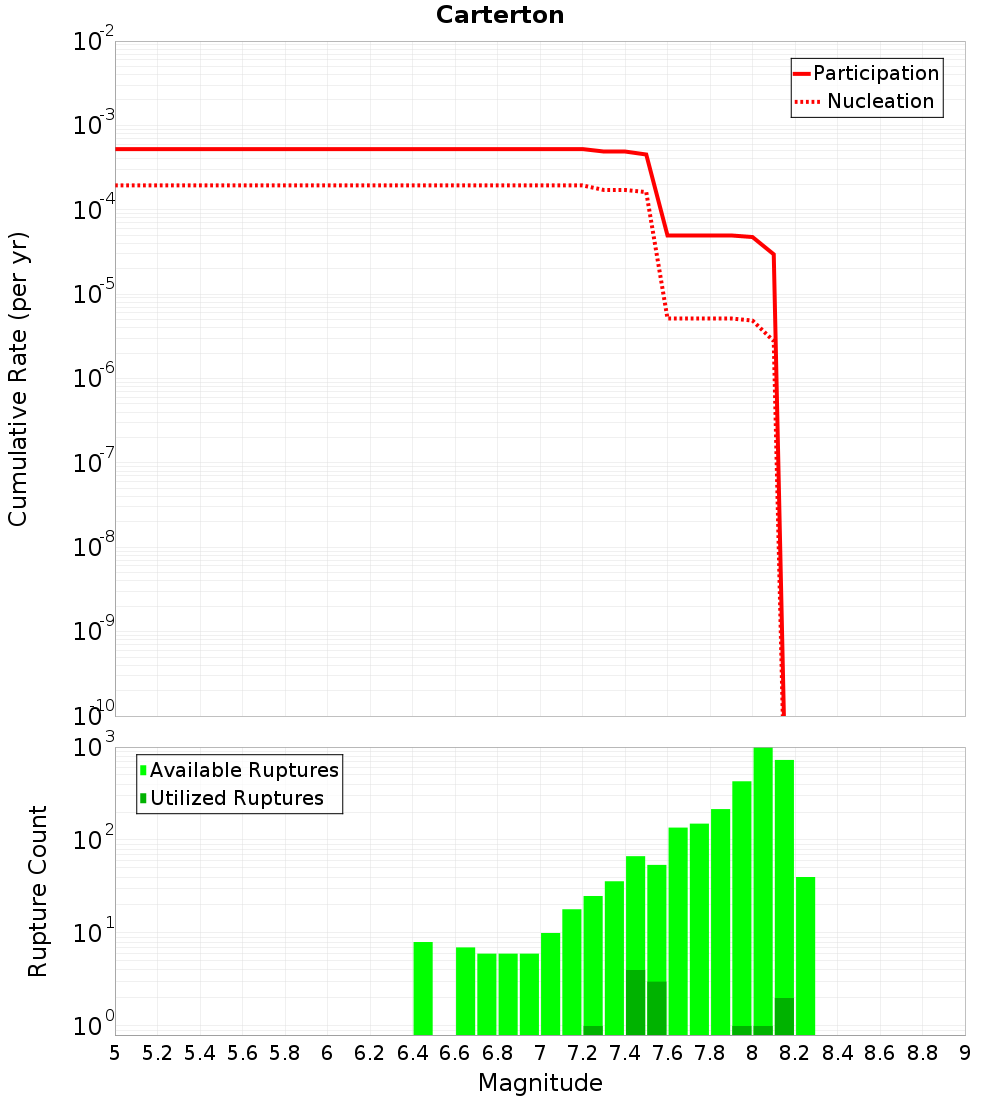

Magnitude-Frequency Distribution

Incremental	Cumulative

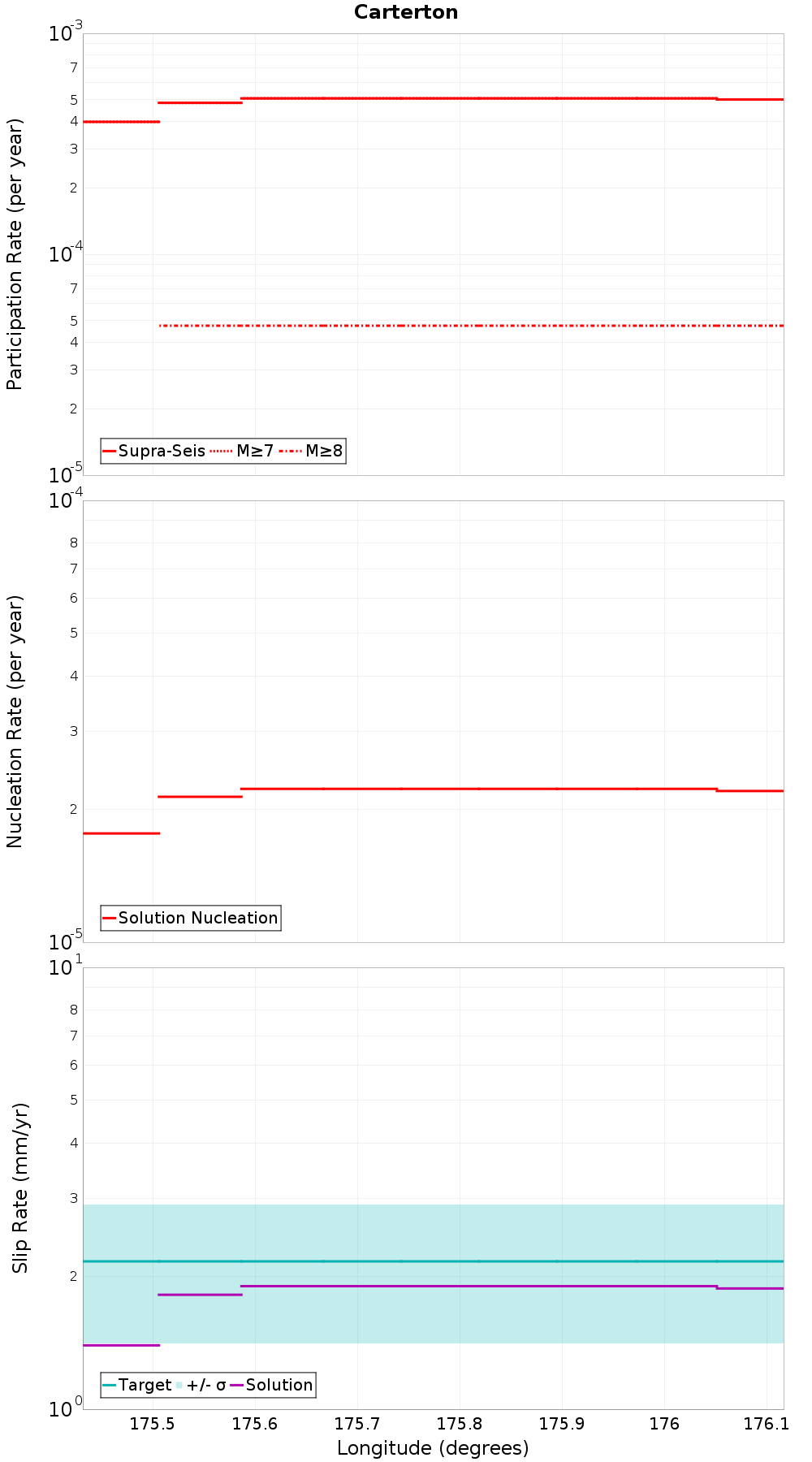

Along-Strike Values

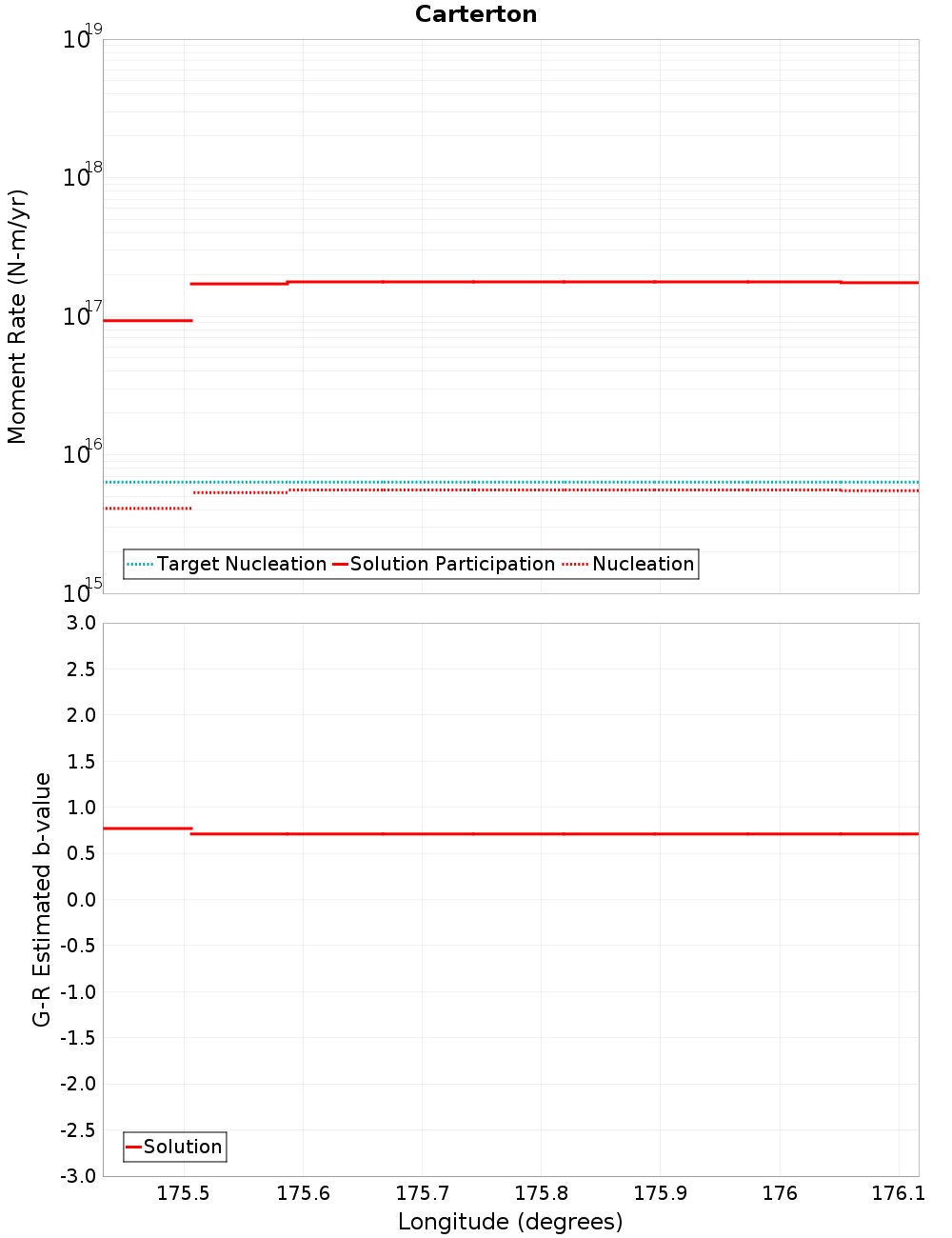

Moment-Rates and b-Values

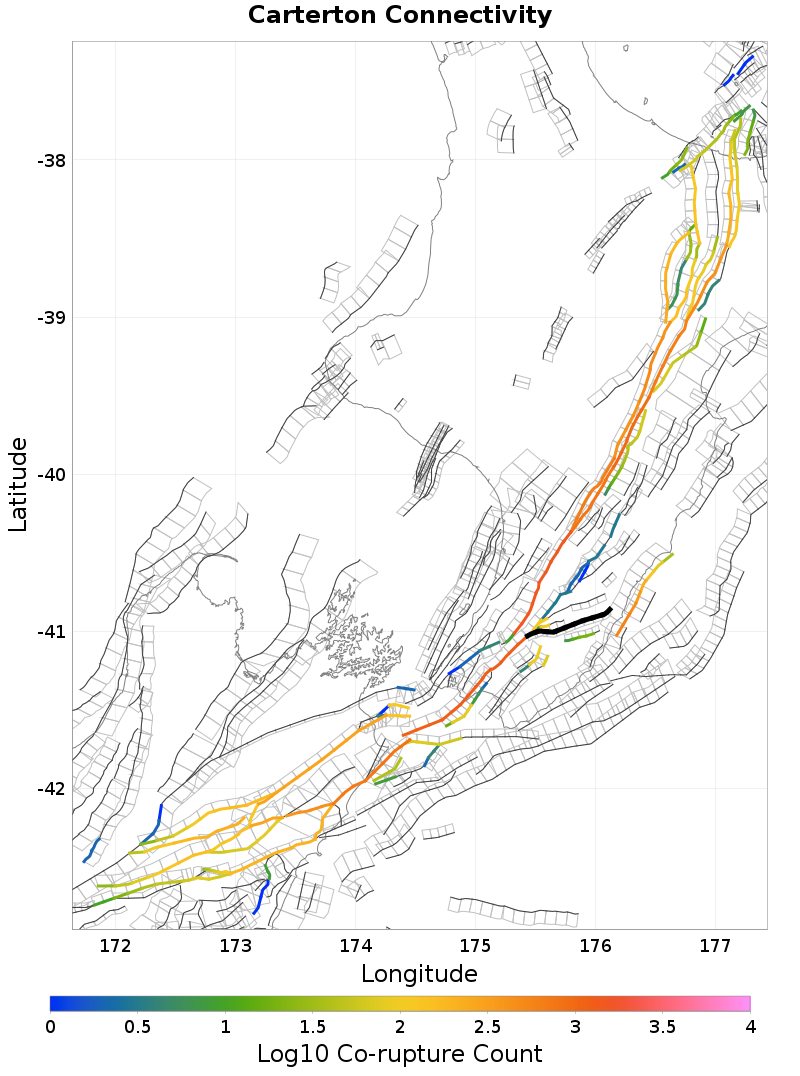

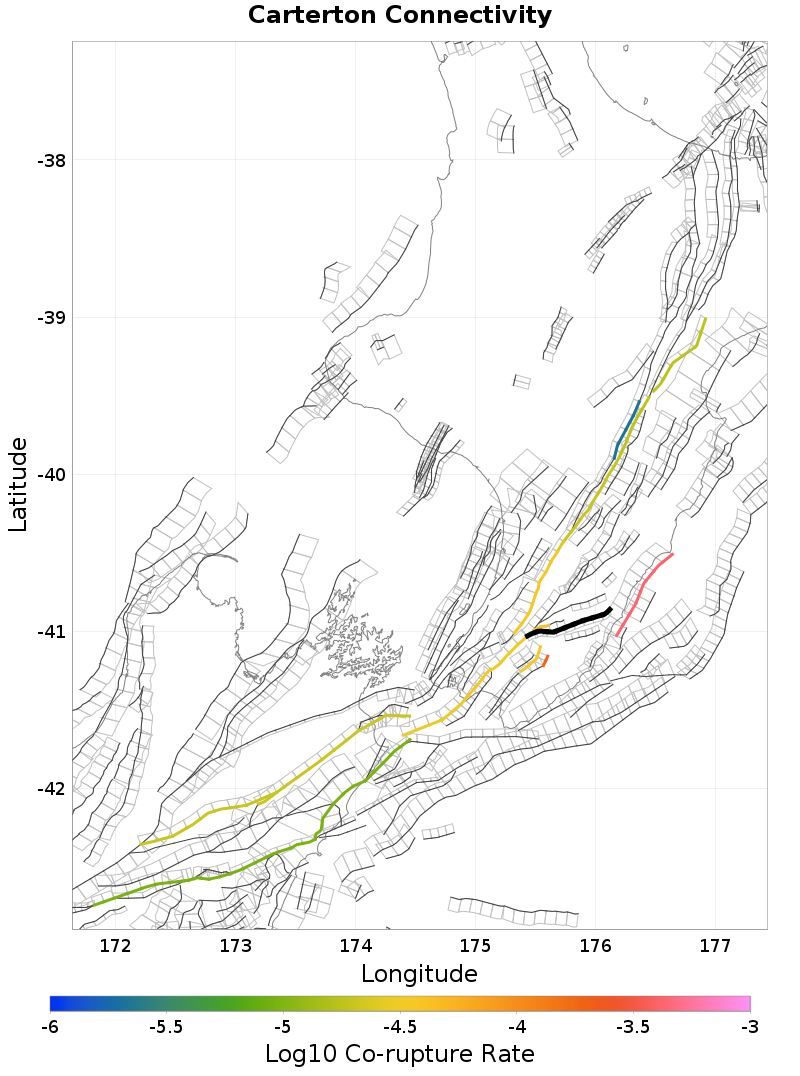

Connectivity

Nearby Sections

Fault Section	Fault Section
Wairarapa: 3, 0.02 km away	Mokonui Northeast, 10.01 km away
Wairarapa: 2, 0.05 km away	Dry River - Huangarua: 3, 10.46 km away
Mataikona, 0.19 km away	Riversdale, 12.56 km away
Masterton, 0.31 km away	Uruti Point, 13.16 km away
Martinborough, 1.44 km away	Dry River - Huangarua: 2, 13.6 km away
Kaumingi, 1.49 km away	Wellington: Tararua 3, 13.78 km away
Bidwill, 3.88 km away	Wellington: Tararua 1, 15.49 km away
Riversdale North, 3.92 km away	Dry River - Huangarua: 1, 17.18 km away
Mokonui Southwest, 5.7 km away	Waitawhiti, 18.52 km away
Wellington: Tararua 2, 8.44 km away	Wellington Hutt Valley: 5, 19.78 km away
Mataikona East, 9.29 km away

Wairarapa: 3, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	112
Co-rupture Rate	0.0

Wairarapa: 2, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.05 km
Min Rate-Weighted Dist	6.9 km
Co-rupture Count	1,323
Co-rupture Rate	3.3496923E-5

Mataikona, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.19 km
Min Rate-Weighted Dist	0.19 km
Co-rupture Count	571
Co-rupture Rate	4.2033324E-4

Masterton, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.23 km
Min Rate-Weighted Dist	1.23 km
Co-rupture Count	116
Co-rupture Rate	3.9198992E-5

Martinborough, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.14 km
Min Rate-Weighted Dist	4.14 km
Co-rupture Count	92
Co-rupture Rate	3.3708882E-5

Kaumingi, 1.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.41 km
Co-rupture Count	19
Co-rupture Rate	0.0

Bidwill, 3.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Riversdale North, 3.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 5.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	109
Co-rupture Rate	0.0

Wellington: Tararua 2, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.44 km
Min Rate-Weighted Dist	10.23 km
Co-rupture Count	1,485
Co-rupture Rate	3.617882E-5

Mataikona East, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Northeast, 10.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.46 km
Min Rate-Weighted Dist	10.46 km
Co-rupture Count	74
Co-rupture Rate	1.8123708E-4

Riversdale, 12.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti Point, 13.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 2, 13.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 3, 13.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,474
Co-rupture Rate	3.617882E-5

Wellington: Tararua 1, 15.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 17.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitawhiti, 18.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 5, 19.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
