Caswell High 3 Details
| Property | Value |
|---|---|
| Rupture Count | 12,638 |
| Ruptures Above Sect Min Mag | 11,718 |
| Ruptures w/ Nonzero Rates | 47 |
| Magnitude Range | [5.66, 8.49] |
| Length Range | [5, 933] km |
| Total Rate | 1.195403E-4 /yr |
| Multi-Fault Rate | 1.195403E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

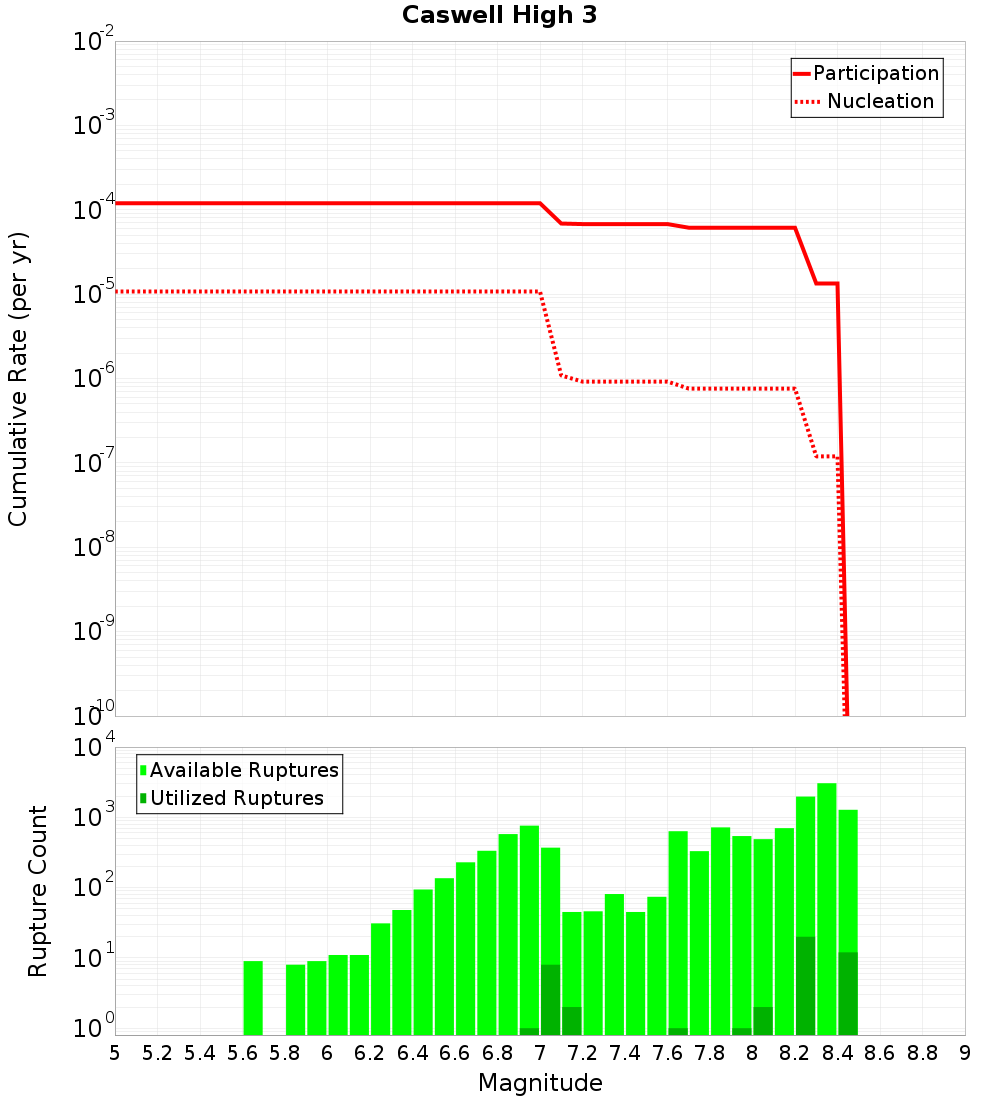

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

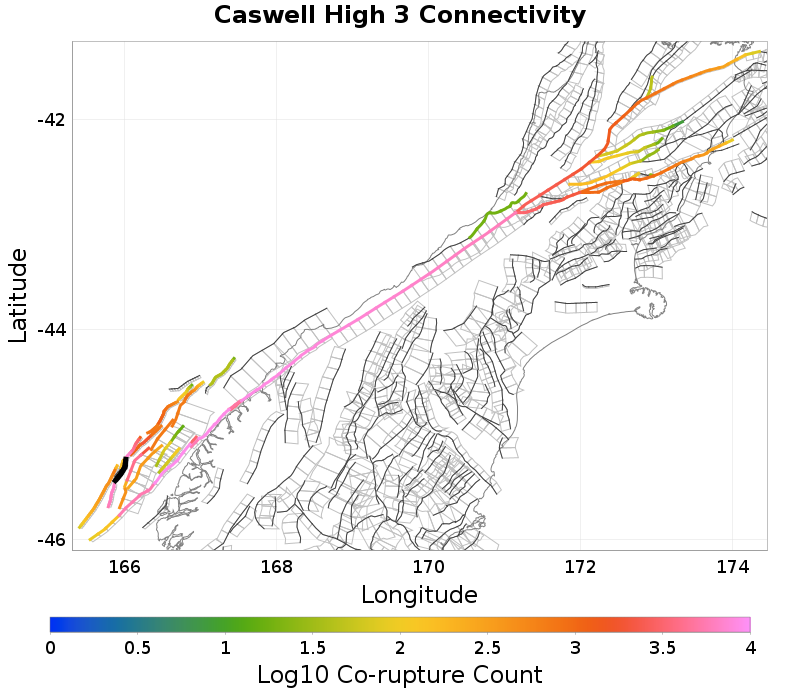

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 4, 0.94 km away |
| Caswell 211, 3.51 km away |
| Caswell High 1, 4.38 km away |
| South Wedge 5, 6.15 km away |
| Caswell High 5, 6.38 km away |
| South Wedge 3-6-10, 13.11 km away |
Caswell High 4, 0.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.94 km |
| Min Rate-Weighted Dist | 0.94 km |
| Co-rupture Count | 6,994 |
| Co-rupture Rate | 7.91811E-5 |
Caswell 211, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.51 km |
| Min Rate-Weighted Dist | 3.51 km |
| Co-rupture Count | 6,734 |
| Co-rupture Rate | 1.07611704E-4 |
Caswell High 1, 4.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.38 km |
| Min Rate-Weighted Dist | 5.1 km |
| Co-rupture Count | 684 |
| Co-rupture Rate | 1.1928599E-5 |
South Wedge 5, 6.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.15 km |
| Min Rate-Weighted Dist | 6.15 km |
| Co-rupture Count | 4,505 |
| Co-rupture Rate | 6.368738E-6 |
Caswell High 5, 6.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,095 |
| Co-rupture Rate | 5.1914052E-5 |
South Wedge 3-6-10, 13.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 6.368738E-6 |
