Conway Trough West Details
| Property | Value |
|---|---|
| Rupture Count | 42 |
| Ruptures Above Sect Min Mag | 41 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.80, 7.85] |
| Length Range | [18, 219] km |
| Total Rate | 5.8196933E-5 /yr |
| Multi-Fault Rate | 5.8196933E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

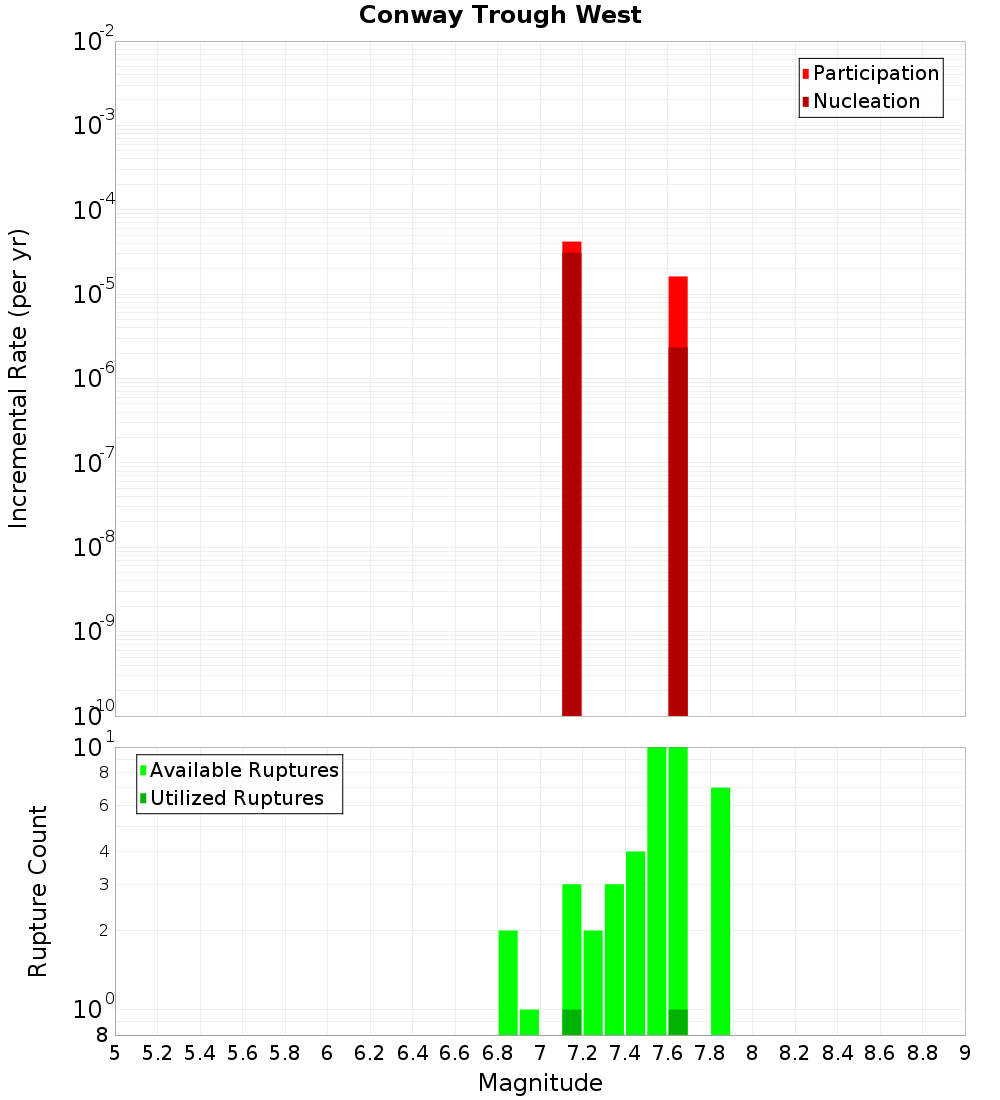

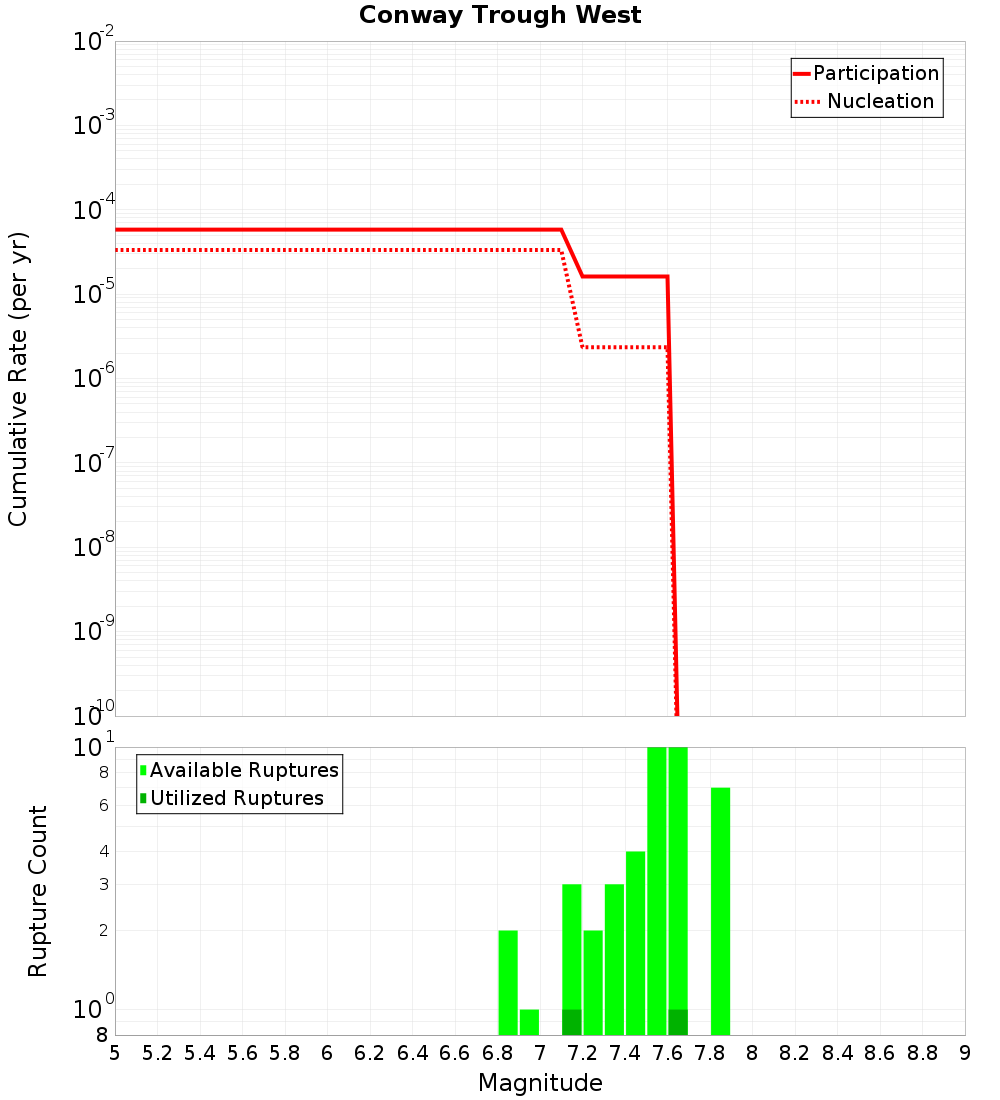

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

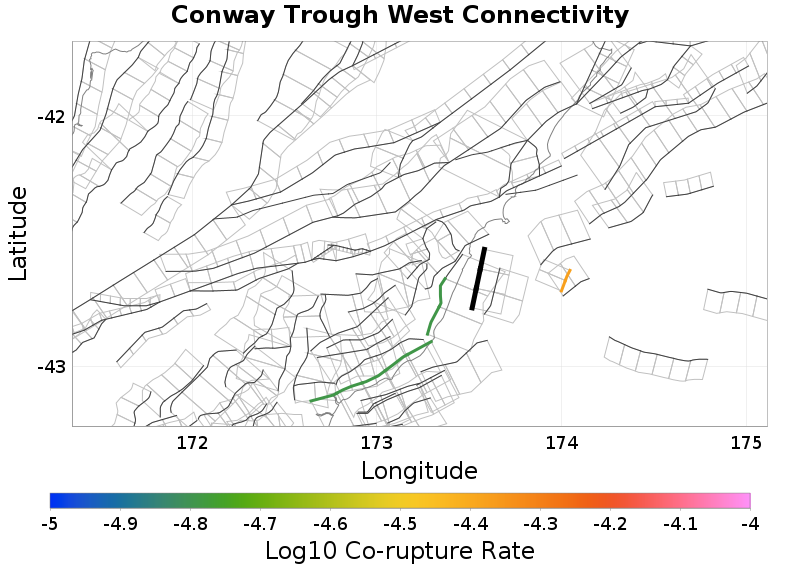

Connectivity
 |  |
|---|
Nearby Sections
Hawkswood, 2.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.07 km |
| Min Rate-Weighted Dist | 7.07 km |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.620379E-5 |
Conway Trough East, 5.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.57 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Hundalee, 5.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.22 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 0.0 |
StoneJug, 10.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Marlborough Slope 2, 11.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Marlborough Slope 11, 11.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.95 km |
| Min Rate-Weighted Dist | 11.95 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 4.1993142E-5 |
Point Gibson, 14.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Marlborough Slope 9, 16.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Conway, 19.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
