Dingle Details

Property	Value
Rupture Count	687
Ruptures Above Sect Min Mag	686
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.88, 8.19]
Length Range	[20, 324] km
Total Rate	1.14138E-5 /yr
Multi-Fault Rate	1.14138E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

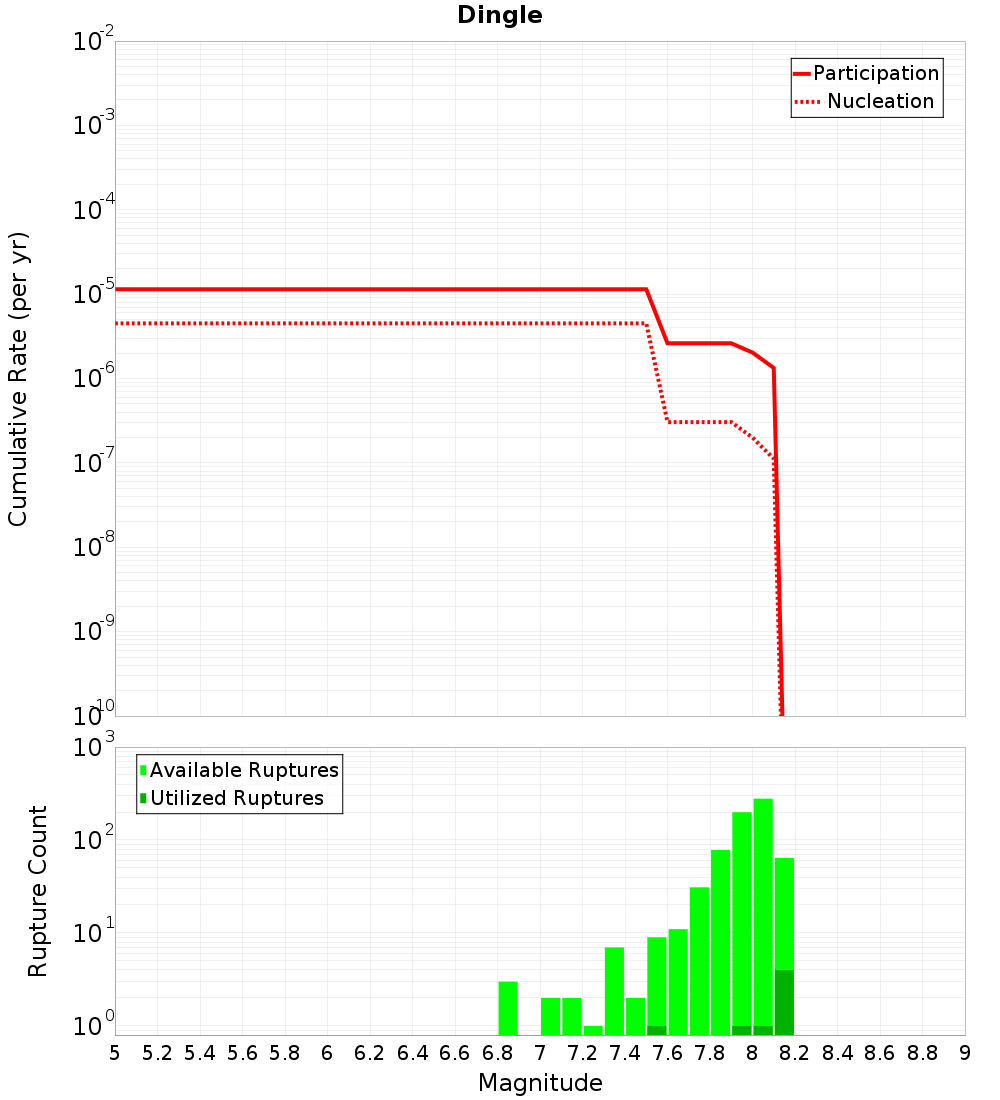

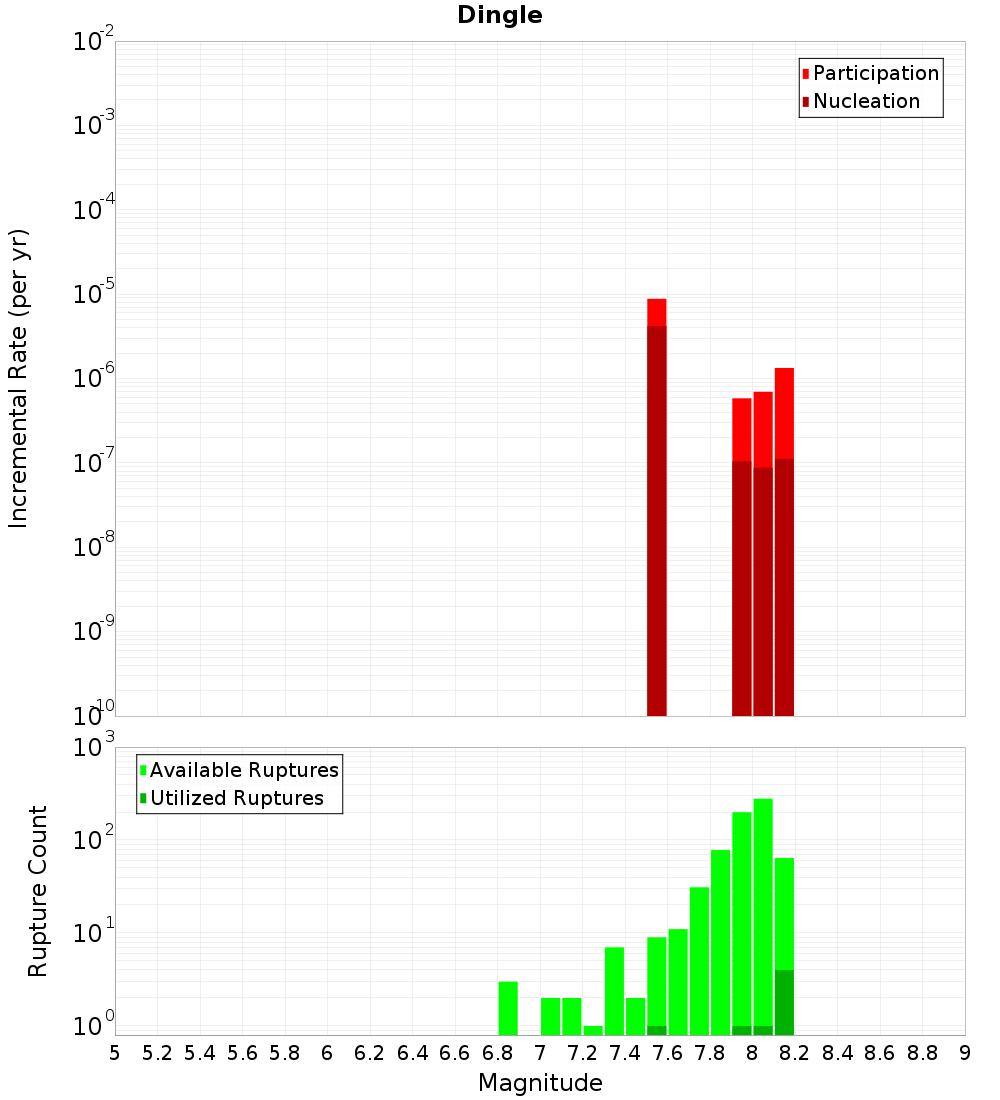

Magnitude-Frequency Distribution

Incremental	Cumulative

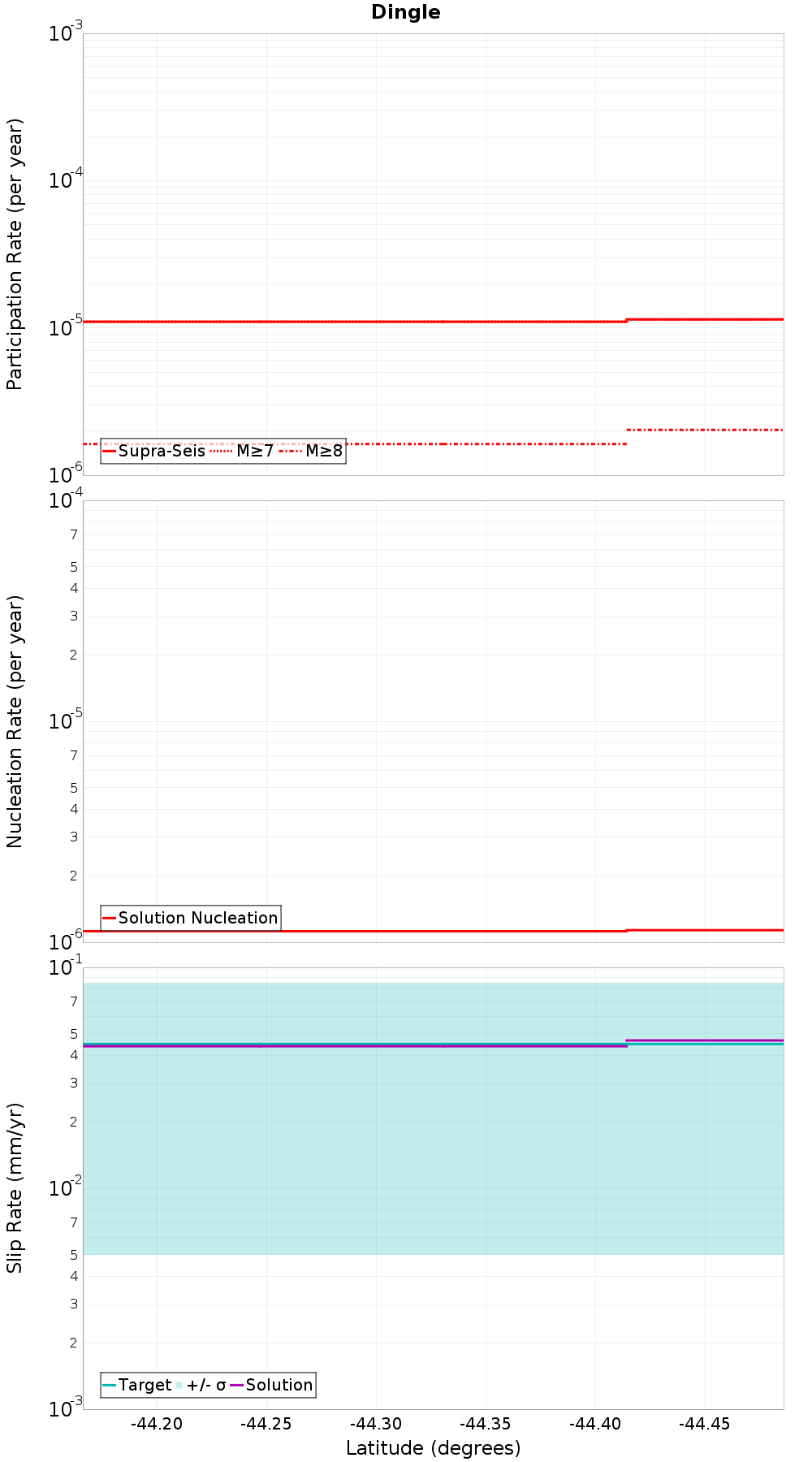

Along-Strike Values

Moment-Rates and b-Values

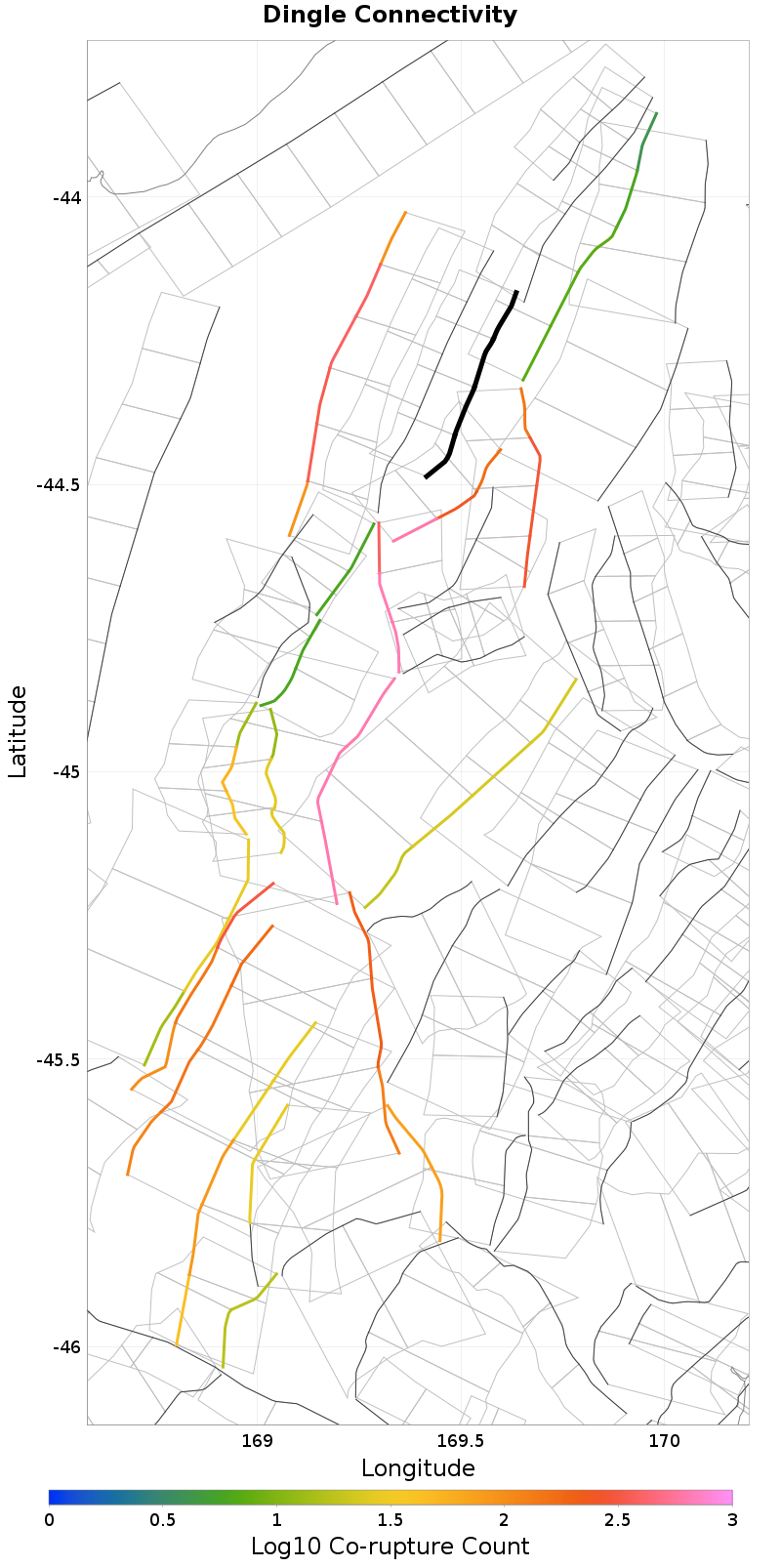

Connectivity

Nearby Sections

Fault Section
Wanaka, 0.43 km away
Hopkins, 1.8 km away
Timaru Creek, 5.03 km away
Hunter Valley, 6.56 km away
Barrier Range, 7.44 km away
Dromedary, 7.73 km away
Grandview, 9.64 km away
Lindis River, 10.56 km away
Cardrona - Hawea, 12.01 km away
Motatapu, 17.28 km away
Ostler South, 18.49 km away
Ostler North, 19.29 km away

Wanaka, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.43 km
Min Rate-Weighted Dist	1.47 km
Co-rupture Count	532
Co-rupture Rate	1.14138E-5

Hopkins, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Timaru Creek, 5.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.03 km
Min Rate-Weighted Dist	5.03 km
Co-rupture Count	617
Co-rupture Rate	2.6124324E-6

Hunter Valley, 6.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barrier Range, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Dromedary, 7.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	298
Co-rupture Rate	2.0300208E-6

Grandview, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	657
Co-rupture Rate	2.6124324E-6

Lindis River, 10.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cardrona - Hawea, 12.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	12.01 km
Min Rate-Weighted Dist	12.01 km
Co-rupture Count	6
Co-rupture Rate	8.8013685E-6

Motatapu, 17.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler South, 18.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler North, 19.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
