Dreyers Rock Details

PropertyValue
Rupture Count2,131
Ruptures Above Sect Min Mag2,125
Ruptures w/ Nonzero Rates23
Magnitude Range[6.27, 8.19]
Length Range[7, 467] km
Total Rate0.0012709423 /yr
Multi-Fault Rate0.0012709423 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults55

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

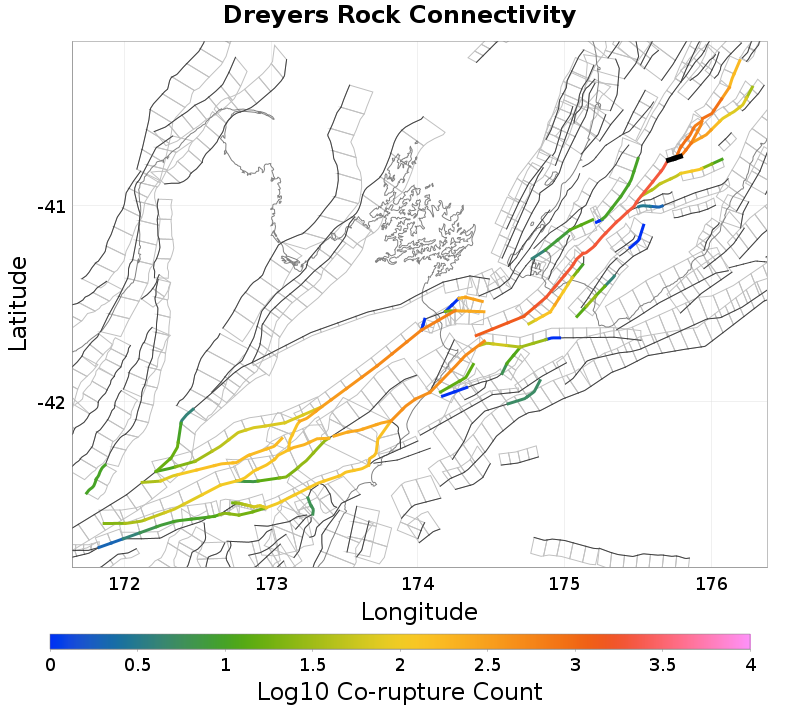

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0 km away
Pa Valley, 0.19 km away
Wairarapa: 3, 0.46 km away
Alfredton North, 5.52 km away
Saunders Road, 8.04 km away
Mokonui Northeast, 9.25 km away
Mokonui Southwest, 9.25 km away
Wellington: Pahiatua, 15.78 km away
Wellington: Tararua 3, 16.17 km away
Tokomaru, 18.11 km away
Masterton, 18.15 km away

Alfredton South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0.42 km
Co-rupture Count797
Co-rupture Rate0.0010532993

Pa Valley, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.19 km
Min Rate-Weighted Dist0.19 km
Co-rupture Count968
Co-rupture Rate1.8348682E-4

Wairarapa: 3, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.46 km
Min Rate-Weighted Dist0.46 km
Co-rupture Count2,092
Co-rupture Rate5.4360507E-4

Alfredton North, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.52 km
Min Rate-Weighted Dist5.52 km
Co-rupture Count509
Co-rupture Rate6.6560076E-4

Saunders Road, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count313
Co-rupture Rate4.2185473E-4

Mokonui Northeast, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.25 km
Co-rupture Count122
Co-rupture Rate0.0

Mokonui Southwest, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0

Wellington: Pahiatua, 15.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Tokomaru, 18.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Masterton, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
